XTOOL X100 Pro3 Professional Auto Key Programmer Add EPB, ABS, TPS Reset Functions Free Update Lifetime

As a professional Key Programmer that X100 PRO3 support EEPROM adapter. And it's an upgraded version of X100PRO2, adds EPB, ABS, TPS reset functions, which can meet the needs of more The needs of multiple car owners. 9 languaes supported makes it more convenient to most of the users.

Oil Light Reset:

Reset the engine Oil Life System, which calculates the optimum oil life change interval based on the vehicle's driving conditions and climate. The oil life reminder must be reset each time the oil is changed so that the system can calculate when the next oil change is required.

ABS Bleeding:

Allows to perform various two-way tests to check the operation of the ABS.

TPS Match:

Make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state. It can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

SAS Adjustment:

Supports recalibration of the steering angle sensor. After the calibration is successfully completed, the SAS fault memory will be automatically cleared.

EPB System Reset:

Reset the electronic parking brake system and brake pads, which also supports the brake pad replacement (retraction, release of the brake pump), G-sensor and body angle calibration

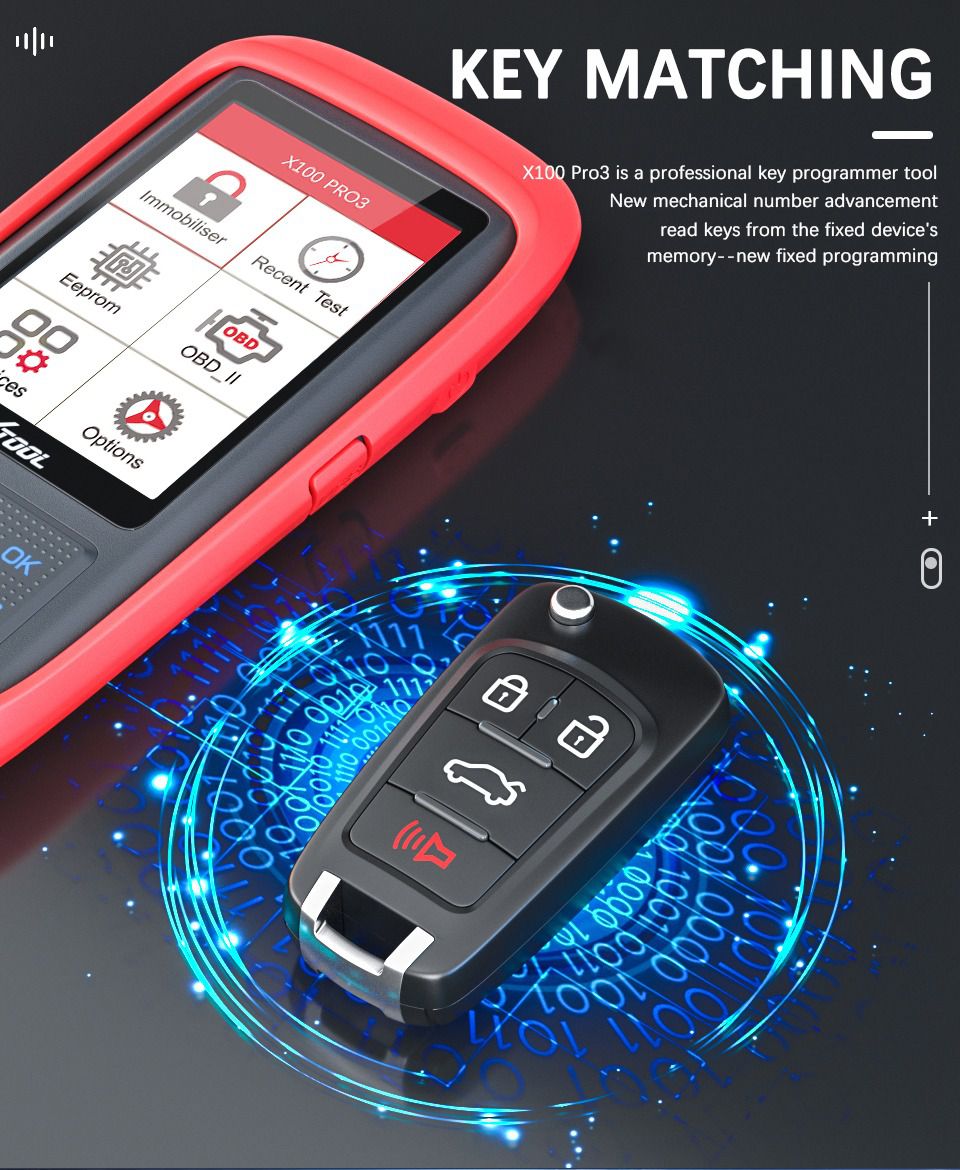

IMMO/Key Programmer:

Disable a lost vehicle key and program the replacement key fob. One or more replacement key fobs can be programmed.

EEPROM Adapter:

Read the car anti-theft password, back up, read and write and restore anti-theft data, and flash ECU data. Usually, this function is used in conjunction with IMMO or ODO reset.

Professional Key Programming Functions:

1.New keys programming

2.Reads keys from IMMObilizer's memory

3.New immobilizerprogramming

4.New remote controller programming

5.New mechanical key number programming

6.Vehicle Identification Number programming

7.Reset ECM & reset immobilizer

NOTE: IMMO & Programming are NOT universally compatible

Full OBDII Functions:

Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset: Turns off Check engine Light (MIL), clears codes and resets monitors.

Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer

On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability

Support OBD2 Engine Diagnostic Functions Including

The SAE J1850 PWM

The SAE J1850 VPW

The ISO 14230-4

The ISO 9141-2

The ISO 15765-4

.....

XTOOL X100pro3 Can Support Multi-language:

Chinese, German, English, Spanish, French, Italian, Polish, Portuguese, Russian

XTOOL X100 PRO3 Support 30+ CAR Band and 100+ car models:

for acura, for audi, for baic, for baojun,for benz, for besturn, for brilliance, for byd, for changam,for cangfeng,for changhe,for chery,for chrysler, for dfliuzhou,for ferrari,for fiat,for ford,for geely,for gm,for greatwall,for hafei,for hawtai, for honda,for hongqi,for hyundai,for infiniti,for jac,for jaguar,for kia,for landrover, for lexus,for lifan, for lincoln, for lufeng,for luxgen, for mazda,for mg,for mitsubishi, for nissan,for opel,for peugeot,for porsche,for renault, for seat,for skoda,for smart,for ssangyong,for subaru,for suzuki,for toyota,for volkswagen,

NOTE: Pls contact the seller to check if the fucntion support your car before buying.

*How to make Update?

1.Go to Xtool Official Website and go inside the X100 PRO2

2.Contact the X100 PRO2 with the Laptop

3.Download the Update helper then click the update for the newest software

*How to back to normal when the device displays a white screen or no application?

Step 1: Connect PRO2 to a Windows PC, find the memory card, and format it.

Step 2: Log in the upgrade tool and click upgrade

(Attention！！！During the upgrade, please do not operate the key of the machine or disconnect the data line. After the upgrade prompt is successful, unplug the data cable and reconnect it.)
