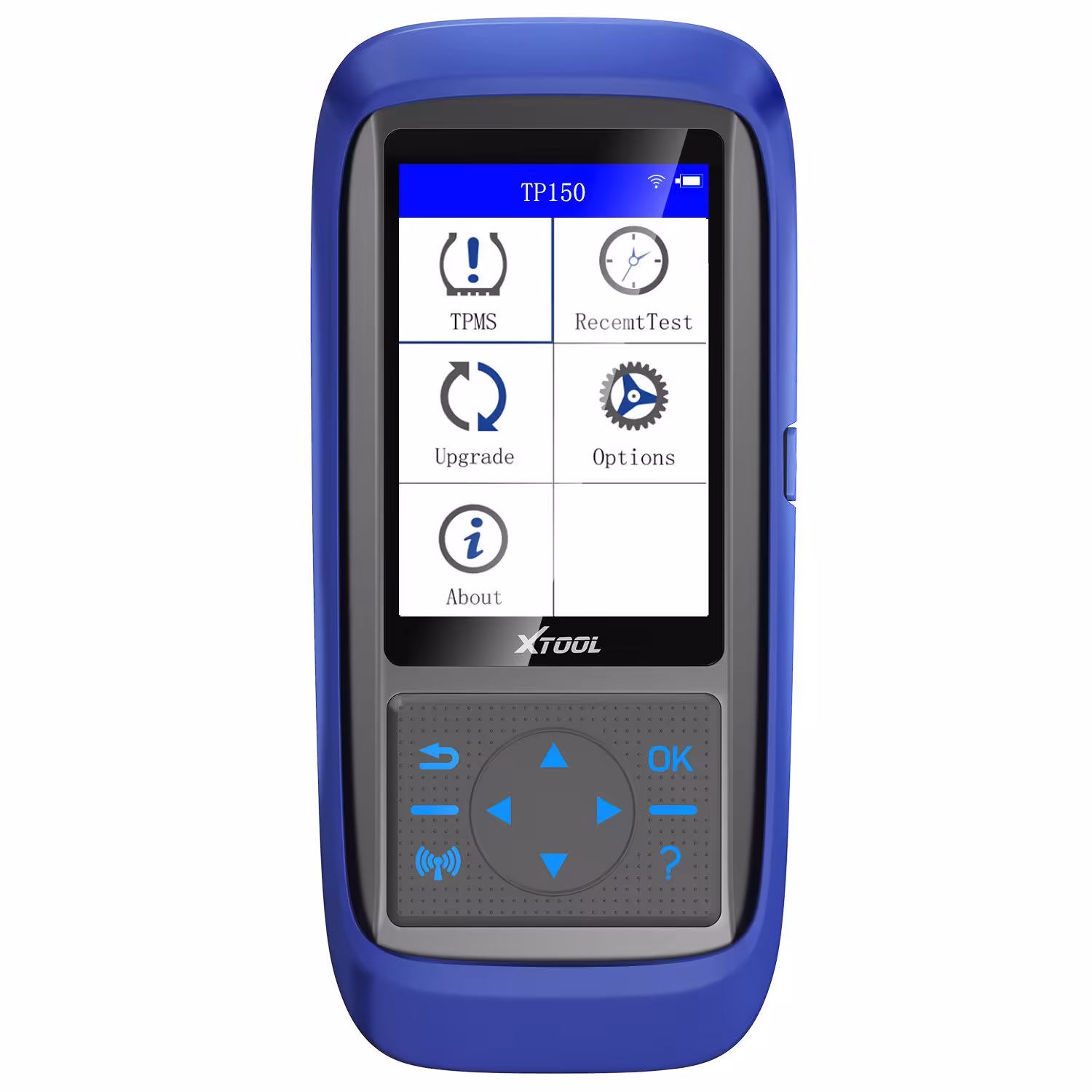

XTOOL TP150 Tire Pressure Monitoring System OBD2 TPMS Diagnostic Scanner Tool with 315&433 MHz Sensor

Functions and Features

• Supports triggering all tire pressure sensors operating on 315 MHz and 433 MHz frequency bands.
• Supports reading and writing sensor ID values.
• Enables tire pressure sensor programming and can program up to eight tire pressure sensors in real time.
• Provides tire pressure fault diagnosis, including reading and clearing diagnostic trouble codes.
• Displays real-time tire pressure data—including pressure, temperature, and battery voltage—in an easy-to-read diagram.

TPMS Functionality Overview

1. The TPMS (Tire Pressure Monitoring System) automatically monitors tire pressure while the vehicle is in motion and alerts the driver to leaks or low pressure to ensure safe driving. The XTOOL TP150 offers key TPMS functions: Activation, Relearn, and Sensor Data Reading.
2. The Activation function prompts the sensor to transmit a signal so the vehicle’s receiver can capture sensor data—such as tire pressure, temperature, and battery status—to verify sensor functionality.
3. The Relearn function reads sensor IDs and matches them with those stored in the TPMS ECU, ensuring accurate display of tire pressure and temperature for each wheel. It allows direct feedback from all four sensors, clear visualization of TPMS sensor status, and comparison between sensor and ECU data to quickly identify system faults.
4. Reads comprehensive sensor data including sensor ID, tire pressure, temperature, battery condition, OEM part number, OEM sensor manufacturer, and OEM frequency.
5. Includes RKE & RF Monitor functionality to test 315 MHz and 433 MHz key fobs, helping diagnose intermittent or failed remote keyless entry performance.

Language Support

Screen Display

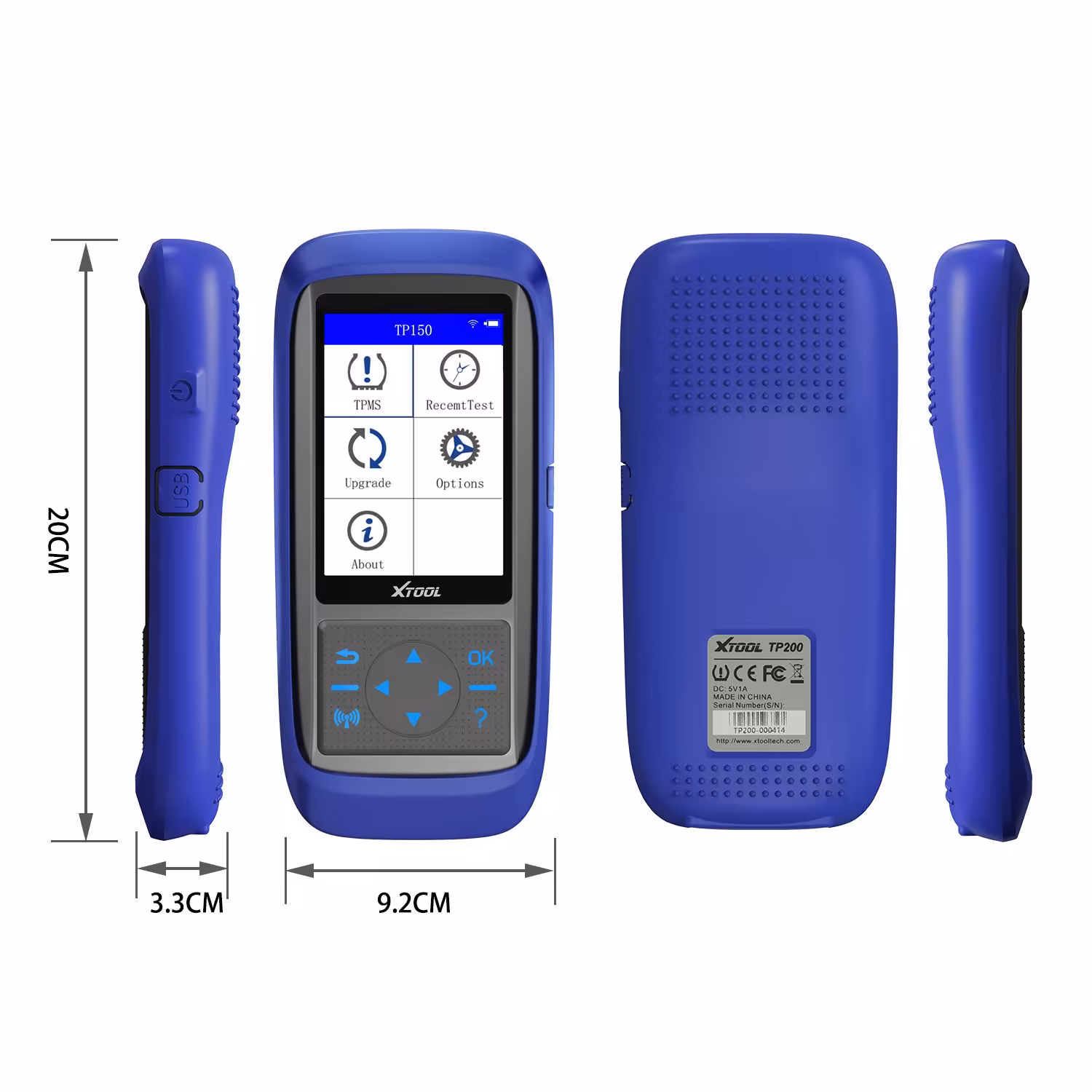

Specifications

Package Includes

1pc x XTOOL TP150 with 315&433 MHz Sensor
