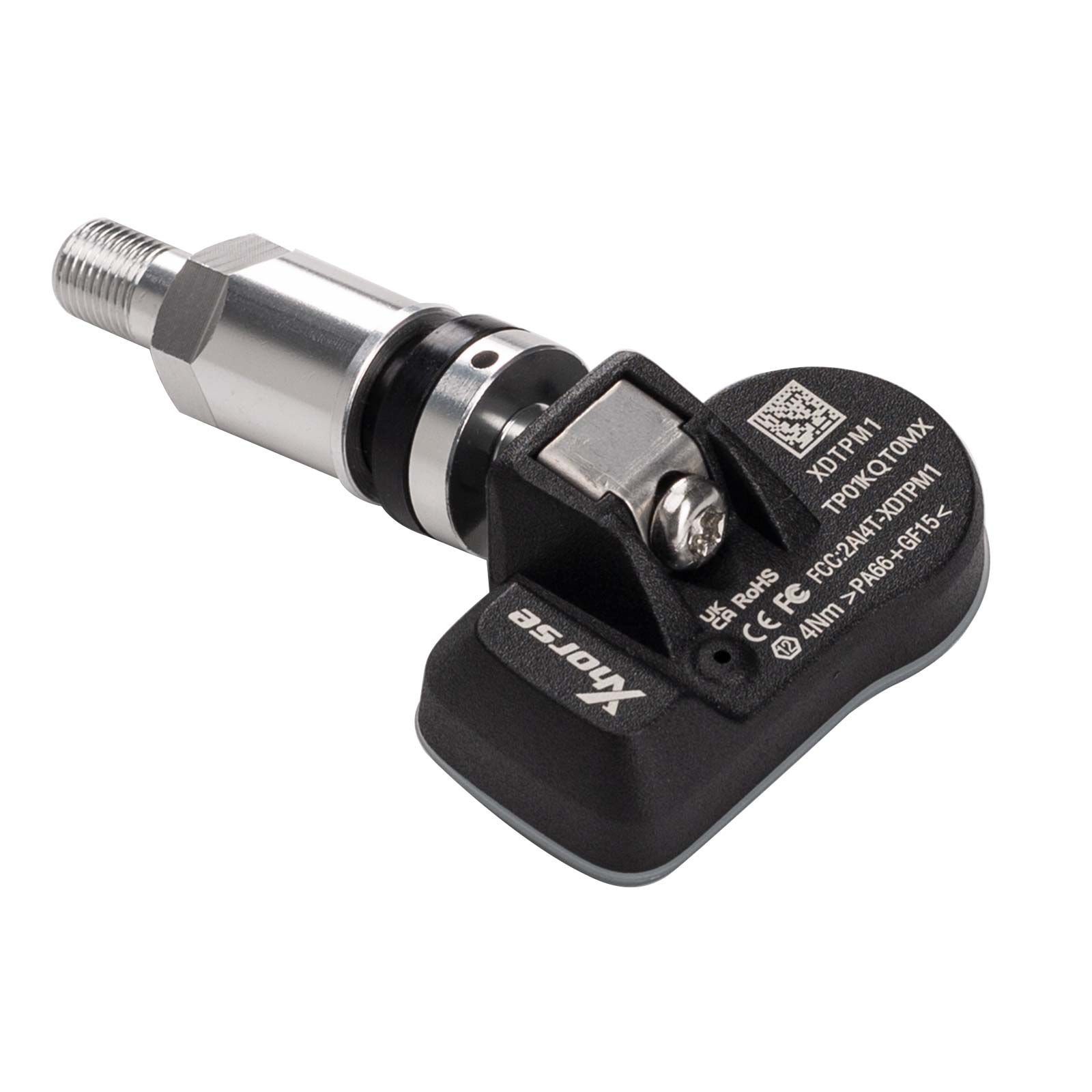

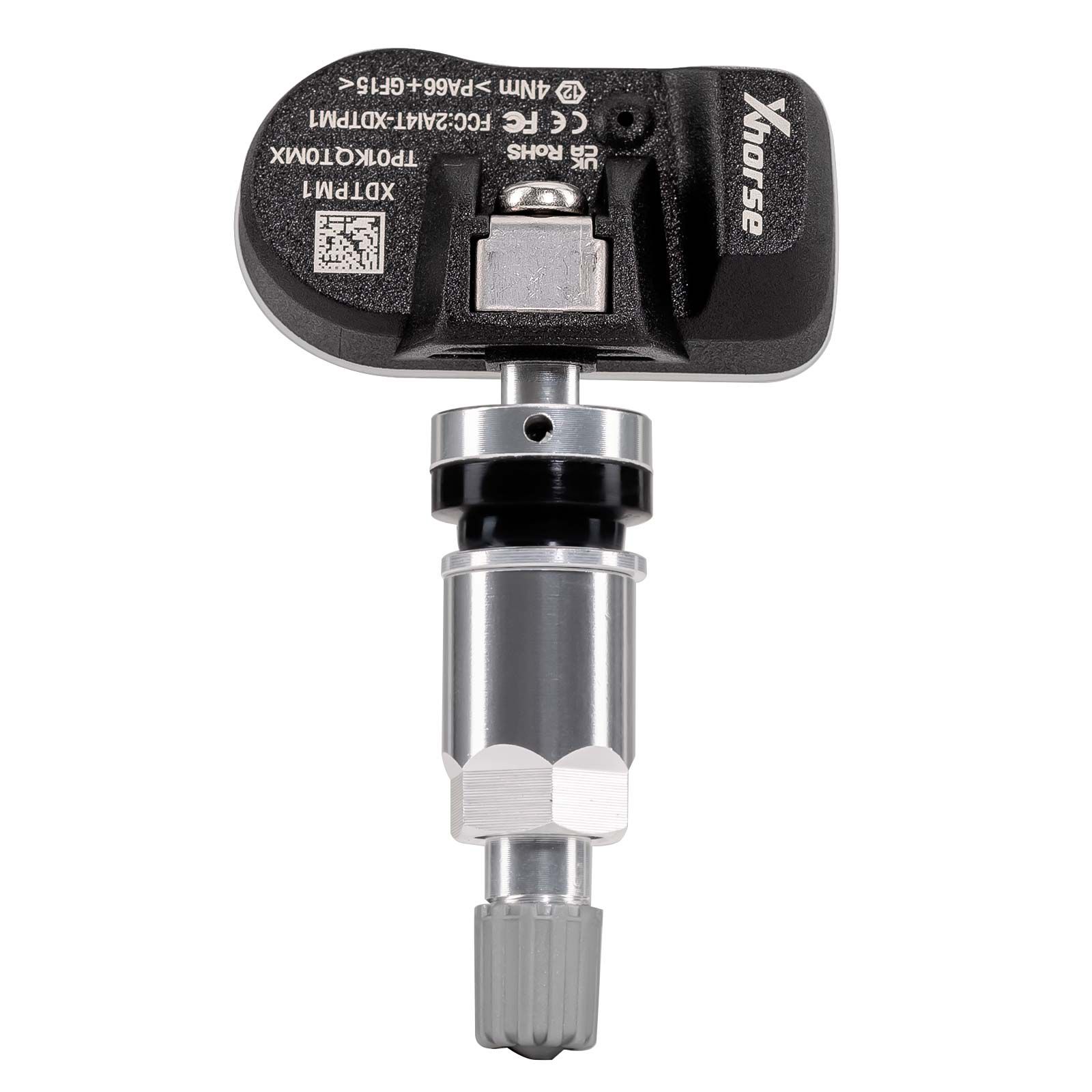

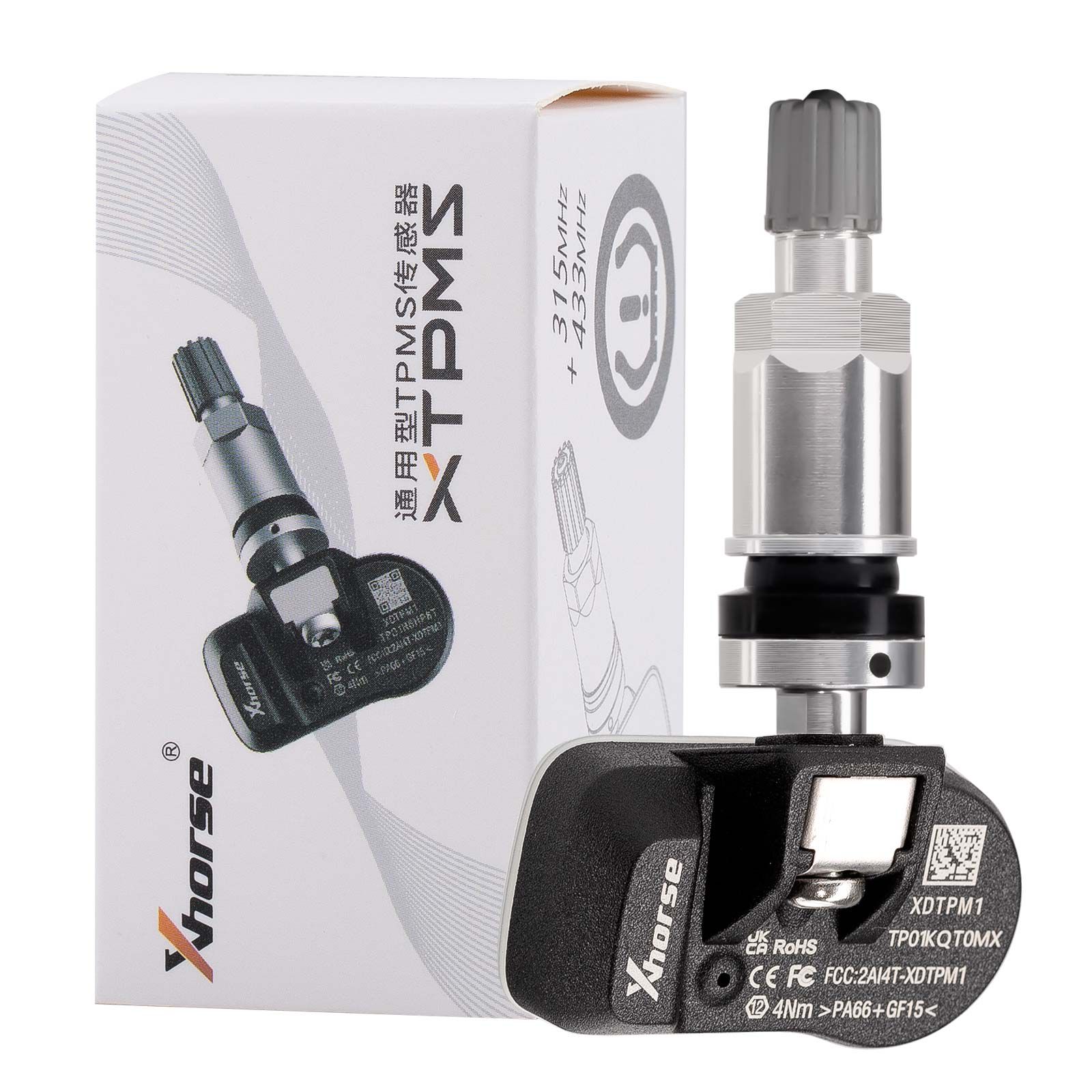

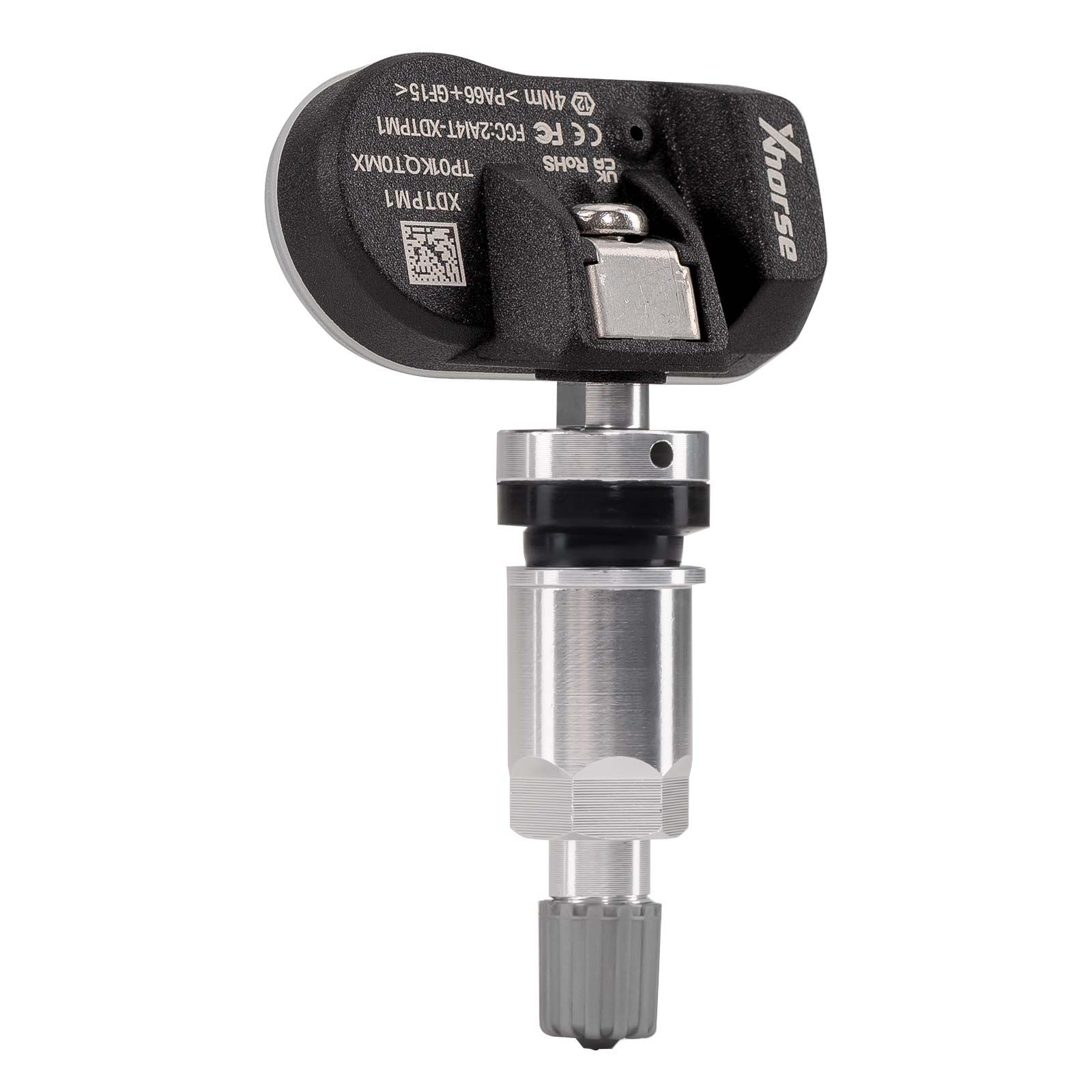

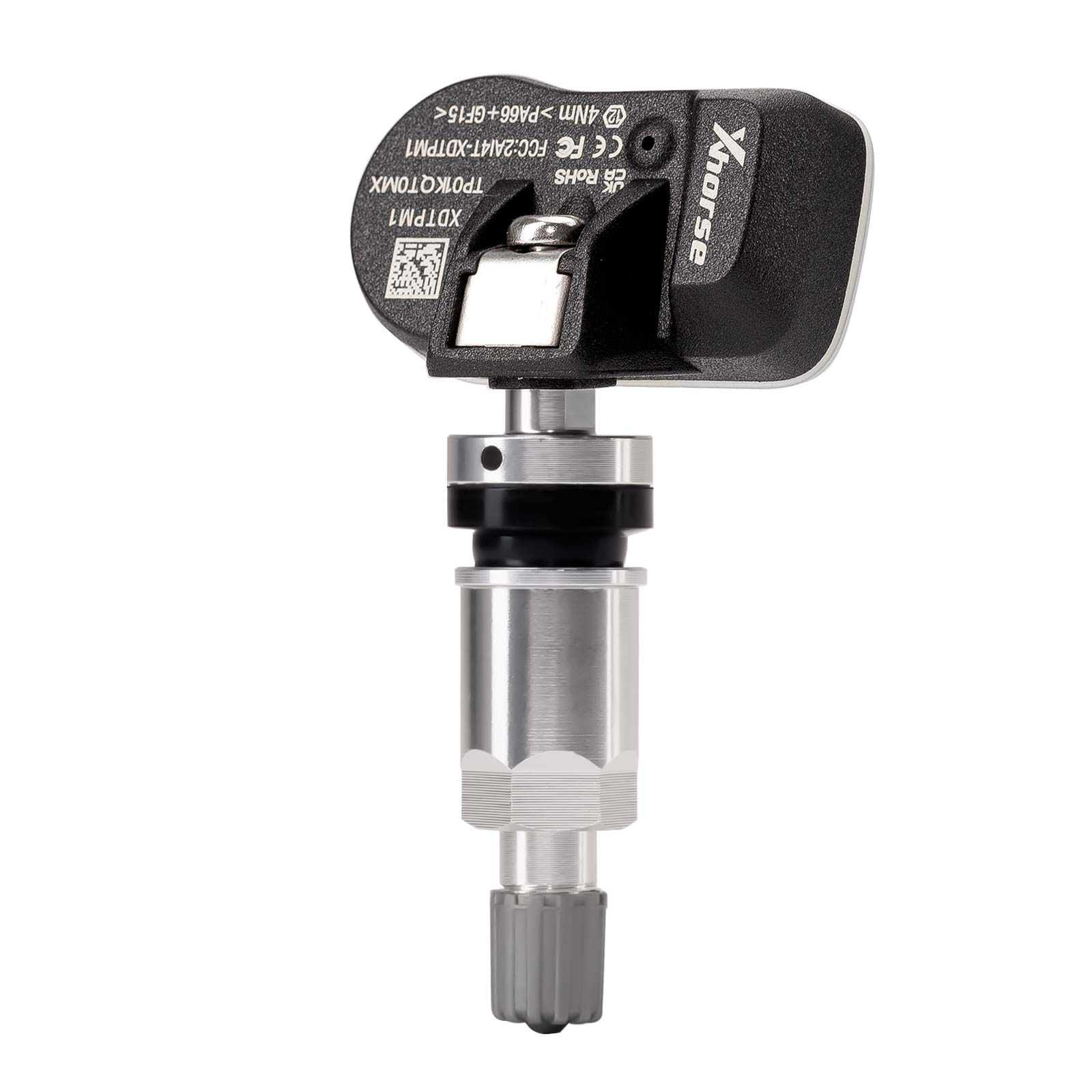

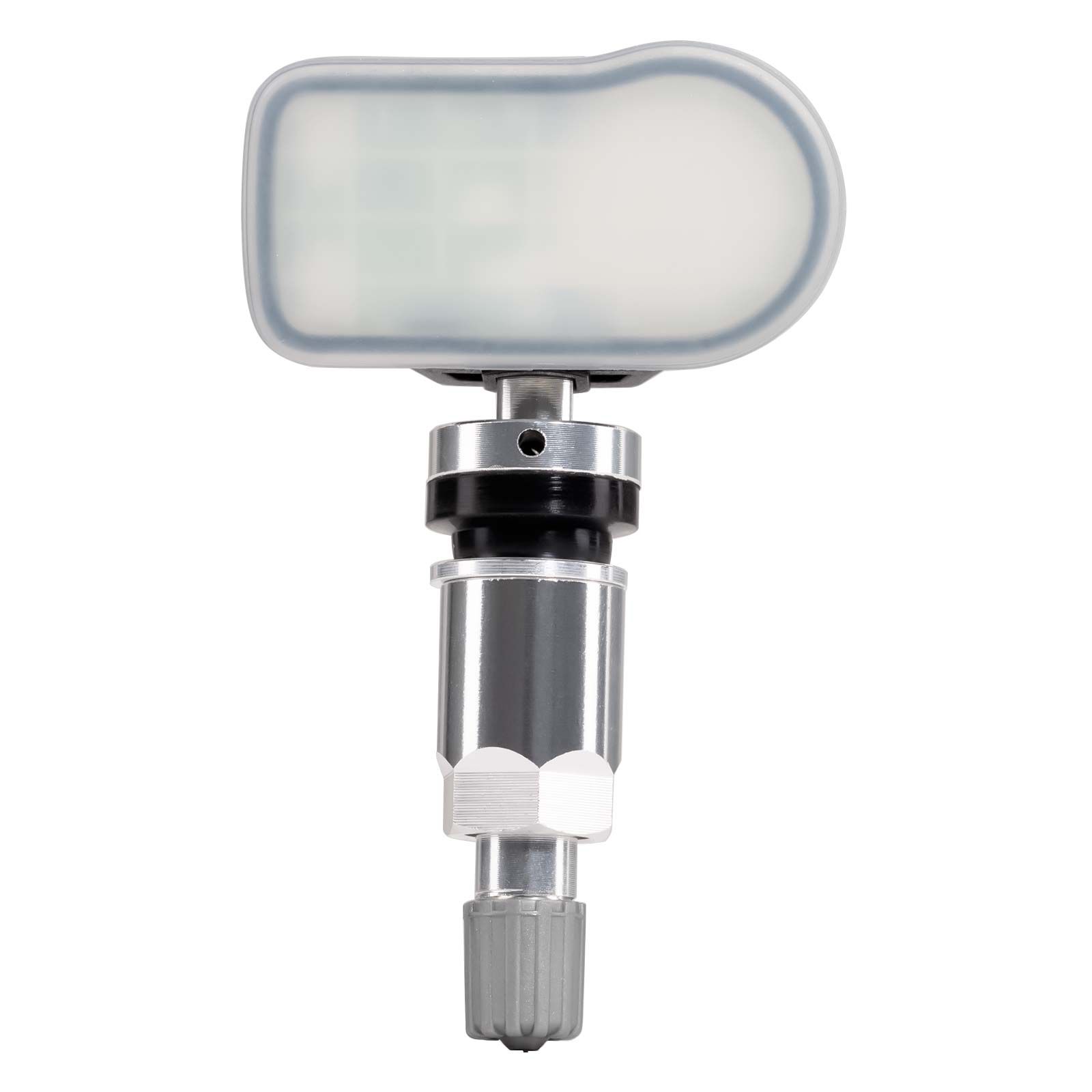

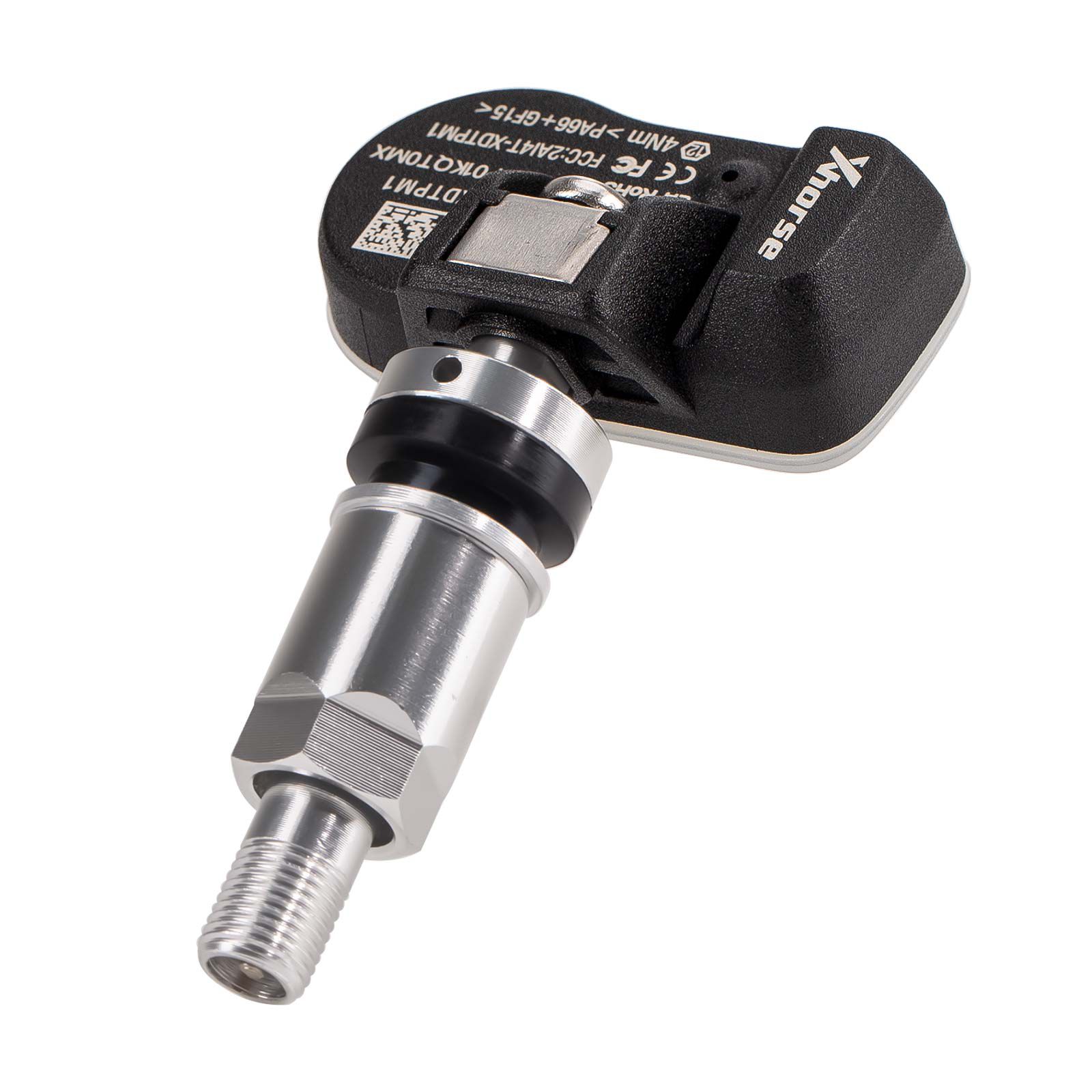

Xhorse XDTPM1EN TPMS Sensor Universal Programmable XTPMS Sensor

Product Features

• Supports 315/433MHz frequency – dual frequency simplifies inventory and budget management
• Powerful coverage for 98% of vehicles equipped with tire pressure monitoring systems
• Reprogrammable and universal for use with vehicles worldwide
• Adjustable angle design to accommodate various wheel hub installation requirements
• Reliable battery with a lifespan of 4–6 years
• Dedicated battery constructed from high heat-resistant, leakproof materials
• KEY TOOL MAX PRO offers free upgrades for TPMS functionality
• Made with automotive-grade materials and rigorously tested before leaving the factory to ensure maximum reliability

Compatible Devices

• KEY TOOL MAX PRO
• KEY TOOL MIDI
• KEY TOOL PLUS + MINI TPMS TOOL
• KEY TOOL PLUS + TPMS ADAPTER
• App + MINI TPMS TOOL

Technical Specifications

• RF transmit power: 5–8 dBm
• Battery: 350 mAh / 3V
• Working frequency: 433 MHz / 315 MHz
• TPMS pressure range: 0–800 kPa
• TPMS pressure accuracy: ±10 kPa
• TPMS temperature accuracy: ±5°C
• Acceleration monitoring accuracy: ±15%
• Dimensions: 76.5 × 50.1 × 20.6 mm

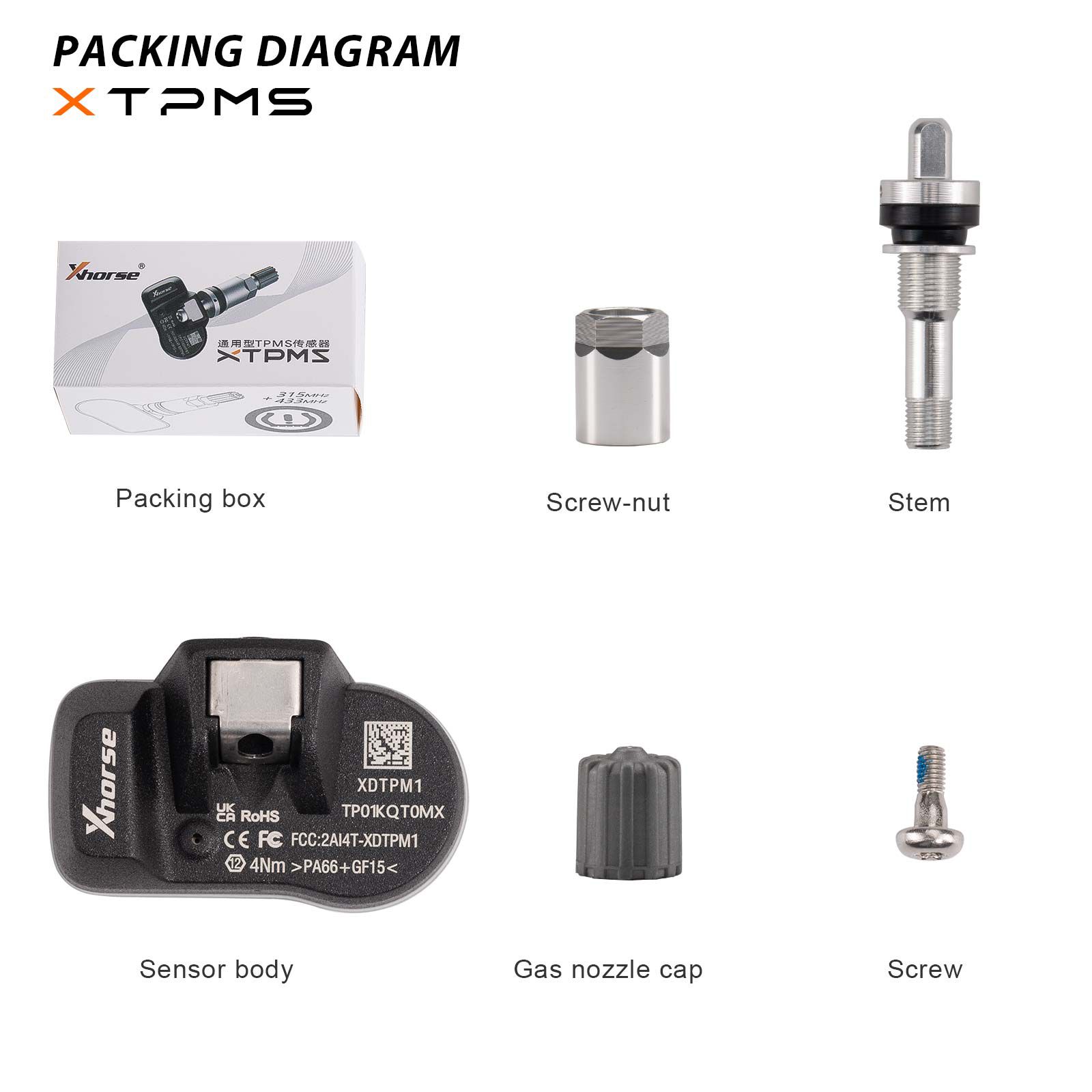

Package Includes

• 1 pc × Xhorse XDTPM1EN TPMS Sensor
