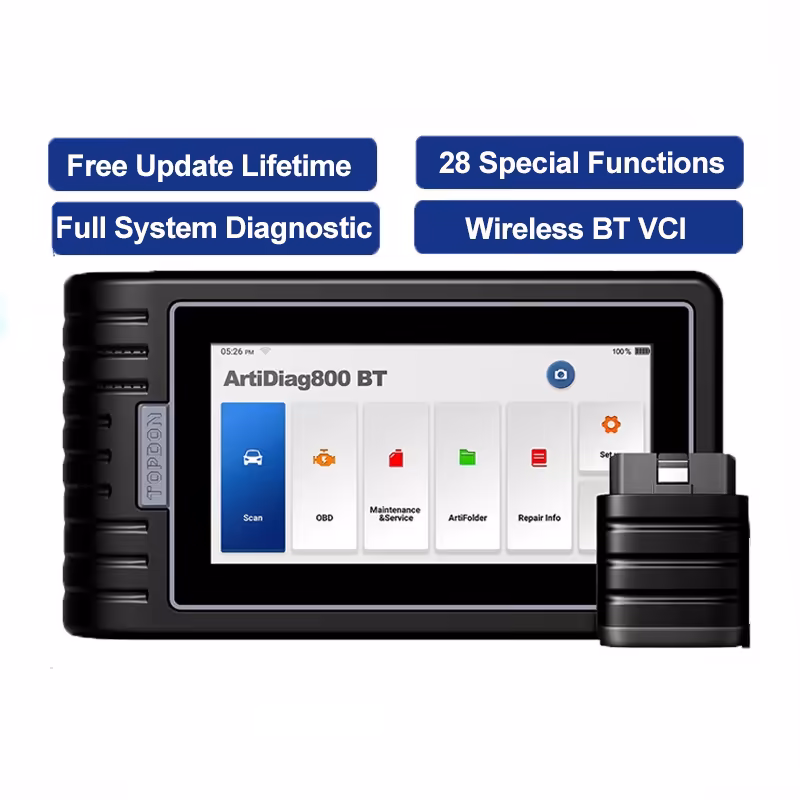

Topdon ArtiDiag800 BlueTooth OBDII OBD2 Code Reader Wireless BT Scanner with Full Systems Diagnoses for 10000+ Models
You may be interested in
TOPDON ArtiDiag800 BTis a comprehensiveautomotivediagnostic tool, specially designed for DIY users and mechanics to improve diagnostic and repair efficiency. It supports full OBD2 functions, all systems diagnoses for 96+ vehicle brands, 28 reset functions, AutoVIN, etc. Combined witha 5.99-inch LCD touch screen, 2GB RAM, 16GB ROM, and 3100mAh battery, ArtiDiag800 BT offers maximum convenience and swift diagnosis.
Compatible with 96+ Vehicle Brands, 10000+ Vehicle Models Worldwide;
Full OBD2 Functions for Emission Issues;
All Systems Diagnoses for Any System Faults;
28 Reset Functions for Fast Maintenance;
One-Click Online Update for Software Update;
AUTOSEARCH (AutoVIN)for Smart Diagnosis;
Online Feedbackfor Timely Technical Support;
DiagnosticHistory for Data Records;
Graphical Display of Data Stream;
2GB RAM, 16GB ROM;
Display:7 Inch LCD
RAM: 2GB, ROM 16GB
Battery Capacity: 3100mAh
Storage Temperature: -20°C~ 60°C(-4°F~ 140°F)
Working Temperature: 0°C~ 50°C(32°F~ 122°F)
Dimension: 213*119*49.7mm (8.39*4.69*1.96inch)
Net Weight: 660g(23.28oz)
Lifetime Free Update Online & 2 Years warranty
It is easy to do update by One-Click on the tablet via wifi connection.
All supported car brands softwares are included, you don't need to buy softwares separately.
2021 Global Version, No IP limited.
It is global version, no IP limited. You can use it everywhere in the world.
Smart AutoVIN (AUTOSEARCH)
Basedonthesmart AutoVIN technology, thisTOPDON ArtiDiag800 BTwill automatically identify your car and scanthevehicle’s VIN after tappingtheAUTOSEARCH and establishing stable communication.
All-System Diagnoses for a ComprehensiveInspection
TOPDON ArtiDiag800 BT ,a system diagnostic tool,can get quick access to all availableelectronicsystems, such as engine, Transmission,Airbag,ABS, SRS, EPB, Immobilizer, Doors, Air Conditioning, Gateway, etc.andperform a comprehensive scanning onevery moduletofind out anysystemfaultsand retrieve DTCs related.
VersionInformation:read the current version information of ECU;
ReadFaults Code:read DTCsin the ECUmemoryandquickly identify the cause of the vehicleissues;
Clear Fault Code:clear DTCsof the ECUmemory of the tested system;
ReadDataStream:read and display the real-time data of ECU in various modes (text, waveform, etc.).
28 Special Reset Functions
5 Commonly-Used Reset Functions save time and money for DIY users:
1.Maintenance Light Reset
This function enables you to reset the oil service lamp for the engine oil life
system, which calculates an optimal oil life change interval depending on the
vehicle driving conditions and weather events.
2.Steering Angle Reset
This function can reset the steering angle to zero to keep the car running
This function can write injector actual code or rewrite code in the ECU to the
injector code of the corresponding cylinder, so as to have more accurately
control or correct cylinder injection quantity.
This function can reset the monitoring unit of the car battery, by clearing the
original breakdown information about the lack of battery power to rematch
5. ABS Bleeding
-Get a firm brake pad after air exhaustion.
This function can utilize the car decoder to initialize the throttle actuator so
that the learning value of the ECU returns to the initial state. By doing so, the
movement of the throttle (or idle motor) can be more accurately controlled,
thus adjusting the intake volume.
7.Electronic Parking Brake Reset
This function helps you to replace and reset the brake pad.
This function can help remove particulate matter from the trap by using
combustion oxidation methods to keep the performance of the trap stable.
This function can match the anti-theft key after replacing the ignition key,
ignition switch, instrument cluster, engine control unit (ECU), body control
module (BCM), and remote control battery
10.Tire Pressure Reset
This function can reset the tire pressure and turn off the tire pressure fault
indicator when the car tire pressure fault indicator light is on.
11.Suspension Level Calibration
This function can adjust the vehicle body height sensor for level calibration
after replacing the vehicle height sensor or control module in the air
suspension system, or when the vehicle level is not correct.
This function can initialize the adaptive headlight system. The headlight
system can decide when to turn on the headlights based on the ambient light
intensity. It can also monitor the vehicle’s driving speed, body posture, etc., and
adjust the headlight lighting angle timely.
This function can complete the self-learning of the gearbox and improve the
shift quality when the gearbox is disassembled or repaired which may cause
shifting delay or car impact.
This function can set the sunroof lock off, close in rain, memory function of
sliding/tilting sunroof, outside temperature threshold, etc.
This function can learn the EGR (Exhaust Gas Recirculation) valve after it is
cleaned or replaced.
This function can perform tooth learning for the car, to turn off the MIL
and other more ......
96+ Vehicle Brands, 10000+ Vehicle Models
This OBD2 scanner supports more than 96 vehicle brands worldwide, over 10000 vehicle models, covering European, Asian, American, and Australian vehicle makes and models.
Asia:ACURA, DAEWOO, HONDA, HYUNDAI, INFINITI, KIA, MAZDA, MITSUBISHI, NISSAN, SUBARU, TOYOTA, ISUZU, DAIHATSU, TATA, CHANGAN, CHANGCHENG, CHANGHE, DFXK, FLYER, FUTIAN, GAZ, HAFEI, HUACHEN, IKCO,MAHINDRA,MARUTI, JMC, JACTY, JIAO, JINLONG, JOYLONG, LIFAN, LIUWEI, LUXGEN,PERODUA,PROTON,MAXUS,MVM, PAZ,QIRUI_TY,QOROS,SAICMG,SAIPA,SEAZ,SGM,SSANGYONG,TRUMPCHI,XIALI,XINKAI,ZAZ,ZHONGSHUN,ZHONGTAI,ZHONGXING, etc.
European:ASTONMARTIN, AUDI, BENZ, BMW, FIAT, JAGUAR, LANDROVER, SAAB, SEAT, SKODA, SMART, VOLVO, OPEL, PEUGEOT, DACIA, CITROEN, MINI, PORSCHE, SPRINTER, VW, ALFA ROMEO, VAUXHALL, EU-FORD, FERRARI, IVECO, MASERATI, UAZ, VAZ, BENTLEY, BUGATTI, DR, etc.
Bluetooth Connection for Wireless Communication
Equipped with VCI connector, this Bluetooth car scanner supports wirelessly Bluetooth diagnostics, letting you get rid of the diagnostic cable.
√ The working range for BT communication is about 33 feet (10 m), allowing you to diagnose freely both in and out of vehicle.
√ Its strong and stable signal guarantees stable communication and fast scanning.
√ The VCI connector can be inserted into the docking slot of the tablet, making it convenient to store and hard to lose.
√ This History function will record every detail in diagnostic session, making it convenient for users to view all diagnostic records anytime.
√ Meantime,it provides direct access to the previously tested vehicles. You can quickly continue with the last diagnosis, without the necessity of starting from scratch.
Smart AutoVIN (AUTOSEARCH)
Based on the smart AutoVIN technology, this TOPDON ArtiDiag800 BT will automatically identify your car and scan the vehicle’s VIN after tapping the AUTOSEARCH and establishing stable communication.
One-Click Online Update
This smart diagnostic tool allows you to update the diagnostic software/APP to the latest version via one click. In this way, you can fix diagnostic bugs and errors in time to improve the scanner performance and enlarge its vehicle coverage.
When you encounter communication errors or diagnostic software/APP bugs, you can send your vehicle’s year, make, model, and VIN to us via Online Feedback feature for timely technical assistance and improvements.
ArtiFolder for All Diagnostic-Related Data
This ArtiFolder module can record and establish the file of the diagnosed vehicles, including all diagnostic-related data such as diagnostic reports, data stream records, and screenshots.

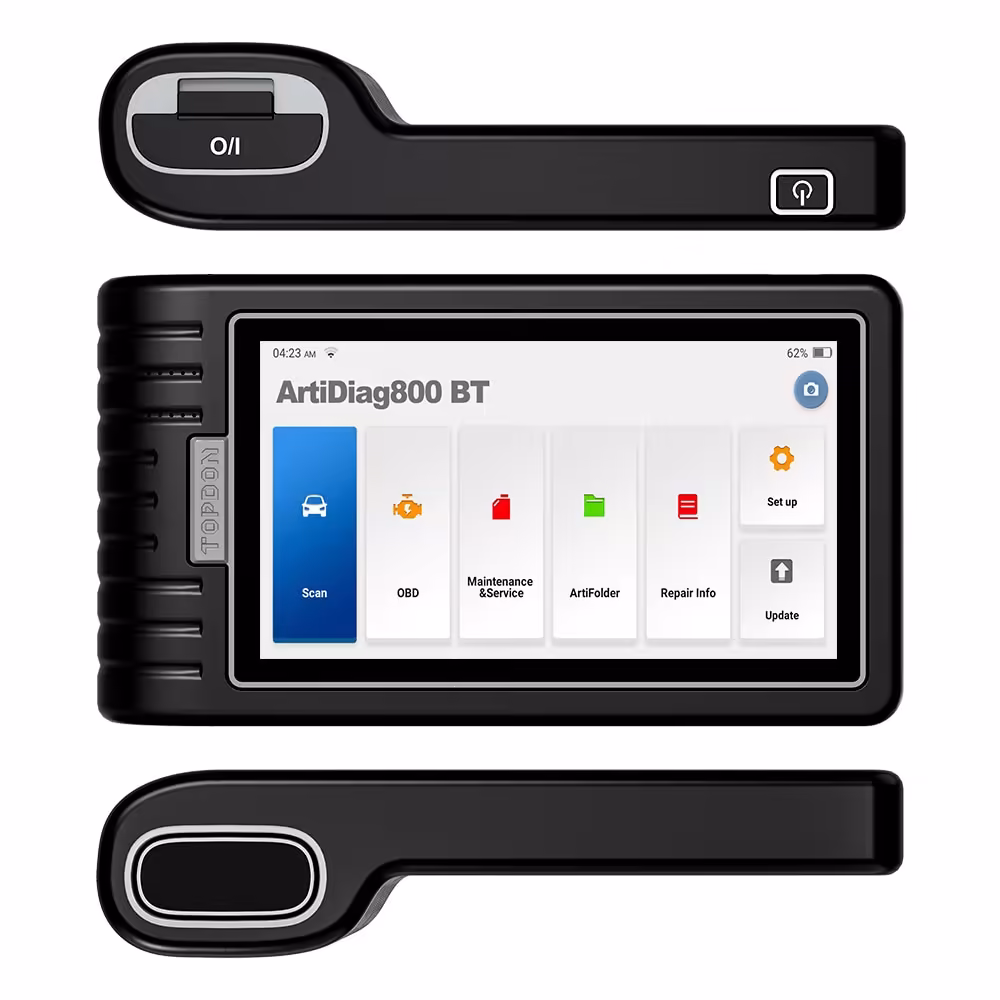

TOPDON ArtiDiag800 BT Tablet
• Battery Capacity: 3100mAh/7.6V
• Screen Size: 5.99 inches
• Resolution: 720*1440 Pixels
• Working Voltage: 5V
• Working Current: ≤2.5A
• Working Environment: 32 ℉ ~122 ℉ (0℃ ~50℃ )
• Storage Environment: -4 ℉ ~140 ℉ (-20℃ ~60℃ )
TOPDON ArtiDiag800 BT Diagnostic VCI Dongle
• Working Voltage: 12V
• Working Current: ≤60mA
• Working Environment: 14 ℉ ~122 ℉ (-10℃ ~50℃ )
• ArtiDiag800 BT
• Bluetooth VCI Dongle (Pre-installed in the Unit)
• Charging Cable
• Charging Adapter
• Passport Envelope
• User Manual
