2024 THINKCAR ThinkScan Max 2 Diagnostic Scan Tool with CAN-FD, FCA AutoAuth, All System Diagnosis & 28+ Resets, IMMO/ABS Bleeding/Crankshaft Relearn

THINKCAR ThinkScan Max 2 Diagnostic Scan Tool

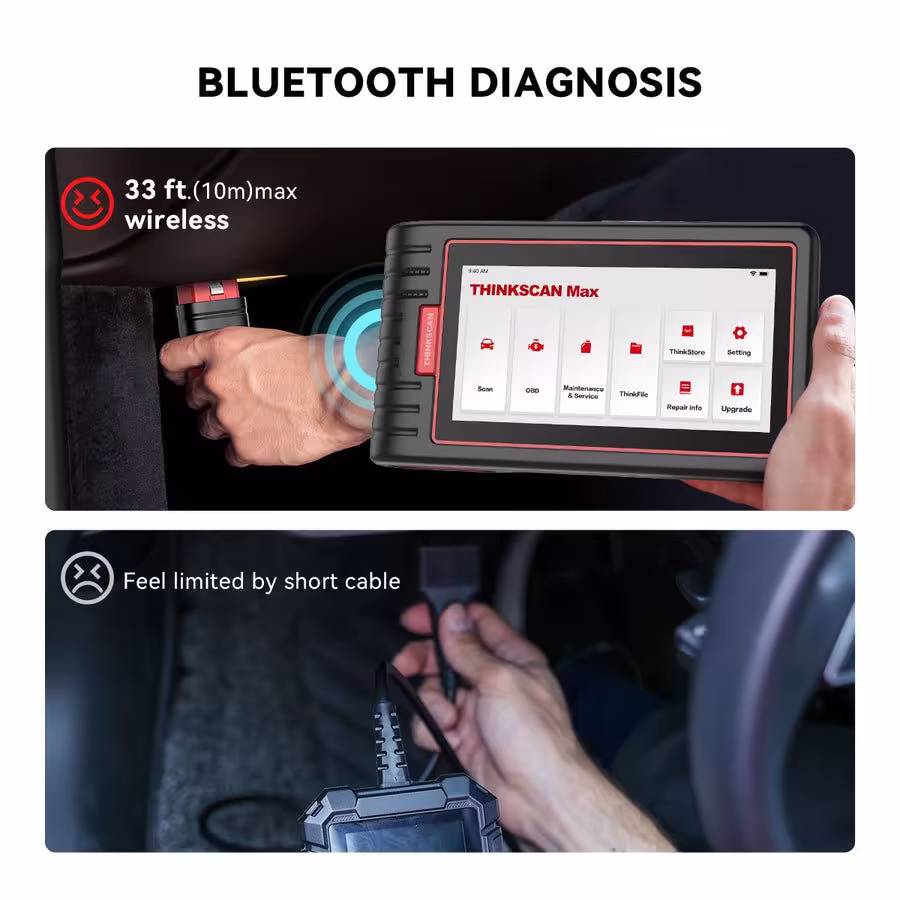

Thinkscan Max2 is an OE-Level wireless scanner of all available car systems such as engine, transmission, ABS, SAS, TPMS, BMS, IMMO, Body Systems, etc. The basic functions of all systems are read/clear codes, real-time data stream, and read ECU module information. Provides comprehensive and rapid diagnosis via the "Scan" menu. The basic function diagnosis of the whole system supports free upgrades lifetime. It with V4.0 Bluetooth VCI Dongle, which supports up to 33 feet of diagnostics distances.

THINKCAR ThinkScan Max 2 Highlights:

1. THINKSCAN MAX 2 is an Uprgaded Version of THINKSCAN MAX, add more Functions
2. Added CANFD Protocol, CAN-FD protocol supports the GM vehicles manufactured after 2021.
3. Lifetime free update: lifetime free for all software update, don't need to pay the high subscription
4. 15+Languages: English, Portuguese, French, Russian, Spanish, Japanese, Korean, German, Traditional Chinese, Hungarian, Polish, Italian,Greek, Arabic,Slovak
5. Supports AutoAuth for FCA SGW: Allowing you to unlock protected FCA vehicle SGW module on Chrysler, Dodge, Jeep, Alfa Romeo, and Fiat vehicles manufactured after 2019 and perform diagnostics, such as read/clear codes, data stream, etc. (* Only provide AutoAuth login portal, and need purchase the registration number on the AutoAuth website by yourself ).
6. Higher configuration: Android 10.0 +2G RAM+ 32G Storage + 5.99 inches Screen Size.
Note: If you want to get the advanced functions, such as ECU Coding, Active Test, or added special functions, you need to pay a subscription, which is valid for 12 months.(A car software costs $49.95 per year)
7. THINKSCAN MAX VEHICLE COVERAGE INQUIRY



ThinkScan Max 2 Functions:

ThinkCar ThinkScan Max supports the complete system of cars:
engines / Automatic transmissions / Airbags / IMMObiliser / Key coding / ABS / Cruise control / Instruments / Self-levelling suspension systems / Seats / Doors / Gate / Steering angle / Air suspension / Body systems / Electronic power steering & engine assist / Power steering / Tyre pressure- / Rain Sensors / All-Wheel Drive System / Stabiliser / Intelligent Parking Assist / Door Motors / Audio Systems / Air Conditioning / Sliding Doors / Electronic Throttle / Navigation System / Rollover Sensor / Cruise Control / Multi-Function Steering Wheel / Auxiliary Heating / Electronic Parking Brake / Clutch Electronics etc.
Active test and bidirectional control: Bidirectional control and can perform active tests to access vehicle-specific subsystems and component tests. The tester issues commands to the ECU to drive the actuators to determine the integrity of the system or parts by reading the ECU data or monitoring the operation of the actuators
ECU Coding: The coding function reflashes the vehicle control modules. You can reprogram adaptive data for specific components after repairs or replacements. Provide options for drivability, fuel efficiency, power loss, fault codes and durability of mechanical parts.
Note: Must be purchased separately. Cost: 49.95 USD / year (you can buy directly from ThinkCar Store) for a function like: ECU coding / actuation test and other special functions.



Diagnostic History: The OBDII scanner records every step in diagnosing the vehicle. It helps you to enter a previously tested vehicle and continue the test without having to start again
Customer Management: You can add repair shop information to the setting. Your customer's vehicle diagnostic information is stored sequentially for better management.


Thinkscan Max - 28 Maintenance Services - Professional Diagnostic Scanner

1. Oil Light Reset.
2. Steering Angle Reset: Reset the steering angle to zero to keep the car running straight.
3. Injector Coding: Write the new injector code into the car system for correct cylinder injection quantity.
4. IMMO Service: Disable any lost keys and add new keys. **ONLY for cars with easy IMMO system.
5. DPF Regeneration.
6. EGR Adaption: Learn the Exhaust Gas Recirculation valve after being cleaned.
7. ABS Bleeding: Help exhaust the air.
8. A d B l u e Reset: Reset urea after the diesel exhaust treatment fluid is replaced or filled up.
9. Throttle Matching: Initialize the throttle actuators to the default state.
10. TPMS Reset: Reset the tire pressure.
11. EPB Reset: Help replace and reset the brake pad.
12. Tire Reset: Set the size parameters of the modified or replaced tire.
13. AFS Headlamp Reset: Initialize the adaptive headlamp system.
14. Sunroof Initialization: Initialize the sunroof when locked off or closed.
15. Battery Reset: Register the battery after replacement.
16. Seat Calibration: Calibrate the memory in replaced or repaired seats.
17. Airbag Reset: Resets the airbag data to clear the airbag collision fault indicator.
18. A/F Reset: Set or learn Air/Fuel ratio parameters.
19. Gearbox Reset: Help complete the gearbox self-learning to improve gear shifting quality.
20. Transport Mode: Deactivate the transport mode.
21. Windows Calibration: Perform door window matching to recover ECU initial memory.
22. Language Change: Change vehicle system language.
23. GEAR Reset : Re-correct the communication of the gear position information output from the gearbox computer.
24. ODO Reset: Copy, write or rewrite the kilometer value.
25. NOx Sensor Reset: Reset catalytic converter learned value stored in ECU.
26. Stop/Start Reset: Set up the automatic start-stop function in ECU.
27. Coolant Bleeding: Activate the electronic water pump.
28. Suspension Reset: Adjust the vehicle body height sensor for level calibration.



ThinkCar ThinkScan Max 2 Full OBD Function:

1. Reading Codes: Show the detailed description of the Diagnostic Trouble Code (DTCs)
2. Erasing Codes & Reset: Turns off Check Engine Light (MIL), clears codes and resets monitors.
3. Data Stream: Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.
4. I/M Readiness Status: Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.
5. Read Live Data Stream: Show the information of continuous data stream from a vehicle in live graphic (waveform) display.
6. View Freeze Frame Data: Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.
7. O2 Sensor Test: Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board computer.
8. On-Board Monitor Test: Retrieves and displays test results for emission-related powertrain components and systems.
9. Read Vehicle Information: Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.
10. Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

Support 99% of all car models.

For Amercian:
for B--uick, for C--hrysler, for C--illac, for C--vrolet, for D--ge, for AU F--rd, for B--azil Fiat, for Brazil G--M, for F--ord, for G-M, for J-eep, for L-incoln, for S-GM

For European:
for A-ston Martin, for A-udi, for A-lfa Remeo, for A-barth, for B-MW, for B-entley, for B-ugatti, for C-itroen, for DR, for Dacia, for EU Fo-d, for Ferrari, for Fiat, for GAZ, for Iveco, for IZH, for Jaguar, for La-nd Rover, for Lamborghini, for Lancia, for Mercedes, for Maserati, for Maybach, for Opel, for Opel (south africa), for PAZ, for Peugeot, for Porche, for Renault, for Rover, for Rolls-royce, for SAAB, for Seat, for Skoda, for Smart, for Sprinter, for UAZ, for VAZ, for Volvo, for Volkswagen, for Vauxhall, for ZAZ

For Asian:
Acura, for Daewoo, for Daihatsu, for AU Holden, for Honda, for Hyundai, for Ikco, for Isuzu, for Infiniti, for Kia, for Luxgen, for Lexus, for Mahindra (India), for Maruti (India), for Tata (India), for Mahindra, for Maruti, for Mazda, for Mitsubishi, for MVM, for Nissan, for Nissangtr, for Perodua (Malaysia), for Proton (Malaysia), for Perodua, for Proton, for Renault Samsung, for Saipa, for Ssangyong, for Subaru, for Suzuki, for TOYOTA, for Tlisuzu, for United Pakistan

For China Car:
For BAIC SENOVA , For BAIC WEIWANG, For BAIC , For BRILLIANCE , For BYD , For CHANGAN , For CHANGANFORD , For CHANGHE , For CHBUICK , For CHCADILLAC , For CHCHEVROLET , For CHERY , For CHSUZUKI , For DFCITROEN , For DFNissan , For DFPeugeot , For DFSK , For ECUAID , For FAW(TIANJIN) , For FOTON , For GONOW , For GWM , For HAFEI , For HAIMA , For HCBMW , For HONDA(GAC) , For JAC , For JINLONG , For JMC , For JOYLONG , For LIFAN , For LUXGEN , For LYNKCO , For MAXUS , For MG(SAIC) , For Mitsubishi(GAC) , For NJFIAT , For POLARSUN , For QOROS , For SGMW , For TOYOTA(CHINA) , For XINKAI , For YQMAZDA , For ZOTYE , For ZX AUTO



THINKSCAN MAX VS THINKSCAN MAX 2

The most significant difference between ThinkScan MAX and ThinkScan MAX 2 is ThinkScan MAX 2 is compatible with CAN-FD protocol and supports the latest GM vehicles manufactured after 2020.
ThinkScan MAX 2 is compatible with 99+ car brands, up from 93+ with ThinkScan MAX.



THINKCAR THINKSCAN MAX 2 supports CANFD protocol, supports more cars:

ThinkScan MAX 2 automotive OBD2 scanner is the only product in this price range that is compatible with CAN-FD protocol and supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
Supports For C-hevrolet Onix 2020-2021 year
Supports For C
hevrolet Tracker 2020 year
Supports For C**vrolet Suburban 2021 year
Supports For C**vrolet Tahoe 2021 year
Supports For B**ck
Supports For C**illac Escalade 2021 year
Supports For C**illac Escalade 2021 year
Supports For G**and MC Yukon 2021 year
Supports For G**and MC Yukon XL 2021 year
Supports For Holden
Supports For DAEWOO
Supports For Alpheon
Supports For Ravon
Supports For Pontiac
Supports For Saturn
Supports For Hummer

How to Quick Registration:

Step 1 : Choose Time Zone
Step 2 : Agree the agreement term
Step 3 : New Registration , Create APP Account



ThinkCar ThinkScan Max 2 hardware configuration:

Battery Capacity:3150mAh/7.6V
Screen Size: 5.99 inches
Resolution: 720*1440 pixel
Working Voltage: 5V
Working Current: ≤2.5A
Working Environment: 14 °F ~122°F(-10°℃ ~50°C)
Storage Environment: -4 °F ~140°F(-20°℃~60°C)

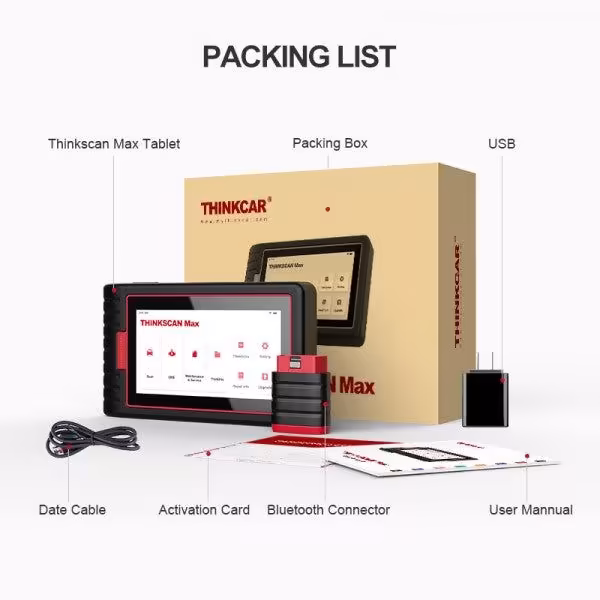

ThinkCar ThinkScan Max 2 Packing List:

1x THINKTOOL Host Computer
1xTHINKTOOL VCI
1x Charging Cable
1x Power Adapter
1x Manual
1x Carry Bag
