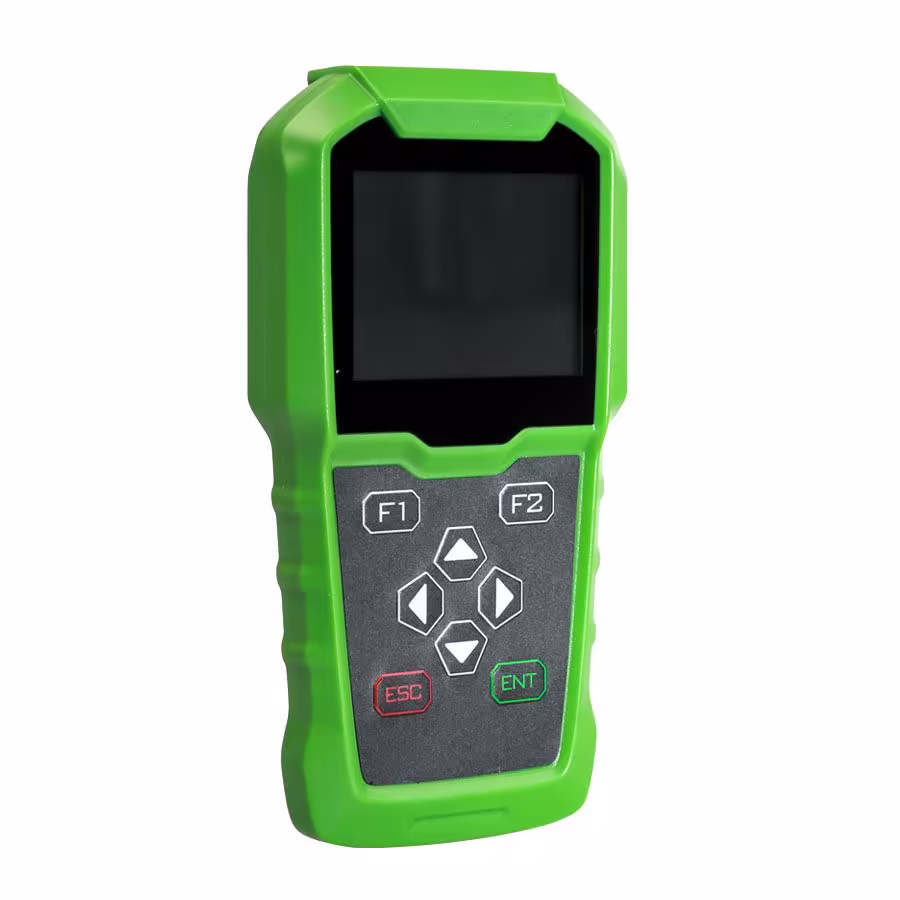

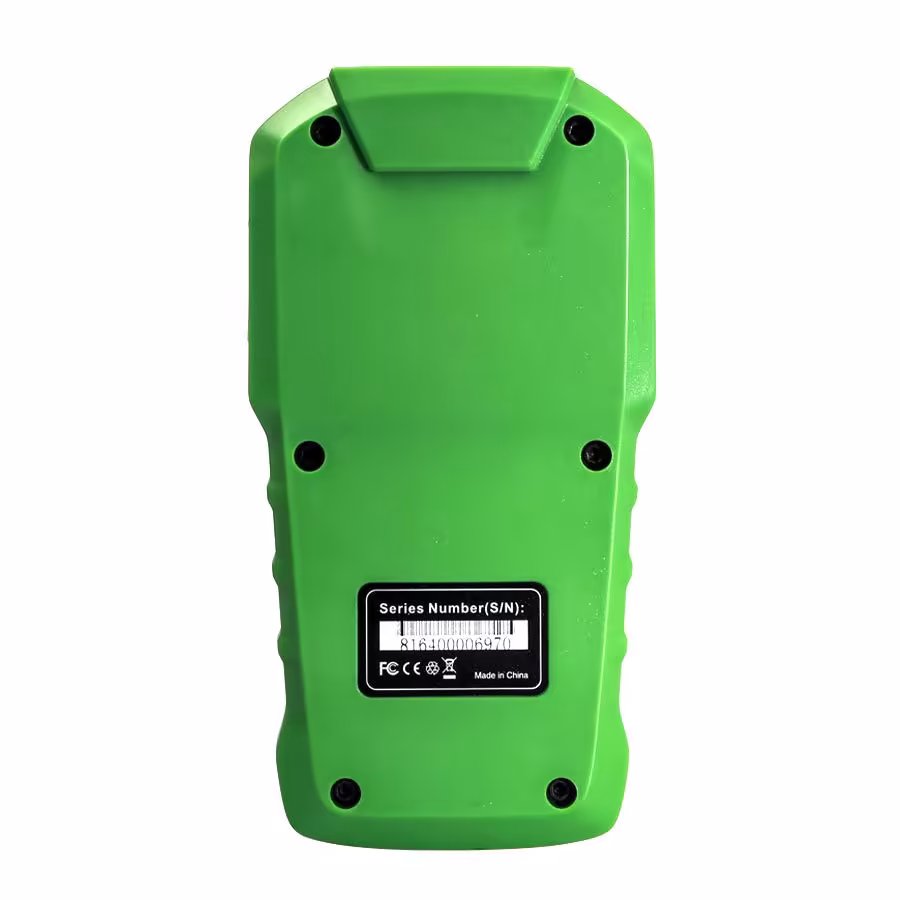

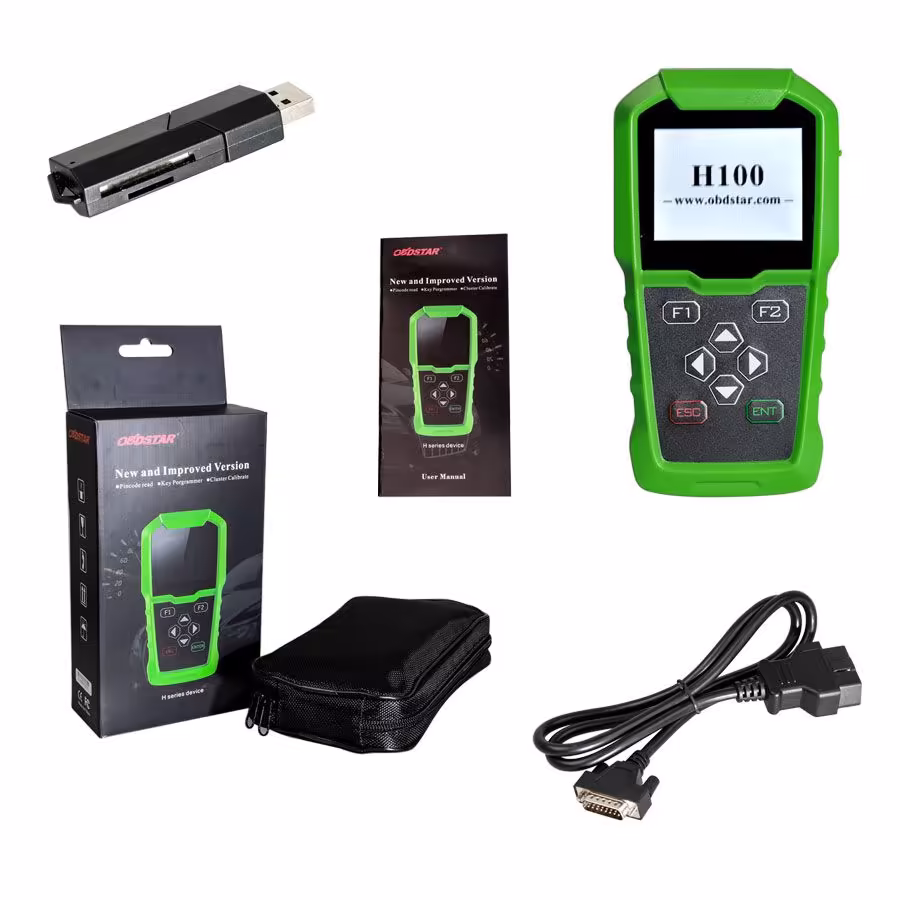

OBDSTAR H100 Ford/Mazda Auto Key Programmer Supports 2017/2018 Models like F250/F350

• Support the latest FORD and Mazda, such as Edge 2016+, Mondeo 2015+
• Be available to auto key programming and cluster calibrate via OBD
• Update via a TF card at any time
• Adopt updated hardware and appearance design

OBDSTAR H100 Hardware Parameters:

• Dimension: 156mm(L)*86mm(W)*28mm(H)
• CPU: Cortex M3
• Power Supply: DC12V
• Operation Power: DC12V
• Operation Temperature: -20-60℃
• Display Screen: 320X240 TFT

Comparision between F100 and H100:

1. OBDSTAR H100 use new hardware chip, which have better performance than F100
2. OBDSTAR H100 support car models till 2017/2018. Most important is H100 added follow car models:
   FORD
   Pincode Free Matching
   for New Mondeo/Edge/Taurus/2015- Models
   Edge 2016+
   Galaxy 2015+
   Mondeo 2015+
   Ranger 2016+

OBDSTAR H100 Display:





OBDSTAR H100 Car Coverage

Immobilizer:
FORD
Immobiliser
Bantam
Africa
2007-
BA Falcon
Australia
BF Falcon
Australia
C-Max
Australia
Type 1
Type 2
Europe
-2010
Type 1
Type 2
USA
2013-2014
Select from Type
Type 1
Type 2
Type 3
Courier
Australia
Petrol
1993-1996
2001-2008
Type 1
Type 2
2008-
Diesel
2001-2008
Immobiliser
2008-
Europe
Petrol
1993-1996
2001-2008
Type 1
Type 2
2008-
Diesel
2001-2008
Immobiliser
2008-
Select from Type
Type 1(1993-1996)
Type 2(2001-2008)
Type 3(2001-2008)
Type 4(2008-)
Contour
USA
V6
1997-1998
1999-2000
Cougar
1999-2002
Crown Victoria
1998-2002
2003-2004
2005-2006
2007-2008
E
2008-2009
2010-2014
E250
Type 1
Type 2
E350
Ecosport
Asia
South America
2003-2012
Select from type
Type 1
Type 2
Type 3
Edge
Asia
Israel
2011-
USA
2007-2009
2010
2011
Select from type
Type 1
Type 2
Escape
Asia
Australia
ZD
Orion
Petrol
1993-1997
1997-
Diesel
1994-1997
Europe
Petrol
1993-1997
1997-
Diesel
1994-1997
USA
2001-2004
2005-2007
2008-2012
2013
2014
Select From type
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Escort
Type 1(2015-)
Type 2(2015-)
Excursion
2000-2005
Expedition
Israel
2011-
USA
2003-2004
2005-2006
2007-2008
Select From type
Type 1
Type 2
Type 3(2003-2004)
Type 4(2005-2006)
Type 5(2007-2008)
Explorer
1998-2000
2000-2003
2004-2005
2006-2009
2010
2011-
Explorer Sport Trac
2002-2005
2007-2009
2010
2011-
Everest
2015-
Type 1
Type 2
F250
2004-2008
Type 1
Type 2
2009-
Type 1
Type 2
2011
F250/350
USA
2008-2010
Select From type
Type 1
Type 2
Type 3
Type 4(2010-)
Type 5
Fiesta
Africa
2002-2008
Asia
2004
2011
-2013
2013-
Australia
Petrol
2001-2008
Type 1
Type 2
2008-
Diesel
2001-2008
Immobiliser
2008-
Europe
Petrol
2001-2007
Immobiliser
Type 1
Type 2
2008-2013
Diesel
2001-2007
Immobiliser
2008-2013
USA
-2014
2014-
Select from type
Type 1(2001-2008)
Type 2(2001-2008)
Type 3(-2013)
Type 4(2013-)
Type 5
Type 6
Type 7
Type 8(2005-2010)
Figo
Africa
2007-
India
2004
2008
Select from type
Type 1(2004)
Type 2(2007-)
Type 3(2008)
Five Hundred
2005-2007
Flex
2013
Focus
Asia
Classic focus
Auto search
Manual selection
Type 1
Type 2
New focus
Type 1(2011-)
Type 2(2014-)
Australia
Petrol
1998-2004
2005-2011
Diesel
1998-2004
2005-2011
Europe
1998-2004
2005-2011
USA
2000-2002
2003-2004
PCM
2005
2006-2007
2012-2013
2014
Fusion Usa Mondeo
Australia
Europe
South America
2010- HEV
USA
2006-2009
2010-
HEV
Petrol
Petrol SPORT
Select from type
Type 1
Type 2
Type 3(2010-)
Type 4
Freestar
2004-2005
2006-2007
Freestyle
2005-2006
2007-
Galaxy
Australia
Petrol
1997-2000
NOT V6
2000-
NOT V6
TYPE 1
TYPE 2
Diesel
1997-2000
2000-
TYPE 1
Europe
2007-2010
2010-
Select from type
Type 1
Type 2
Type 3
Type 4
Type 5(2015-)
Type 6(2015-)
Grand Marquts
1998-2002
2003-2004
2005-2006
2007-2008
GT
2005-2006
Icon
Africa
2002-2008
Ka
Australia
1998-2000
2002-2008
Europe
2002-2008
Select from type
Type 1(1998-2000)
Type 2(2002-2008)
Type 3
Kuga
Europe
2007-2009
2009-2013
Select from type
Type 1
Type 2
Ltd
PCM
Marauder
2003-2005
Mariner
2005-2007
Montego
2005-2006
2007-
Montetry
2006
Mountaineer
2004
2005
2006-2008-
Mondeo
old Mondeo
Asia
Type 1
Type 2
Type 3(PCM System)
Australia
Petrol
Manual
1994-1996
1996-1997
1998-
2007-
Auto
1994-1996
1996-1997
1997-
2007-
Diesel
1996-1997
1998-
2007-
Europe
1994-1996
Petrol
Manual
Auto
1996-1997
Petrol
Manual
Auto
1997-1998
Petrol
Manual
Auto
Diesel
1998-2007
2007-
India
Usa Mondeo
Other
Petrol
Manual
1994-1996
1996-1997
NOT V6
1998-
2007-
Auto
1994-1996
1996-1997
1997-
2007-
Diesel
1996-1997
1998-
2007-
Select Type From
Type 1
Type 2
Type 3
Type 4(1997-2006 Petrol)
Type 5
Type 6
Type 7
Type 8
Type 9
Type 10
New Mondeo
Asia
Type 1(2015-)
Type 2(2015-)
Select Type From
Type 1
Type 2
Type 3(2015-)
Type 4(2015-)
Type 5
Navigator
Usa
2003-2005
Select Type From
Type 1
Type 2
Puma
Australia
1996-
Europe
Petrol
1996-
Select Type From
Type 1(1996-)
Type 2
Ranger
2007-2008
2011
2012-
2015-
Type 1
Type 2
S-Max
Asia
Type 1
Type 2
Europe
2007-2010
2010-
Select Type From
Type 1
Type 2
Type 3
Type 4
Sable
1996-1997
1998-1999
2000-2003
2004-2007
2008-
T250
2015
Taurus
1996-1997
1998-1999
2000-2003
2004-2007
2008-2009
2010-2012
2013
Territory
Sx
Sy
Transit
Africa
2014-
Asia
Australia
Transit Connect
-2007
2007-
TYPE 1
TYPE 2
Transit
Petrol
1997-2000
2000-2006
2007-
Diesel
1994-1995
1998-
2007-
Dura Torque
TYPE 1
TYPE 2
Epic
1995-1997
1997-1998
1998-
Europe
Transit
Petrol
1997-2000
2000-2007
2007-2014
Diesel
1994-1995
1995-1996
1997-1998
1998-
2007-2014
2014
Transit Connect
-2007
2007-
Transit Custom
Select from type
Type 1
Type 2
Type 3
Type 4
Type 5
Type 6
Type 7
Type 8
Type 9
Type 10
Type 11
Type 12
Tourneo
2006-2012
2013-2014
Windstar
Australia
-1997
1997-1998
1998-
Select from type
Type 1
Type 2
PCM System(Old Vehicle)
Smart Key System
C-Max
Type 1
Type 2
Courier
2008-
Ecosport
Asia
South America
2012-
Select from type
Type 1
Type 2
Type 3
Type 4
Edge
Asia
-2014
2015-
Type 1
Type 2
Israel
2011-
Select from type
Type 1(2010)
Type 2(2011-2014)
Type 3(2015-)
Type 4(2015-)
Escape
Asia
USA
2013
Type 1
Type 2
2014
Type 1
Type 2
Select from type
Type 1
Type 2
Type 3
Explorer
2011-
2015-
Type 1
Type 2
Everest
2015-
Type 1
Type 2
F250
2011-2014
2015-
Type 1
Type 2
F250/350
2010-
2011-
2015-
Type 1
Type 2
F550
2011-
Fiesta
Asia
Australia
2008-
Europe
2008-2013
India
2008
USA
Select from type
Type 1
Type 2
Focus
Asia
2012-
2015
Australia
2005-2011
Europe
2005-2011
2011
USA
2012-2013
Immobiliser
Smart key system
2014
Immobiliser
Smart key system
Select from type
2005-
Type 1
Type 2
Type 3
Type 4
2015
Figo
Flex
2013-
Galaxy
Europe
2007-2010
2010-
2015-
Type 1
Type 2
Select from type
Type 1
Type 2(2015-)
Type 3(2015-)
Kuga
Type 1
Type 2
Type 3(2018)
Mondeo
Asia
-2015
Type 1
Type 2
2015-
Type 1
Type 2
Australia
2007-
Europe
2007-
India
2007-
Select from type
Type 1
Type 2
Type 3(2015-)
Type 4(2015-)
Type 5
Mountaineer
2010
Ranger
2015-
Type 1
Type 2
S-Max
Type 1
Type 2
Taurus
2010-
2015-
Type 1
Type 2
Transit
Remote System
TYPE 1
LINCOLN
Immobiliser
MKX
2007-
2010-2012
MKZ
2007-2009
MARK LT
2005-2007
2008-2009
MILAN
2006-2010
2010-
NAVIGATOR
1997-1998
2003-2004
2005-2006
2007-2008
2009-
2010-2014
PCM
TOWN CAR
2003-2004
2005-2010
ZEPHYR
2006
2007-
Smart Key System
MKC
2014-
Type 1
Type 2
MKS
MKX
MKT
MKZ
2013-
Type 1
Type 2
CONTINENTAL
2016-
Remote System
Navigator

Mazda
B Series
2007 -
Mazda 121
BT50
2012 -
Mazda 2
Type 1
With smart
Without smart
Type 2(2014-)
With smart
Mazda 3
Type 1
Type 2
Type 3(Axela)(2013-)
With smart
Type 4(Axela)(2017)
With smart
Mazda 5
Type 1
Type 2
Mazda 6
Type 1
With smart
Without smart
Type 2(New Mazda 6)
With smart
Without smart
Type 3(Atenza)(2013-)
With smart
Type 4(Atenza)(2018-)
With smart
Mazda 8
With smart
Without smart
Mazda CX-3
With smart
Mazda CX-4
Type 1(2013-)
With smart
Type 2(2018-)
With smart
Mazda CX-5
With smart
2013-2016
Mazda CX-7
With smart
Without smart
2004-2009
2009-
Mazda CX-9
With smart
Without smart
2004 - 2009
2009 -
Mazda DEMIO
-2001
2002-2007
2008-2013
With smart
Without smart
2014-
With smart
Mazda MX-5
2004 - 2009
2009 - 2015
Mazda MX-5 MIATA
2005 - 2013
Mazda Premacy
2005
With smart
Mazda RX-8
2004 - 2009
2009
With smart
Without smart
Mazda Tribute
Without smart
2001-2004
2005-2008
2009-2011
JAGUAR
Select from vehicle
Asia
S-TYPE
2003-2006
Immobiliser
Remote
XJ
2011-2012
Smart key system
2013
Smart key system

X-TYPE
2004
Immobiliser
Europe
F-TYPE
2013
Smart key system
SOVERIGN
2004
Immobiliser
S-TYPE
2002-2005
Immobiliser
2005-
Immobiliser
Remote
XF
2008-2012
Smart key system
Smart remote system
2013
Smart key system
XJ
2009-2011
Smart key system
Smart remote system
2011-2012
Smart key system
2013
Smart key system
XJ6
2003-2007
Immobiliser
XJ8
2003-2007
Immobiliser
XJR
2004-
Immobiliser
XK
2006-2014
Smart key system
Smart remote system
XKR
2006-2014
Smart key system
Smart remote system
X-TYPE
2004-
Immobiliser
North America
S-TYPE
2003-2006
Immobiliser
Remote
XJ
2011-2012
Smart key system
XK
2006-2014
Smart key system
Smart remote system
X-TYPE
2002-2006
Immobiliser
South America
S-TYPE
2003-2006
Immobiliser
Remote
X-TYPE
2002-2006
Immobiliser
Select from Type
Immobiliser
Type1
Type2
Smart key system
Type1
Type2
Type3
Type4
Type5
Type6
Type7
remote system
Type1
Type2
LANDROVER
Select from vehicle
Africa
Discovery4
2010-2011
Smart key system
Smart remote system
2012
Smart key system
Smart remote system
Freelander
Range rover sport
2006-2010
Immobiliser
Asia
Freelander
Discovery3
Discovery4
-2012
2012-2014
Freelander2
-2012
2012-2014
Range rover
2010-2012
2012-2014
Range rover sport
2005-2009
2011-2012
Smart key system
Smart remote system
Range rover executive
2006-2009
Range rover Evoque
-2012
2012-2014
Europe
Discovery3
2005-2009
Immobiliser
Discovery4
2010-2011
Smart key system
Smart remote system
2012
Smart key system
Smart remote system
Defender
2010-2014
remote system
Freelander
remote system
Freelander2
2006-2012
Immobiliser
2012
Smart key system
Smart remote system
Range rover sport
2006-2010
Immobiliser
2010-2011
Smart key system
Smart remote system
2012
Smart key system
Smart remote system
Range rover Evoque
2011
Smart key system
Smart remote system
2012
Smart key system
Smart remote system
Range rover Vogue
2006-2010
Immobiliser
2010-2011
Smart key system
Smart remote system
2012
Smart key system
Smart remote system
Middle East
Freelander
remote system
South America
Freelander2
2006-2012
Immobiliser
Select from type
Immobiliser
Type1
Type2
Type3
Smart key system
Type1
Type2
Type3
remote system
Type1

Cluster Calibrate
FORD
Crown Victoria
2005-
C-MAX
2012
E250
2008-2009
E350
2008-2009
E450
2008-2009
Ecosport
Type 1
Type 2
Edge
2015-
Small color meter
Big color meter
Escape
2008-2012
Expedition
2007-2010
2011
Explorer
2007-2010
2004
F250
2006-2007
F350
2006-2007
F450
2006-2007
F500
2006-2007
F550
2006-2008
Fiesta
2013-
Type 1
Type 2
-2012
Five Hundred(500)
Flex
2008-2012
Focus
2013-
2009-(Multifunctional screen)
2005-2008
Freestar
2006-
Freestyle
2005-
Kuga
2010
2012
2012-
Color meter
Monochrome meter
Merc Mariner
2008-
Mondeo
2011-2013
Monochrome screen meter
2 pointer color meter
2007-2010
Monochrome screen meter
4 pointer color meter
Navigator
2007-2010
2011
New Mondeo
Small color meter
Big color meter
Monochrome screen meter
S-MAX
2007-2010
Monochrome screen meter
4 pointer color meter
Town car
2005-
Taurus
2015-(Big color meter)
2008-2009
2004
Lincoln
MKC
2015-(Big color meter)
MKX
2015-(Big color meter)
MKZ
2015-(Big color meter)

JAGUAR
F Series
XE Series
2015-
XJ Series
2010
LANDROVER
Discovery 4
Evoque2011-
Freelander2 2013
Range rover
2010-
Sprort 2014
MAZDA
Auto identify
Manual Selection
M6(Atenza)
M3(Axela)
CX4
CX5
CX7
2010-
CX9
M2
M3
M5
M6
2005-2009
2009-2013
2014-
Help info
