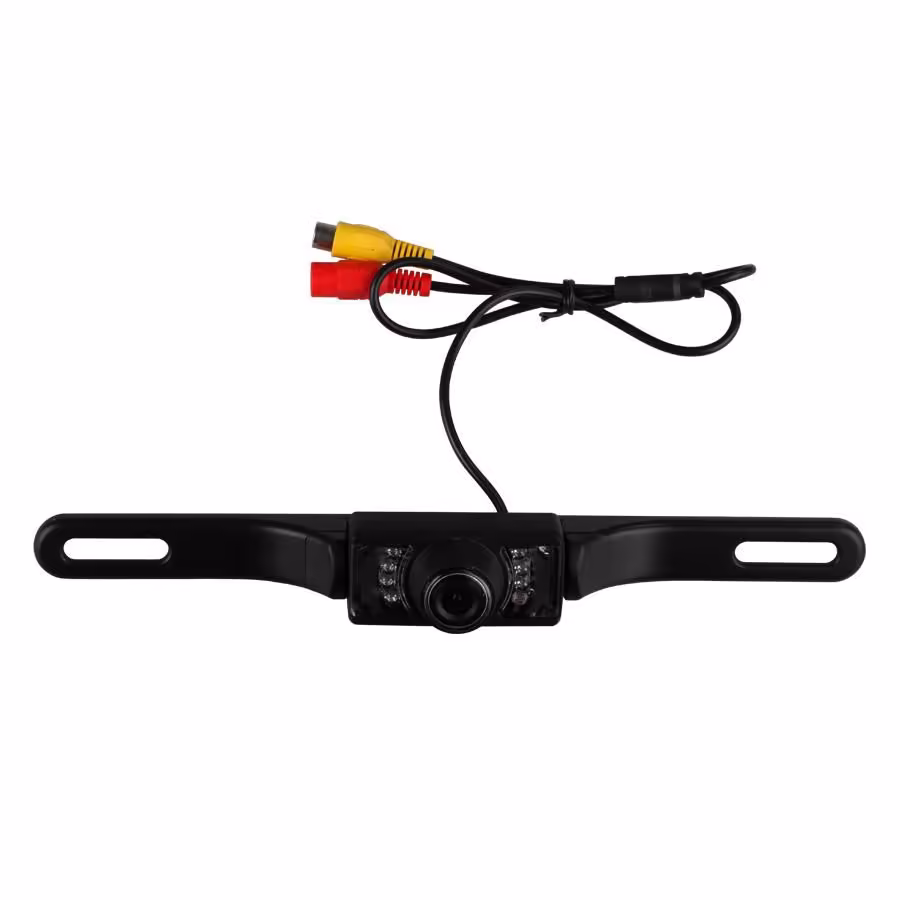

License Plate Night Vision Car Rear View Backup Camera

License Plate Night Vision Car Rear View Backup Camera

Features:

- 135 degree viewing angle macro lens with 'mirror' image;
- IP67-compliant Dustproof and Waterproof;
- High Resolution Color CMOS(OV-7950) image sensor;
- 7 IR LED'S night vision and excellent low lux performance;
- 5m RCA video cable output to your in-car rear view monitor;
- Projecting distance scale lines onto the monitored image capable;
- Adjustable (up/down) 60 degree camera mounting bracket;
- Mounts easily to existing license plate screws - no new mounting holes required;
- Ideal for all motor vehicles that use a standard U.S. license plate.

Specifications:

- Image Sensor: Color CMOS
- Lens Angle: 135 Degree
- Sensing area: NTSC 4.08 x 3.10mm
- Effective Pixels: NTSC 510*496 pixels
- Horizontal Resolutions: 420 TV lines
- Minimum Illumination: 0.1 - 0.5Lux/F=1.2
- Video output: RCA connector, 1.0V p-p, 75ohm
- Power Consumption: 60mA
- Power Supply: DC12V
- Operating Temperature: -20 - 60 (Celsius Degree) RH95%MAX

Notes:

- This camera has a mirror image.
- This camera only supports NTSC video system, so please make sure your monitor supports NTSC video system before you buy it.
- You can install the camera on your license plate. During installation, please connect the power cable of the backup camera to the harness wires that connect to the backup light on the tail light assembly (Please note that the red wire end is positive, while the black one is negative). And connect the RCA output end to the car monitor.
- The camera switch is controlled by the reverse gear shift.
- Please take care of the sealing to prevent water leakage when installation.

Package:

1 * Car Rear View Camera
1 * Power Cable

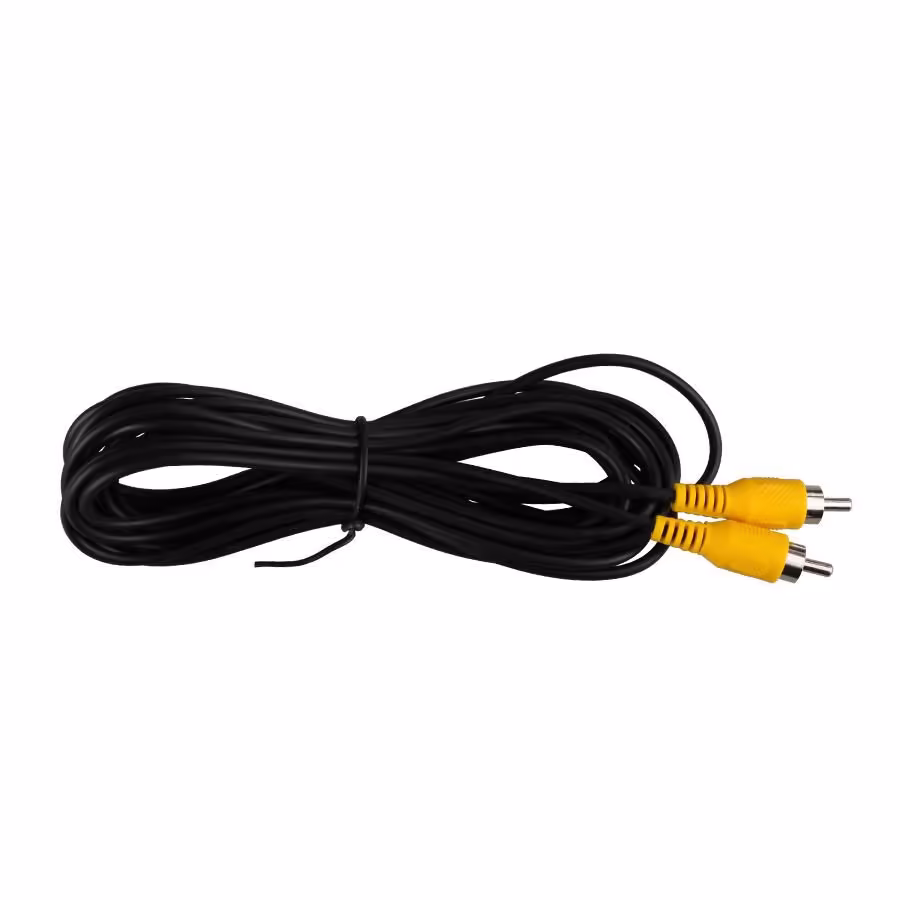

1 * RCA Video Cable
1 * User Manual
