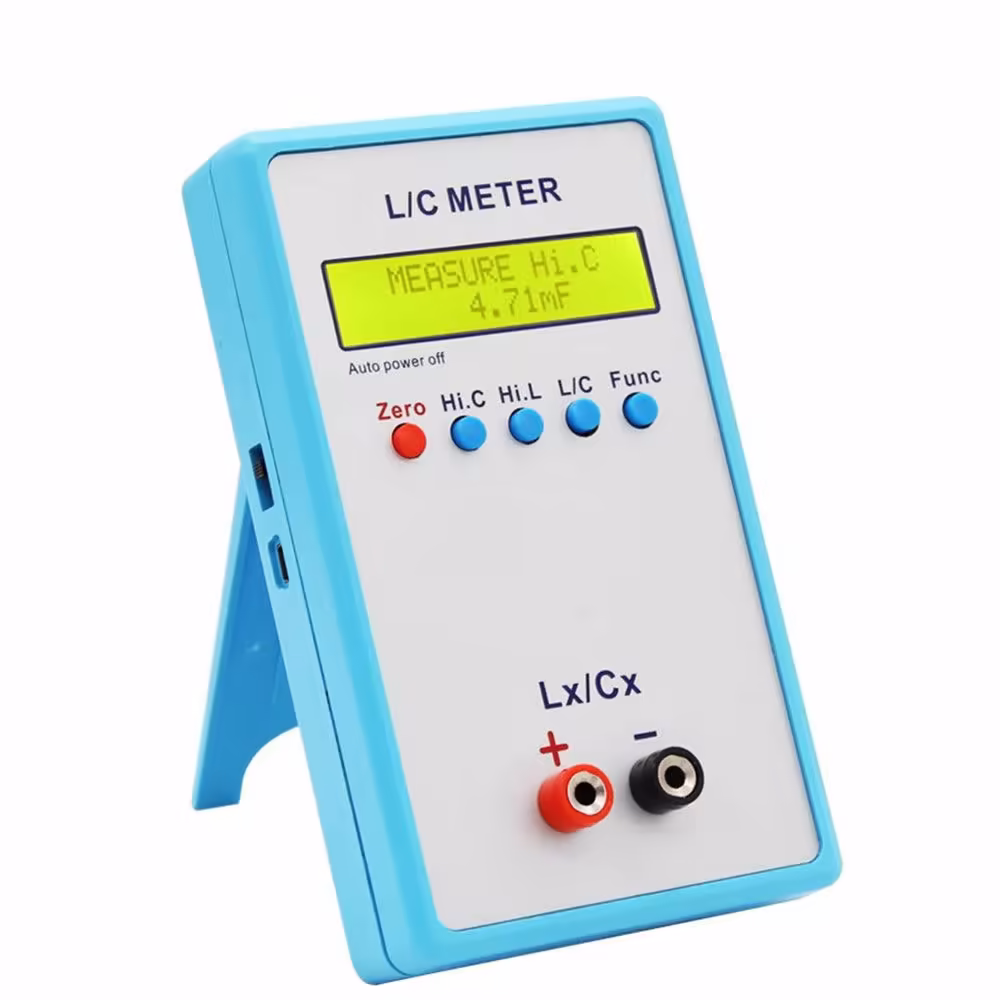

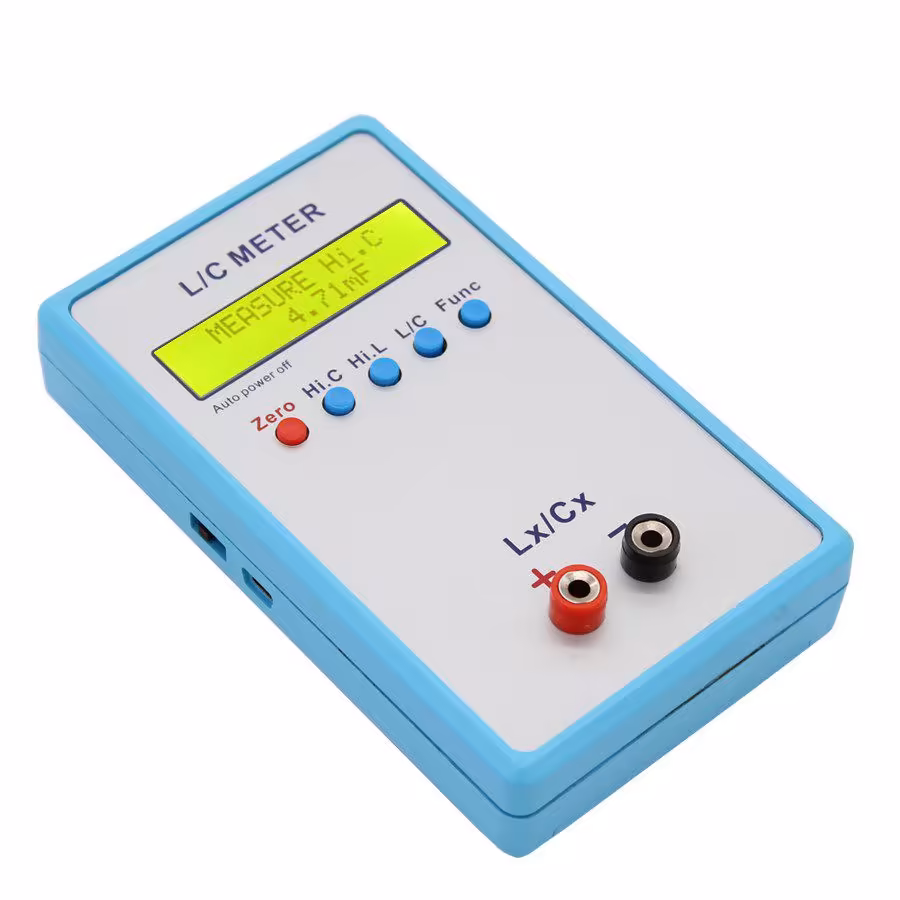

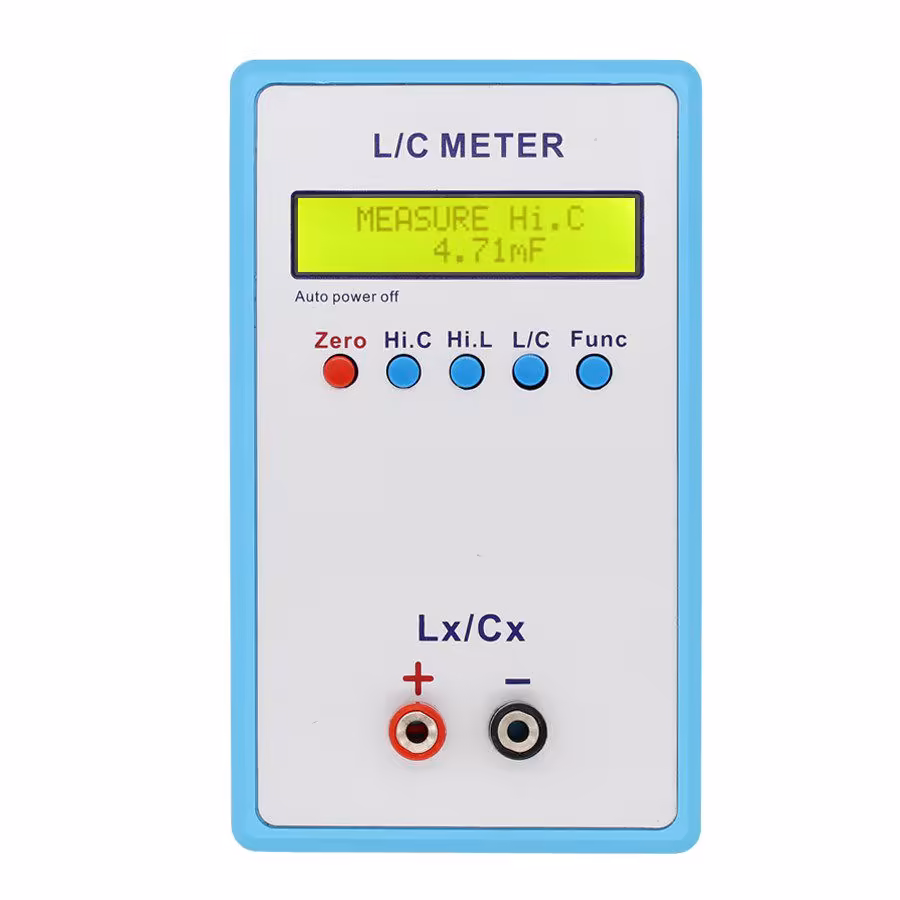

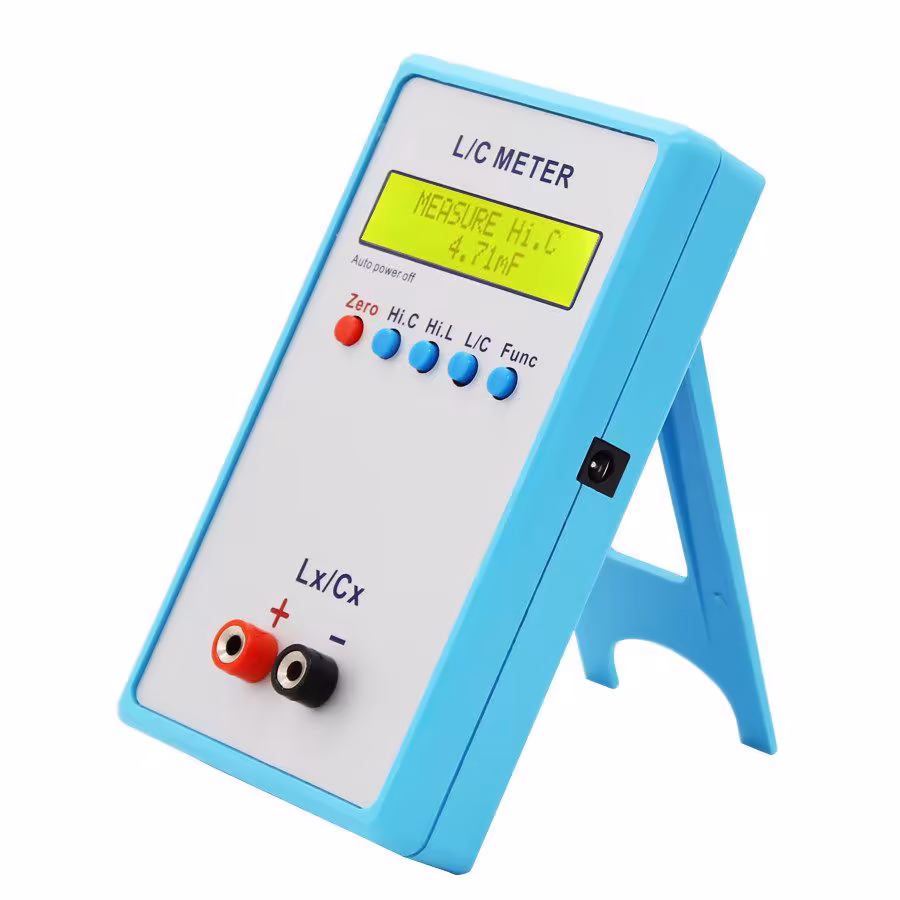

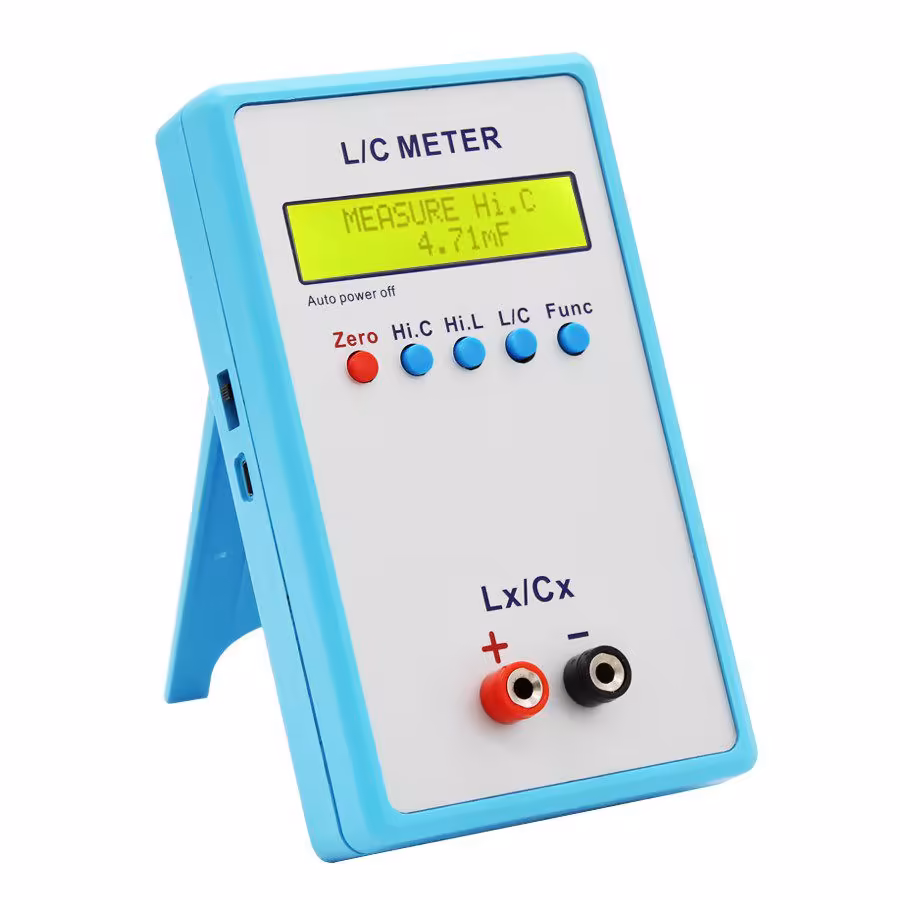

LC-200A 1pF-100mF 1uH-100H High precision digital display capacitance and inductance meter LC Meter

LC200A handheld inductance and capacitance measuring instrument is based on the principle of LC resonance, adding high-speed microcontroller precision measurement and calculation, can measure inductance below 1uH and small capacitance less than 1pF, wide measurement range, high accuracy, small size, light weight, convenient carry. It has flexible online calibration function at any time to maintain measurement accuracy; the instrument does not use any potentiometer adjustment, calibration parameters are completely stored in the FLASH of the microcontroller, power loss will not be lost, compared with other potentiometer calibration methods, it is accurate and convenient.

Item

Parameter

Capacitance measurement（C）

Accuracy

1pF~1uF

1%

1uF~10uF

5%

Resolution

0.01pF

Inductance measurement（L）

Accuracy

1uH~100mH

1%

Resolution

0.001uH

Large inductance measurement（Hi.L）

Accuracy

100mH~1H

1%

1H~100H

5%

Resolution

0.001mH

Large capacitancemeasurement（Hi.C）

Accuracy

1uF~100mF

5%

Resolution

0.01uF

Testfrequency

L、C

500kHz

Hi.L

500Hz~50KHz

Inductance, capacitance and large inductance measurement methods

LCresonance

Large capacitance measurement method

Charge-discharge

Display

1602LCD

Effective display digits

4digits

Interface topower supply

Mini USB &Φ

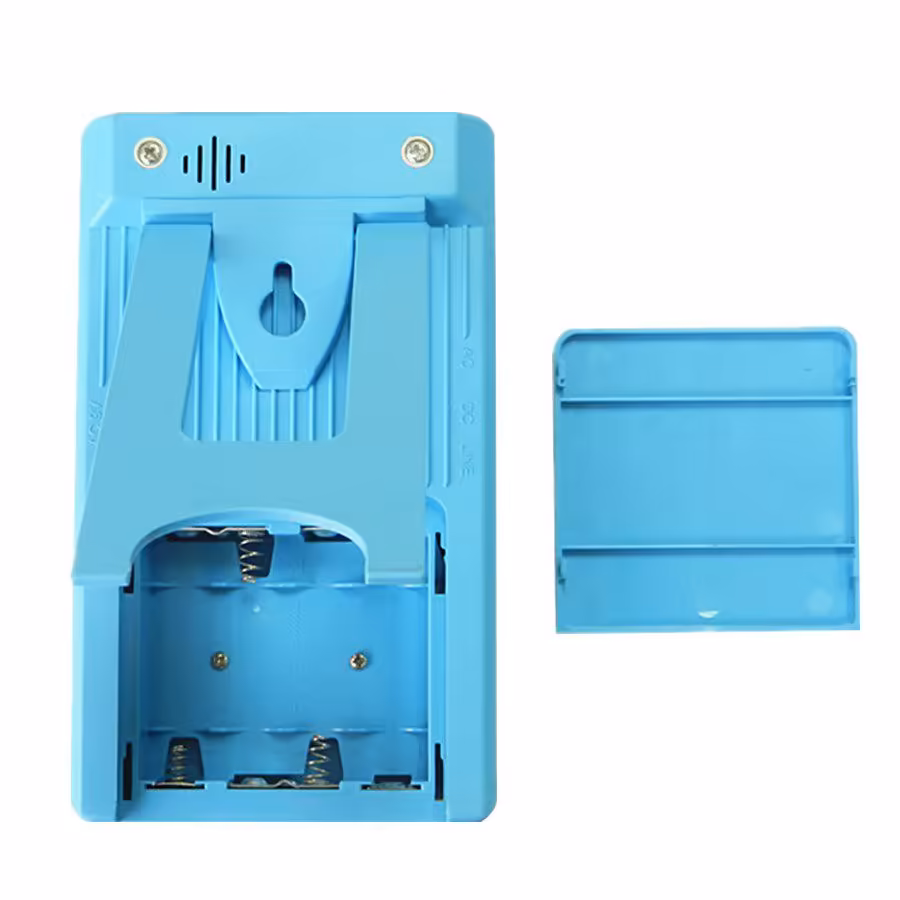

5.5DC Socket,4 of AA Batteries

Supplyvoltage

5V

Product dimension

150*89*29mm

Product weight

198g

Package dimension

200*160*60mm

Package weight

280g
