launch x431 V+ SmartLink HD Heavy Duty Truck Diagnostic Tool for 12V 24V Trucks

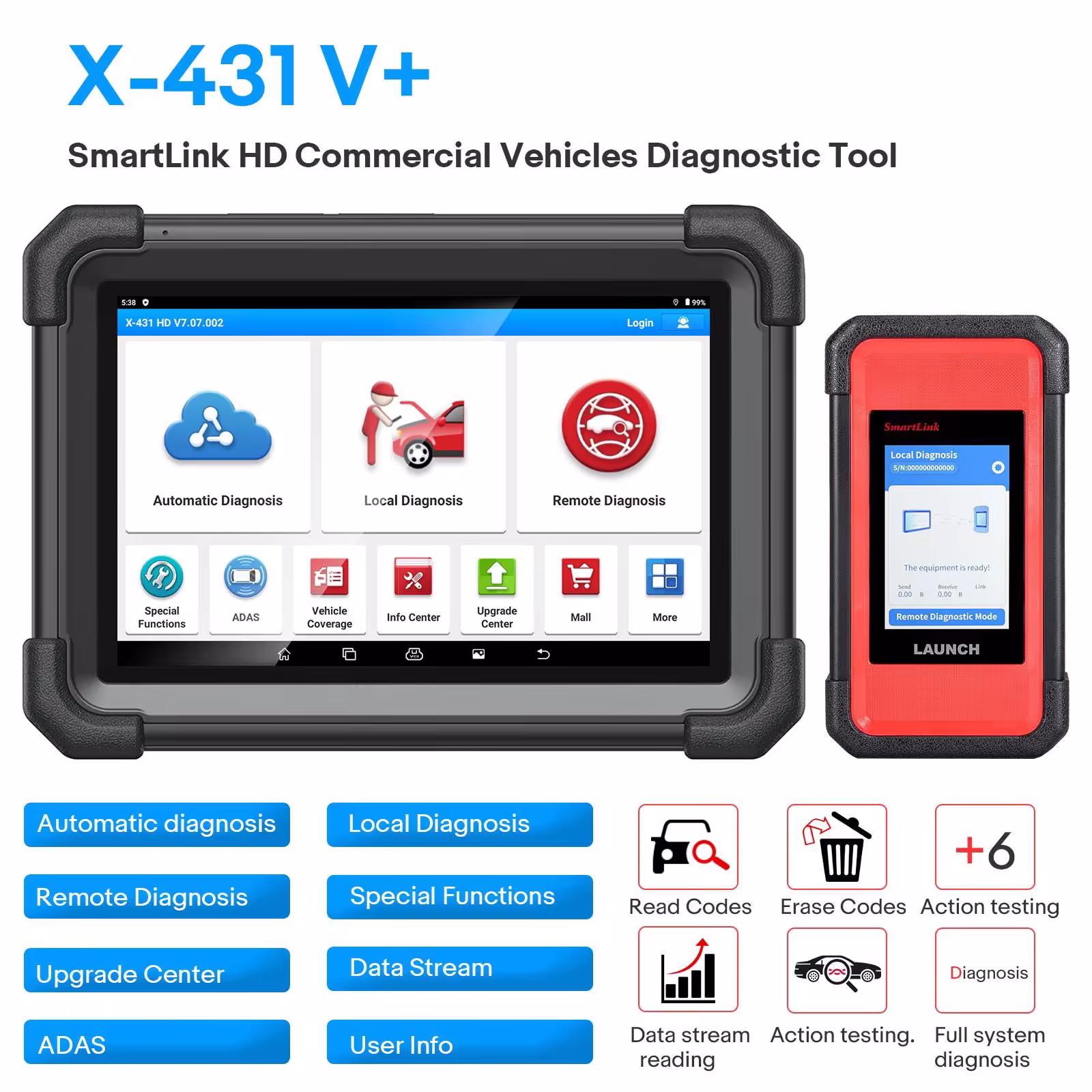

X-431 V+ SmartLink HD is launch's new generation of professional commercial vehicle diagnostic equipment. It adopts a new UI design and more advanced hardware solutions to improve users' efficiency in judging commercial vehicle faults and obtain a better user experience.

Device Overview

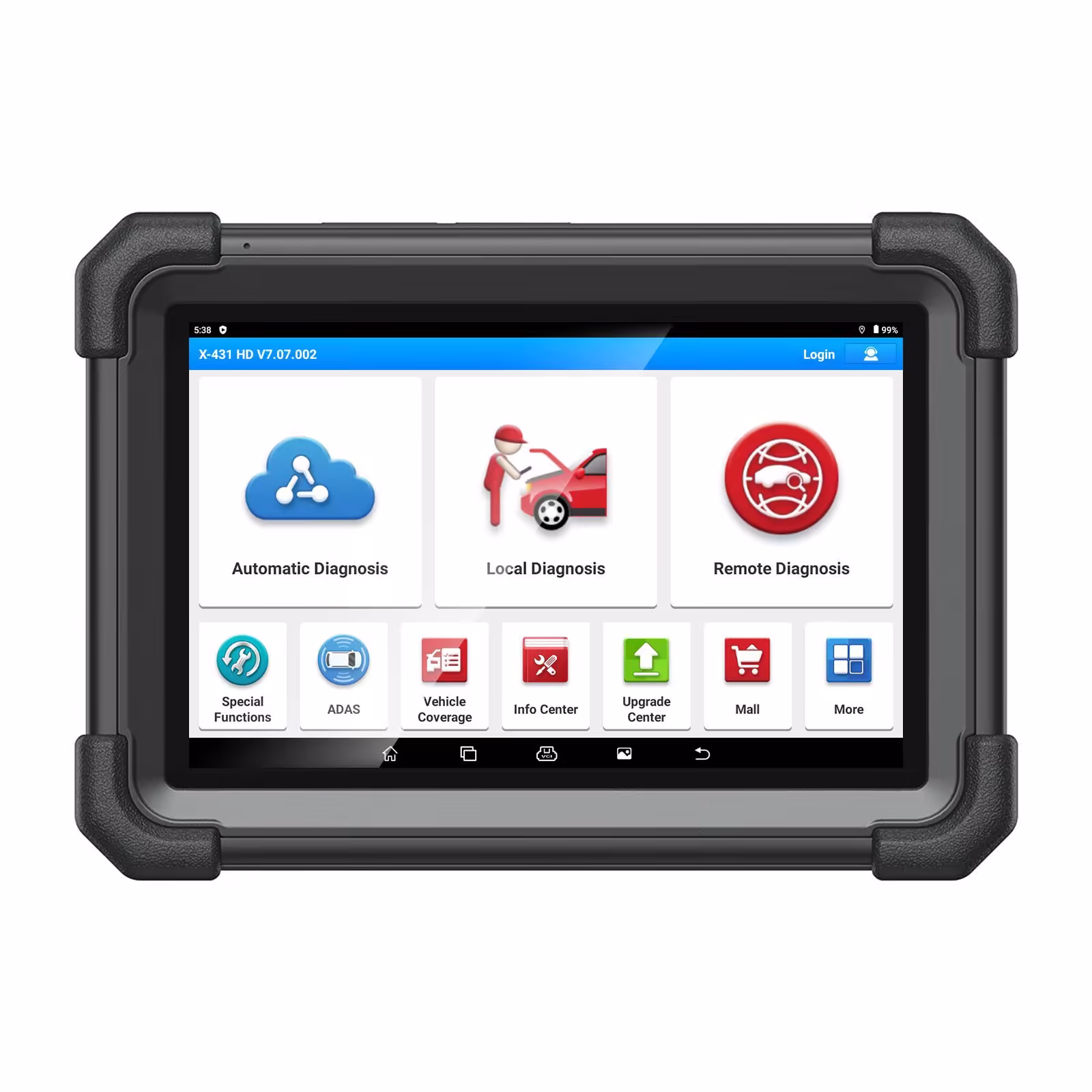

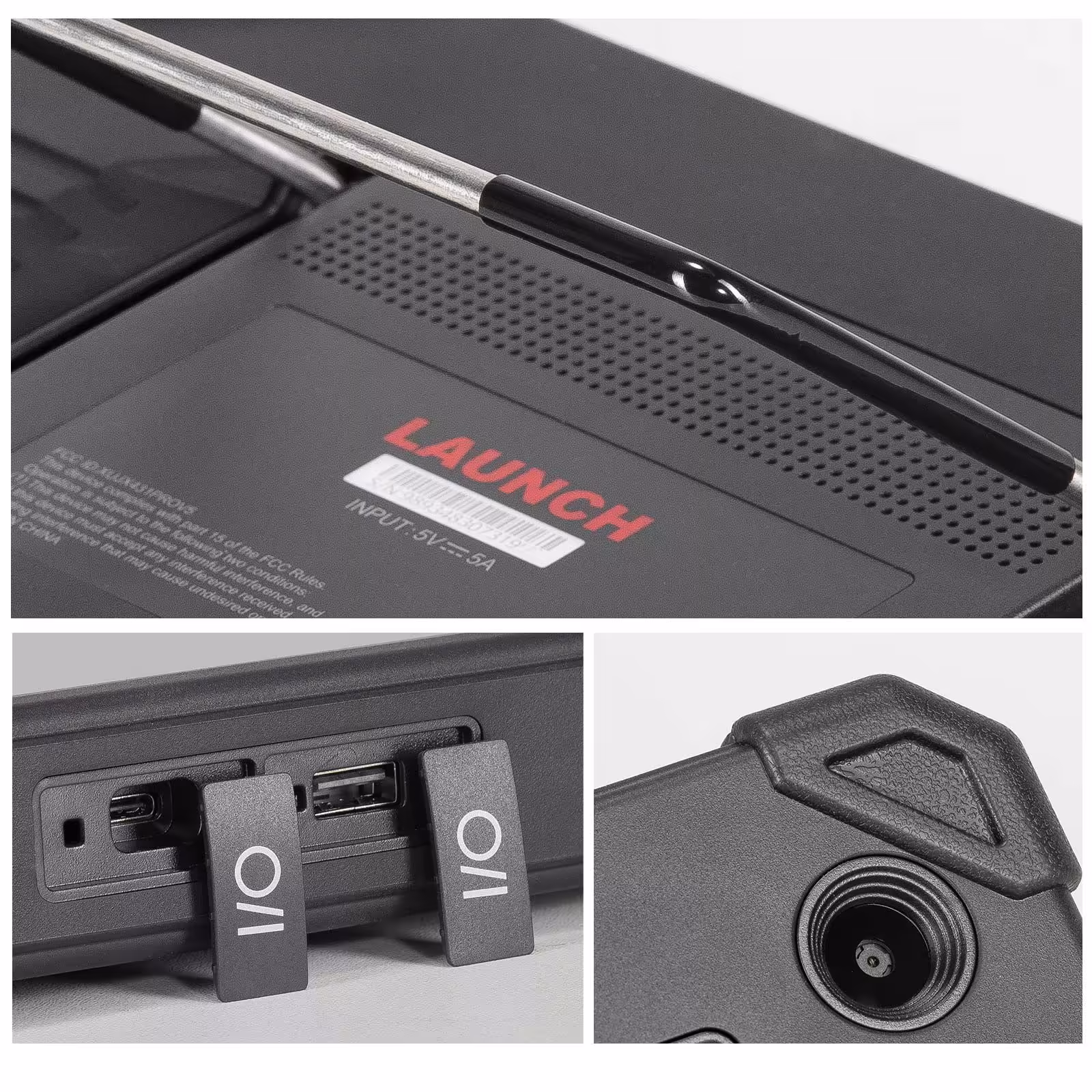

X-431 V+ SmartLink HD is a 10.1-inch smart car diagnostic device developed based on Android 10.0 system. It uses a 1.8GHz 4-core high-efficiency processor, 4GB RAM + 64GB ROM large storage, and is equipped with a high-endurance battery to run faster, more stably, and last longer. The standard new SmartLink C 2.0 diagnostic connector makes the diagnostic function more powerful. The product supports full system fault diagnosis, and has functions such as code reading, code clearing, data stream reading, special functions, and action testing.

Vehicle and engine Coverage

X-431 V+ SmartLink HD covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles.

Key Highlights

• Replace launch x431 V+ and HDIII module.

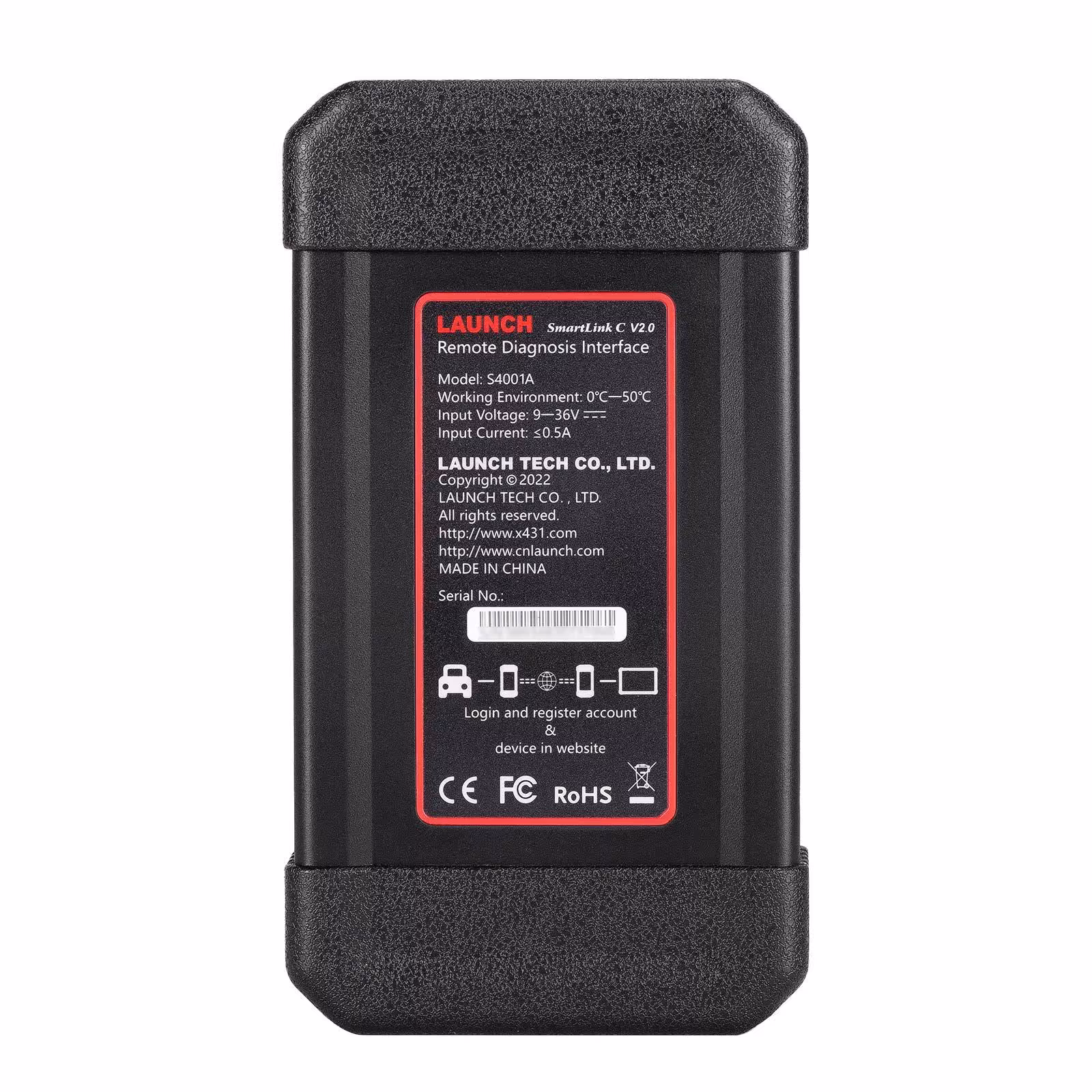

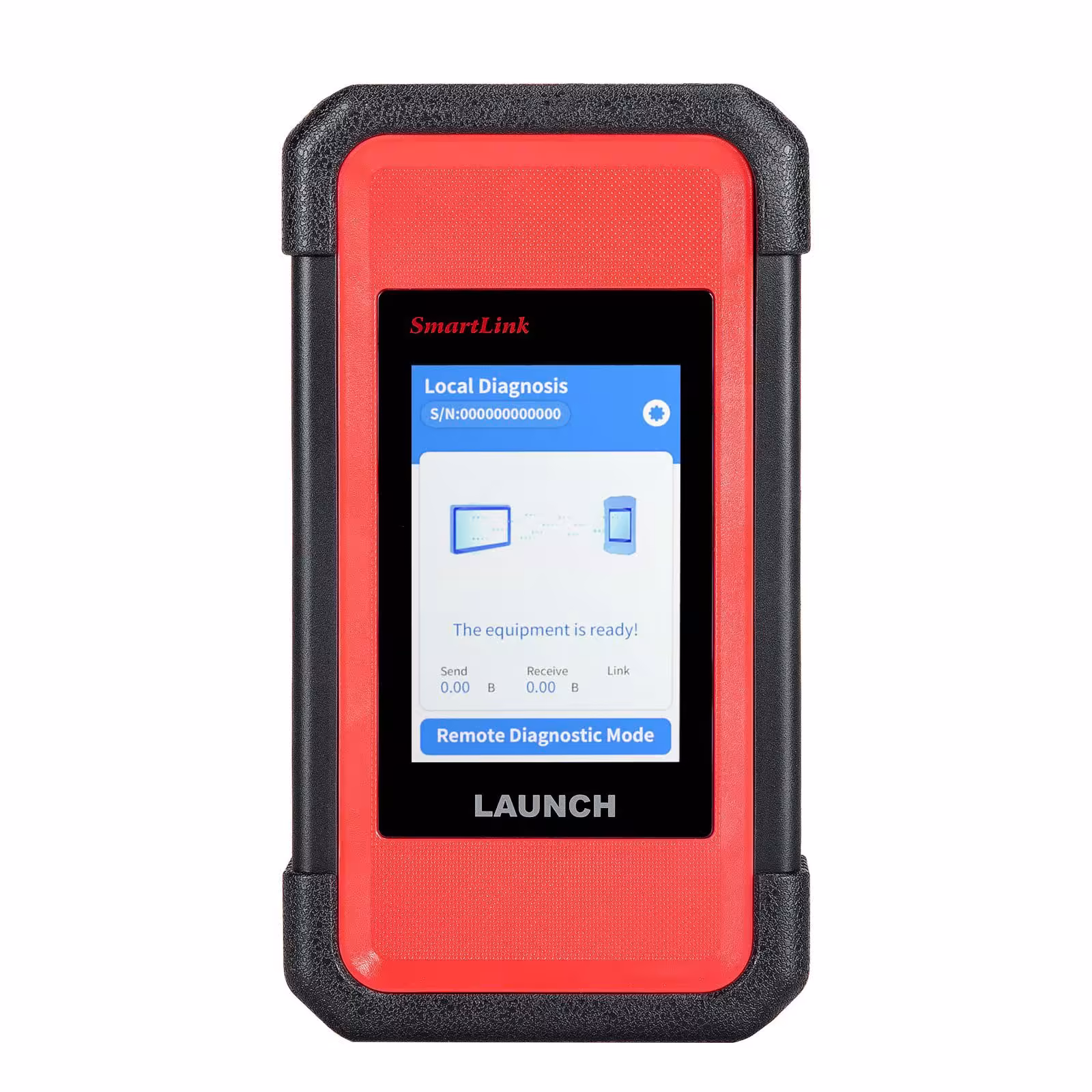

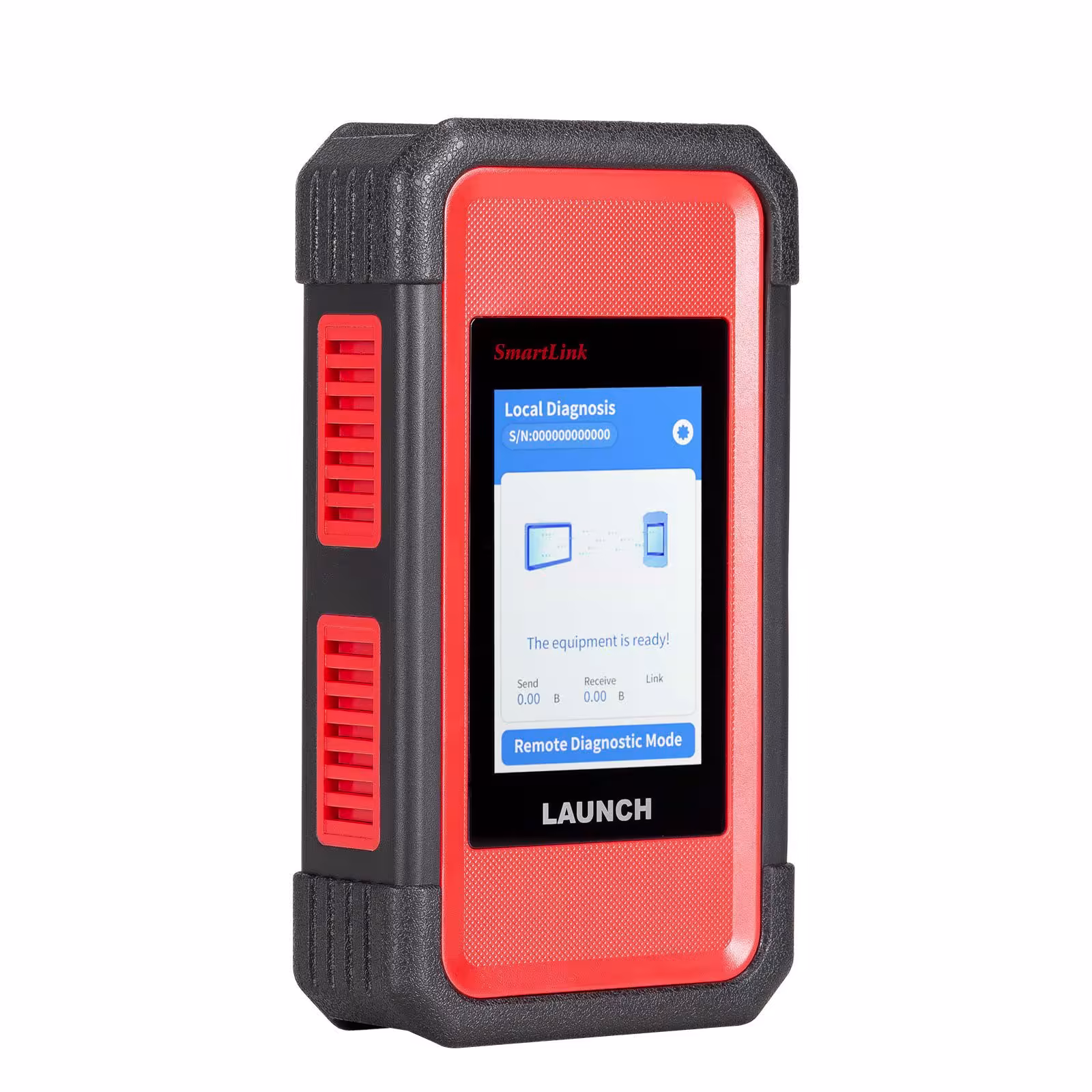

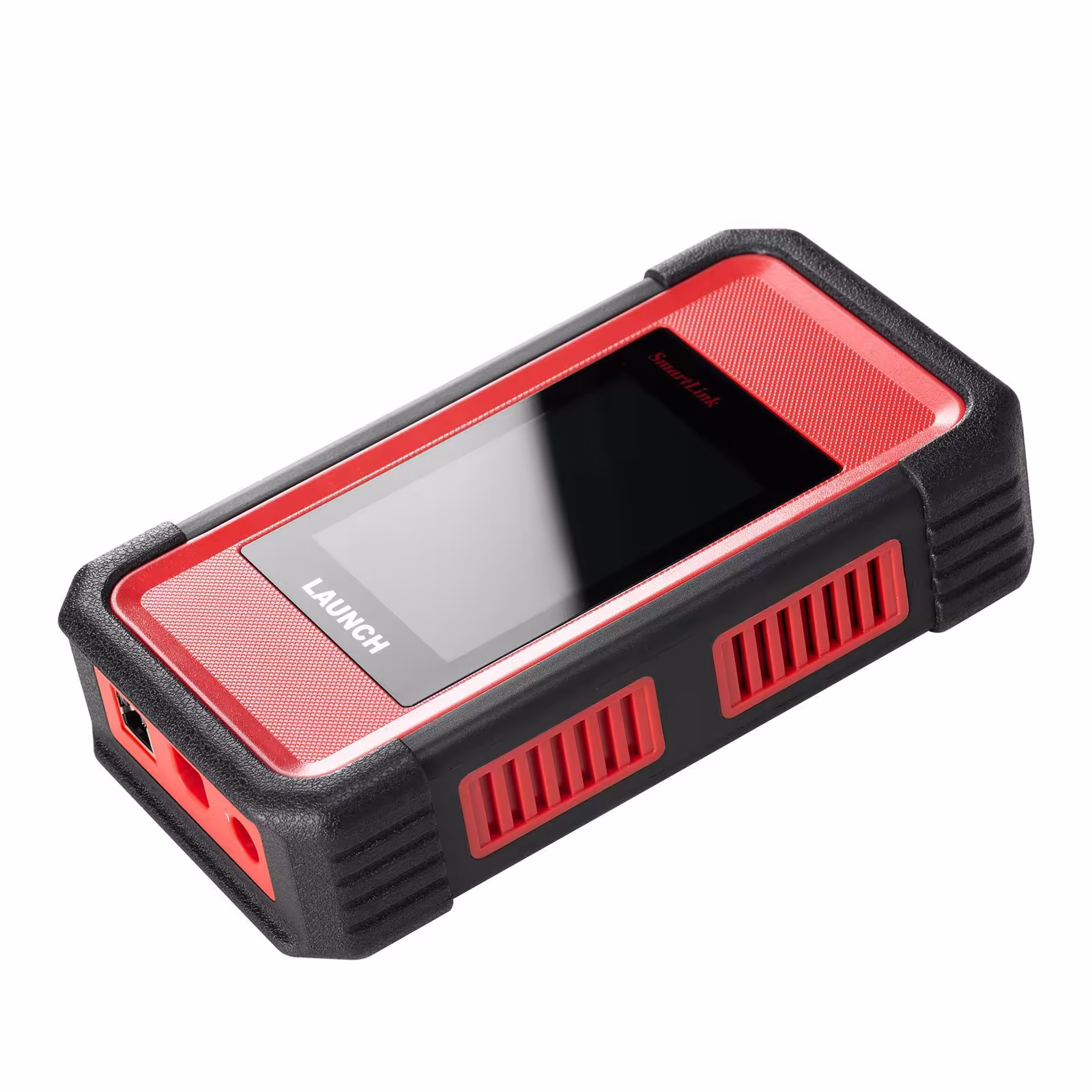

• SmartLink C 2.0 is an upgraded version of HDIII, with hardware upgrade and function upgrade.
• Newly Added CANFD Connector—x431 SMARTLINK C 2.0, more powerful, faster.
• For trucks 12–24V Diesel Vehicles only. If need both cars & trucks, check X431 V+ and SmartLink C 2.0. It does not include 12V gasoline cars software. If needed, please buy 12V gasoline cars software from Mall.

SmartLink C 2.0 vs. X-431 HDIII

Compared with X-431 HDIII, the SmartLink C 2.0 is more powerful in function. SmartLink C 2.0 has a visual operation interface to make diagnosis more convenient, supports more model software than HDIII and supports multiple communication methods.

• It is configured for passenger and commercial vehicles, mainly supporting commercial vehicles.
• The transmission speed is faster and more stable.
• The visual operation interface makes it more convenient.
• It supports commercial vehicles, passenger vehicles, new energy and other models.
• It supports super remote diagnosis.

Core Features

• Automatic Diagnosis according to the Factory Areas
• SmartLink Super Remote Diagnosis
• DPF Regen, Parameter Setting, Cylinder cut-off/compression test, Service Reset, Injector Coding, Speed Limit Adjustment, ongoing updating...
• Bi-directional Test
• ADAS HD Calibration
• Read and clear DTCs
• Delivers a live stream of data

Detailed Functions

Automatic Diagnosis

The modular design reduces redundant scanning steps and makes diagnosis more accurate and efficient.

Local Diagnosis

The diagnostic software in this function is classified by brand and vehicle type to solve the previous menu confusion problem. Technicians can quickly select the diagnostic software they need through different menus to improve work efficiency.

Data Stream

Supports diverse data stream display modes and user-defined standard data streams.

Remote Diagnosis

Super remote diagnosis is based on the SmartLink C-side diagnostic box connected to the vehicle. Maintenance technicians can use X431 diagnostic equipment, original equipment or other third-party brand equipment to remotely detect, diagnose and program the vehicle through the LAUNCH server platform.
The remote diagnosis function can realize real-time communication between equipment and equipment or equipment and computer to complete vehicle remote diagnosis. It becomes a reality for repair technicians to diagnose vehicles thousands of miles apart.

Special Functions

It supports 6 special functions commonly used in most car models, such as DPF, parameter setting, cylinder cutoff test, maintenance reset, injector programming, speed limit adjustment, etc., and is continuously updated.

ADAS

ADAS HD Calibration, Product Introduction, Product Manual, Adjustment Steps, ADAS Vehicle Coverage

Vehicle Coverage

It displays the list of testable models with current configuration. You can quickly find the corresponding software through the initial letter search and text input search functions. View the diagnostic software version, year, and system data at the same time.

Info Center

The info center contains equipment information, overall information, maintenance data and other information.

X-431 FIX

X-431 FIX maintenance data can be purchased through the mall, and LAUNCH will provide a service account. Technicians can search for information through the entrance provided on the fault code page or in X-431 FIX in the menu of "Repair Info".

Upgrade Center

It supports one-click upgrade of operating system, client, vehicle model software and firmware.

User Info

User info includes "My Report", "VCI", "VCI Management", "Activate VCI", "Firmware Fix", "Sample", "My Order", "Profile", etc.

Mall

The mall includes software store, service upgrade, other goods, etc.

Setting

Setting includes Units, shop information, printer set, clear codes, about, Auto update, device account management, log out...

Feedback

When users encounter vehicle models and functional abnormalities under special circumstances during use, they can provide their opinions to Launch through diagnostic feedback, and specialized technical personnel will track and deal with the problem.

Toolbox

It includes oscilloscope, S2-2 sensorbox, multimeter (S2-2), BST360, Videoscope.

Package Includes

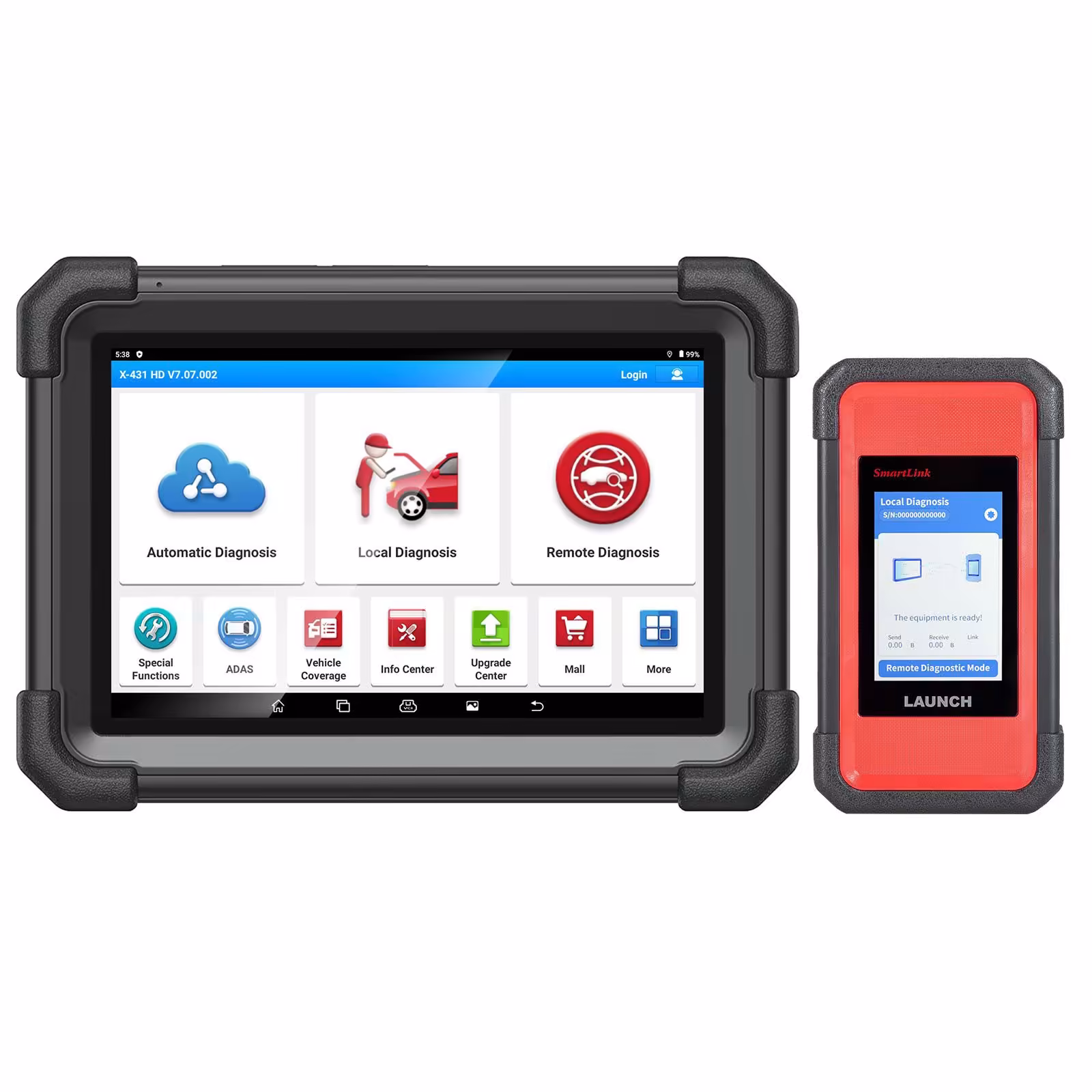

• 1pc x Launch X-431 V+ SmartLink HD tablet
• 1pc x SmartLink C 2.0 connector
• 1pc x Type II OBD-9 connector
• 1pc x IVECO 36 connector
• 1pc x OBD16 connector
• 1pc x OBD 6 connector
• 1pc x CAT 9 connector
• 1pc x BENZ 14 connector
• 1pc x RENAULT 12 connector
• 1pc x VOLVO 8 connector
• 1pc x MAN 37 connector
• 1pc x MAN 12 connector
• 1pc x IVECO 38 connector
• 1pc x ISUZU 20 connector
• 1pc x Jumpers
• 1pc x Test cable
• 1pc x OBD main cable
• 1pc x Power cable clips
• 1pc x Lighter
• 1pc x Jumper 10
• 1pc x HY-16 cable
• 1pc x M/F 12+16 cable
• 2pcs x USB cables
• 1pc x Standard power adapter
• 6pcs x Fuses
• 2pcs x Boxes
• 1pc x User manual
• 1pc x Password letter
• 9pcs x Jumpers
