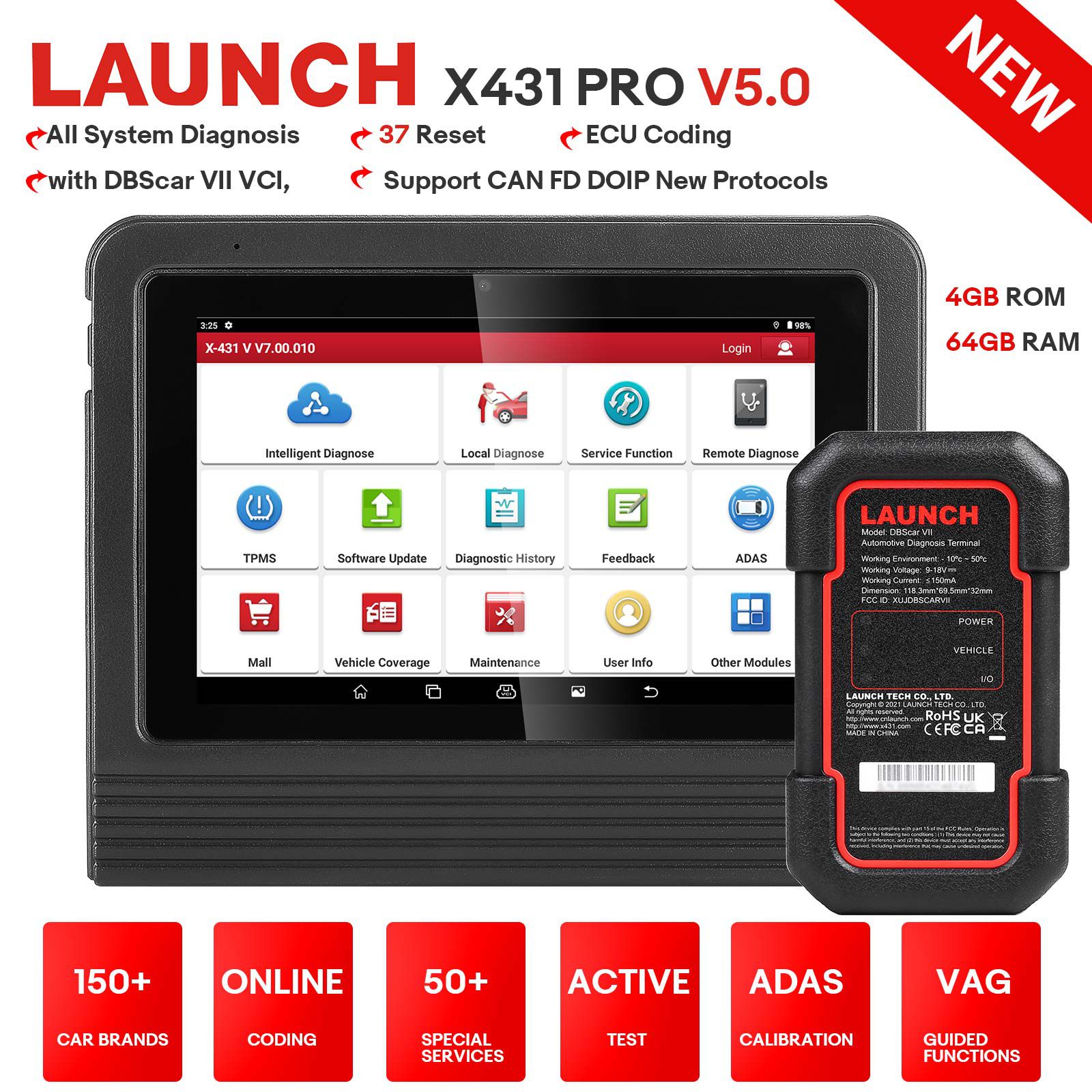

[EU/UK Version] launch X431 V 5.0 (x431 Pro) 8-inch Wi-Fi/Bluetooth Bidirectional Full System Diagnostic Scanner with CAN FD & DOIP Support, VAG Guide

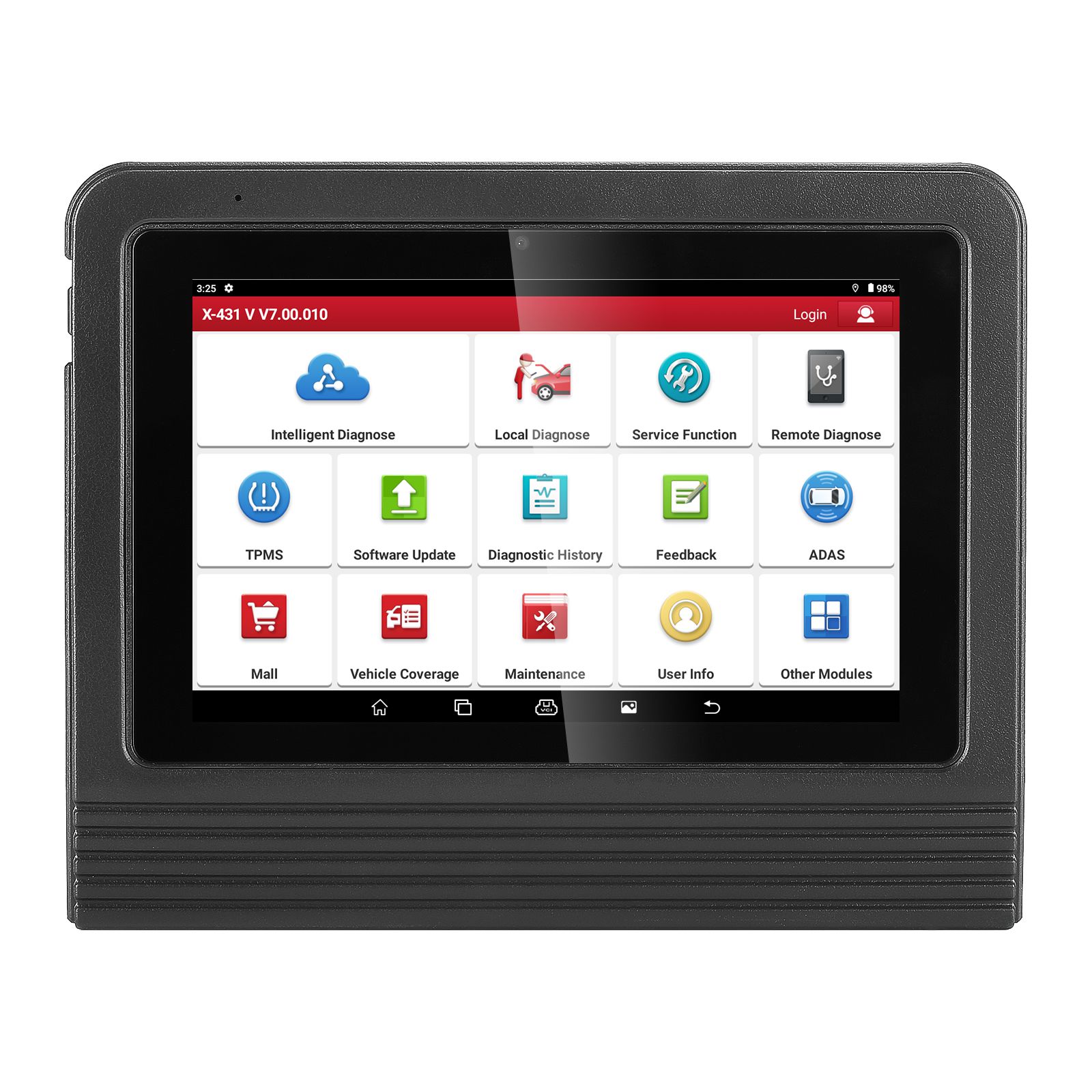

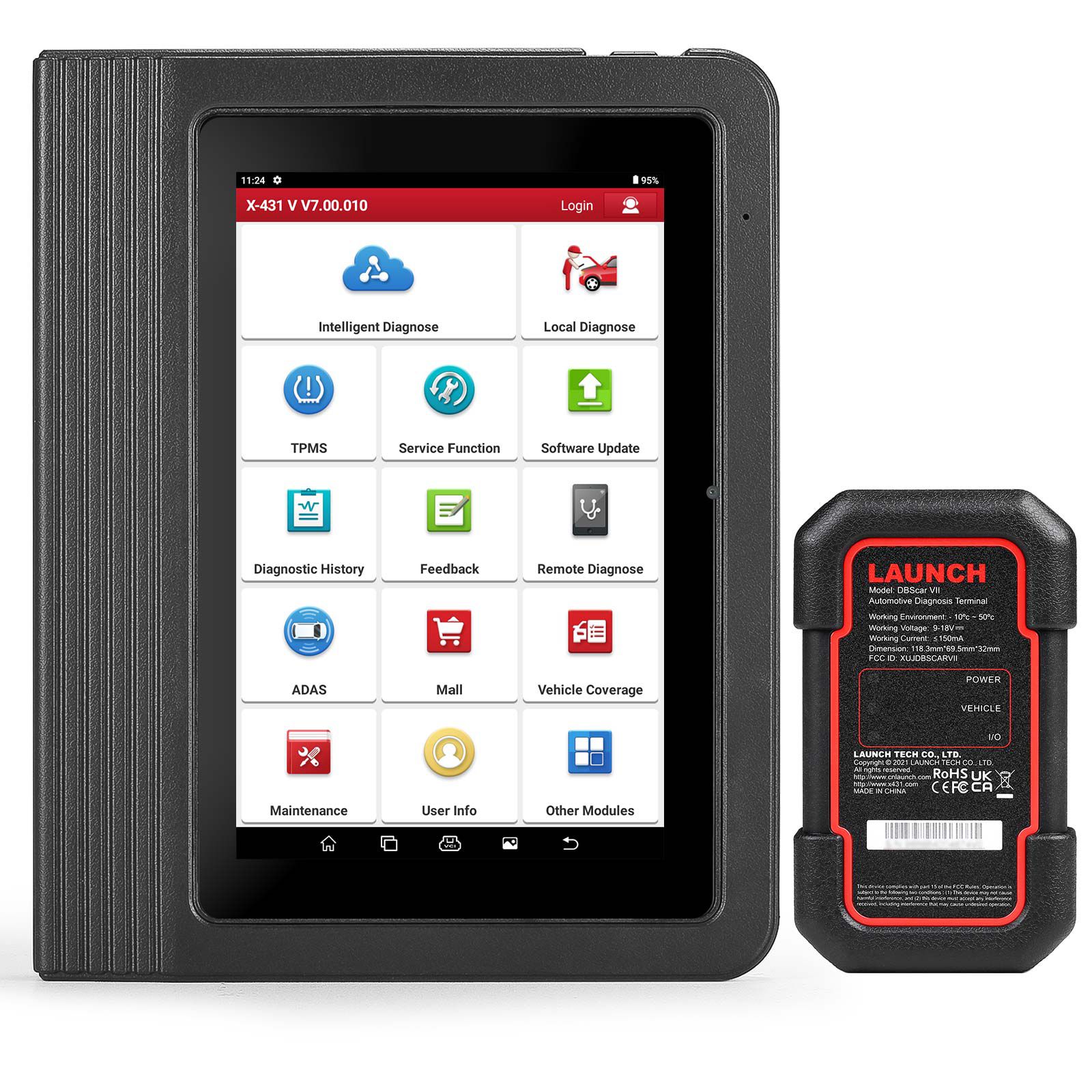

The launch x431 PRO V V5.0 features an 8-inch display and includes 2 years of free updates via the official website. It connects to your vehicle using the DBSCAR adapter via Bluetooth, delivering the full range of x431 series capabilities—comprehensive diagnostics across all vehicle systems and models.

The X-431 V is a next-generation, Android 10.0-based automotive diagnostic tool designed for internet-enabled applications. Building on launch’s advanced diagnostic technology, it offers wide vehicle coverage, powerful functionality, and precise test results.

Using Bluetooth communication between the vehicle’s diagnostic connector and compatible mobile devices, the X-431 V V5.0 enables full-system, full-model diagnostics—including Reading DTCs, Clearing DTCs, Reading Data Streams, Actuation Tests, and Special Functions.

Top 15 Reasons to Choose LAUNCH X431 PRO V V5.0 8-inch

1. Communication: Supports Wi-Fi and Bluetooth.
2. More Convenient: Global Version with no IP or language restrictions.
3. Brand PAD: 8-inch capacitive touchscreen Lenovo tablet with fast performance.
4. One-Click Update: 2 years of free online updates (Global version) directly on the tablet—efficient and convenient.
5. Powerful & Professional Functions: Full system diagnosis plus 11 special functions.
6. Remote Diagnosis: LAUNCH technicians can provide remote assistance during testing.
7. Diagnostic Feedback: Submit diagnostic issues to LAUNCH for troubleshooting analysis.
8. Wireless Printer Connection: Supports wireless connection to Wi-Fi printers (sold separately).
9. Special Design: Includes an exclusive X-431 V protective sleeve to prevent damage.
10. Multi-Languages: English, German, Japanese, Russian, French, Korean, Arabic, Spanish, Italian, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Danish, Persian, Romanian, Serbian, Finnish, Swedish, and Czech.
11. Vehicle Coverage: Compatible with all domestic and import vehicles from 1996 onward—covering approximately 72 brands and 220 models from Europe, the USA, Asia, Australia, India, and Malaysia.
12. Entertainment-Savvy Tablet: Built-in Wi-Fi enables internet browsing; supports installation or removal of Android apps.
13. New DBScar Connector: Larger Bluetooth adapter with LED indicator, 10-meter range (unobstructed), higher-quality chip for longer service life, and repairable design to save costs.
14. Bidirectional Control & Actuation Test: Enables control of components like A/C clutch, fuel pump, and purge control solenoid—ideal for professional DIY mechanics.
15. Expandable IMMO Function: The Launch X-431 PRO (V 5.0) supports IMMO expansion via XPROG-3 GIII Key Matching + IMMO license.

X431 PRO V V5.0 Level-Up Hardware

• Upgraded DBSCAR VII Bluetooth VCI: 10x faster diagnosis speed and 10x faster live data refresh rate.
• Android 10.0 OS with smooth operation, 6300mAh battery, and 4GB RAM + 64GB storage.

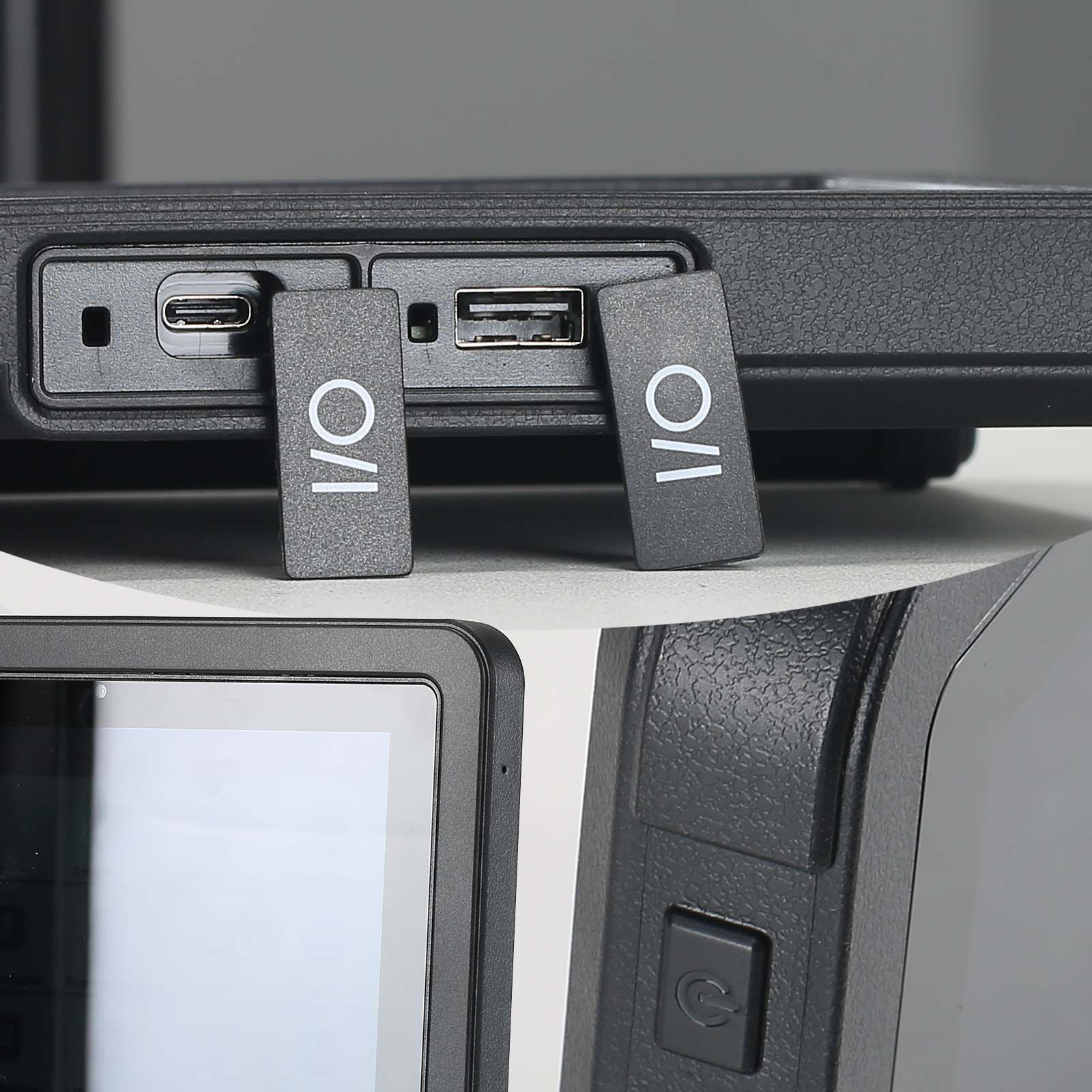

• Dual charging ports (Type-A and Type-C)—compatible with standard phone chargers.
• Dual cameras, dual Wi-Fi, Global Version with no IP limitations.
• Supports 98% of vehicles worldwide.
• Includes full set of 12 OBD1 adapters.

LAUNCH X431 PRO (V 5.0) Supported Extension Modules

(Additional purchases required for expanded functionality)

• ADAS Activation Card (required before using X431 ADAS Mobile/ADAS PRO features)
• XPROG-3 GIII Key Matching + IMMO license (provides IMMO Plus-like functionality)
• Key Programmer
• LAUNCH PC Adapter
• LAUNCH Motorcycle Diagnostic Connector Kit
• X431 TSGUN or Launch X431 i-TPMS (activates all sensors, TPMS relearn, programs Launch sensors only)
• BST360 Battery Tester (accurate and simple battery testing)
• VSP600 Videoscope
• LAUNCH X431 O2-2 Oscilloscope Scopebox
• LAUNCH X-431 Sensorbox S2-2
• LAUNCH Non-16 Pin Adapter Kit

LAUNCH X431 PRO V V5.0 Functions

1. All-in-One System Diagnostic Tool – Launch X431 PRO V V5.0

1. Full Diagnostic Function: Diagnoses electronic control systems across Asian, European, and American vehicle models. Comprehensive coverage of car brands and systems makes it a professional-grade automotive diagnostic tool.
2. Core Diagnostic Features: Read DTCs, Clear DTCs, Read Data Stream, Special Functions, and more.
3. Bidirectional Control: Requests information or commands modules to perform specific tests and functions.
4. Actuation Test: Sends and receives data from the vehicle’s control modules.
5. Remote Assistance: Enable remote diagnosis to get help from other mechanics when needed.
6. Diagnostic Report Printing: Automatically generates and saves a diagnostic report upon completion, which can be emailed and printed from a PC.

2. Special Functions

1. Oil Reset Service: Resets service mileage and intervals.
   • Required when the service lamp is on—after servicing, reset to start a new cycle.
   • Necessary after changing engine oil or oil-life monitoring components.
2. Steering Angle Calibration: Calibrates the Steering Angle Sensor.
   • Establishes a zero-point reference for straight-line driving, enabling accurate left/right angle calculation by the ECU.
   • Required after replacing the steering angle sensor, steering components (gearbox, column, tie rod, knuckle), performing four-wheel alignment, or repairing the vehicle body.
3. Electronic Parking Brake Reset: Resets brake pad wear indicators.
   • After brake pad replacement, reset is required to stop continuous alarms triggered by the wear sensor signal.
   • Necessary when: brake pads and sensors are replaced, the brake pad warning lamp is on, the sensor circuit is repaired after a short, or the servo motor is replaced.
4. Battery Register / Battery Maintenance: Resets the Battery Management System (BMS).
   • Clears low-battery fault data and performs battery matching.
   • Required after battery replacement or BMS-related service.
5. ABS Bleeding: Removes air from the ABS system to restore brake sensitivity.
   • Performs bidirectional tests to verify ABS operation.
   • Required when the ABS system contains air, or after replacing the ABS computer, pump, master cylinder, brake cylinders, lines, or fluid.
6. Electronic Throttle Position Reset / Learn: Initializes throttle actuators to restore ECU default values.
   • Ensures accurate air intake control for idle and throttle operations.
   • Required when: ECU is replaced or loses memory, throttle assembly or intake pipe is replaced/removed, or throttle is cleaned.
7. Diesel Particulate Filter (DPF) Regeneration: Clears particulate matter via forced regeneration and supports injector adjustments.
   • Uses high-temperature combustion or additives to maintain filter performance.
   • Required after replacing: exhaust back pressure sensor, PM trap, fuel additive nozzle, catalytic oxidizer, or DPF control module; or when the DPF MIL is on post-maintenance.
8. Tire Pressure Monitor System Reset: Resets tire pressure sensors after repairs.
   • Extinguishes the tire pressure warning light after correction.
9. Gear Learning: Enables crankshaft position sensor adaptive learning.
   • Compensates for crankshaft tooth machining errors, stored in the ECU for accurate misfire detection.
10. Fuel Injector Coding: Writes or updates injector codes in the ECU per cylinder.
    • Enables precise fuel injection control and correction per cylinder.

3. Supported Car Models

1. European: ABARTH, Alfa Romeo, AUDI, BMW, CITROEN, DACIA, FERRARI, FIAT, FORD (EUR), GAZ, JAGUAR, LANCIA, LAND ROVER, MASERATI, MAYBACH, MERCEDES-BENZ, OPEL, OPEL (SA), PEUGEOT, PORSCHE, RENAULT, ROLLS-ROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAZ, VOLVO, VW
2. American: CHRYSLER, FIAT (BRA), FORD, FORD (AUS), GM, GM (BRA), HOLDEN
3. Asian: ACURA, DAEWOO, DAIHATSU, HONDA, HYUNDAI, INFINITI, ISUZU, ISUZU (THAILAND), KIA, LEXUS, LUXGEN, MAHINDRA, MARUTI, MAZDA, MITSUBISHI, NISSAN, PERODUA, PROTON, SSANGYONG, SUBARU, SUZUKI, TATA, TOYOTA
4. Chinese: BYD, CHANGAN, CHANGHE, JIAO, GREAT WALL, HAFEI, JAC, JINLONG, ISUZU, LIUWEI_TY, QIRUI_TY, TIANJIN, FAW, XINKAI, ZHONGSHUN, ZHONGTAI, ZHONGXING
5. Other Vehicle Models:
   • Russia: GAZ, VAZ
   • Brazil: FIAT, GM
   • Malaysia: PERODUA, PROTON
   • Iran: IKCO, MVM
   • India: TATA, MARUTI, MAHINDRA

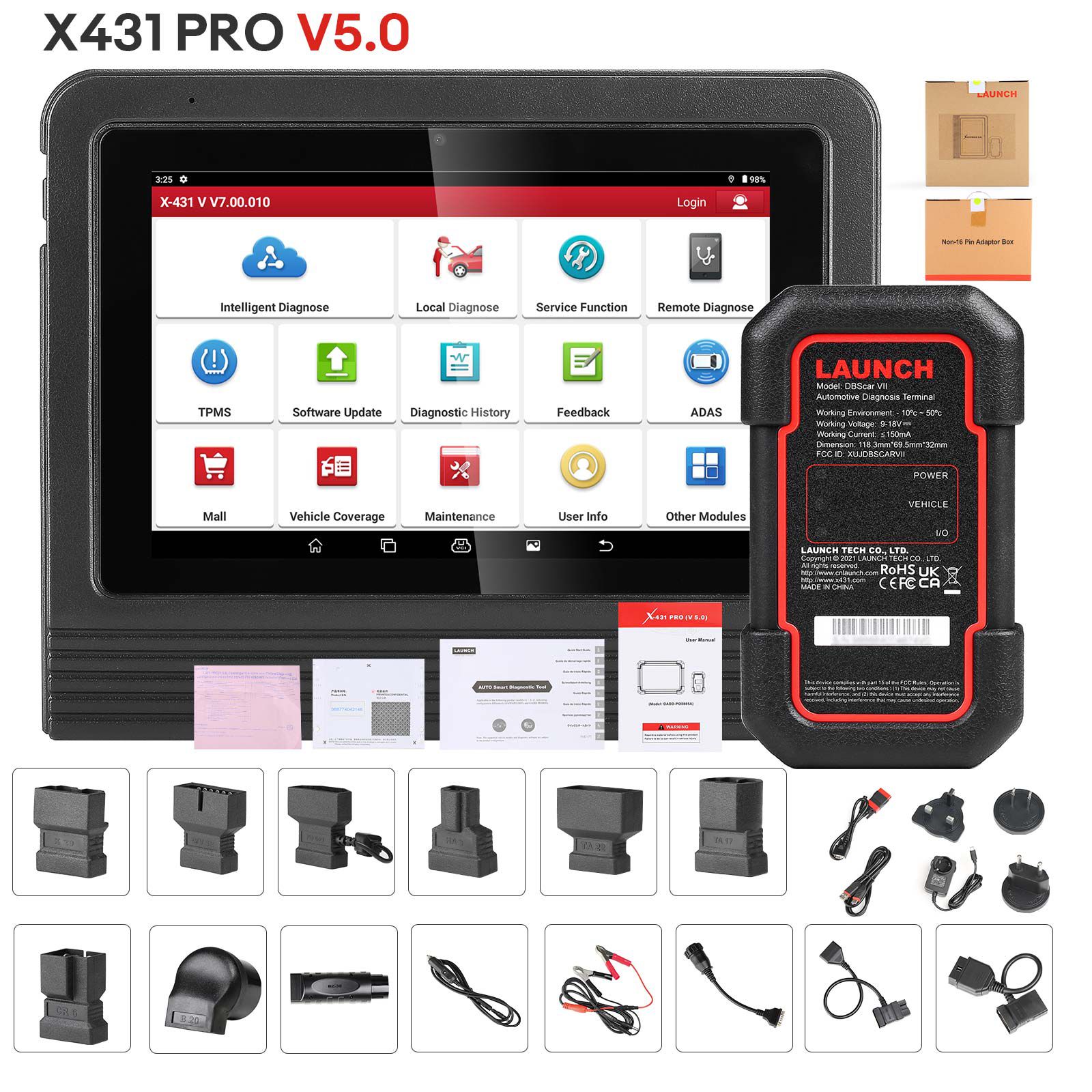

Packing List

• 1 x Launch X431 V 5.0 Complete Set
