LAUNCH X-431 SmartLink C HD LITE Expansion Package Compatible with X-431 PRO Series (8-inch Tablets)

The LAUNCH X-431 SmartLink C HD LITE expansion package includes the X-431 SmartLink V2 Heavy-Duty diagnostic module, commonly used non-standard adapters, and a heavy-duty vehicle software package.

This expansion package is designed for professional heavy-duty vehicle diagnostics, offering broad compatibility and advanced functionality for workshops and technicians.

Product Features

• Dual-processor Cortex-A7 + Cortex-M7
• 8GB RAM + 256MB storage
• 320×480 resolution display
• Multiple connectivity options: Bluetooth, Wi-Fi, USB
• Compatible with X-431 PRO series (8-inch tablet)
• Full-system diagnostics: Read/Clear DTCs, Read Data Streams, Special Functions, Actuation Tests

Heavy-Duty Software Coverage

Engine Systems

Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai, etc.

Vehicle Types

Trucks, Buses, Construction machinery, Natural gas vehicles

Product Specifications of X-431 SmartLink V2

• CPU: Dual-processor Cortex-A7 + Cortex-M7
• Operating system: Linux
• Resolution: 320×480
• Power: < 6W
• Storage: 8GB
• Memory: 256MB
• Working temperature: 0℃ ~ 50℃
• Working voltage: 9V DC — 36V DC
• Size: 200mm × 110mm × 47mm
• Communications: Wi-Fi / Bluetooth / Ethernet

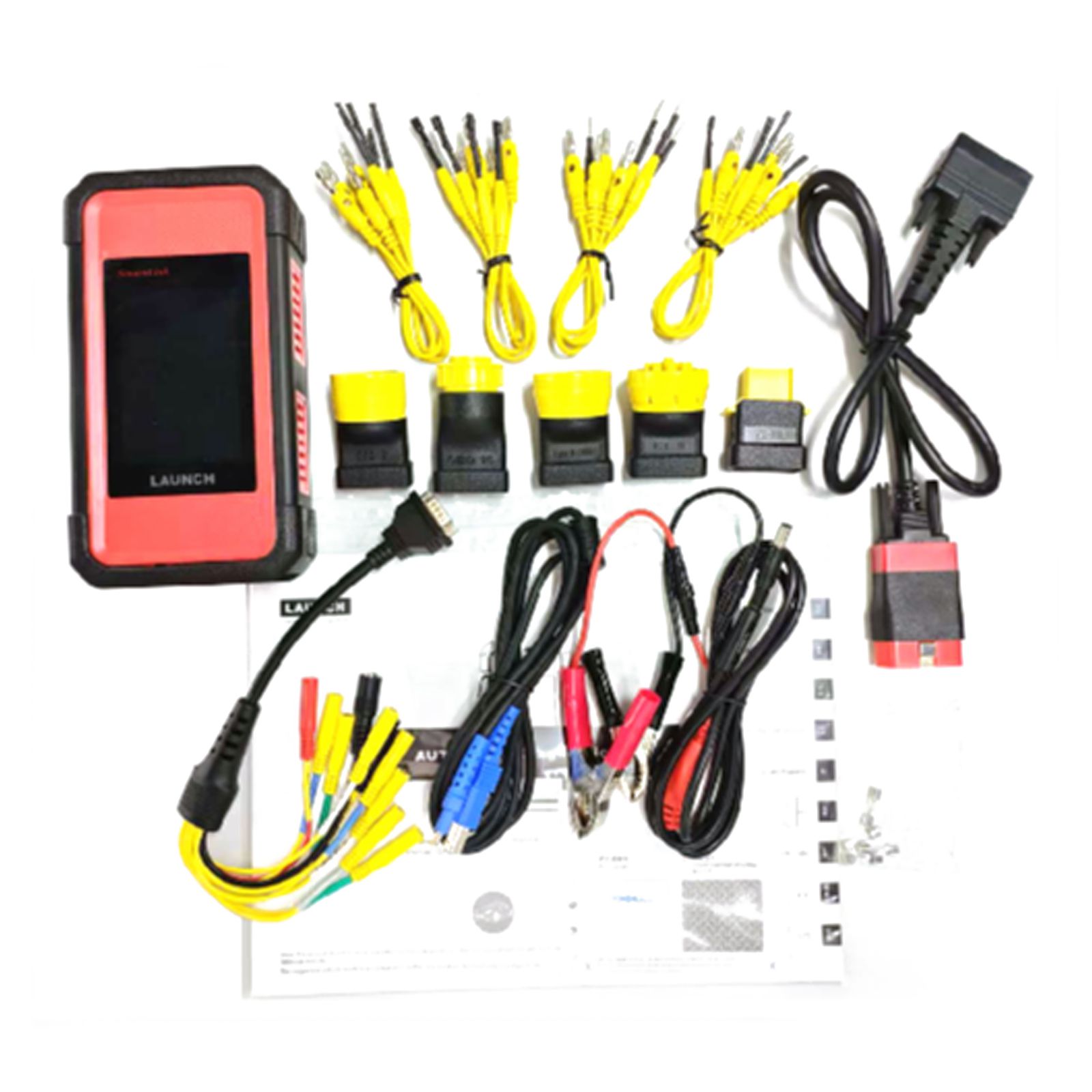

Package Includes

• 1pc x X-431 SmartLink V2
• 1pc x HD15F to OBDII 16-pin Male Integrated Test Adapter, RoHS
• 1pc x DB15F to HD15F Test Main Cable (with HD15M to OBDII 16-pin Male Integrated Adapter), RoHS
• 1pc x X431 PAD4HD USB Type-A to Type-B Cable, RoHS
• 1pc x X-431 SmartLink C HD Overseas Online Heavy-Duty Module Multilingual Quick Start Guide, RoHS
• 1pc x Universal Password Envelope (Non-LAUNCH Branded), RoHS
• 1pc x X431 PAD4HD B15M-Type II OBD-9 Integrated Diagnostic Adapter (Type II OBD 9)
• 1pc x X431 PAD4HD B15M-6 Integrated Diagnostic Adapter (OBD 6)
• 1pc x DIY HDB15M-CAT-9 Caterpillar 9-pin Integrated Diagnostic Adapter (CT 9), RoHS
• 1pc x X431 PAD4HD B15M-VOLVO-8/Volvo 8-pin Integrated Diagnostic Adapter (VO 8)
• 1pc x X431 PAD4HD B15M-16 Integrated Diagnostic Adapter (OBD 16)
• 1pc x X431 PAD4HD B15M-JUMPER-10 Heavy-Duty Jumper 10-pin Diagnostic Adapter (JUMPER 10)
• 1pc x Dual-Clamp Power Cable (English Version, Non-LAUNCH Branded), RoHS
• 4pcs x Fuse, AC250V/5A, φ5×20mm, RoHS
• 4pcs x X-431 PAD IV Electronic Control Adapter Cable 1, RoHS
• 4pcs x X-431 PAD IV Electronic Control Adapter Cable 6, RoHS
• 4pcs x X-431 PAD IV Electronic Control Adapter Cable 7, RoHS
• 4pcs x X-431 PAD IV Electronic Control Adapter Cable 8, RoHS
