LAUNCH X431 PRO3 V+ ELITE 10.1 inch Diagnostic Tool with SmartLink 2.0 Support CAN 2.0, CANFD, DoIP and J2534 Same as PRO3S+ ELITE

launch x431 PRO3 V+ ELITE Highlights

1. With new SmartLink C 2.0 Passthru. Dual diagnosis mode (local diagnosis and SmartLink super remote diagnosis). Remote diagnosis requires an activation card.
2. Supports Topology Mapping function.
3. Upgraded SmartLink C supports many more vehicles, including EVs (EV software must be purchased separately).
4. Unlock FCA, Benz, and Renault SGW security gateway. *Requires purchase of European SGW Function license in Mall.
5. Supports Wi-Fi wireless and USB connection (new tablet includes USB Type-C port).
6. OBD PIN Detection: Detects vehicle protocols and OBDII pin voltage status to help technicians assess the OBD2 interface.
7. Full Bidirectional Active Test, AutoVIN & AutoScan powers all-systems DTC scans that complete in under 3 minutes on average.
8. Full system diagnostic + ECU coding.
9. 37+ Reset Functions: Includes the most comprehensive repair functions available in the aftermarket. Solves 99% of vehicle problems and supports every ECU in your car.
10. Multilingual Support: English, Simplified Chinese, Traditional Chinese, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian, Serbian, Finnish, Swedish, Czech, Italian.
11. APP language: English, German, Russian, French, Traditional Chinese, Portuguese, Japanese, Spanish, Italian.
12. J2534 OEM Programming is compatible with J2534 Reprogramming, DoIP, CAN FD, and Heavy-Duty Truck (DC9–36V) protocols. SmartLink has built-in CAN FD and DoIP protocols—no DoIP cable needed.
13. Online Functions: Provides quick access to massive OEM server data. Online ECU Coding compatible with VW, Audi, BMW, Porsche. Also includes Online Calibration, Online Code Search, Online Feedback, and Online Repair Resource.
14. Diagnostic Report Printing; One-click Updating; Data Recording; 4-in-1 Data Stream Display.
15. Universal Vehicle Coverage: Serves passenger cars and heavy-duty trucks. Covers 99% of American, Asian, and European models and over 10,000 vehicles (1996–2022). Truck support requires additional hardware.
16. FCA AutoAuth Access: Bypasses SGW in FCA vehicles seamlessly and within seconds; works on 2017 and later Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, etc. *Requires AutoAuth subscription.
17. VAG Guided Function: Skips the routine procedure of entering security access code & channel number for VW, Audi, Skoda, and Seat vehicles.
18. Add Modules to Expand Features: ADAS Calibration Toolkit; VSP-600 VideoScope; x431 TPMS TSGUN/i-TPMS; BST360 Bluetooth Battery Tester; X-PROG & X-PROG3 IMMObilizer; Wi-Fi printer.
19. Supports IMMObilizer key programming and VW/Audi/BMW 8HP gearbox cloning with the X-PROG3 and IMMO software package.
20. Supports ADAS Calibration when used with ADAS Mobile or ADAS PRO.
21. Optional truck license available (not compatible with HDIII—you must purchase the truck software adapter set).
22. 2 Years Free Online Updates.

Important Notice

Global Version for Customers outside the UK and EU countries.
UK/EU Version for UK/EU Countries customers.

launch x431 PRO3 V+ ELITE Extended Functions

1. S2-2 SensorBox: Simulates vehicle sensor faults.
2. O2-2 ScopeBox (Oscilloscope): Analyzes data for various automotive testing applications, including circuits, sensors, actuators, ignition systems, and more.
3. ADAS Calibration: Supports ADAS calibration when used with ADAS PRO or ADAS MOBILE (optional). Enables calibration for adaptive cruise control, lane departure warning, rear collision warning, panoramic monitoring, blind spot monitoring, night vision system, and more.
4. launch VSP600 Videoscope: Inspects hard-to-reach areas such as the engine, fuel tank, and braking system. Features 6 levels of light intensity for optimal visibility in different environments. Compatible with LAUNCH X-431 scanners or any Android device, allowing live video streaming, image capture, and video recording. (*Sold separately.)
5. LAUNCH X431 TSGUN: Works with optional tire pressure tools for sensor activation, reading, tire pressure diagnosis, learning, programming, detection, and other functions.
6. LAUNCH BST360 Battery Tester: Adds battery diagnostic capabilities to the X431 PRO3 V+ ELITE, including battery health test, start system test, and charging system test—helping accurately and promptly identify battery-related issues.

LAUNCH X-431 PRO3 V+ ELITE Core Functions

LAUNCH SmartLink: Ultimate Remote Diagnostics

Dual diagnosis mode supports both Local Diagnosis and Super Remote Diagnosis.

Local Diagnosis

• Wide coverage of vehicle models with accurate diagnostics.
• Full vehicle model and full system testing.
• Supports Volkswagen Audi boot function.
• Supports topology map.
• Multi-system parallel communication improves diagnostic efficiency.

Super Remote Diagnosis

Unlike traditional remote diagnostics, SmartLink offers a patented, award-winning remote diagnostic solution. Users at the vehicle location can receive efficient data exchange and repair solutions by connecting with remote technicians via SmartLink C. Technicians gain new business opportunities by offering remote guidance and repair services through the SmartLink box.

Pin Detection

Pin detection identifies the voltage and supported protocol type of the vehicle’s OBDII diagnostic socket pins, helping determine the status of the OBDII diagnostic interface.

Covers 200+ Makes – Real Car Doctor for 99% of Vehicles

Supports new and legacy models from over 200 global car brands across America, Asia, Europe, and more—including new energy vehicles.

• 12V/24V Compatible: Works on both 12V and 24V fuel vehicles. Supports passenger cars and commercial vehicles.
• AutoAuth for FCA SGW: Designed for FCA SGW-equipped vehicles, including 2018+ Fiat, Chrysler, Alfa Romeo, Dodge, and others.
• J2534/D-PDU Protocols: Compatible with Toyota, Honda, Volvo, Subaru, Land Rover/Jaguar, Ford, GM, BMW, and more—no adapter required.
• CAN FD / CAN 2.0 / DoIP: Covers Land Rover/Jaguar (2017+), BMW F/G chassis, GM (2019+), Volvo (2018+), and others.

Electric Vehicle Function Module

This function requires activating and purchasing the EV Diagnosis Add-On Kit.

60+ Popular Special Services Safeguard Your Daily Driving

Special Functions Overview

1. Oil Reset: Resets the oil service light and oil life interval after an oil change or repair.
2. EPB Reset: Resets electronic parking brake components to ensure proper operation after replacing brake discs or pads.
3. Injector Coding: Writes or rewrites the injector’s actual code into the ECU for precise fuel injection control per cylinder.
4. Windows Calibration: Performs door window matching to restore ECU memory and re-enable automatic window up/down functionality.
5. Sunroof Initialization: Configures sunroof settings including auto-close during rain, slide/tilt memory, lockup close, and temperature thresholds.
6. A/F Reset: Sets or learns air/fuel ratio parameters for optimal engine performance.
7. High Voltage Battery Diagnostics: Diagnoses high-voltage battery systems and retrieves status information.
8. Relative Compression: Identifies compression issues by comparing each cylinder’s average starting motor speed against the overall average.
9. FRM Matching: Clears faults related to lighting short circuits.
10. Turbocharging Matching: Relearns turbocharger parameters after replacing boost system components or resetting learned values.

Additional Supported Functions
SAS Reset, BMS Service, ABS Bleeding, Tooth Learning, Suspension Matching, Gearbox Matching, Headlight Calibration, Tire Pressure Reset, Odometer Calibration, Language Change, Coolant Bleed, High Voltage Battery Diagnostics, and more.

How to Access 100+ Special Functions
Navigate via: Brand >> System >> Module >> Special Functions
Alternative path: Diagnose >> Car Model >> System >> Special Function

New Topology Delivers 200% Work & Cost Efficiency

1. Color-Coded System Structure: Accurately visualizes interconnections between vehicle modules, serving as a practical reference for efficient repairs and reducing dealership dependency.
2. Multi-System Parallel Communication: Enables simultaneous analysis of all vehicle systems in seconds, delivering comprehensive component diagrams.
3. Graphical System State Display: Clearly illustrates the operational status of each system to quickly and accurately pinpoint faults, significantly boosting diagnostic efficiency.

Capabilities Enabled by J2534 Programming

• Program Blank ECU: Matches OE configurations with software and settings after ECU replacement.
• Refresh the ECU: Writes updated data into a used ECU to ensure correct operation.
• Restore ECU Information: Recovers original ECU data when needed.
• Upgrade ECU Software: Installs the latest software version onto the ECU.
• Supports ECU programming across numerous brands including Toyota, Honda, Volkswagen, BMW, Ford, GM, Chrysler, and Mercedes-Benz—delivering OEM-level functionality in one tool.

Note: J2534 programming requires SmartLink C. Contact us to obtain the "J2534 Operation Manual."

Advanced Diagnostic Features

12-in-1 Graphic Live Data

This universal car scanner delivers intuitive, real-time visual data from all major vehicle systems—including engine RPM, temperature, mass airflow, and more—displayed simultaneously on a single screen. The integrated 12-in-1 live graph interface enables instant assessment of your vehicle’s health.

Pre & Post Scan

Documents vehicle conditions before and after repairs, enabling clear comparison to verify that all initial faults are resolved and to detect any new error codes introduced during service.

Auto-Generated Diagnostic Report

Automatically creates a PDF diagnostic report upon successful completion of a scan. Reports can be saved, printed via Wi-Fi-connected printers, or emailed directly for collaborative troubleshooting. Providing these reports is essential when seeking technical support for complex vehicle issues.

Remote Diagnosis

When on-site resolution isn’t possible, the LAUNCH X431 PRO3 V+ ELITE offers real-time remote assistance. Unlike other scanners that rely on unstable third-party tools like TeamViewer, this device enables direct, stable remote sessions via web browser or peer-to-peer between two X431 users—allowing mechanics to diagnose vehicles thousands of miles away with greater speed and reliability.

Massive Repair Materials & Tips

Access an extensive library of real-world diagnostic and repair resources, including:

• OBD Fault Code Library: Instantly explains DTC meanings without external searches.
• Coverage List: Displays supported functions and systems based on selected vehicle make, model, and year.
• Instructional Videos: Keeps you updated on evolving automotive technologies and service techniques.
• Learning Materials: Provides detailed repair procedures derived from millions of successful real-world cases.

Smart AutoVIN & AutoScan

Automatically detects the vehicle’s VIN and initiates matched diagnostics—eliminating manual entry and accelerating the diagnostic process.

View History

Records and stores all diagnostic sessions, allowing users to review, replay live data, or resume operations from the last session without restarting from scratch.

Technical Specifications

• Processor: 2.0GHz 4-core
• Operating System: Android 10.0
• Memory: 4GB RAM
• Storage: 64GB
• Battery: 47.880Wh (7.6V, 6300mAh)
• Display: 10.1-inch, 1280×800 resolution
• Camera: 8 megapixels
• Wi-Fi: Dual-band (2.4GHz / 5GHz)
• Interfaces: USB Type-A ×1, USB Type-C ×1
• Operating Temperature: 0–50°C
• Dimensions: 274 × 190.5 × 40.5 mm

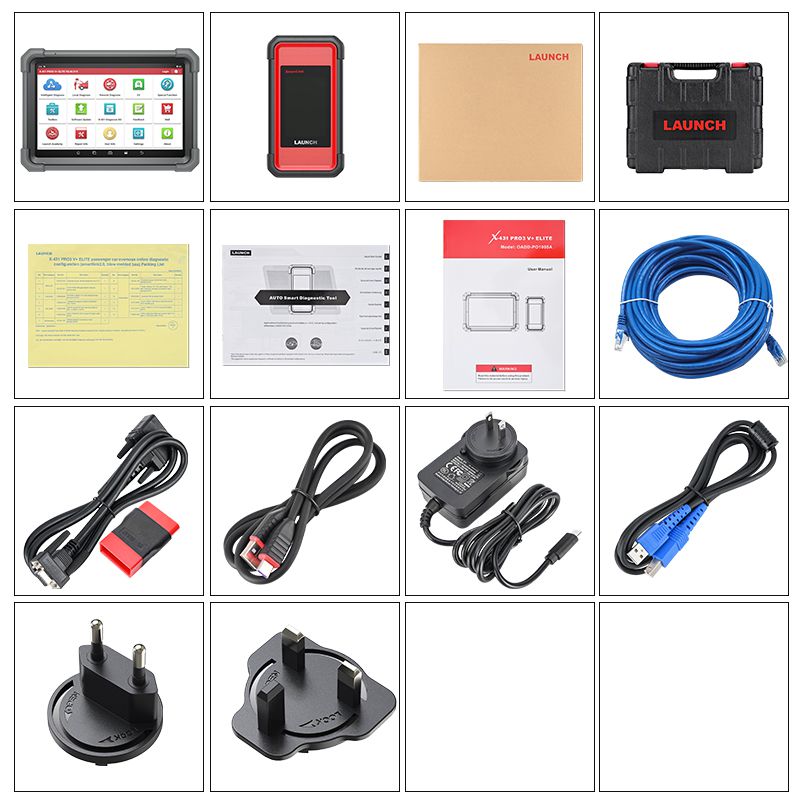

Package Includes

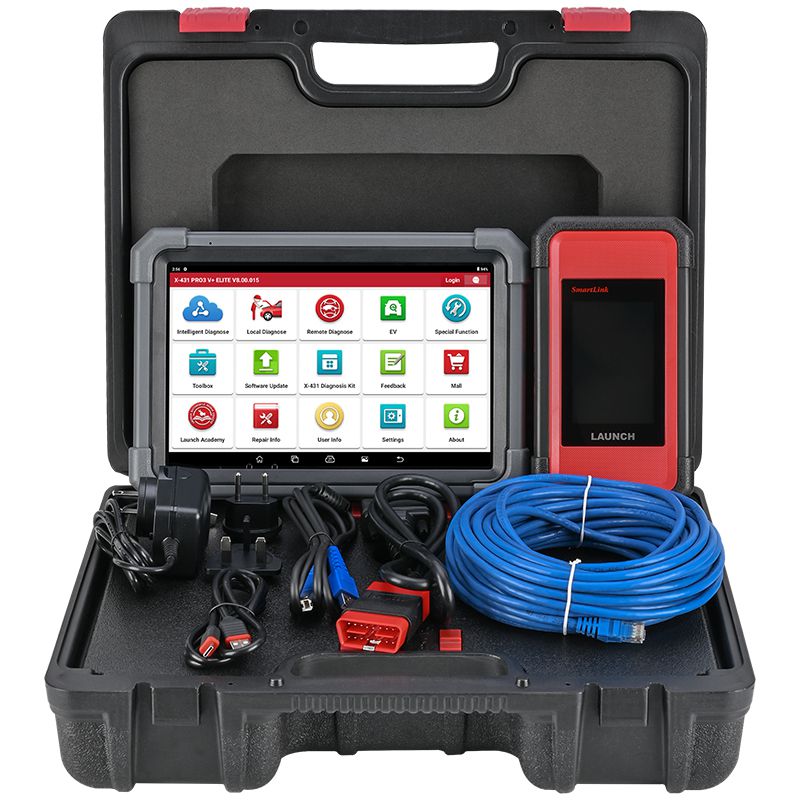

• 1 × LAUNCH X-431 PRO3 V+ Elite Tablet
• 1 × SmartLink C
• 1 × Main Cable
• 1 × OBD Adapter
• 1 × USB-B Cable
• 1 × USB Type-C Cable
• 1 × Ethernet Cable
• 1 × US Standard Plug
• 1 × UK Standard Plug
• 1 × EU Standard Plug
• 1 × Quick Start Guide
• 1 × User Manual
• 1 × Packing List
