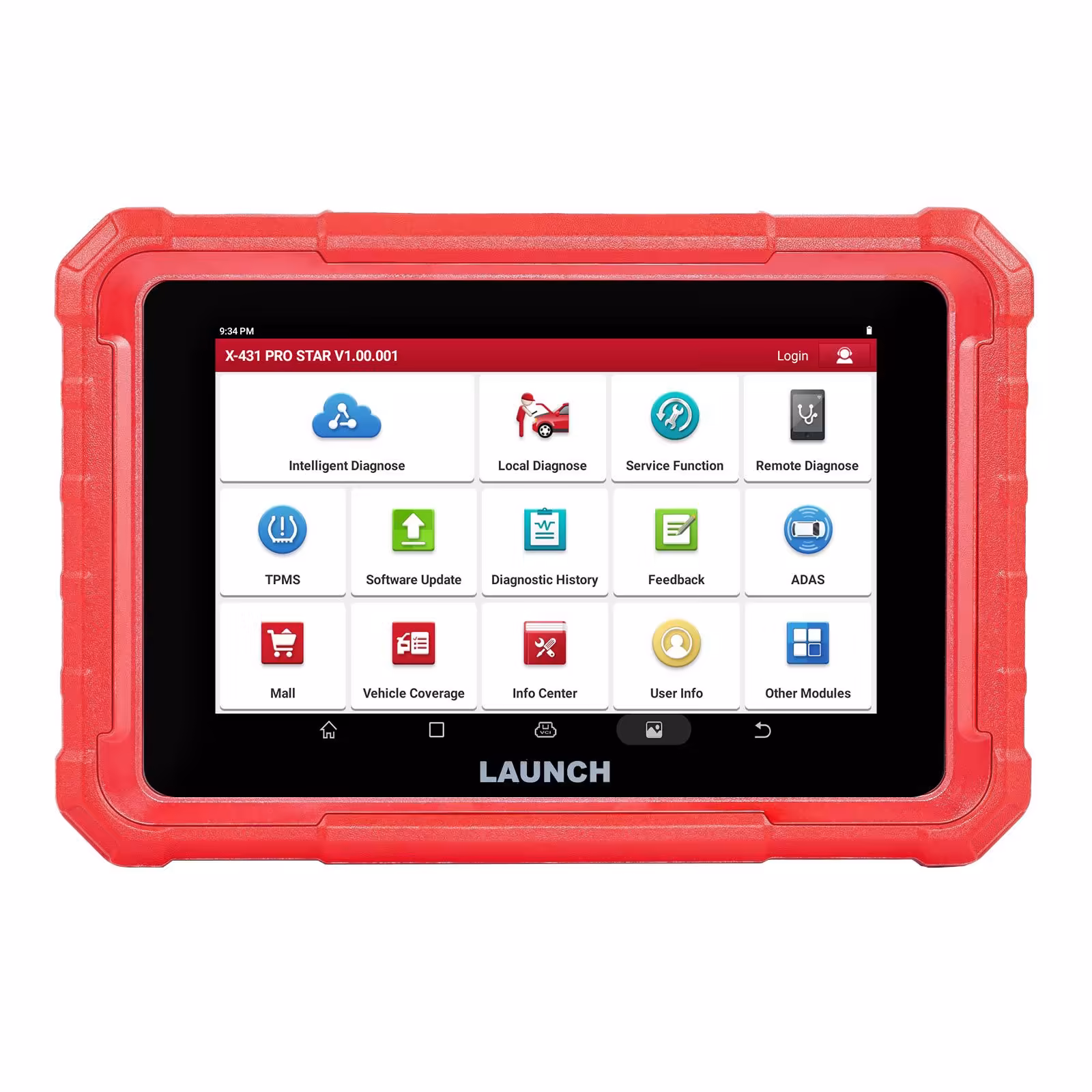

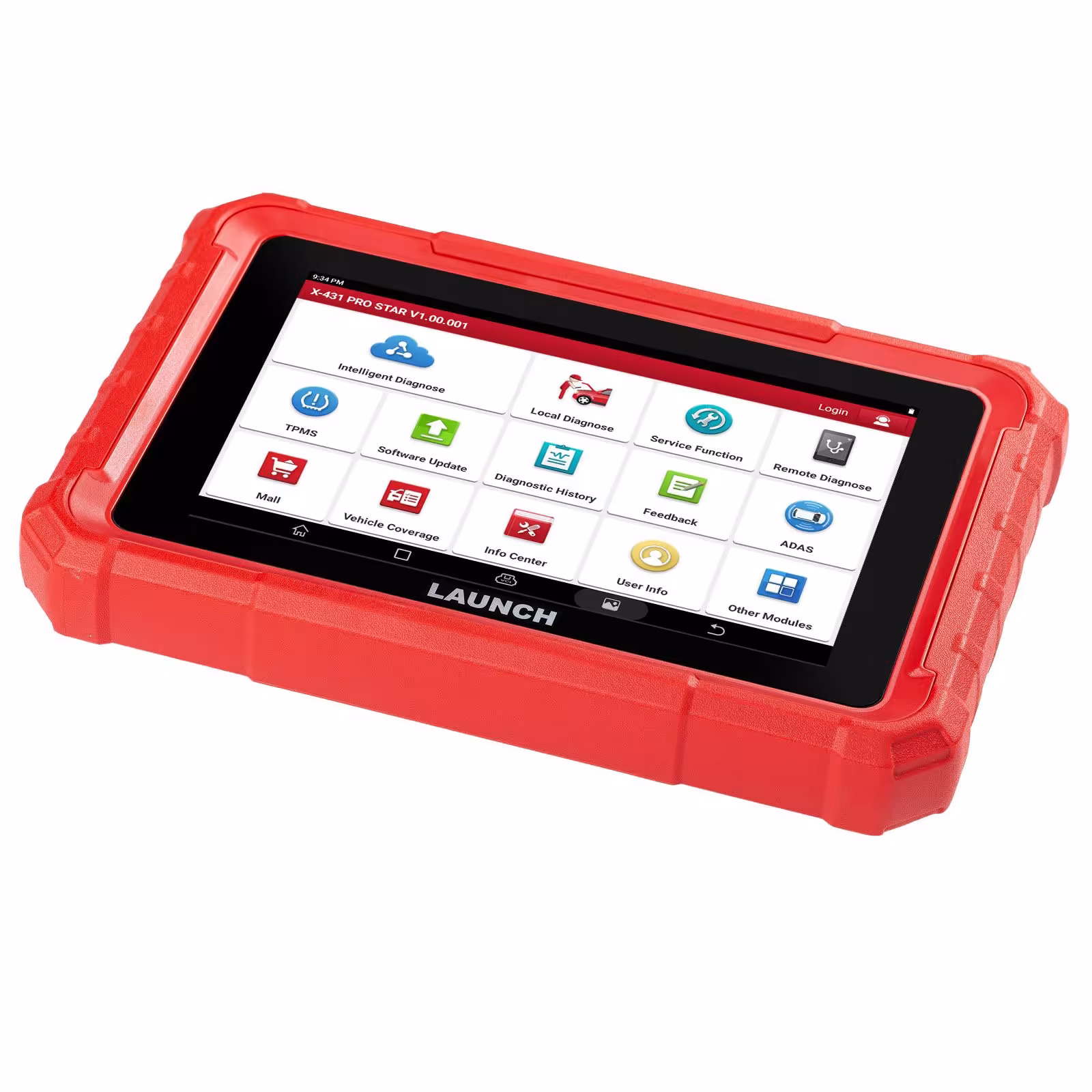

launch x431 PRO STAR Full System Diagnostic Scanner

The launch X-431 PRO STAR is an 8-inch smart car diagnostic device with a diagnostic cable that inherits the functions and advantages of the X-431V, X-431 PRO Elite, and X-431 PROS Elite models. It supports more than 99% of vehicles on the market. Built on the Android 10.0 operating system, it features a 2.0GHz 4-core high-efficiency processor, 4GB RAM + 64GB ROM of large storage capacity, and a high-endurance 6000mAh battery for faster performance, greater stability, and longer runtime.

Key Highlights

1. Cost-Effective Upgrade: The x431 PRO STAR is an upgraded version of the X-431 V, X-431 PRO Elite, and X-431 PROS Elite—offering identical functionality at a lower price.
2. Advanced ECU Coding: Includes top-level coding capabilities such as Online Coding, Online Calibration, Online Parameterization, Component Matching, Personalization, Modification & Retrofit, and PMI Functions.
3. 31 Reset Functions: One launch scan tool covers common repairs with 32 integrated services, combining popular reset features with full vehicle support and model-specific special functions.
4. High-Performance Hardware: Powered by Android 10.0, a 2.0 GHz 4-Core CPU, 4GB RAM, 64GB ROM, an 8” touchscreen, dual-band (2.4 & 5 GHz) WIFI, a 6000mAh battery, and an 8MP rear camera.
5. Bi-directional Control: Perform active tests to pinpoint module issues in minutes.
6. V.A.G Guided Functions: Step-by-step professional instructions simplify complex repairs—even without advanced technical skills.
7. CAN FD & DoIP Protocol Support: Enables communication with a broader range of vehicle models and faster diagnostics.
8. Key Programming: Compatible with the X-PROG3 Programmer.
9. Expanded Peripheral Support: Works seamlessly with x431 TSGUN, Launch VSP-600 Videoscope, BST360 battery tester, X431 WIFI Printer, CRT5011E TPMS, and more.
10. Quick Vehicle Identification: Features Auto VIN Technology for fast recognition.
11. FCA SGW Car Access: Fully compatible with Fiat, Chrysler, Alfa Romeo, and related brands.
12. Remote Diagnostics & Feedback: Enables remote troubleshooting and data sharing.
13. Extensive Vehicle Coverage: Supports over 10,000 car models—serving 98% of global vehicles.
14. Multilingual Interface: Available in 25+ languages.
15. 2-Year Free Updates: Includes two years of complimentary software updates.

Why Choose the Launch X431 PRO STAR?

Versatile Functionality

Like other high-end LAUNCH X431 OE-level scan tools, the LAUNCH X431 PRO STAR delivers advanced capabilities:

• Recode Changed Modules: Update and synchronize newly installed modules with the vehicle.
• Re-Flash Hidden Functions: Unlock and activate concealed vehicle features.
• Renew ECU Coordination: Reprogram the ECU for optimal performance.
• Optimize Adaptive Data: Refine adaptive settings to enhance vehicle responsiveness.
• Enhance Fuel Efficiency: Adjust parameters to improve fuel economy.
• Reduce Power Loss: Fine-tune systems to minimize mechanical wear and power loss.

ECU Coding Options

• Online ECU Coding: Access real-time online repair databases for complex procedures.
• Offline ECU Coding: Transfer configuration data from original to replacement modules.

Unlock Hidden Features

Activate factory-restricted functionalities, including:

• Changing interior light colors
• Adjusting fuel consumption calculations
• Enabling or disabling safety alerts
• Customizing driving dynamics and comfort settings

Component Matching

Match, learn, and initialize adaptive data after module replacement or repair.

Customization Options

Personalize your vehicle with modifications such as:

• Interior ambient lighting color changes
• Auto hold and auto start-stop activation
• Dash display customization
• Automatic side mirror folding
• Speed limit configuration

Fuel Efficiency Improvements

Resolve drivability concerns, reduce power loss, and boost fuel economy. Also enables adding premium features like satellite navigation, courtesy lights, integrated car phones, reversing radar, and ambient lighting.

Adaptive Data Reprogramming

Reprogram adaptive values for components following service or replacement. Note: availability varies by vehicle model.

Powerful Bi-Directional Control and ECU Coding

The Launch X431 PRO STAR Bi-directional Scan Tool enhances diagnostic efficiency with new features while maintaining robust core functionality—empowering mechanics and repair shops to resolve 99% of vehicle issues quickly and accurately.

Key Features

1. Bi-Directional Control (Adds 4000+ Active Tests)

This essential feature saves significant diagnostic time and increases daily job throughput. The intelligent scanner sends commands to ECUs, reads live data, and monitors actuator responses. By executing bi-directional operations, technicians can rapidly verify the operational status of specific systems, components, or subsystems. It can activate vehicle-specific elements such as relays, fuel injectors, ignition coils, solenoid valves, and actuators—cutting diagnosis time to under 10 minutes for many faults, whether in control units or physical systems.

Examples of Active Tests:

• Turning lights on/off
• Sounding the horn
• Controlling oil pressure
• Adjusting vehicle ride height
• Operating inlet and outlet valves
• Testing wheel speed sensors
• Activating the fuel pump
• Cycling the A/C clutch
• Calibrating dynamic camera aiming
• Performing brake vacuum pump tests

Note: Function availability depends on the vehicle make and model, with numerous actuation tests supported.

2. Advanced ECU Coding & Offline/Online Coding

The X431 PRO STAR supports advanced ECU coding across a wide spectrum of vehicle models—both legacy and current—without extra fees. This capability allows matching, learning, or coding of newly replaced ECUs, updating ECU software, and enabling or disabling hidden features (e.g., Seat belt chime, daytime running lights). It also facilitates component matching post-repair and reprograms adaptive data to enhance efficiency and personalization—addressing diverse customer demands and boosting technician productivity.

Benefits:

• Time Efficiency: Accelerates diagnosis and repair through bi-directional control and advanced coding.
• Comprehensive Functionality: Covers extensive testing and coding operations across numerous vehicle platforms.
• Customization: Empowers technicians to tailor vehicle behavior to owner preferences.

3. Special Functions

Easily retrieve the vehicle’s VIN, perform a full system scan, and generate a comprehensive diagnostic health report. The tool delivers complete diagnostics across major vehicle systems—including ECM, TCM, ABS, SRS, BCM, and more—enabling code reading/clearing, live data streaming, and ECU information retrieval. With broad model coverage and full-system access, it stands as a professional-grade automotive diagnostic solution.

These special functions include, but are not limited to:

Advanced Diagnostic and Service Functions

1. ABS Bleeding
   Must be executed to remove air from the ABS system, restoring brake sensitivity.
2. TPMS Reset
   Essential for resetting the tire pressure monitoring system after changes such as tire replacement, sensor damage, or low tire pressure.
3. Oil Lamp Reset
   Resets the engine oil life system after an oil change, ensuring accurate tracking of oil lifespan.
4. Electronic Throttle Sensor Reset
   Initializes the throttle actuator to reset the ECU learning value back to its default state.
5. Injector Coding
   Ensures that each cylinder can correctly identify its injector, necessary after replacing the ECU or injectors.
6. SAS Reset
   Clears faulty steering angle sensor memories and recalibrates the steering angle sensor.
7. Brake-pad Reset
   Activates and deactivates brake control systems, assists with brake fluid control, and sets brakes post replacement of discs or pads.
8. Gear Learning
   Required after replacing the engine ECU, crankshaft position sensor, or crankshaft flywheel to ensure proper functioning.
9. IMMO Service
   Matches keys to the car's IMMObilizer system to prevent unauthorized vehicle use, crucial after replacing or reprogramming keys.
10. Battery Matching
    Resets the battery monitoring unit to clear fault information after replacing or charging the battery.
11. DPF Regeneration
    Clears particulate matter from the diesel particulate filter, maintaining its efficiency.
12. EGR Adaption
    Relearns the EGR valve settings after cleaning or replacement.
13. Suspension Matching
    Adjusts and calibrates the body height sensor in the air suspension system following sensor or control module replacements.
14. NOx Sensor Reset
    Resets the learned values of the NOx catalytic converter stored in the engine ECU after replacing the converter.
15. Tire Reset
    Configures the vehicle for new or modified tires by setting the size parameters.
16. Windows Calibration
    Matches door windows to restore initial ECU memory settings.
17. Stop-start Reset
    Adjusts the automatic Start/Stop feature settings via the ECU, provided the vehicle supports this function.
18. AC Initialization
    Reinitializes the AC system following ECU or actuator replacements or memory loss.
19. AdBlue Reset
    Necessary after refilling or replacing diesel exhaust fluid (urea).
20. AFS Headlamp Reset
    Initializes adaptive front lighting systems to ensure proper operation.
21. A/F Reset
    Sets or relearns air/fuel ratio parameters for optimized engine performance.
22. Gearbox Reset
    Completes gearbox self-learning to improve gear-shifting quality and performance.
23. Coolant Bleeding
    Activates the electronic water pump for efficient bleeding of the cooling system.
24. Transport Reset
    Deactivates transport mode to restore normal vehicle operations, reducing power consumption during transit.
25. Seat Calibration
    Matches replaced or repaired seats with memory functions for optimal positioning.
26. High Voltage Battery Detection
    Diagnoses and detects the status of high-voltage batteries.
27. Sunroof Initialization
    Adjusts sunroof settings for proper operation, including locking, closing during rain, and memory functions.
28. Engine Power Balance Monitoring
    Monitors crankshaft acceleration in each cylinder's power stroke to evaluate relative power contributions.
29. Language Change
    Alters the system language of the vehicle’s center console, requiring a specific language pack.
30. Gas Particulate Filter (GPF) Regeneration
    Regenerates or replaces the GPF to maintain engine performance and reduce fuel consumption.
31. Intelligent Cruise Control System Reset
    Matches the intelligent cruise control module following replacement or repair.

Additional Features

• Intelligent Diagnosis
  Launch has accumulated more than 20 years of automotive diagnostic technology and pioneered the technology of intelligent diagnosis. Through "intelligent diagnosis", it can quickly read the vehicle VIN code, quickly enter the diagnosis, and check the historical diagnosis record.
• Local Diagnose
  Supports full system diagnosis of 90+ brands of vehicles worldwide. It supports basic function diagnosis, version information reading, code reading, code clearing, data stream reading, action testing, coding, matching, etc. It can read and record data streams, etc., to help quickly locate faults.
• Remote Diagnose
  Remote diagnosis can realize real-time communication between devices or between devices and computers, complete vehicle remote diagnosis, and make it possible for repair technicians to diagnose vehicles thousands of miles away.
• TPMS
  Supports tire pressure activation, programming, learning, detection and other functions with a tire pressure gun (optional).
• Diagnostic History
  Each time a diagnosis is performed, a vehicle diagnostic record is automatically generated for easy viewing and comparison at any time to help locate the fault.
• Feedback
  When users encounter special vehicle model or functional abnormalities during use, they can provide their opinions to Launch Company through "feedback", and dedicated technical personnel will track and handle the problems in a timely manner.
• ADAS
  It supports ADAS calibration function with ADAS PRO or ADAS MOBILE (both are optional), which can realize the calibration of ADAS systems such as LDW, ACC, RCW, AVM, BSD, and NVS.
• Mall
  Supports online purchase of software, functions and some hardware outside the configuration, software renewal, etc. More functions are coming online.
• Toolbox
  It supports the use with expansion modules such as endoscope, battery test, oscilloscope, sensor, IMMO programmer, etc., to make the diagnostic function more powerful.
• Toolbox
  It supports the use with expansion modules such as endoscope, battery test, oscilloscope, sensor, IMMO programmer, etc., to make the diagnostic function more powerful.

Launch X431 PRO STAR Vehicle List

Covers 99% of global cars – over 100,000 vehicle models supported.

American Cars

BUICK, CADILLAC, CHEVROLET, Chrysler, DODGE, FIAT(BRAZIL), FORD, FORD(AUSTRALIA), GM, JEEP, LINCOLN, GM(BRAZIL)

European Cars

ABARTH, ALFA ROMEO, AUDI, BENTLEY, BMW, BUGATTI, CITROEN, DACIA, EUROFORD, FERRARI, FIAT, GAZ, OPEL(SOUTH AFRICA), IVECO, JAGUAR, LAMBORGHINI, LANCIA, LAND ROVER, MASERATI, MAYBACH, MERCEDES, MINI, OPEL, PEUGEOT, PORSCHE, RENAULT, ROLLS-ROYCE, ROVER, SAAB, SEAT, SKODA, SMART, SPRINTER, VAUXHALL, VAZ, VOLVO, VW, ASTON MARTIN, UAZ

Asian Cars

ACURA, DAEWOO, DAIHATSU, HOLDEN(AUSTRALIA), HONDA, HYUNDAI, INFINITI, ISUZU, KIA, LEXUS, LUXGEN, MAHINDRA, MAHINDRA(INDIAN), MARUTI, MARUTI(INDIAN), MAZDA, MITSUBISHI, NISSAN, GTR(NISSAN), PERODUA, PERODUA(MALAYSIA), PROTON, PROTON(MALAYSIA), SAMSUNG, SAIPA, SSANGYONG, SUBARU, SUZUKI, TATA, TATA(INDIAN), TOYOTA, UNITED PAKISTAN

Chinese Cars

BRILLIANCE, BYD, CHANGAN, CHANGHE, CHBUICK, CHERY, CHANGHE, SUZUKI, DF-CITROEN, ECUAID, FAW(TIANJIN), FOTON, GONOW, GWM, HAFEI, HAIMA, JAC, REFINE, JMC, JOYLONG, LIFAN, MG(SAIC), QOROS, MAXUS, SGM, SGMW, XINKAI, POLARSUN, ZX AUTO, ZOTYE, SENOUA(BAIC)
(Due to regional and system updates, car models may differ, please contact customer service for confirmation!)

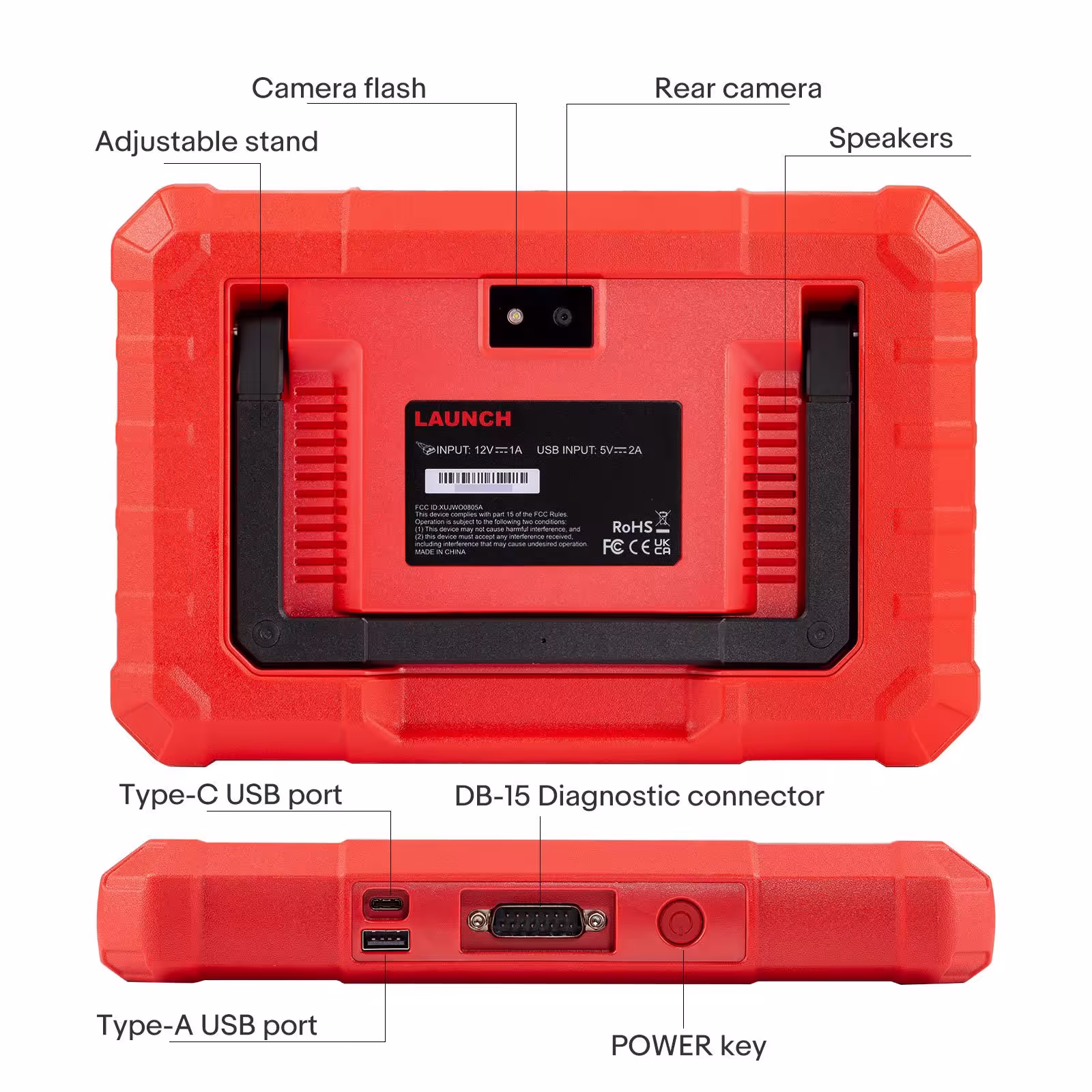

Product Specifications

• Operating system: Android 10.0
• Processor: 2.0GHz, quad-core
• Memory: 4GB
• Storage: 64GB
• Display: 8-inch LCD screen
• Resolution: 1280×800
• Camera: Rear 8 megapixels
• Wi-Fi: 5G/2.4GHz
• Battery: 6000mAh
• Operating temperature: 0℃～50℃
• Storage temperature: -20°C to 70°C
• Dimensions: 256×171×40.5 mm
• Net weight: 1000g

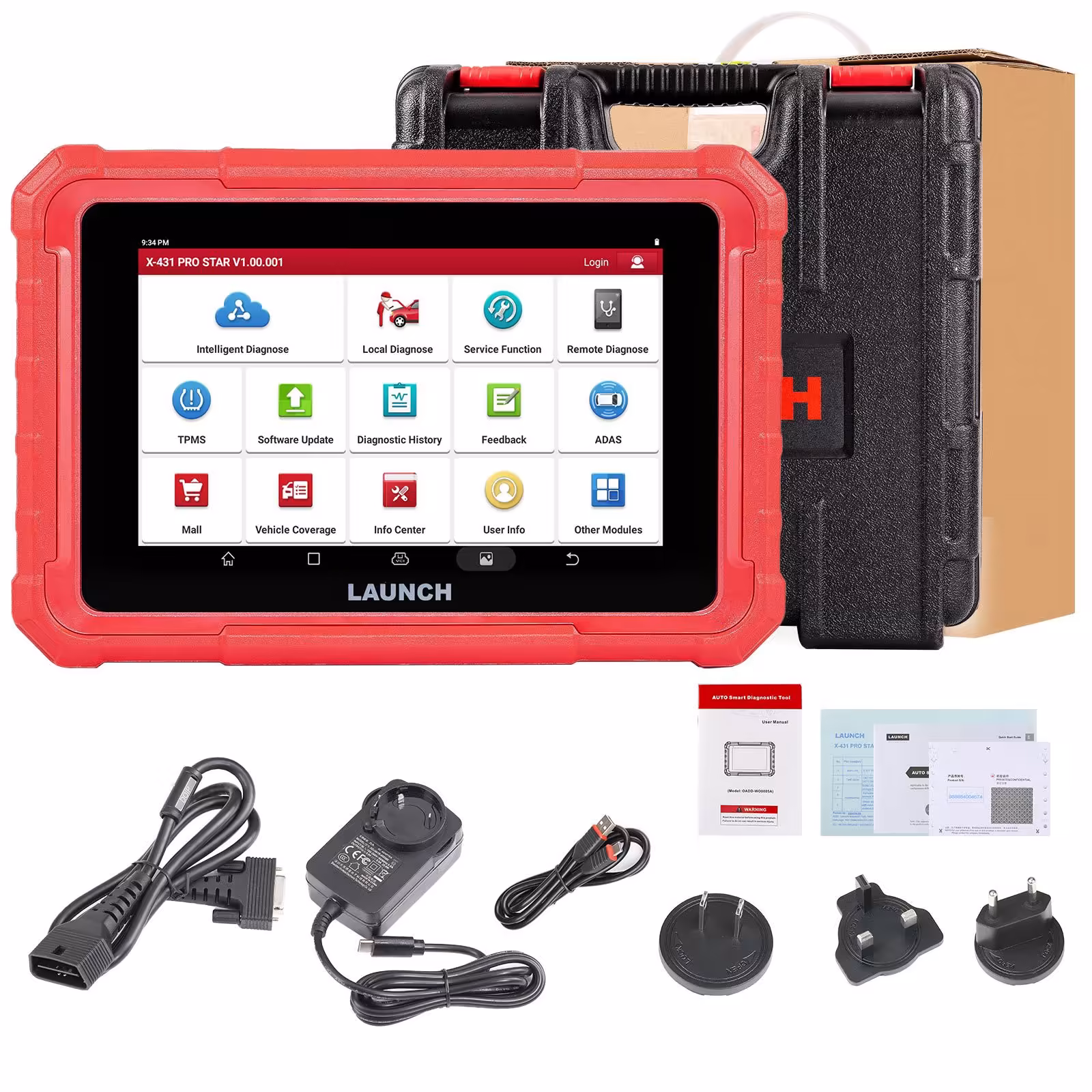

Package List

• 1pc × main unit
• 1pc × AC adapter
• 1pc × main cable
• 1pc × USB cable
• 1pc × UK plug
• 1pc × US plug
• 1pc × EU plug
• 1pc × manual
• 1pc × quick guide
• 1pc × packing list
• 1pc × password bar
