LAUNCH LTR-03 RF Sensor 315MHz & 433MHz TPMS Sensor Tool Metal & Rubber

Highlights

• 315MHz and 433MHz frequencies in one sensor.
• Provides 98% vehicle coverage to offer the best TPMS solutions for any repair shops or tire shops.
• Features an international leading automotive-grade chip; the pressure value of LTR-01 can be accurate to 0.1 BAR.
• The high-precision air valve effectively prevents air leakage and ensures durability and stability.
• Replaces original tire pressure sensors, copies the original sensor data, and can be programmed indefinitely.
• Compatible with Launch X-431 TSGUN WAND.
• Bundled deal: 4 pcs/set at a reduced price.

Features

• Compatible with over 95% OE sensors.
• Compatible with OE sensors operating at 315MHz/433MHz.
• Over-the-air wireless programming.
• Battery life of 4 to 6 years.
• Unlimited reprogramming for LAUNCH sensors.

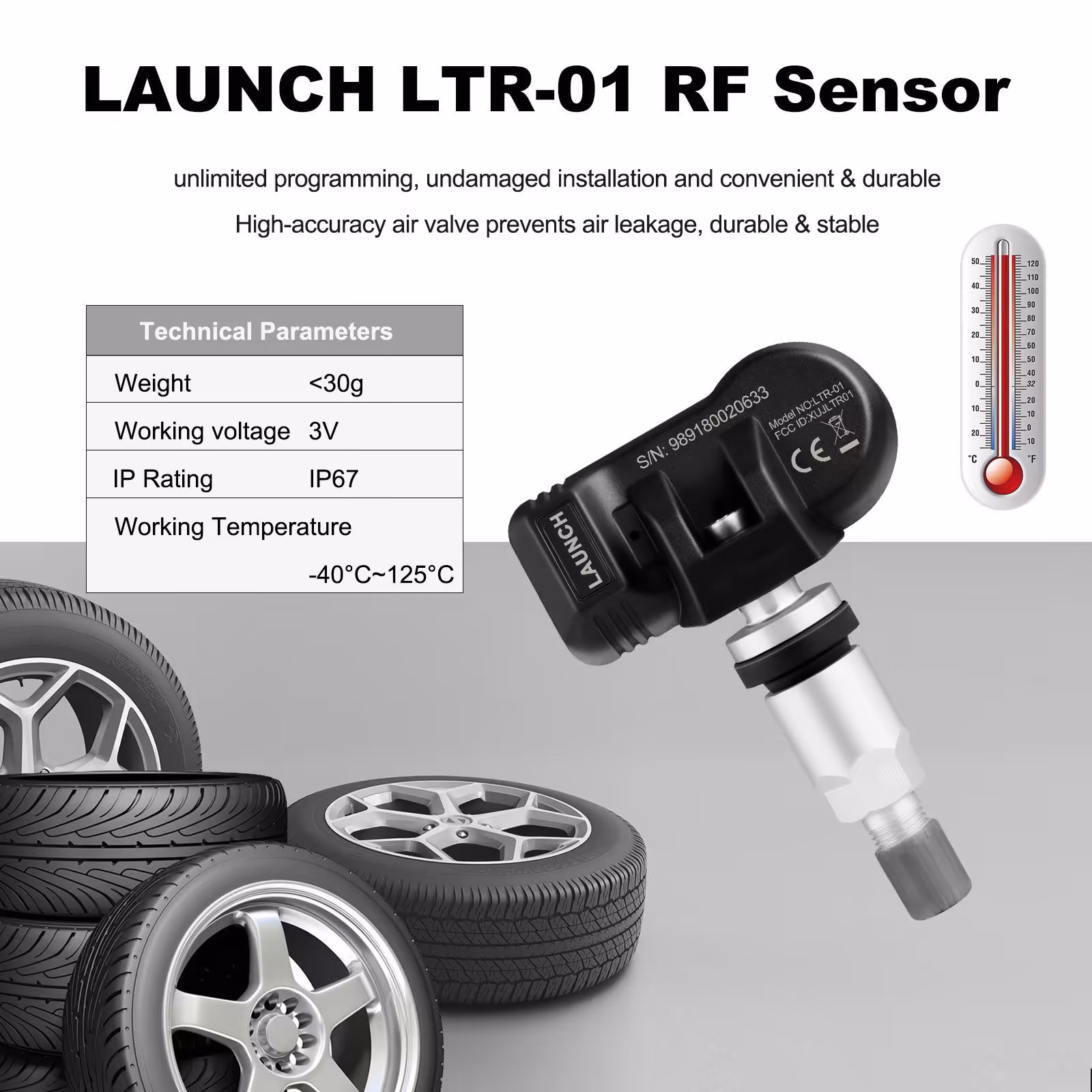

Specifications

Operating frequency

315MHz / 433MHz

Battery voltage

3.0V

RF transmitter power

5~8 dBm

Storage Temperature

-40°C ~ 125°C

Working Temperature

-40°C ~ 125°C

Dimension

50.8 × 24 × 17.8 mm

Weight

42g (Metal), 48g (Rubber)

IP Rating

IP67

Packing List

4 pcs × LAUNCH LTR-01 RF Sensor (Optional: Metal, Rubber)
