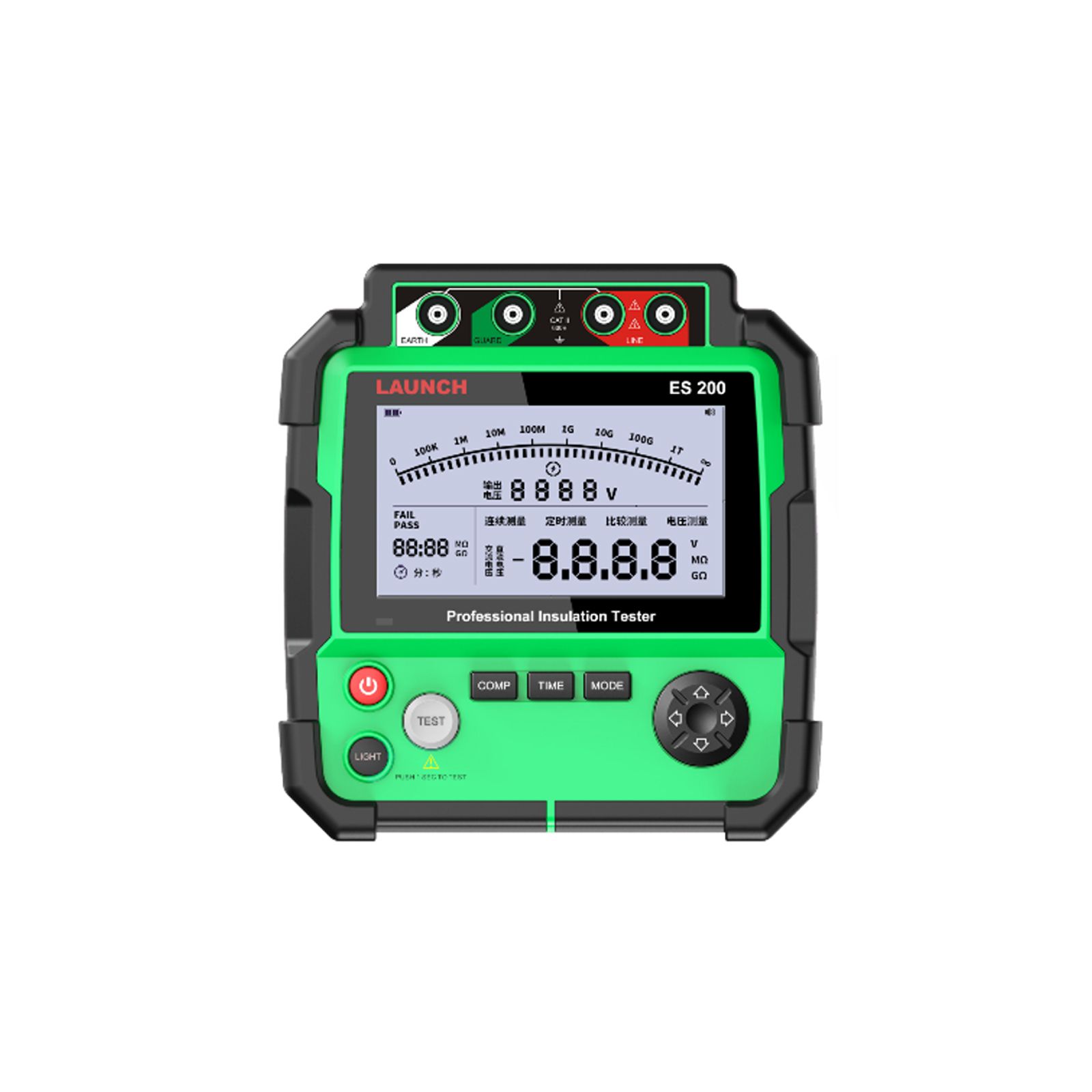

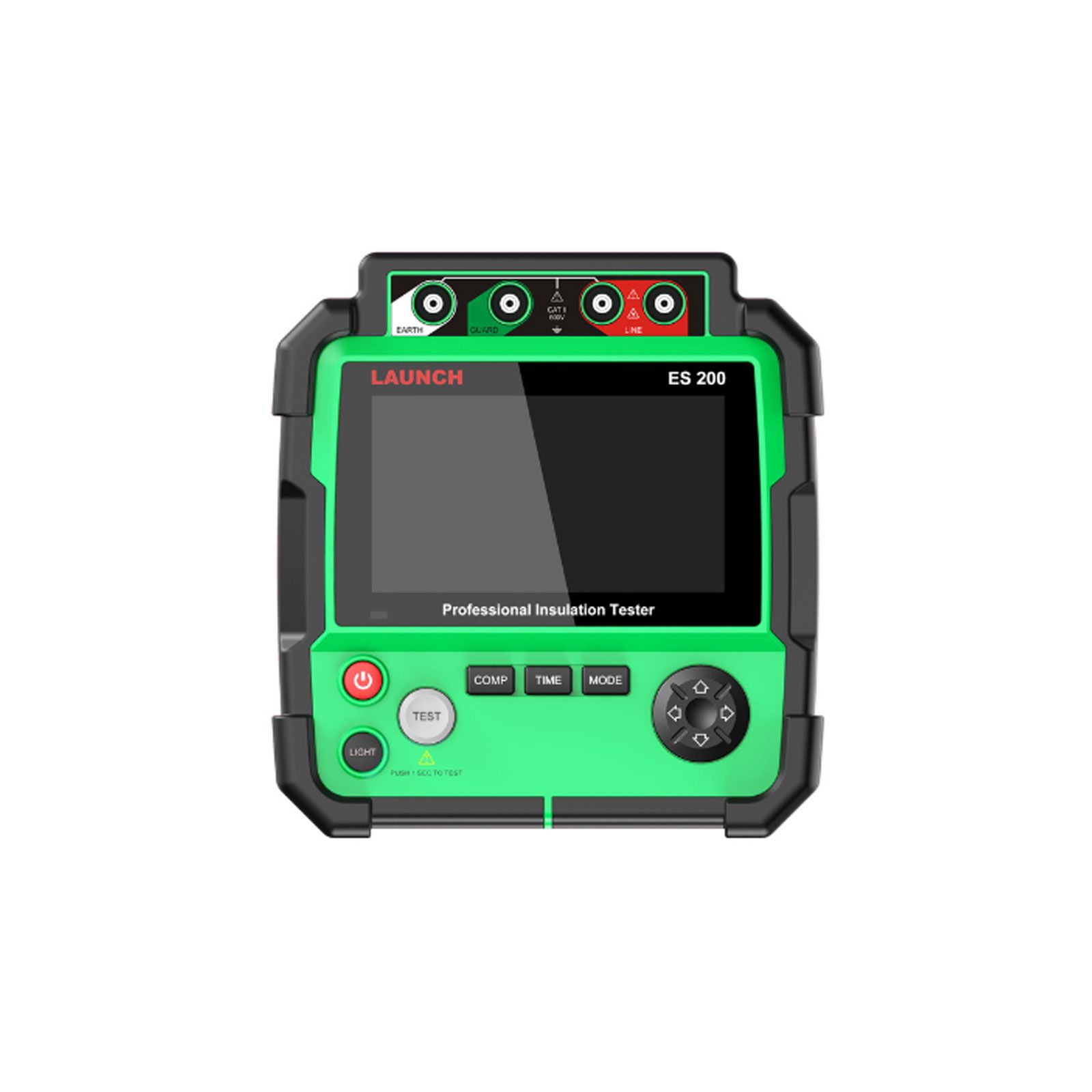

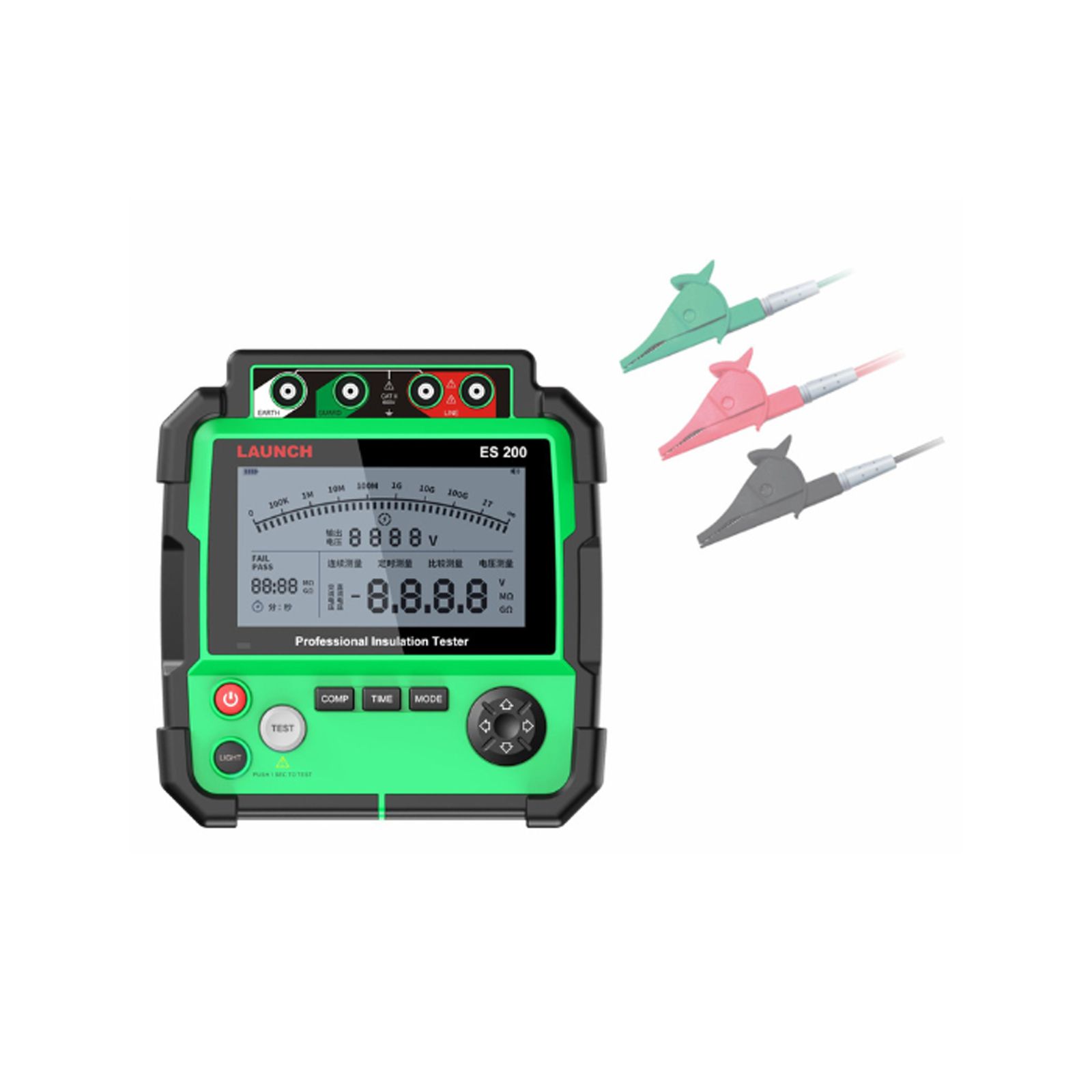

LAUNCH ES200 EV Insulation Resistance Tester

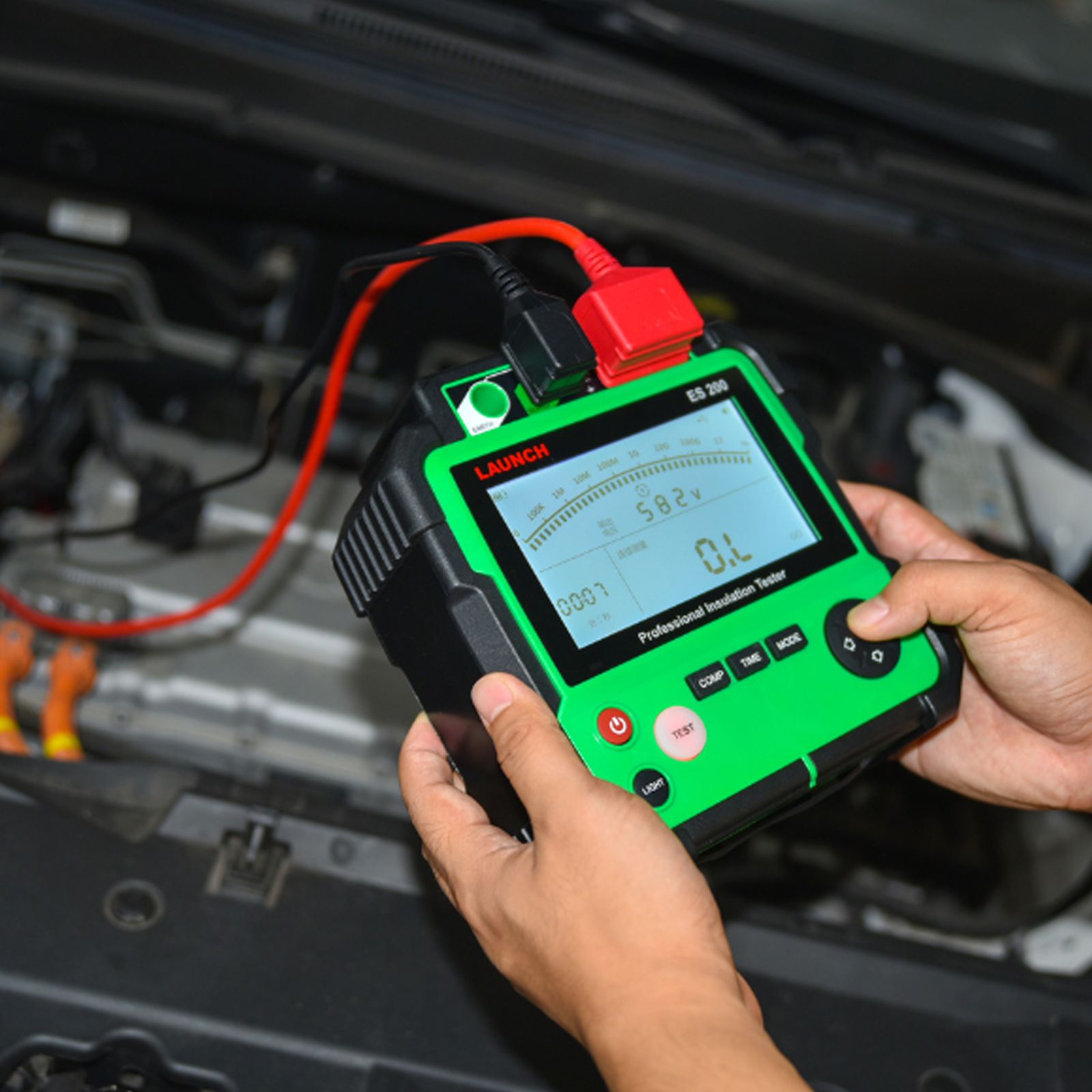

Insulation resistance meters are commonly known as megohm meters, shake meters, high resistance meters, or insulation resistance testers. They assess electrical safety by measuring the insulation resistance between live parts and exposed non-live metal components (such as the device casing). Using an insulation tester helps ensure the safety of maintenance personnel.

Product Features

ES200 is capable of measuring insulation resistance and innovatively includes a voltage measurement function.
Equipped with a standard resistance; in comparison measurement mode, the measured resistance value is compared against the standard resistance to ensure measurement accuracy.
Offers three measurement modes: timing measurement, comparison measurement, continuous measurement, and omnidirectional measurement.

Product Specifications

Battery: 3150mAh
Display: 5''
Working Temperature: 0~50℃
Dimensions: 180 × 174 × 65.5 mm
Weight: 1.7 kg

AC and DC Voltage Test Performance Parameters

Voltage Type	DC Voltage	AC Voltage
Measuring Range	±30–±600V	30–600V (50/60Hz)
Resolution	1V	1V
Measurement Accuracy	±3%	±3%

Insulation Resistance Test Performance Parameters

Test Voltage	500V	1000V	2000V	5000V
Measuring Range	0.0MΩ – 20GΩ	0.0MΩ – 40GΩ	0.0MΩ – 100GΩ	0.0MΩ – 1000GΩ
Open Circuit Voltage	DC500V (0–20%)	DC1000V (0–20%)	DC2000V (0–20%)	DC5000V (0–20%)
Measurement Accuracy (0.0–99.9MΩ)	±(3%+5)	±(3%+5)	±(3%+5)	±(3%+5)
Measurement Accuracy (100MΩ–9.99GΩ)	±(5%+5)	±(5%+5)	±(5%+5)	±(5%+5)
Measurement Accuracy (10.0GΩ–max range)	10.0GΩ–20.0GΩ: ±(10%+5)	10.0GΩ–40.0GΩ: ±(10%+5)	10.0GΩ–100GΩ: ±(10%+5)	10.0GΩ–99.9GΩ: ±(10%+5)
Short Circuit Current	<3.0mA
