KTMOBD ECU Programmer Latest V1.20 Gearbox Power Upgrade Tool For Honda/Toyota/Hyundai/KIA/Ford/Volkswagen

This is the new KTMOBD ECU Programmer & Gearbox Power Upgrade Tool with Dialink J2534 Cable.

Key Functions

• Read the chip data.
• Read and write ECU data.
• Read gearbox data at high speed.
• Virtual reading, writing, and checksum correction.

Latest KTMOBD ECU Programmer V1.20 Updates

Module 66 (New) – Honda Bosch

PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.

• PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]
• PGM-FI (Bosch EDC17C58/4MB) [Unlocked]
• PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]
• PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]
• PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]

Writing after unlocking with Module 53 or 71, checksum correction.

Module 74 (New) – Toyota/Lexus Gen 3

R7F701202 P5-UDS
Reading, writing, checksum correction.

Supported ECU & Gearbox Models by Brand

Ford

Compatible Vehicles: Ford Focus 2/Fiesta/Fusion, Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017, Ford MG1

Module 20

• Ford Focus 2/Fiesta/Fusion (automatic transfer for VID area)
• Ford Focus 2: 1.4L, 1.6L Duratec 85/100/115PS (SIM28/29)
• Ford Focus 2: 1.8L, 2.0L Duratec HE 125/145PS (ESU131/411/418)
• Ford Focus 2: 1.8L, 2.0L Duratorq Lynx/DW10C (SID202/SID206)
• Ford Fiesta/Fusion: 1.4L, 1.6L Duratec 85/100PS (SIM210)
• Ford Focus 2 ST: 2.5L Duratec I5 225PS (ME9.0)

Reading, writing, checksum correction.

Ford Kuga 1: 2.5L Duratec I5 200PS (ME9.0)
Writing, checksum correction.

Module 32

• Ford Focus 3 2015, Ford Explorer 2016, Ford Kuga 2 2017
• Ford Fiesta: 1.0L Ecoboost GTDI 100/125PS [C1BA] (MED17)
• Ford Focus 3 2015: 1.0L Ecoboost 2015+ GTDI 100/125PS [DA6A] (MED17)
• Ford Focus 3 2015: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
• Ford Kuga 2 2017: 1.5L Ecoboost 2015+ GTDI 150/180PS [FV6A] (EMS2510/EMS2511)
• Ford Explorer 2016: 3.5L Cyclone V6 Ti-VCT 249/294PS (2016)
• Ford Mondeo 5: 1.5L Ecoboost GTDI MT 150/180PS (MED17)
• Ford Mondeo 5: 2.5L Duratec Ti-VCT 150/171PS [GV6A] (EMS24XX)

Reading, writing, checksum correction.

Module 73 – Ford MG1

• Ford F-150: 3.5L Ecoboost V6 (MG1CS015) [HL3A]
• Ford Fiesta 8: 1.5L Ecoboost MT (MG1CS016) [JX6A]
• Ford Focus 4: 1.0L, 1.5L Ecoboost MT (MG1CS016) [JX6A]
• Ford Focus 4: 1.5L Ecoboost AT (MG1CS017) [JX6A]
• Ford Mustang 6: 2.3L Ecoboost (MG1CS017) [JR3A]
• Ford Mustang 6: 5.0L Coyote V8 (MG1CS019) [JR3A]

Reading, writing, checksum correction.

Honda

Honda/Acura CAN-bus, Honda: Honda PGM-FI Generic Read-Only
Honda: Honda AT/CVT/DCT Generic Read-Only
Honda: PGM-FI (Continental MPC5554/2MB)
Honda/Acura K-Line
Honda Bosch

Module 12 – Honda/Acura CAN-bus

• Honda: Honda PGM-FI Generic Read-Only
• Honda: Honda AT/CVT/DCT Generic Read-Only

• PGM-FI (Keihin SH7058/1MB)
• PGM-FI (Keihin SH72543/2MB)
• PGM-FI (Keihin SH72546/3.75MB)
• PGM-FI (Keihin MPC5566/3MB)
• PGM-FI (Keihin TC1782/2.5MB)
• AT/CVT/DCT (Keihin 512KB)
• AT/CVT/DCT (Keihin 1MB)

• PGM-FI (Matsushita SH7058/1MB)
• PGM-FI (Matsushita SH72543/2MB)
• PGM-FI 2013+ (Matsushita SH72543/2MB) (Test)
• PGM-FI (Panasonic TC179X/4MB)
• AT/CVT/DCT (Matsushita 512KB) (Test)

Honda: PGM-FI (Continental MPC5554/2MB)

• PGM-FI (Hitachi SH7058/1MB) (Test)
• PGM-FI (Hitachi SH7059/1.5MB) (Test)
• PGM-FI (Hitachi SH72543/2MB)
• PGM-FI (Hitachi MPC5554/2MB) (Test)
• AT/CVT/DCT (Hitachi SH72531/1280KB)

Reading, writing, checksum correction.

Module 13 – Honda/Acura K-Line

• Honda: Accord 7 2003–2005 (Matsushita RBA/RBB SH7055/512KB)
• Honda: Accord 7 2006–2007 / TSX 2004–2005 (Matsushita RBA/RBB SH7055/512KB)
• Acura: TSX 2006 (Matsushita RBB A56-A62 SH7058/1MB)
• Honda: Accord/CR-V/Element/Legend/Odyssey/Ridgeline (Keihin SH7058/1MB)
• Honda: Element/Inspire (Keihin SH7055/512KB)
• Honda: Legend/Acura TL 2005–2007 (Keihin RJA SH7058/1MB)
• Honda: CR-V 2002/2005–2007 (Keihin PPA/PNL SH7058/1MB)
• Honda: Fit/Jazz/Airwave 2001–2007 (Keihin OKI ML66Q592/192KB)
• Acura: MDX 2003–2007 (Motorola RDJ SH7055/512KB)
• Honda: Accord 7 USA (Motorola RCA SH7055/512KB SH7058/1024K)

Only writing, checksum correction. Stock files database included!

Module 66 – Honda Bosch

PGM-FI (Bosch EDC17CP06/EDC17CP16/2MB)
Writing, checksum correction.

• PGM-FI (Bosch EDC17CP50/4MB) [Unlocked]
• PGM-FI (Bosch EDC17C58/4MB) [Unlocked]
• PGM-FI (Bosch EDC17C72/2.5MB) [Unlocked]
• PGM-FI (Bosch MED17.9.3/4MB) [Unlocked]
• PGM-FI (Bosch ME17.9.55/1.5MB) [Unlocked]

Writing after unlocking with Module 53 or 71, checksum correction.

Toyota

Toyota/Lexus/Scion/Hino
Toyota/Lexus/Scion/Hino 2 Generation
Toyota/Lexus Gen 3

Module 35 – Toyota/Lexus/Scion/Hino

• 76F0038/39/40/70/85, MPC565/SH72512/SH72544 CAN-bus
• 76F0038/39/40/50/70/85 GearBox CAN-bus
• 76F0038/39/40/50/70/85 HV Control CAN-bus
• 76F0004/23/38/39/40/70/85, MPC565 K-Line

Writing, checksum correction.

Module 46 – Toyota/Lexus/Scion/Hino 2 Generation

• 76F0196/198/199/219 CAN-bus
• 76F0196/198/199/219 P5-CAN-bus
• 76F0199 GearBox P5-CAN-bus

Reading, writing, checksum correction.

Module 74 – Toyota/Lexus Gen 3

R7F701202 P5-UDS
Reading, writing, checksum correction.

KIA/Hyundai

KIA/Hyundai
KIA/Hyundai SIM2K
KIA/Hyundai EDC15/EDC16
KIA/Hyundai EDC17
KIA/Hyundai SIMK
KIA/Hyundai Delphi MT38/86
Delphi DCM3.7/AP (SH72513/72543/72544)
KIA/Hyundai Kefico/Denso
KIA/Hyundai CPGDSH/CPEGD

Module 19 – KIA/Hyundai

• KIA/Hyundai: 1.4L, 1.6L (M(G)7.9.8)
• KIA/Hyundai: 1.1L–1.6L (M(G)7.9.7)

Only writing, checksum correction.

• KIA/Hyundai: 1.4L, 1.6L (ME17.9.11/12/13)
• KIA/Hyundai: 1.4L, 1.6L (ME(G)17.9.21)
• KIA/Hyundai: 1.6L, 3.0L (ME17.9.2/ME(D)(G)17.9.8)

Reading, writing, checksum correction.

Module 30 – KIA/Hyundai SIM2K

• 2.0L, 2.4L (SIM2K-140)
• 2.0L, 2.5L (SIM2K-D160)
• 2.0L, 2.4L (SIM2K-141/142/341)
• 2.0L (SIM2K-C201)
• 2.0L, 2.0T (SIM2K-240/241/242/245)

Reading, writing, checksum correction.

Module 34 – KIA/Hyundai EDC15/EDC16

• 2.0L, 2.5L CRDI K-Line (EDC15C7)
• 2.0L, 2.2L, 2.5L CRDI K-Line Calibration (EDC16C39)
• 3.0L CRDI K-Line Calibration (EDC16CP34)

Reading, writing, checksum correction.

• 2.0L, 2.2L, 2.5L CRDI (EDC16C39)
• 3.0L CRDI (EDC16CP34)

Writing, checksum correction.

Module 36 – KIA/Hyundai EDC17

• 1.6L, 2.0L CRDI (EDC17C08/TPROT3)
• 2.0L, 2.2L CRDI (EDC17CP14/TPROT3)
• 2.0L, 2.2L CRDI (EDC17CP14/TPROT11)
• 1.6L, 2.0L CRDI (EDC17C53)
• 2.2L CRDI (EDC17C57) (after unlocking with Module 53 or 71)

Reading, writing, checksum correction.

Module 40 – KIA/Hyundai SIMK

• 2.0L, 2.7L K-Line (SIMK-41/43)
• 2.0L, 2.4L CAN (SIMK-43/SIM2K-47)

Reading, writing, checksum correction.

Module 52 – KIA/Hyundai Delphi MT38/86

• 2.7L, 3.3L, 3.8L (MT38/CAN)
• 2.7L, 3.3L (MT38/K-Line)
• 2.7L, 3.3L, 3.8L (MT38/BSL)
• 3.3L, 3.8L, 5.0L (MT86)

Reading, writing, checksum correction.

Module 54 – Delphi DCM3.7/AP (SH72513/72543/72544)

• KIA/Hyundai 2.5L CRDI (DCM3.7AP)
• Opel/Chevrolet 2.0L, 2.2L CDTI (DCM3.7)
• SsangYong 2.0L XDI (DCM3.7AP)
• VAG 1.2L TDI (DCM3.7)
• Great Wall/Haval 2.0L TD (DCM3.7)

Reading, writing, checksum correction.

Module 55 – KIA/Hyundai Kefico/Denso

KIA/Hyundai 2.5L CRDI (SH72546)
Reading, writing, checksum correction.

Module 61 – KIA/Hyundai CPGDSH/CPEGD

1.6L (CPGDSH2.24.1/CPEGD2.20.1/UDS)
Reading, writing, checksum correction.

Volkswagen

Module 57 – SIMOS 8/10/11/PCR2.1

• 2.8L V6 FSI (SIMOS8.1)
• 3.2L V6 FSI (SIMOS8.2)

Reading, writing, checksum correction.

• 3.0L V6 TFSI (SIMOS8.3)
• 3.0L V6 TFSI (SIMOS8.4)
• 3.0L V6 TFSI (SIMOS8.5)

Virtual reading, writing, checksum correction.

• 2.8L V6 FSI (SIMOS8.6)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

SIMOS8.6 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking)

• 1.2L TSI (SIMOS10)
• 1.2L MPI (SIMOS11)

Virtual reading, reading, writing, checksum correction.

• 1.6L TDI (PCR2.1)

Reading, writing, checksum correction (map area reading/writing after unlocking in BSL!)

PCR2.1 (EEPROM/UNLOCK/BSL)
Reading, writing (EEPROM reading/writing, ECU unlocking).

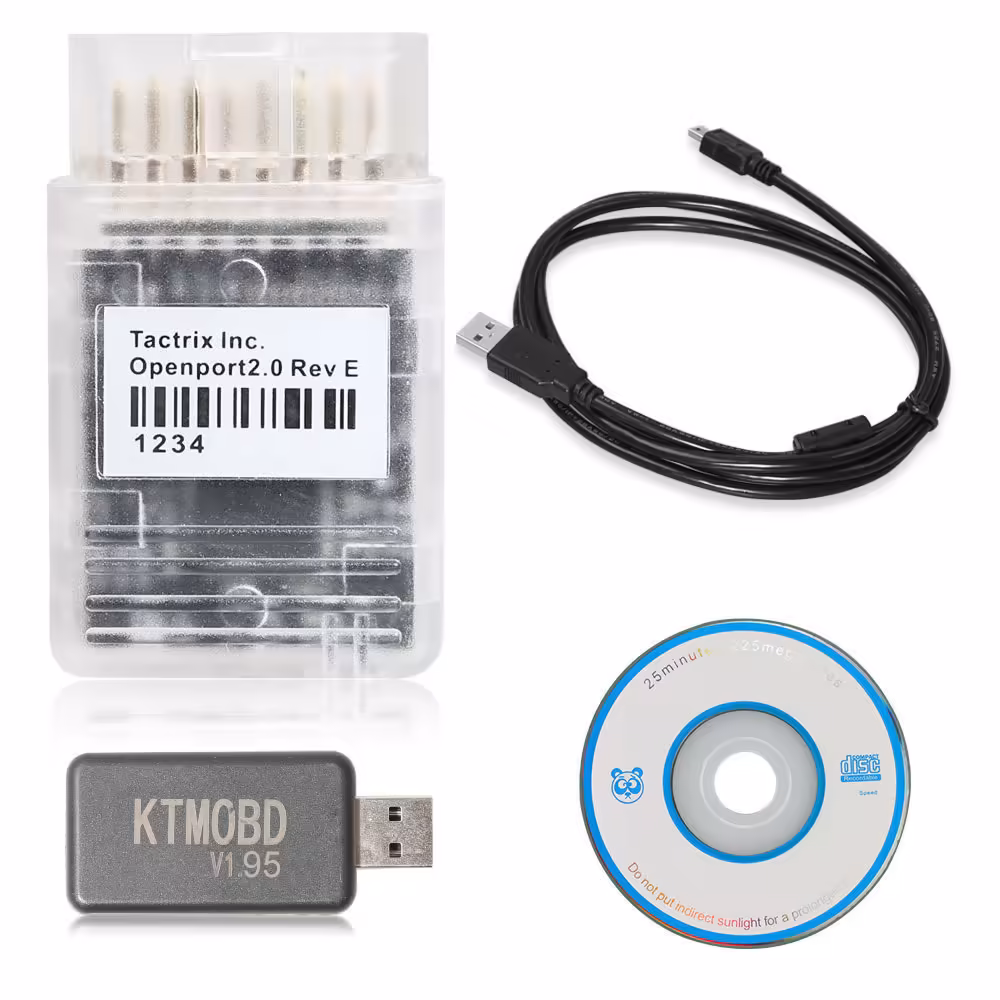

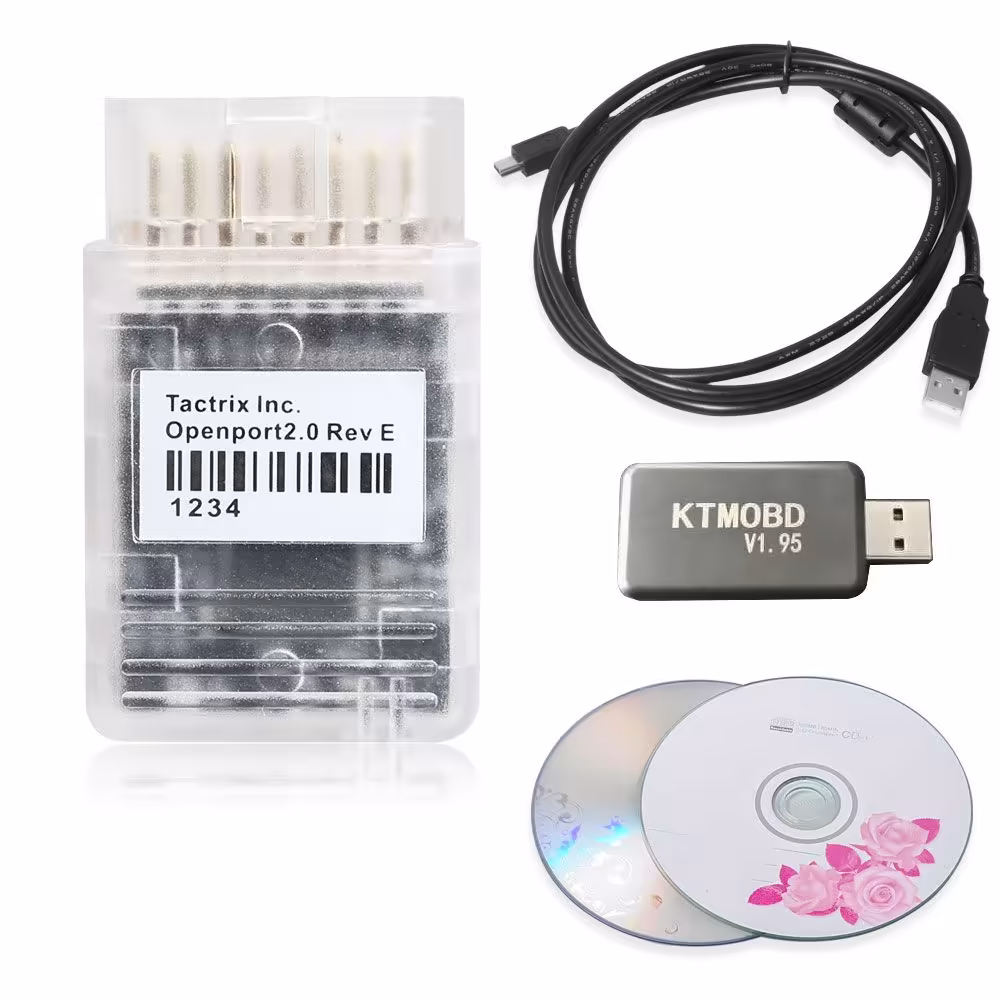

What's Included in the Package

• 1pc x KTMOBD USB Dongle

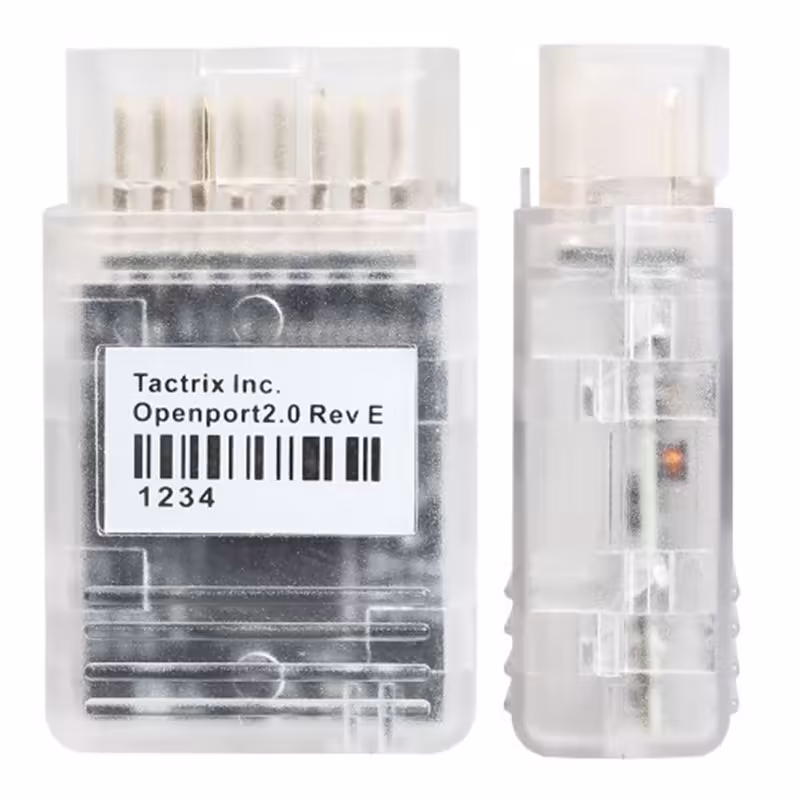

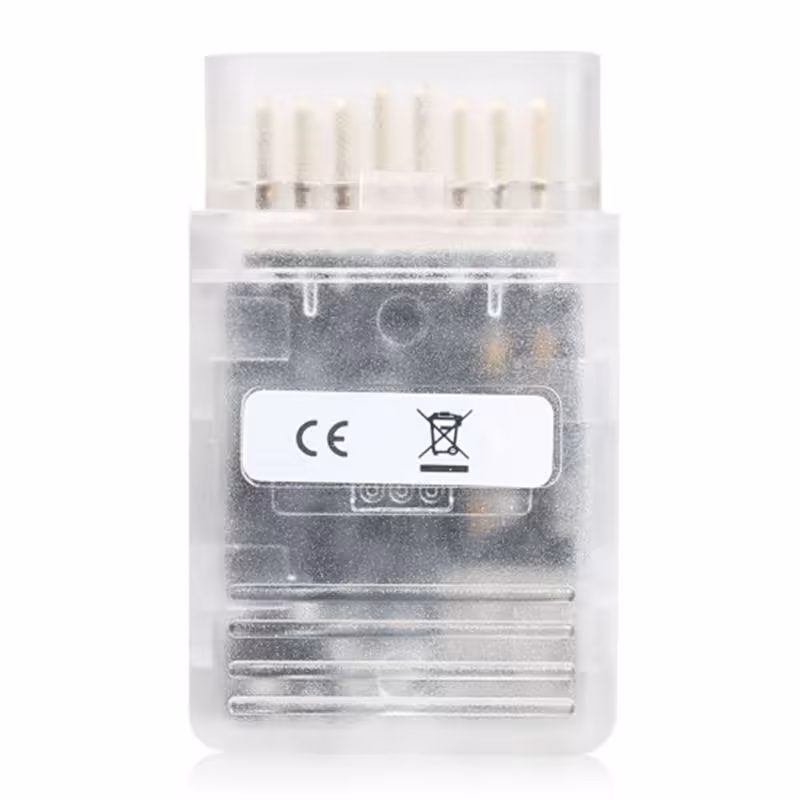

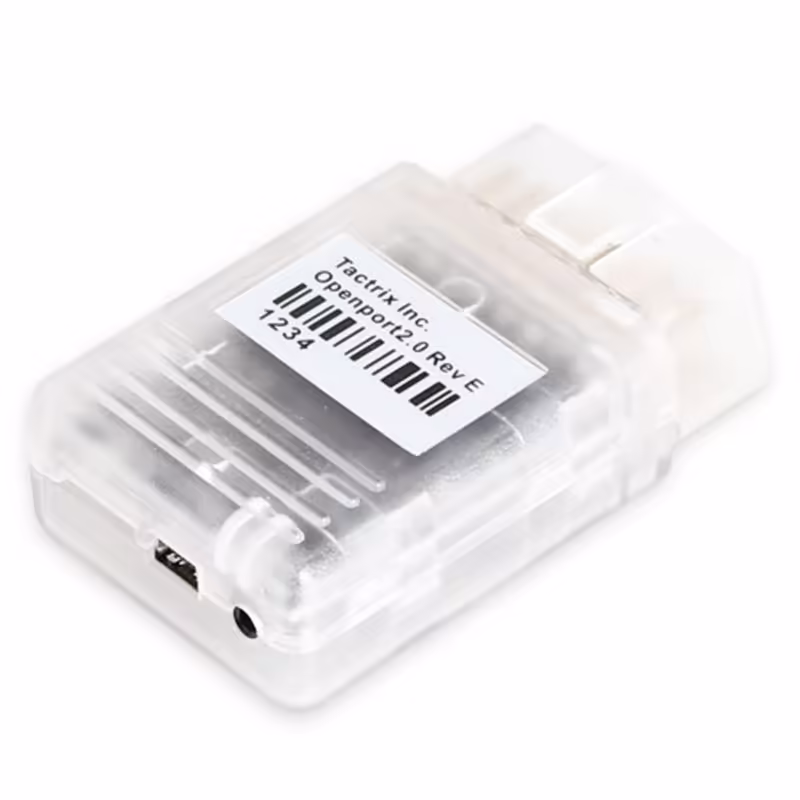

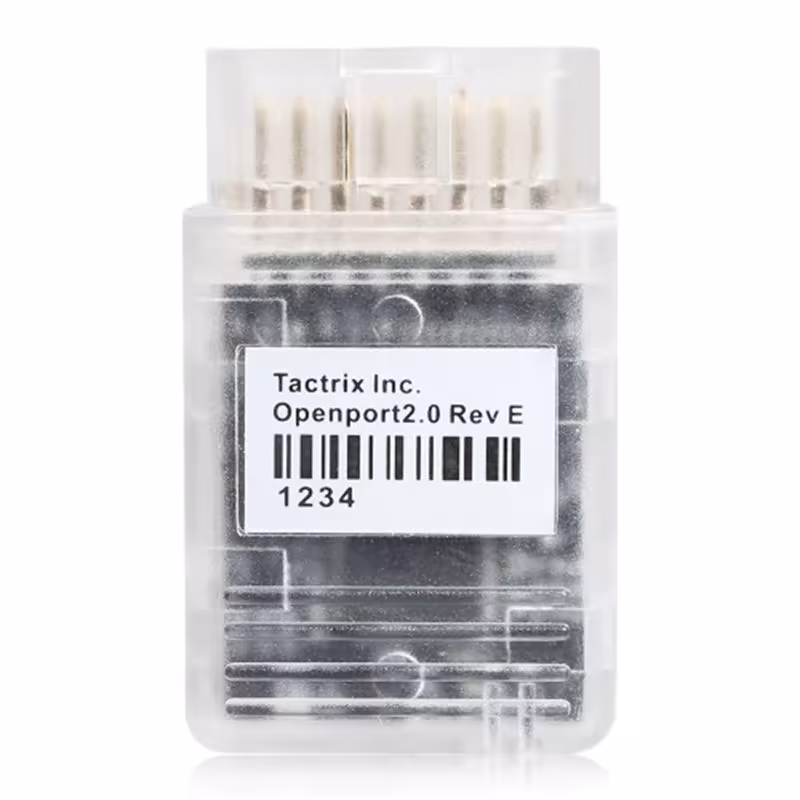

• 1pc x Dialink J2534 Cable
• 1pc x USB Cable
• 1pc x CD
