KONNWEI KW720 6V/12V/24V Motorcycle Car Truck Battery Tester with Built-in Printer Battery Analyzer Charging Cranking Test Tools

KONNWEI KW720 6V/12V/24V Motorcycle Car Truck Battery Tester with Built-in Printer Battery Analyzer Charging Cranking Test Tools 100-2000CCA Charging Circut Tester

KONNWEI KW720 battery tester can check the overall operating status of 6V 12V 24V battery. Battery testing can analyze the battery healthy status to calculate the actual cold cranking capability of the battery and the aging extent. Cranking test helps you test and analyze the starting motor, and the charging test is to check the charging system status to avoid damaging the battery.

KONNWEI KW720 battery tester built in printer, equipped with standard thermal printer paper,can print the last test result of this battery tester directly. After the test is completed, you can easily print the test results, then paste it on the worksheet.Support the majority of vehicle battery standards, such as CCA, BCI,CA,MCA,JIS,DIN,IEC,EN,SAE .Suitable for all 1V -30V lead-acid batteries ranging from 100 to 2000 CCA, including regular flooded, AGM flat plate, AGM spiral, GEL, and EFB batteries for the truck, boat, Car, Motorcycles, lawn mowers and other gardening machines,etc.

This car battery load tester offers vehicle electrical safety through exceptionally polarity reverses connection protection. Fully Insulated Alligator Clips are built with user safety in mind through spark-free operation and reverse polarity protection.This car battery tester is easy-to use and can get accurate results in seconds. The battery alternator tester can directly detect bad cell battery and test the battery that is losing power(as low as 1.0V), no need to full charge before testing. No matter the batteries in the vehicles or out of the vehicles, the KONNWEI KW720 battery tester will finish its testing job excellently.

Top reasons to choose KONNWEI KW720

1.Support 6V Motorcycle, 12V car, 24V truck battery detection
2.Equip built-in thermal printer, print test result directly after test.
3.3.2 inch color screen, the resolution ratio is 320*240
4. The inspection speed is faster and more accurate
5. Check the battery capacity relative to the battery rating. Battery test, Cranking test, Charging test.
6. Graphical battery test results.
7. Support CCA value range 100-2000.
8. Support free upgrade and printing online through BTLINK.
9. Support 13 languages: Chinese, English, German, French, Japanese, Dutch, Russian, Spanish, Italian, Korean, Portuguese, Polish,Persian.
10. Support 9 battery standards: CCA, BCI，CA，MCA，JIS,DIN,IEC,EN,SAE.
11.Exceptionally polarity reverses connection protection.
12.Strong and sturdy Alligator Clips which make test result more accurate and safe operation.

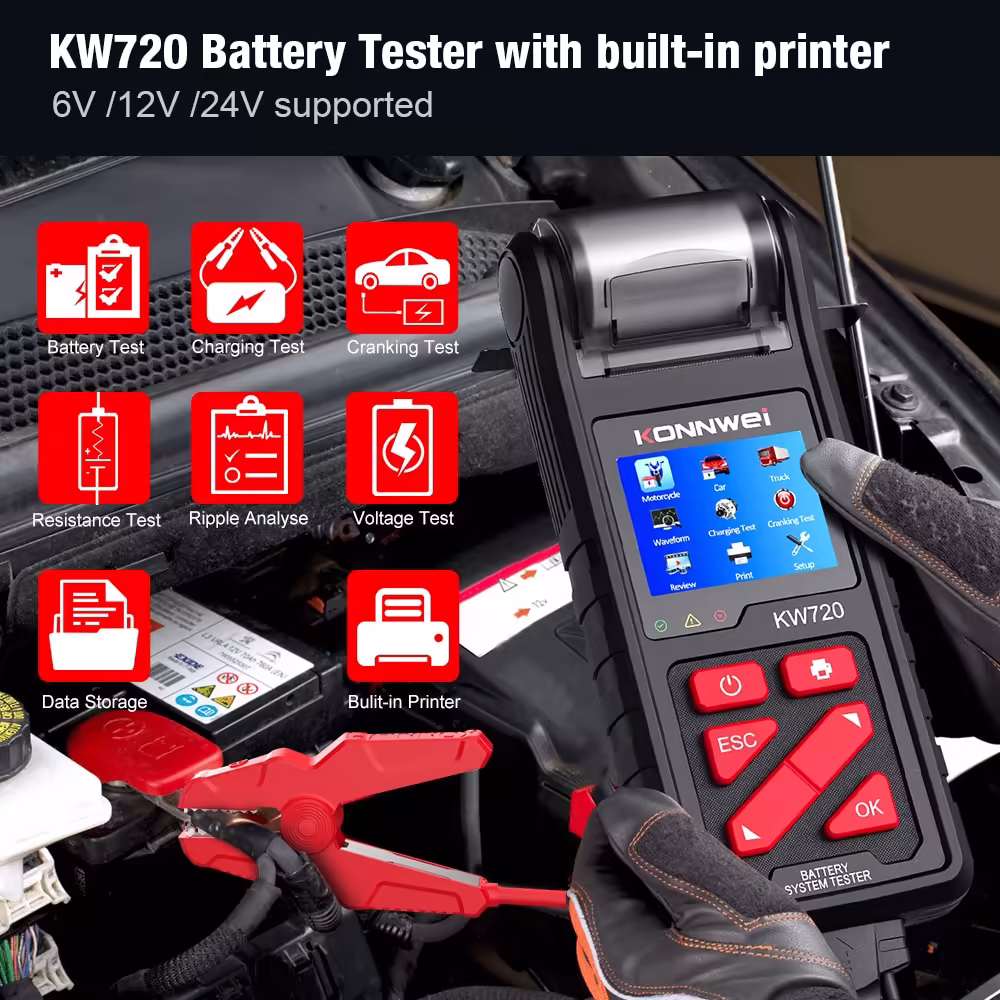

KONNWEI KW720 Features

1.Professional advanced testing and measuring algorithm applied.
2. Hardware upgrades , more Insulation measures and high quality current amplifier to make the testing results more stable and reliable, professional.
3. Support 24V batteries testing , cranking and charging system test. support up to 36V (maximum designed to withstand 50V). also can cover 6V small lead-acid batteries testing.
4. KONNWEI patterned self-designed clamps, make it more adapted to vehicle's testing results and easily to clamp it on, also increasing the testing accuracy.
5. Support voltage waveform recording, playback, deep analysis on computer.
6. Easy one-click life-time free update directly though BTLINK
7. Multi-languages interfaces supported.
8. Large color screen and rugged keypad design.

Deep Analysis for Battery Voltage Monitor

Can be uploaded to BTLINK APP for deep analysis of battery voltage

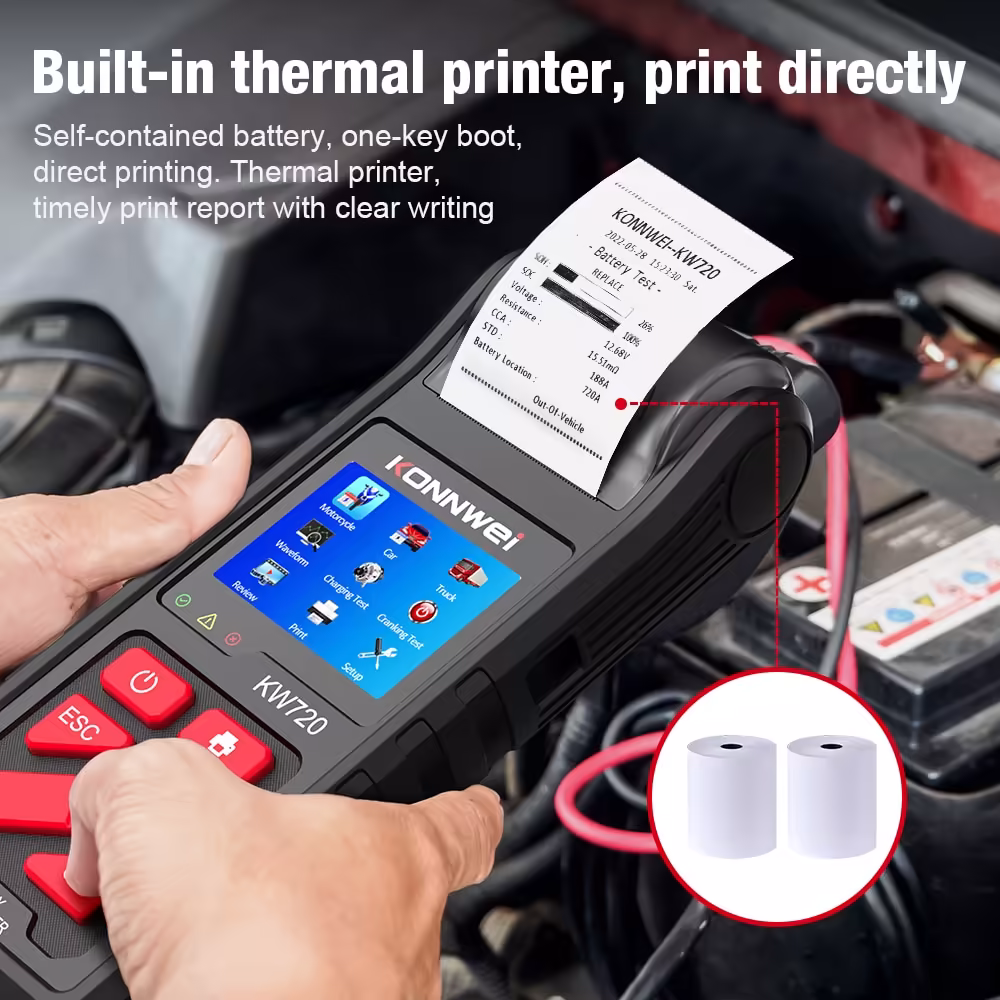

Built-in thermal printer, printer directly

Self-contained battery, one-key boot, direct printing. Thermal printer,timely print report with clear writing.

Unique Alligator Clips

The special material of the clamps give you a more accurate test result and more safe operation.

Large 3.2 inch color screen

KONNWEI KW720 support 6V/12V/24V lead-acid batteries

Compatible with 6V-12V-24V Vehicles & motorcycles & truck& steamship batteries.including ordinary lead-acid battery, AGM flat plate battery,ACM spatial battery, and Gel battery etc.

KONNWEI KW720 support 9 battery standards:

1.CCA:100-2000
2.BCI:100-2000
3.CA:100-2000
4.MCA:100-2000
5.JIS:26A17-24SH52
6.DIN:100-1400
7.IEC:100-1400
8.EN:100-2000
9.SAE:100-2000

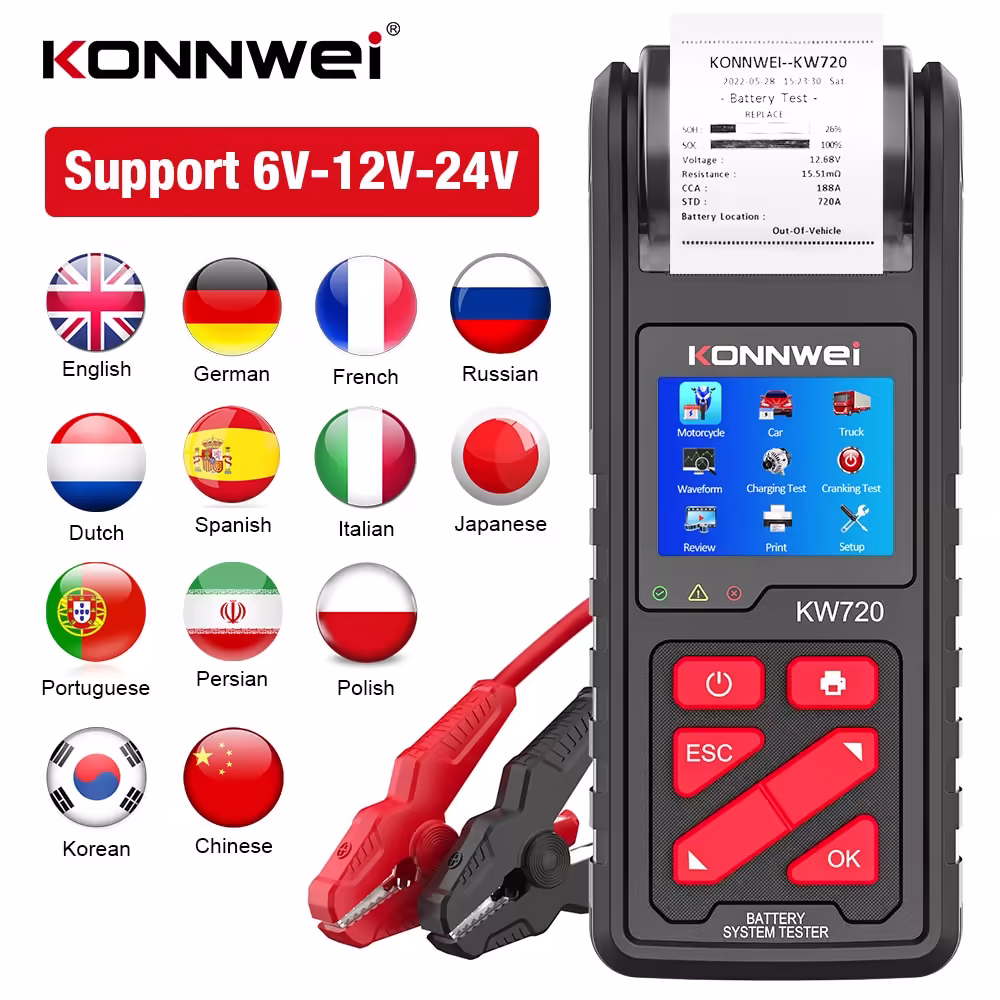

KONNWEI KW720 support 13 languages:

KONNWEI kw720 support Chinese, English, German, French ,Japanese, Dutch, Russian, Spanish, Italian , Korean, Portuguese，Polish,Persian.

KONNWEI KW720 specifications:

Application: regular flooded, AGM flat plate, AGM spiral, GEL, and EFB
Systems voltage: 5-36v
Input voltage range: 6V/12V/24V
Display： 3.2 inch LED display
Voltage accuracy: ± 0.05V
Machine weight:0.55 kg

KONNWEI KW720 support free update by BTLINK in life time.

Software display:

Package list:

1*KONNWEI KW720 battery tester
1*Adapter cable to connect the battery with device
1*Mini USB cable
1*User’s Manual
1* Black case
2*printer paper
