Handheld PDA Android 6.0 Touch Screen 2D Barcode Scanner Payment Terminal
- Shipping:
- Express Shipping Service
Estimated delivery time: 3-15 working days.See details ? - Returns:
- Return for refund within 30 days, buyer pays return shipping.Read details ?
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews (0)
- Write a Review
- Related Products

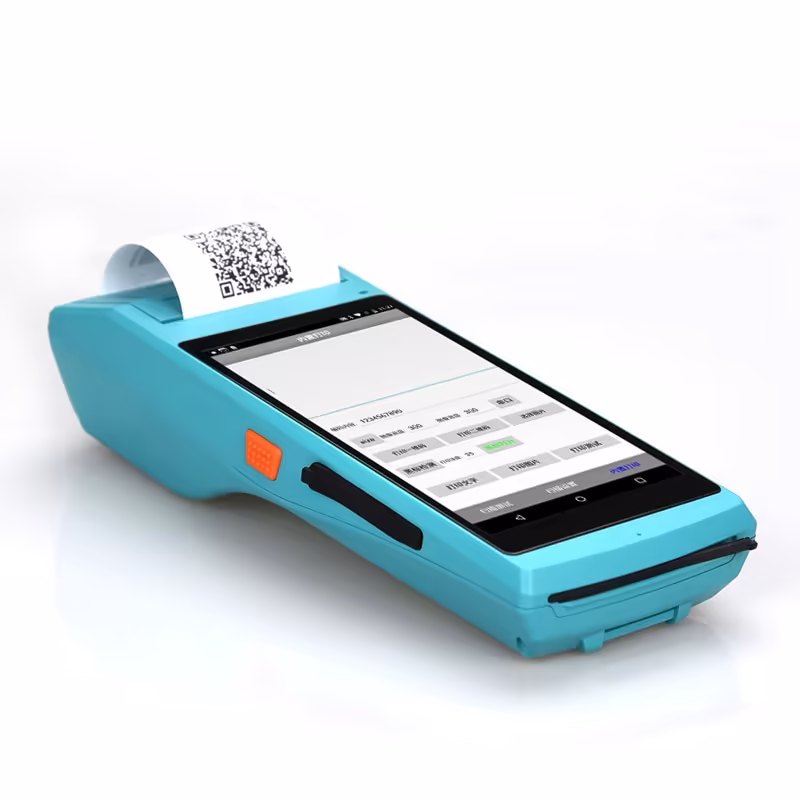

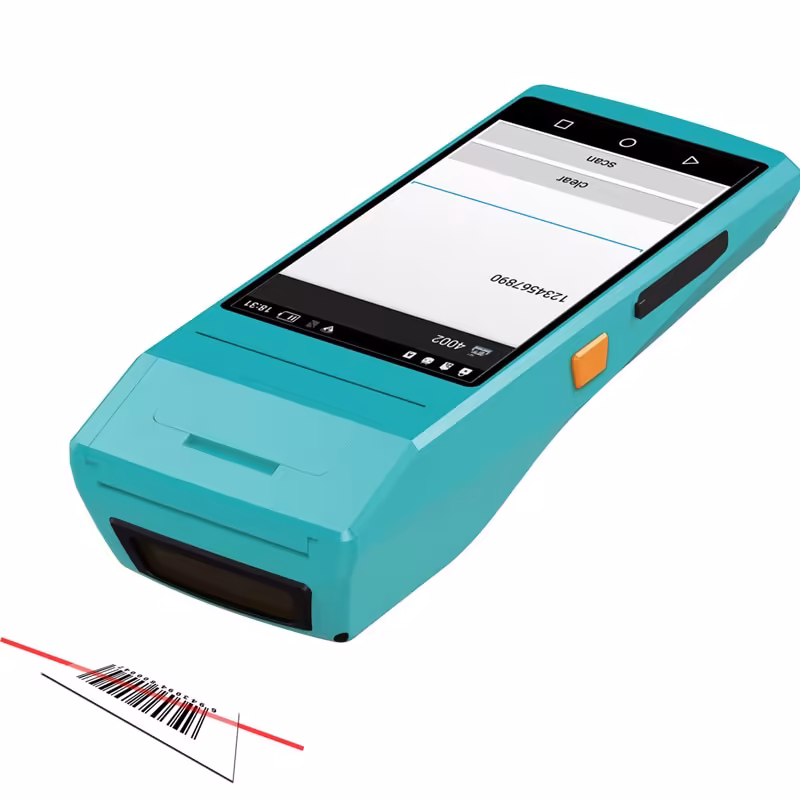

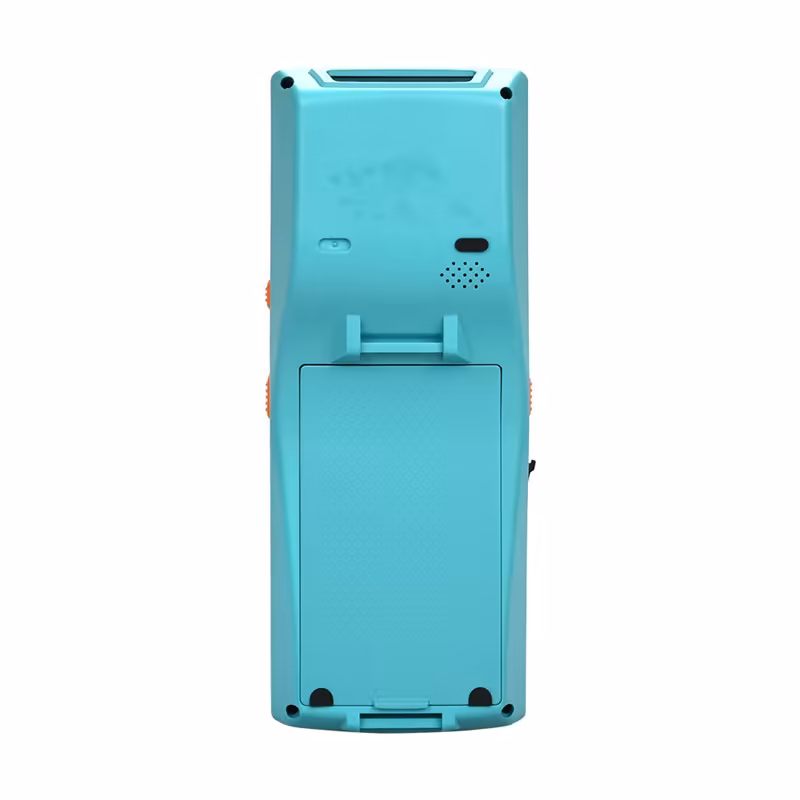

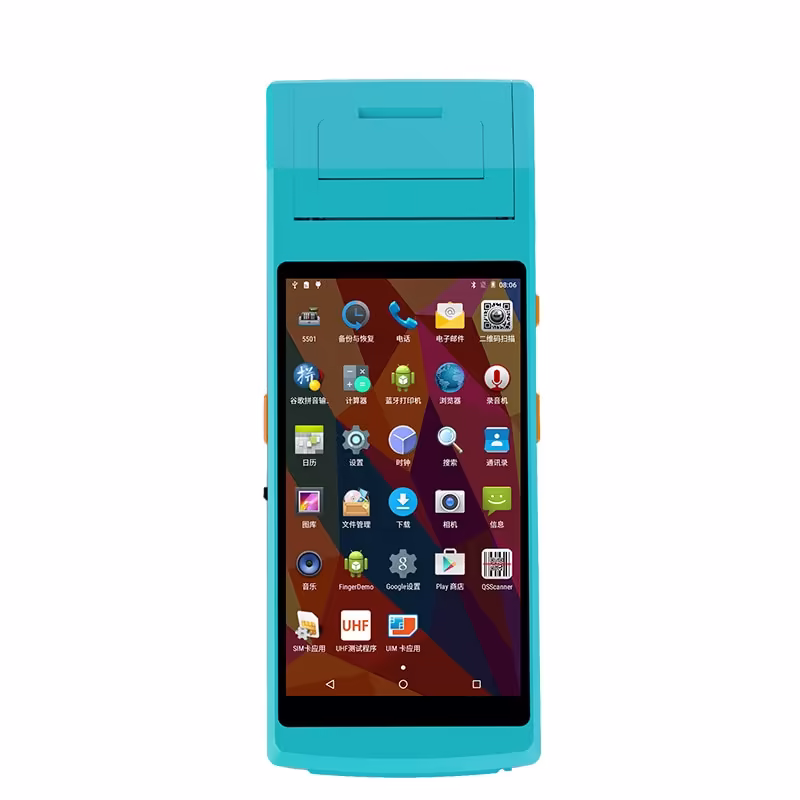

Handheld PDA Android 6.0 Touch Screen 2D Barcode Scanner Payment Terminal
Product Features
1.Android 6.0 device with 3G,wifi ,NFC,GPS, BT ,camera,58mm thermal printer ,1D laser /2D imager barcode scanner for optional
2.IP65 industrial grade rugged classic design
3.With large capacity battery(7.4V 2950Mah)
4.Can be connected with many peripheral devices,good compatibility.
5.Provide free SDK for secondary development
Applications files
Supermarket cashless payment,
inventory management,
logistics tracking,
mobile communications,
business data management
Payment Terminal
Remark:please choose the correct model you want
Specification Sheet
System ConfigurationWireless pos pda printer | |
Processor | ARM Cortex A53 Quad-core 64bits 1.3GHz |
O.S | Android 6.0 |
Memory | 16GB ROM+2GB RAM |
Ex-Storage | Micro SD (Up to 64GB) |
Display | 5.5inch IPS 720x1280 High Resolution |
Camera | AF 2.0M Pixels with LED flash light |
Touch Panel | Industrial-grade capacitive touch panel |
Keypad | 2 side keys,Power key |
Notification | Vibrator/LED/Speaker |
Battery | 7.4v 2950mAh rechargeable lithium polymer batter |
Audio | Built-in microphone/Headphone slot |
Sensor | G-sensor |
Interface | Micro USB/Serial Port(TTL) |
Structural Parameters | |
Dimensions(LxWxD) | 210*80*42mm |
Weight | 505g(battery included) |
Communication Transmission | |
Mobile Network | 3G: WCDMA:850/900/1900/2100MHz CDMA/EVDO 800MHz |
GSM: 850/900/1800/1900MHz | |
| |
Wi-Fi | IEEE 802.11 b/g/n |
BT | BT 4.0 |
GPS | Supporting GPS/AGPS |
Printer | |
Method | Direct Thermal |
Speed | 70mm/sec |
Width | 48mm(384 Dots/lines) |
Sensor | Black mark / out of paper / overheat over-voltage protection |
Medium | Thermal paper and label |
Type | Text/image/bar code/QR cod |
Operating Environment | |
Develop Tools | Android SDK + JDK + Eclipse |
P-Language | Java |
Operating Temp | -10°~ 50°C |
Storage Temp | -20°~ 70°C |
Humidity | 0 ~ 95% (non-condensing) |
1D Laser Scanner | |
Speed | 100 lines/sec |
Scan Angle | ±50° |
Identification accuracy | ≥4mi |
Decoding Type | UPC-A,UPC-E,UPC-E1,EAN-13,EAN-8,ISBN/ISSN,Code 39, Matrix 25, Codebar(NW7),Code 128,UCC/EAN 128,ISBT128, |
2D Image Scanner | |
Method | CMOS Image |
Scan Speed | Scan Speed |
Scan Angle | 360 ° angle, Elevation angle ± 55 °, Eeflection angle ± 55 ° |
Identification | 2D≥7.5mil,1D≥5mil |
accuracy | |
Decoding Type | QR Code, Data Matrix, PDF417,UPC-A, UPC-E, EAN-8, EAN-13, |
|
|
NFC | |
Protocol | ISO/IEC 14443A/B,ISO15693 |
Frequency | 13.56MHz |
NFC type | Type1-4Tag/Mifare/Felica |
PSAM/ Contact Card | |
PSAM | ISO/IEC 7816 1-4 |
Contact chip card | ISO/IEC 7816 (optional) |
