GODIAG BMW FEM/BDC Test Platform Work with Xhorse VVDI2/Key Tool Plus Pad, Autel IM608, CGDI BMW etc

GODIAG BMW FEM/BDC Test Platform

GODIAG FEM/BDC programming test platform is a dedicated device developed for BMW locksmiths, maintenance engineers and FEM/BDC programming engineers.

GODIAG FEM/BDC Programming Test Platform Highlights:

1. Provide locksmiths with the easy and convenient connection for FEM/BDC immobilizer system.
2. Perform the synchronization test for the programmed FEM / BDC and the key
3. Provide a test environment for the engineers who professionally recycle FEM/BDC.
4. Help automobile maintenance engineers check whether the FEM/BDC and the key are synchronized correctly.
5. Provide professional engineers with connecting FEM BDC modules and instrument.


Features:

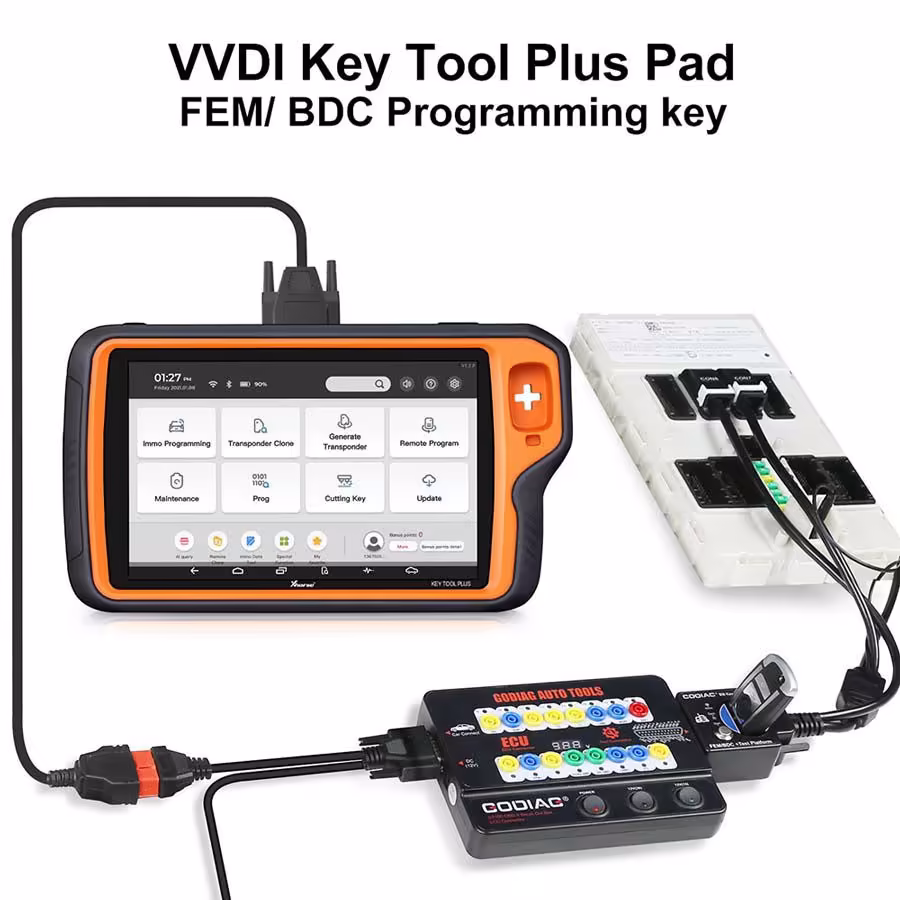

1. By working together with Godiag GT100 & Xhorse Key Tool Plus Pad, VVDI2, Autel im608 etc, Godiag FEM/BDC test platform can program new key, can add new key and replace FEM/BDC ECU module.


2. Allowed to connect this test platform to the FEM/BDC module to test whether it can communicate or there is any malfunction.

3. Used to read out & backup the data after preprocessing, used to replace FEM/BDC immobilizer module

4. Before installing the FEM/BDC module back to the car, it can be used to test whether the programmed key synchronizes with FEM/BDC.

5. Godiag FEM/BDC test platform can help expand business for the Engineers who are skilled to program FEM/BDC key.
When a car owner lost the key, he or she can remove the FEM/BDC module and the corresponding ECU, then ship them to the locksmith to program new key, also perform a synchronization test on the programmed key and FEM/BDC.


6. Troubleshooting - when the key can't start the car, This test platform can be used to pinpoint pinpoint whether it is is caused by the mismatch between FEM/BDC and the key.

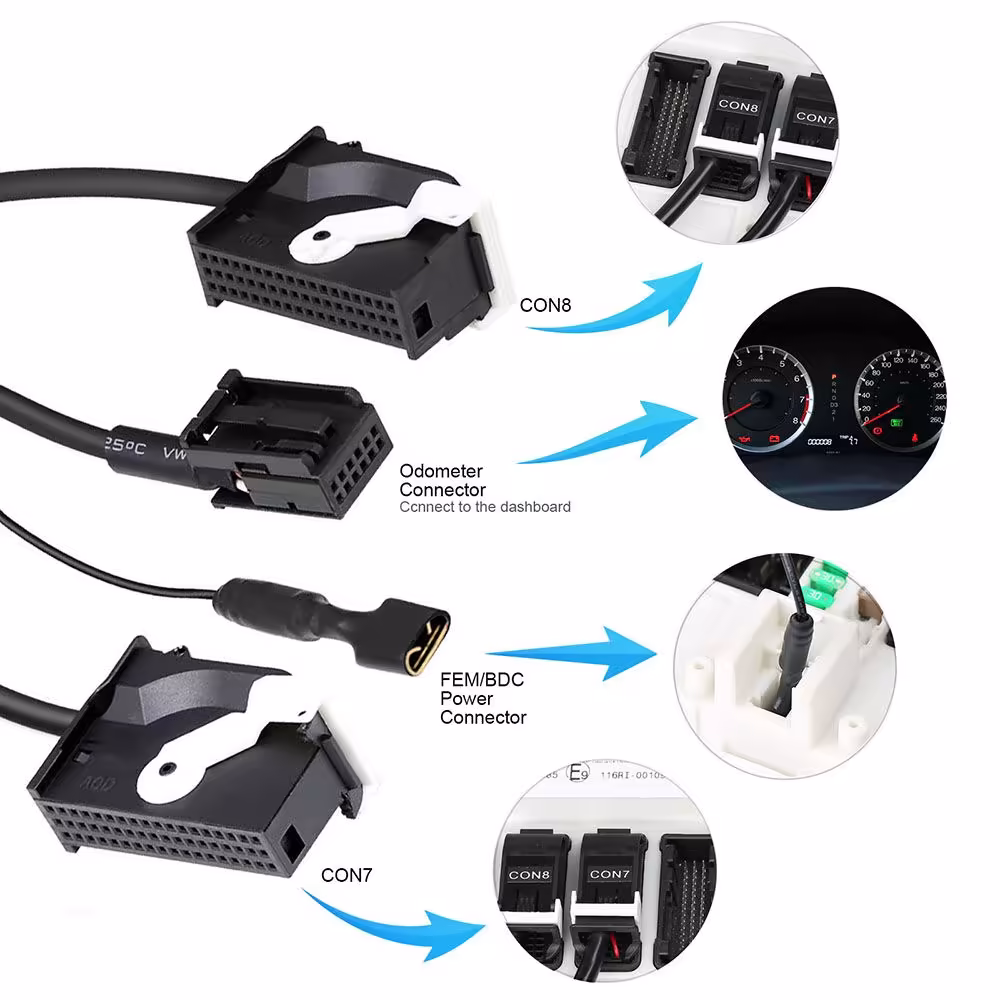

7. This test platform adopts the dedicated OEM FEM/BDC fast connector, which makes the connection simpler, more convenient and reliable. It will not bend the communication pin of FEM/BDC module.

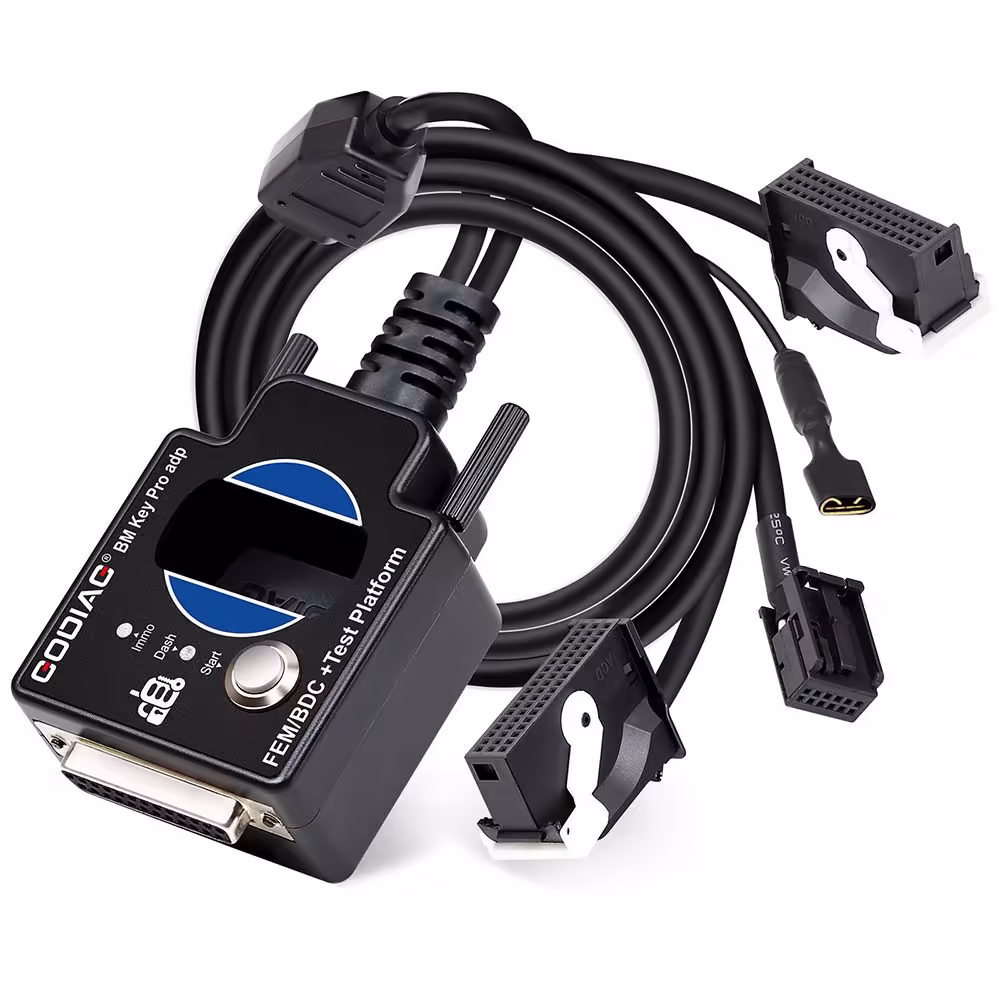

8. GODIAG for BMW FEM/BDC Programming Test Platform Structure Description


① DB25 female connector. (used to connect the DB25 male port of GODIAG GT100)
② Ignition simulated start switch.
③ Immobilizer dashboard simulated indicator.
④ Key sensing area.
⑤ Screw bolt.
⑥ CON7.
⑦ Source connection port.
⑧ Appearance.
⑨ CON8.

9. Dimension

Comparasion Table:

Name	Godiag BMW FEM/BDC Test Platform	Other FEM/BDC Test Platform
Price	$49.99	$59.99
Key Recognition Area	Stable, easy to identify the keys	Connect to key by wire, need to move keys all the time to detect
Power Plug Interface	Godiag dedicated OEM connector	Connect to power supply via clip, not stable
Extend Functions	Work with the OBD2-db25 adapter to connect to more ecu and modules (db25 free in package)	No

Package includes:
