GODIAG GT105 can indicate data communication.Activate/wake up instrument or immo ECU when all keys lost.Suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.
COBD27513History: 719 sold Price Down Notice
Price:
US$89.00/ piece
Discount Price:
US$33.49/ piece 62%
Quantity:

Shipping:
Airmail Post
Estimated delivery time: 7-45 working days.See details?
Returns:
Return for refund within 30 days, buyer pays return shipping.Read details ?
Support:
Online Chat WhatsApp Skype Ask a question
 2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector
  •  2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assistant ECU IMMO Prog AD ECU Connector

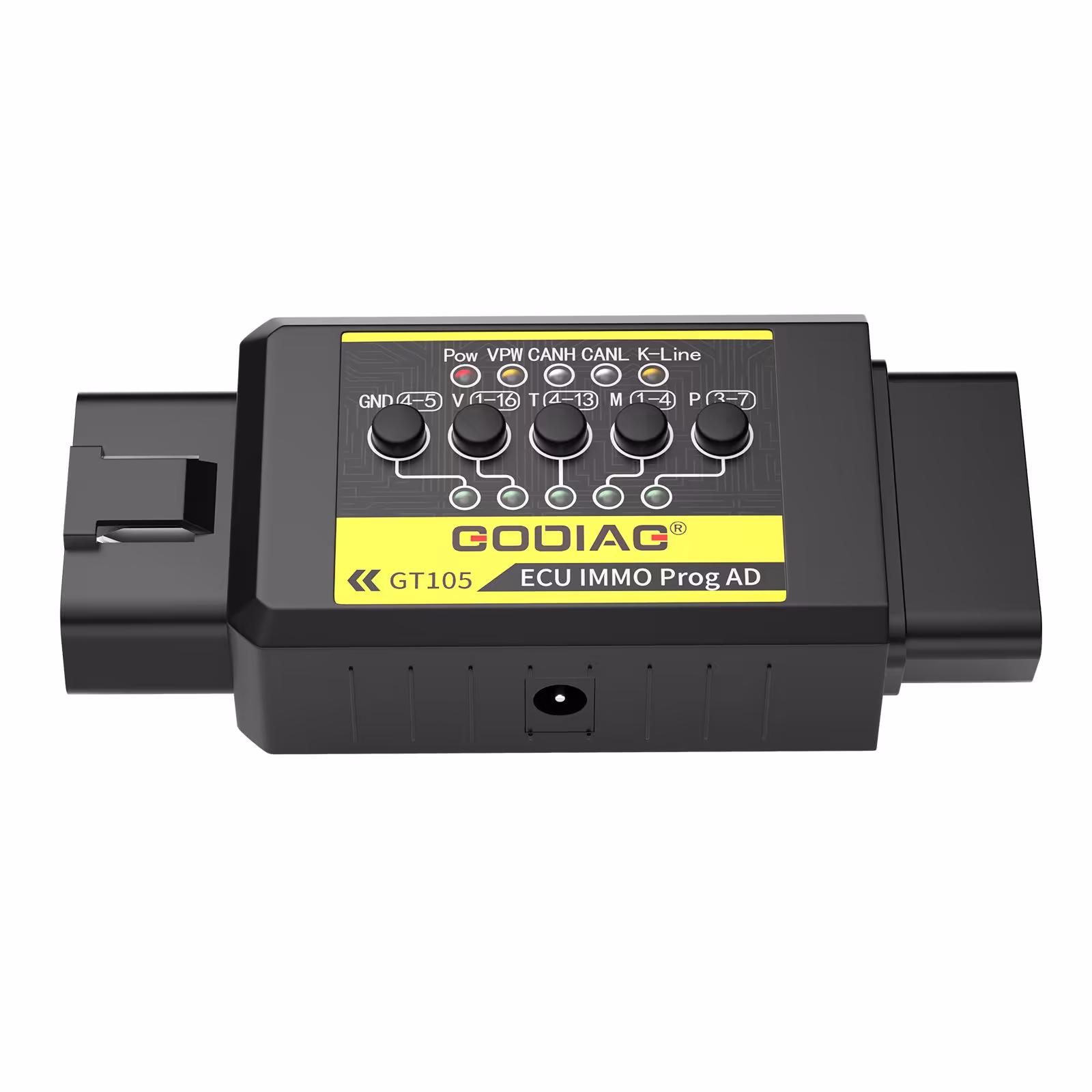

GODIAG GT105 ECU IMMO Prog OBD II Breakout Box ECU Connector

Godiag GT105 Highlights:

1. Safe and easy to operate for IMMO:
to avoid disassembling the ECU of FORD, Mitsubishi, Volkswagen for short-circuit.

2. Assist in the detection of communication: When you use a device to test on car and it indicates that there is no communication, then you can use GT105 OBD assistant to plug into the car, detect whether there is communication between the car and the GT105 OBD assistant. If there is no problem with the communication between the car and GT105, maybe your device is faulty or not supported.

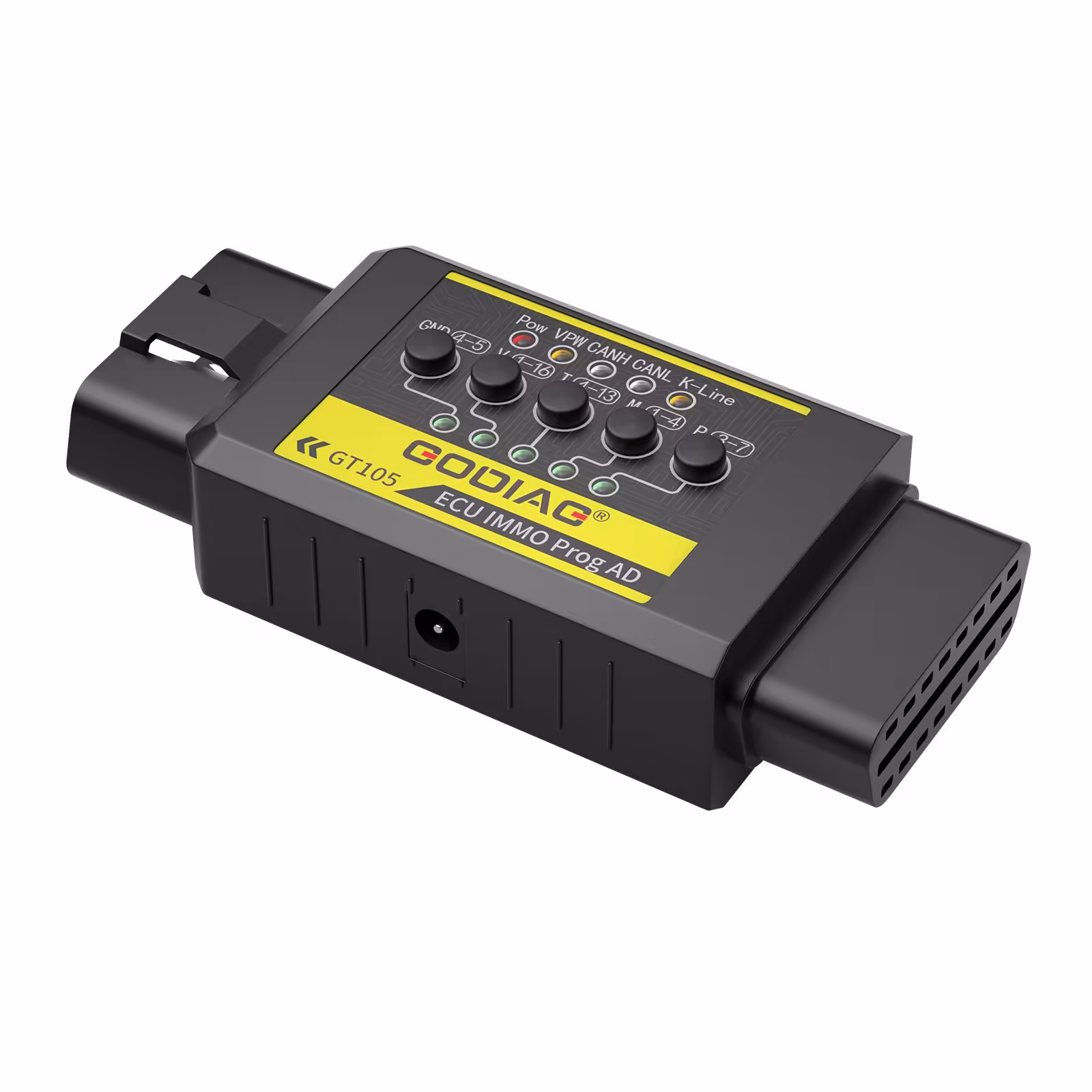

GODIAG GT105 ECU IMMO Prog OBD II Breakout Box

Description:

GODIAG ECU IMMO Prog AD GT105 is a special connection adapter developed for automobile maintenance technicians, anti-theft matching technicians, ECU programming engineers, etc. Since the power source of the product can be converted from a battery to a DC12V power supply, it can also be used to charge some tablets or supply power for independent diagnostic equipment.
The product is equipped with PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash, therefore the communication status can be judged and you can also determine whether the diagnostic programming device is able to communicate.

The product is suitable for outdoor work, taking power from the car battery and converting it into a DC12V power supply for 12V charging, programming power, or independent power supply for diagnostic equipment.

The device provides OBD2 independent PIN4 body GND, PIN5 signal GND, which is convenient for some modules to be used for special programming. In addition, with the OBD2 full protocol ECU programming cable, users can also connect the ECU in the studio to adjust the ECU programming power. The device has PWM+(PIN2), CANH(PIN6), CANL(PIN14), K-line(PIN7) signal communication indicators. When there is data communication, the corresponding protocol indicator will flash. Users can judge the communication status, and also can judge whether the diagnostic programming device can communicate.
GODIAG GT105 Features:
A full-protocol ECU connection line for ECU programming power adjustment
OBD2 independent PIN 4 body GND, PIN5 signal GND for special programming of some modules.
PIN4 and PIN5 can be switched between short-circuit and non-short-circuit.
Standard OBD2 independent PIN4, PIN5.
Pure copper female seat supports repeated insertion and removal, and has a long service life.
Battery clip treated with environmentally friendly salt spray, with a thickness of 0.5mm.
The DC car battery cable adopts 0.75mm² 2-core sheathed cable, which supports DC5.5*2.5/ DC5.5*2.1 interface.
The DC connector has a resettable 7A fuse.
DC power interface, dedicated laboratory power connector

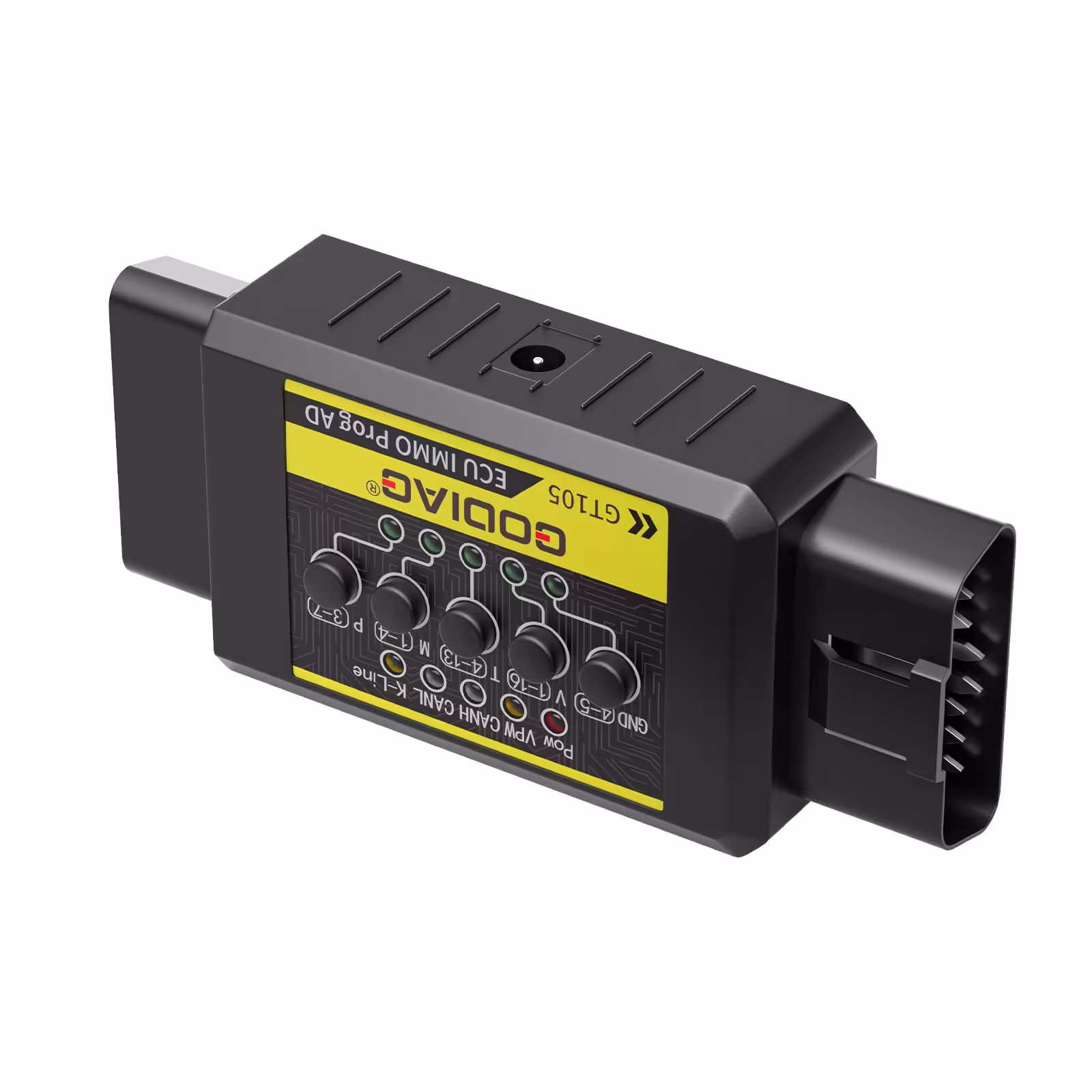

GODIAG GT105 ECU IMMO Prog OBD II Breakout Box
Product Functions:
IMMO AD power adapter function. After 2016, for FORD all smart keys lost, GT105 cooperates with VVDI equipment (OBDSTAR, AUTEL,) and other anti-theft matching equipment to program the keys.

All car keys lost matching---wake up the meter or wake up the anti-theft ECU. (Support VAG 4th and 5th generation anti-theft, Toyota ECU synchronization, auxiliary Mitsubishi all key lost matching or all lost remote control key setting, old Porsche Cayenne car for anti-theft key learning.)

VPW, CANH, CANL, K-Line indicator lights can judge the communication status between the vehicle and the diagnostic programming device. (If the product is used to connect the device, the user can simply judge whether the diagnostic programming is normal or not according to whether the device can send communication.)

The GT105 power adapter cable obtains 12V power from the car battery. (For programming equipment such as Xhorse Key Tool Plus Pad, VVDI Prog, CGDI Prog, IM608, etc., it provides 12V power supply when they need power outdoors, so as to read the data of BMW BENZ anti-theft ECU, or other car ECUs, and finally realize the on-site maintenance of outdoor faulty vehicles. )

Provide 12V power supply for the key cutter (12V).

Standard OBD2 full protocol ECU programming line. (With MPPS, FGTech, Kess v2, etc., for ECU data reading and writing, ECU cloning, ECU tuning, etc.) (Note: OBD2 full protocol ECU programming line is purchased separately)

GODIAG GT105 ECU IMMO Prog OBD II Breakout Box

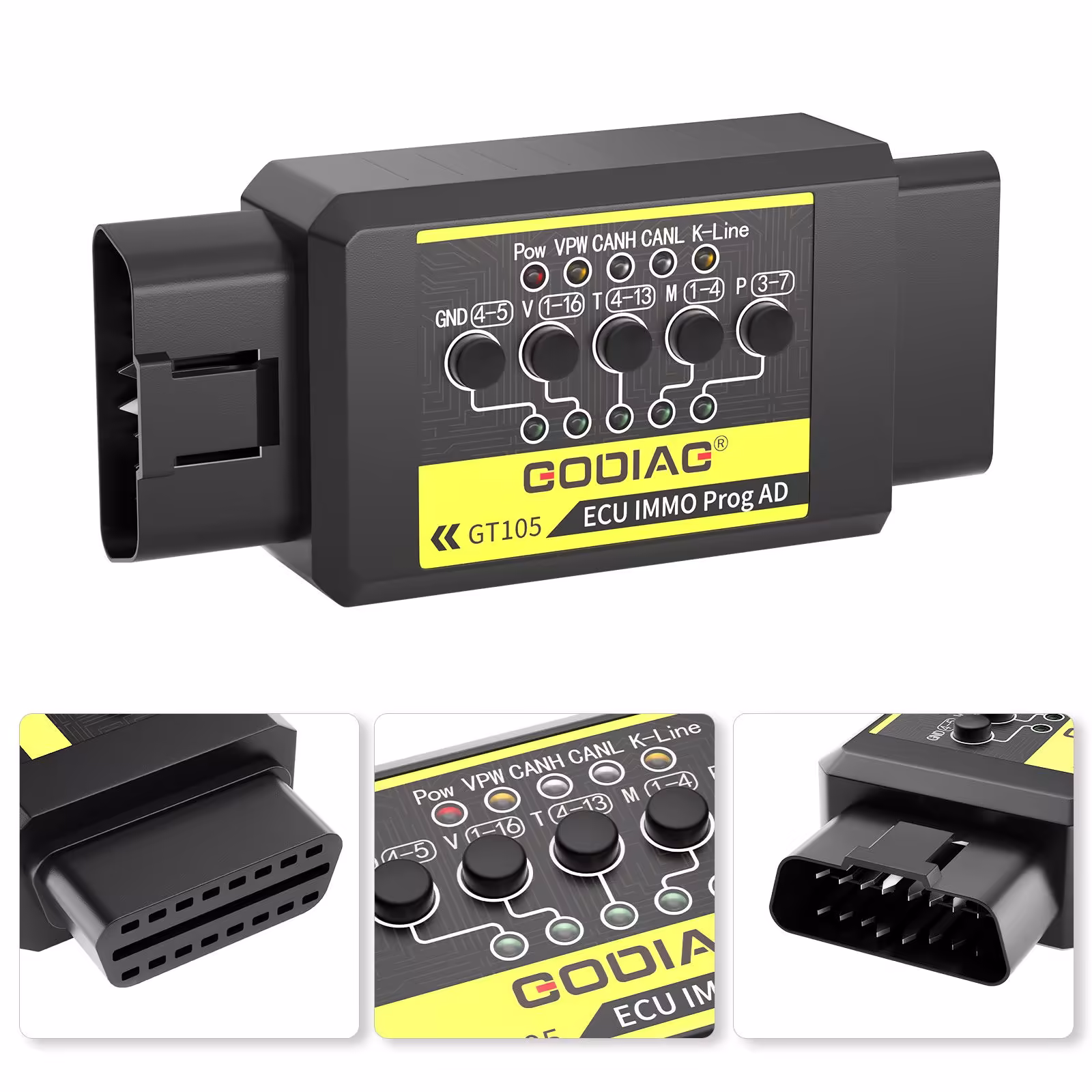

Indicator Light Meaning:

2022 Newest GODIAG GT105 OBD II Break Out Box OBD Assist
GODIAG GT105 ECU IMMO Prog OBD II Breakout Box

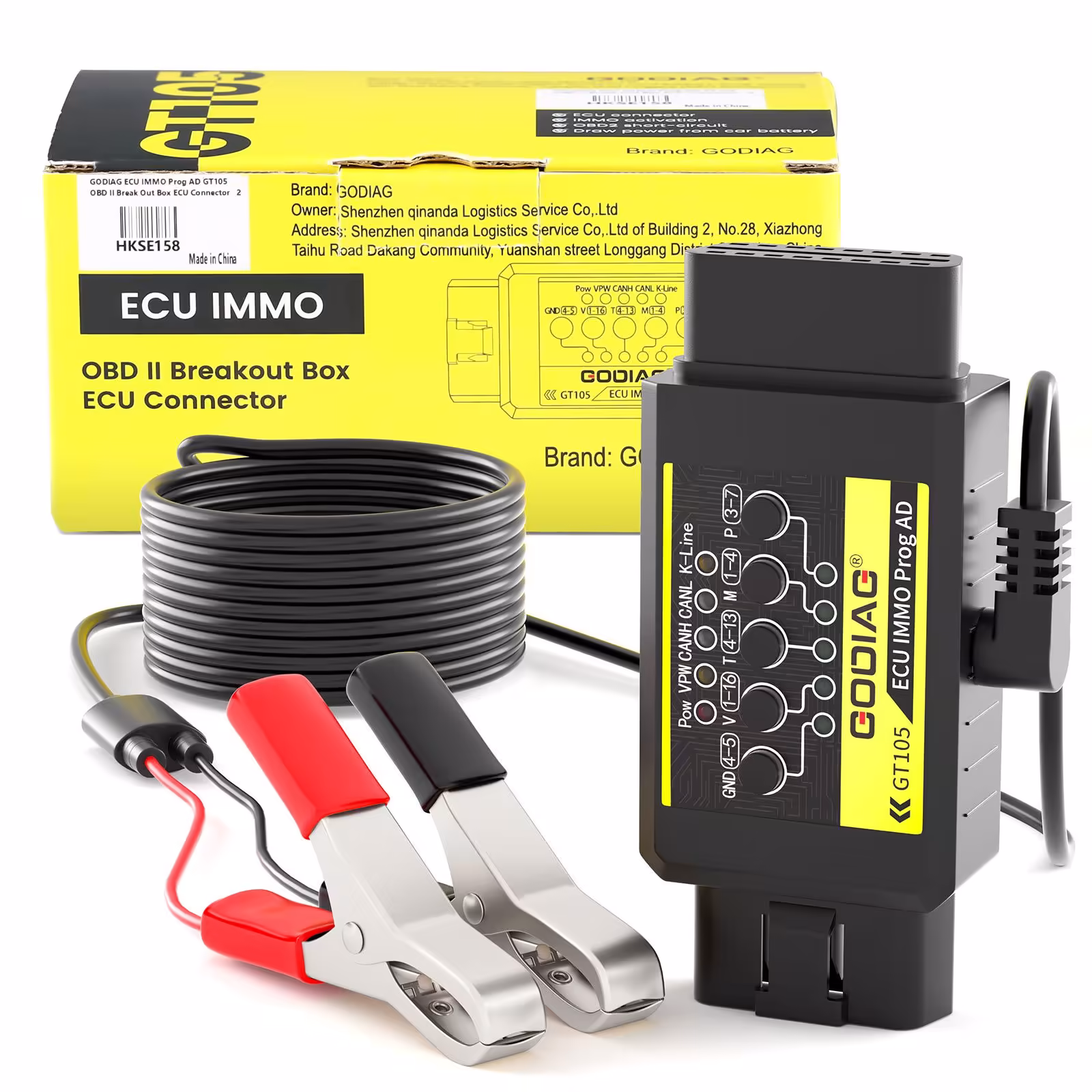

Package Includes:

1pc x GODIAG GT105 Host
1pc x Power Cord with Battery Clip
