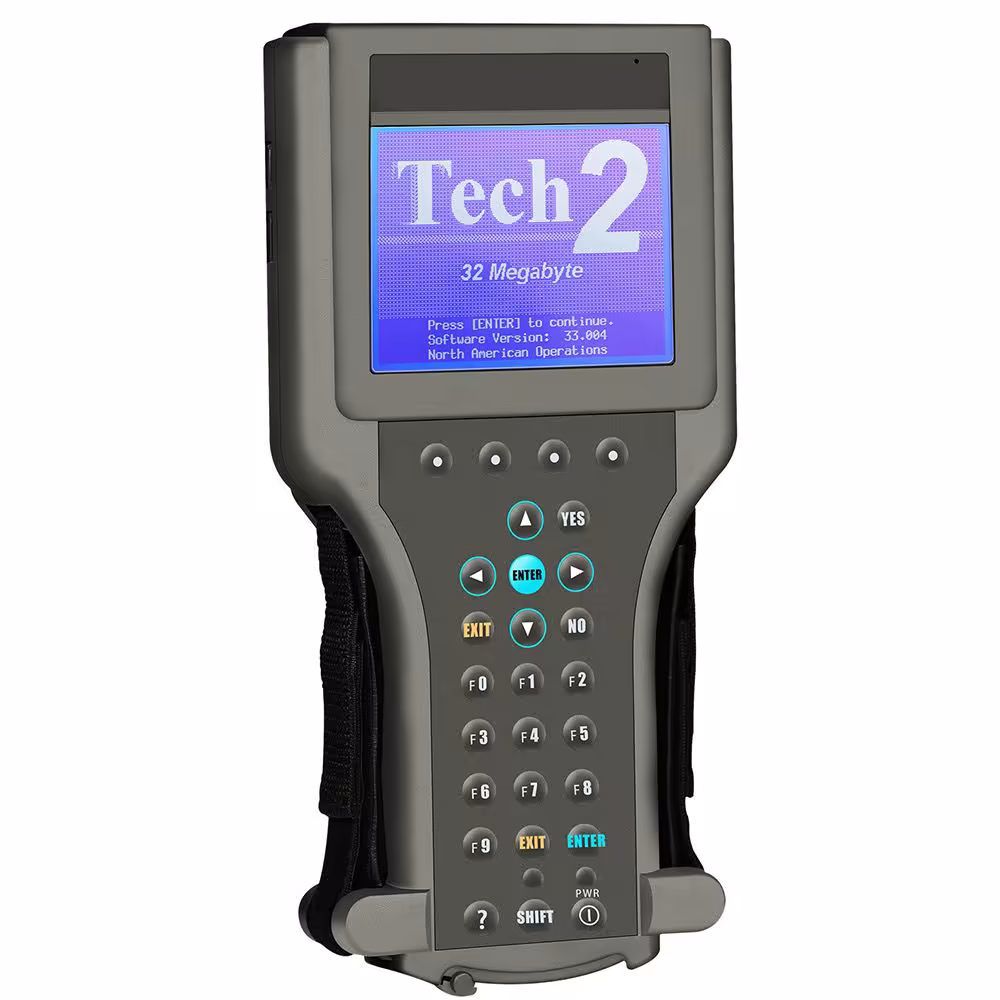

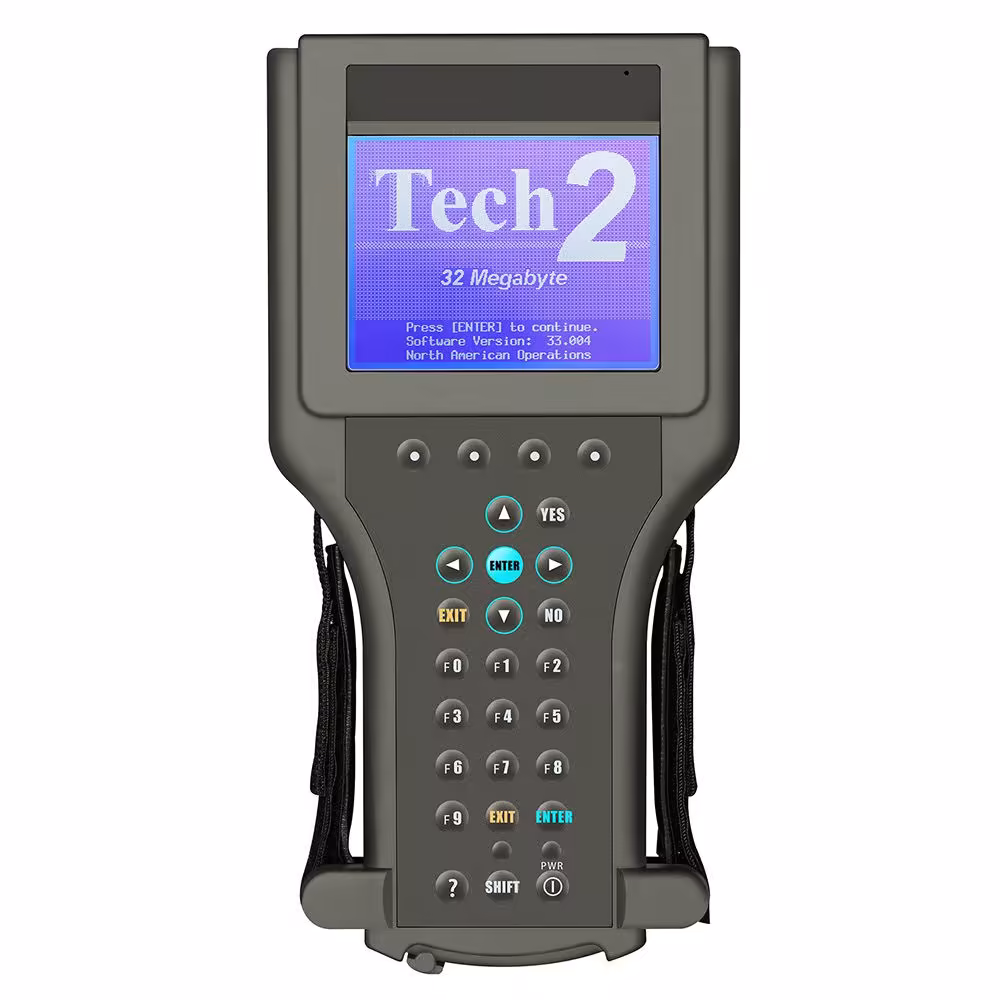

Tech2 Diagnostic Scan Tool For GM SAAB OPEL SUZUKI Holden ISUZU With 32 MB Card And TIS2000 Software

1. Dimensions: 12
2. Microprocessor: 32 bit,16 MHz
3. Memory: 32 MB flash type II PCMCIA. Type III slot available for future expansion.
4. Communications: Integral RS232 communication port.
5. Screen: 3.8.8 backlit monochrome with full graphics capability: 320,40 pixels. Displays up to 9 vehicle parameters at once .Download Tech2 Brochure (5.2 Mb)

1. Authentic GM software in the Tech 2 Flash means the most comprehensive diagnostic software available for late model GM vehicles.
2. Support for on-board diagnostics on all GM systems 1992 thru 2011.
3. Removable hardware modules provide insurance against scan tool obsolescence.
4. Large, easy-to-read backlit screen.
5. RS232 & RS485 ports provide the avenue to connect future devices to your Tech 2 Flash.
6. Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
7. Ability to view the status of vehicle diagnostic tests as they run.
8. Bi-directional The authentic GM 1992-current year software will provide full bi-directional control when performing power train, chassis, and body diagnostics.

An industry change in protocol from OBD II to Controller Area Network (CAN) has begun. In order to perform diagnostics on a vehicle that uses the CAN interface; you will need the Tech 2 Flash and a CAN diagnostic interface module. The module connects between the Tech 2 Flashs diagnostic link cable and the OBD adapter. Once the module is connected, it can be used on all GM vehicle applications,even those vehicles using other platforms such as OBD I and OBD II.

• 05 Buick Allure (3.6L)
• 05 Buick LaCrosse (3.6L)
• 05 Buick Rainier (5.3L)
• 04-05 Buick Rendezvous (3.6L)
• 04-05 Cadillac CTS (3.6L)
• 04-05 Cadillac SRX (3.6L / 4.6L)
• 04-05 Cadillac XLR (4.6L)
• 05 Cadillac STS (3.6L / 4.6L)
• 05 Chevrolet Cobalt (2.2L)
• 05 Chevrolet Corvette (6.0L)
• 05 Chevrolet Equinox (3.4L)
• 05 Chevrolet TrailBlazer (5.3L)
• 05 Chevrolet SSR (6.0L)
• 04 Chevrolet Malibu (Body/Chassis only)
• 05 Chevrolet Malibu (3.5L)
• 05 GMC Envoy (5.3L)
• 05 Pontiac G6 (3.5L)
• 05 Pontiac GTO (6.0L)
• 05 Pontiac Pursuit (2.2L)

• Tech-2 Flash Tester
• 32 MB PCMCIA Card with GM OE Applications
• CAN diagnostic interface module(Candi) and instruction sheet download (199.2 kb)
• RS232 cable and user manual
• RS232-DB9 adapter
• DLC Cable, DLC Loopback Adapter
• 12V Cigarette Lighter Power Cable
• SAE 16/19 Adapter
• NAO 12/19 Adapter
• Battery Power Cable
• TIS 2000 CD

Tech2 for GM FAQ:
