Foxwell BT-705 Battery Analyzer

Features and Benefits:

• Multiple vehicle applications –passenger cars and duty trucks
• Tests batteries from rated from 100 to 2000CCA
• Tests multiple battery types- regular flooded,AGM flat plate ,AGM spiral and gel
• Tests multiple rating systems-CCA,BCI,CA,MCA,JIS,DIN,IEC,EN,SAE,GB
• Tests the batteries on the car directly- no need to remove the battery
• Detects bad cells
• Quick and accurate test result display in just 3 seconds
• Tests 12&24 volt charging system
• Advanced starter /alternator test
• Quick starter analysis without disabling the ignition
• Does not emit light,heat or spark ,or discharge battery-keeps operation safe for all levels of users
• Automatic temperature compensation
• Ripple voltage test for easy and intuitive check of faults
• Extremely easy to use with large backlight LCD display and menu-driven operation
• Optional Bluetooth printer(You can not use your own printer,you should use the relevant printer which is provided by the factory)

• Display: Backlit, 128*64 pixels,graphic
• Dimensions: 190*90*36mm (L*W*H)
• Operating temperature: 0 to 60℃ (32 to 140℉)
• Storage Temperature: -20 to 70℃ (-4 to 158℉)

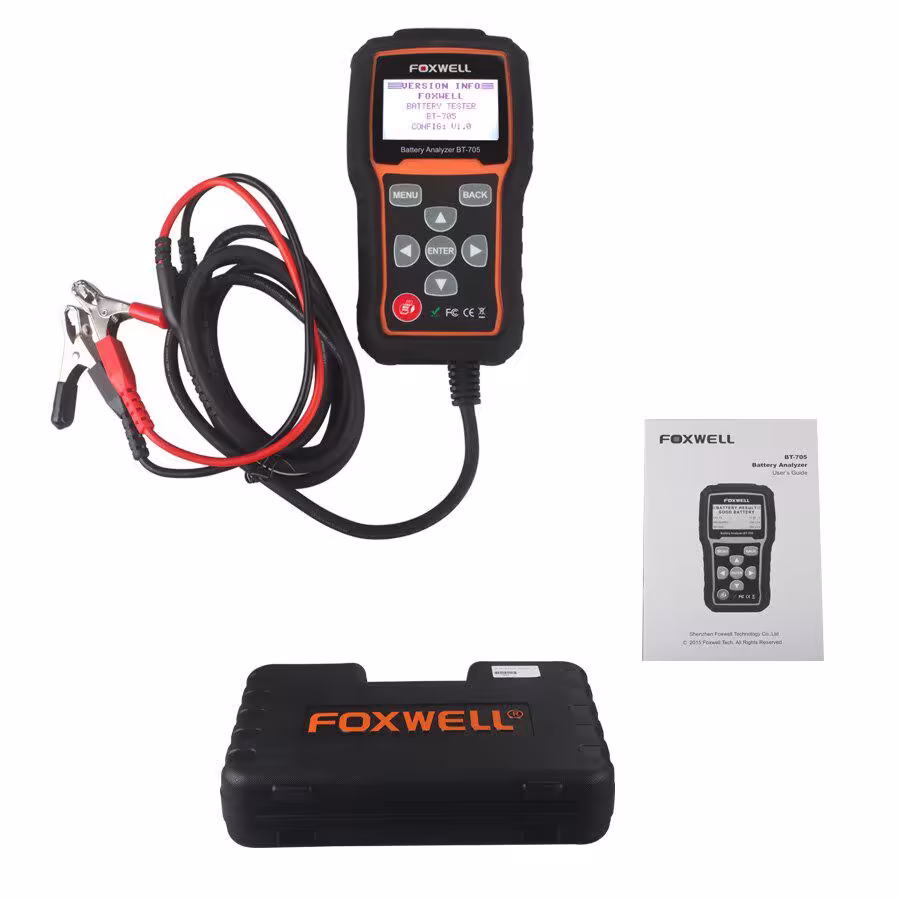

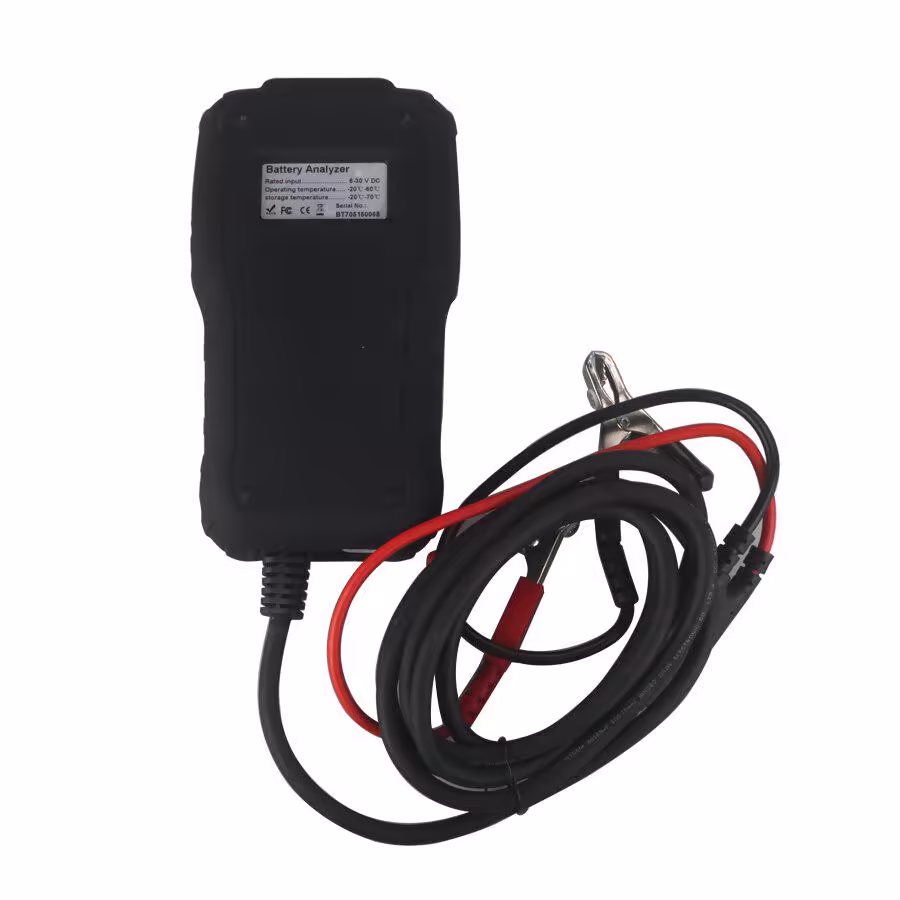

• 1pc×Battery Analyzer BT-705 Main Unit

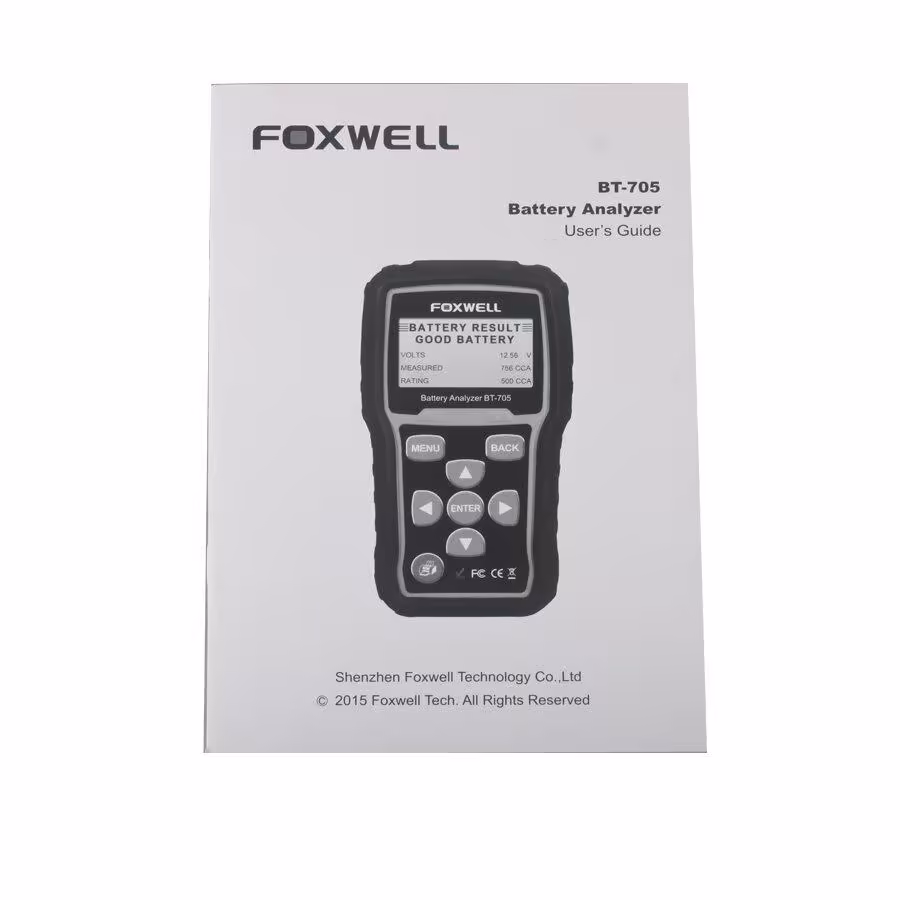

• 1pc×User’s Guide

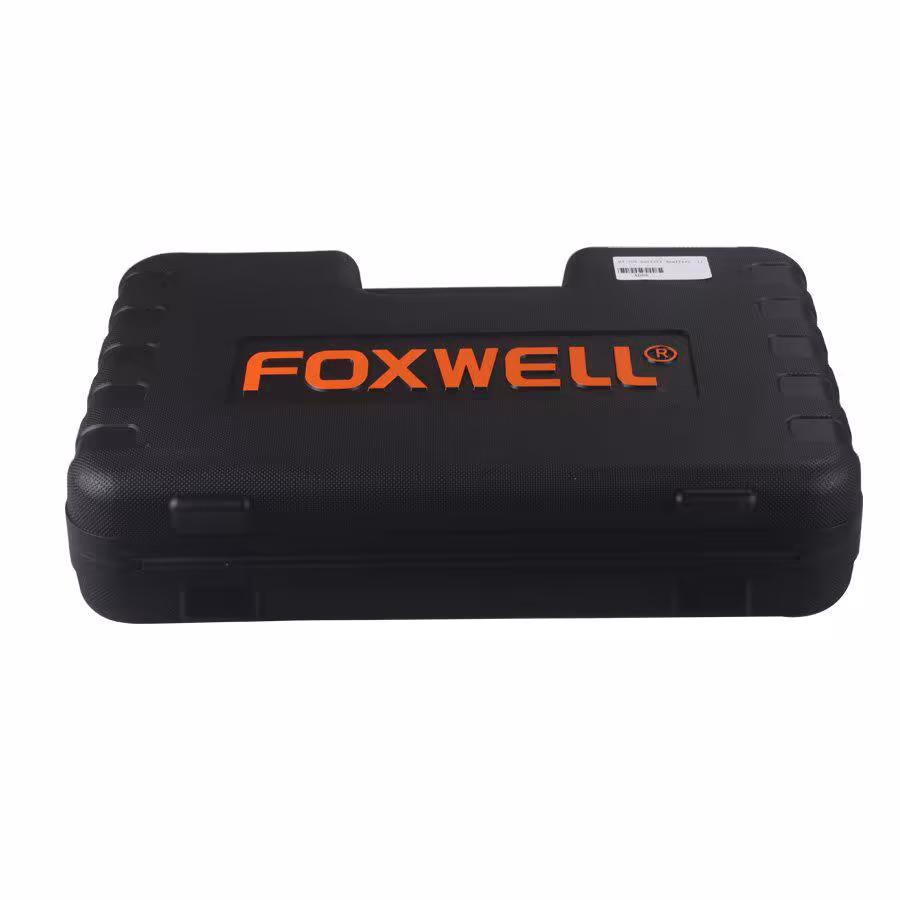

• 1pc× Carry Pouch
