MAGIC FLK02.V02 FLEX Full HW Kit for New Users – Basic Device Full Hardware Only

Flex is an innovative programmer designed for mechatronic workshops, supporting the latest advancements in the tuning and vehicle repair industry. It is now fully customizable—choose your software, upload your company logo, and create your own chiptuning tool.

Flex is the revolutionary chiptuning programmer that accelerates your mechatronic workflow. It integrates essential functions such as ECU/TCU reading and writing, module repair, and performance enhancement—all within a single solution.

Key Features

1. ECU & TCU Programmer: Program cars, motorcycles, and trucks in OBD, Bench, and Boot modes.
2. Over 25,000 Supported Vehicles (Click to check the list)
3. Intuitive Software with Constant Updates
4. Easy to Use: Complete tasks in just a few clicks—select the vehicle brand and model or enter the ECU or TCU code, and the software automatically displays available connection modes.
5. Magic Lock: Secure your work by restricting access to files saved in engine units to authorized users only.
6. Datalogger Function: Capture up to 60,000 real-time parameters including pressure, torque, air, fuel, exhaust gas temperature, speed, RPM, and more.
7. Limited Lifetime Warranty: Includes repair or replacement service for the product.
8. Tech Support: Access technical support throughout the product’s lifetime.

Optional Software Configurations for FLEX

The following software packages are available to customize your FLEX device and can be activated in both Master and SLAVE versions:

• FLS0.1 – Flex ECU OBD + Bench software
• FLS0.2 – Flex TCU OBD + Bench software
• FLS0.3 – Motorola MPC5xx Flex software
• FLS0.4 – Flex Nexus MPC5xxx software
• FLS0.5 – Full Flex SW Package
• FLS0.6 – Flex Renesas SH7xxxx software
• FLS0.7 – Siemens C165 / 166 / 167 Flex software
• FLS0.8 – Flex software ST10F2xx
• FLS0.9 – Flex software NEC 76F00xx
• FLS0.10 – Infineon TC17xx software

Important Note: We do not sell the hardware kit alone—you must purchase at least one software package together with the hardware. Contact us to add the required software (WhatsApp: +86-13995696053, Email: Sales@UOBDII.com).

FLEX HW Kit for New Users

Use your FLEX to easily reprogram, update, or modify the software of most engine control units directly through the vehicle's OBD socket. A simple internet connection unlocks the full potential of the tool. For advanced or repair tasks, use the FLEXBox module to program the control unit in BDM, Bootloader, JTAG, and AUD modes. The device’s advanced design detects any connection or communication errors automatically.

Configure Your FLEX

Customize FLEX to match your workflow. Select the software packages and accessories that best suit your business needs. The first year’s subscription fee is included with every new tool purchase, helping you boost productivity and elevate your business with this adaptable technology.

Difference Between Flex Slave and Master Versions

Flex Master

The Flex Master software license offers significant advantages. It enables users to build their own professional network by activating a file decryptor module and linking up to 99 slave users to their account. The Master version supports unrestricted file formats—users can work with plaintext files and .bin formats editable with any software.

Additionally, Master users can access Magicmotorsport’s file modification services and receive 300 free Green coins per month, along with full technical support.

Flex SLAVE

The Flex Slave software license works exclusively with encrypted files, meaning Slave users cannot view or edit file content. Any required modifications must be sent to their linked Master for decryption and editing. Each Slave tool must be associated with a Flex Master account—either chosen by the user or assigned by Magicmotorsport based on geographic region. Once linked, the Slave remains exclusively tied to that Master for all file-related operations. Support requests from Slave users are first handled by their Master, and Magicmotorsport provides only basic tech support to Slaves. A Slave can be released only if their Master sends explicit written permission.

If you purchase the Slave version, you may upgrade to Master at any time.

Coin-Based Helpdesk System

The Helpdesk operates using a coin payment system with two types of coins: GREEN and RED.

• RED Coins: Prepaid funds with monetary value, purchasable through your Helpdesk account. They can be converted to GREEN coins if needed.
• GREEN Coins: Awarded monthly to users holding an FLEX or X17 MASTER tool. Magicmotorsport grants 300 GREEN coins per month for specific services. These coins cannot be converted to RED coins, cannot be accumulated, and reset to 300 at the start of each month.

Master versions of software modules include 300 Green Coins per month for Helpdesk support. Green Coins are non-cumulative and reset monthly.

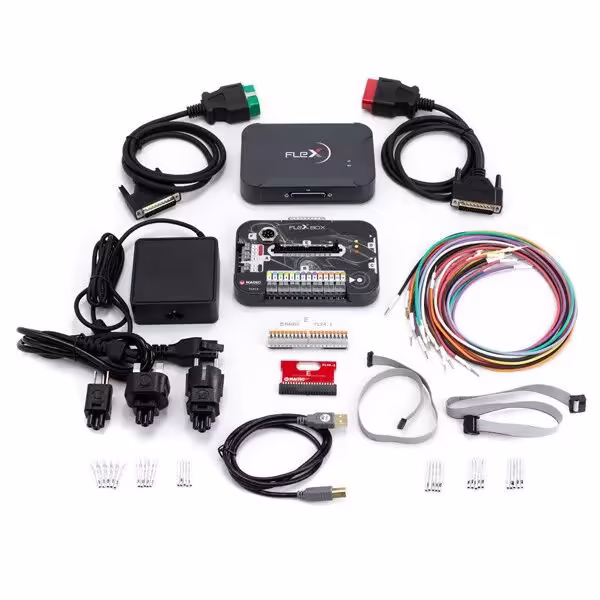

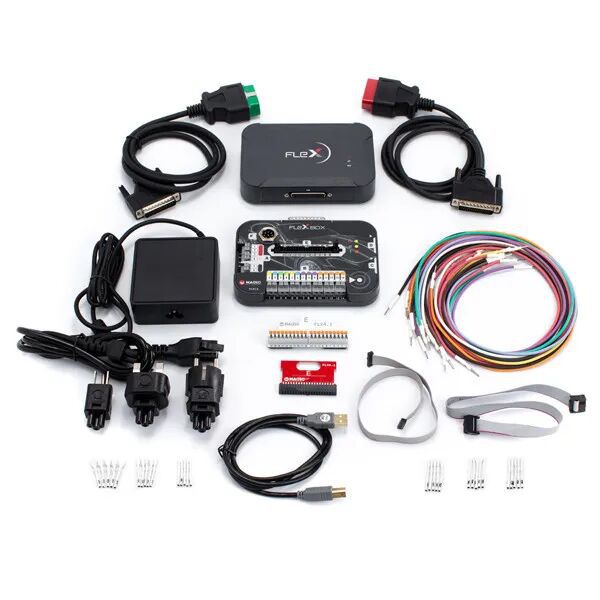

Package Includes

• 1 pc × Programmer
• 1 pc × Additional Module
• 1 set × Basic Connection Cables
• 1 pc × FLX2.14 Cable
• 1 set × Adapter Kit
• 1 pc × Box
