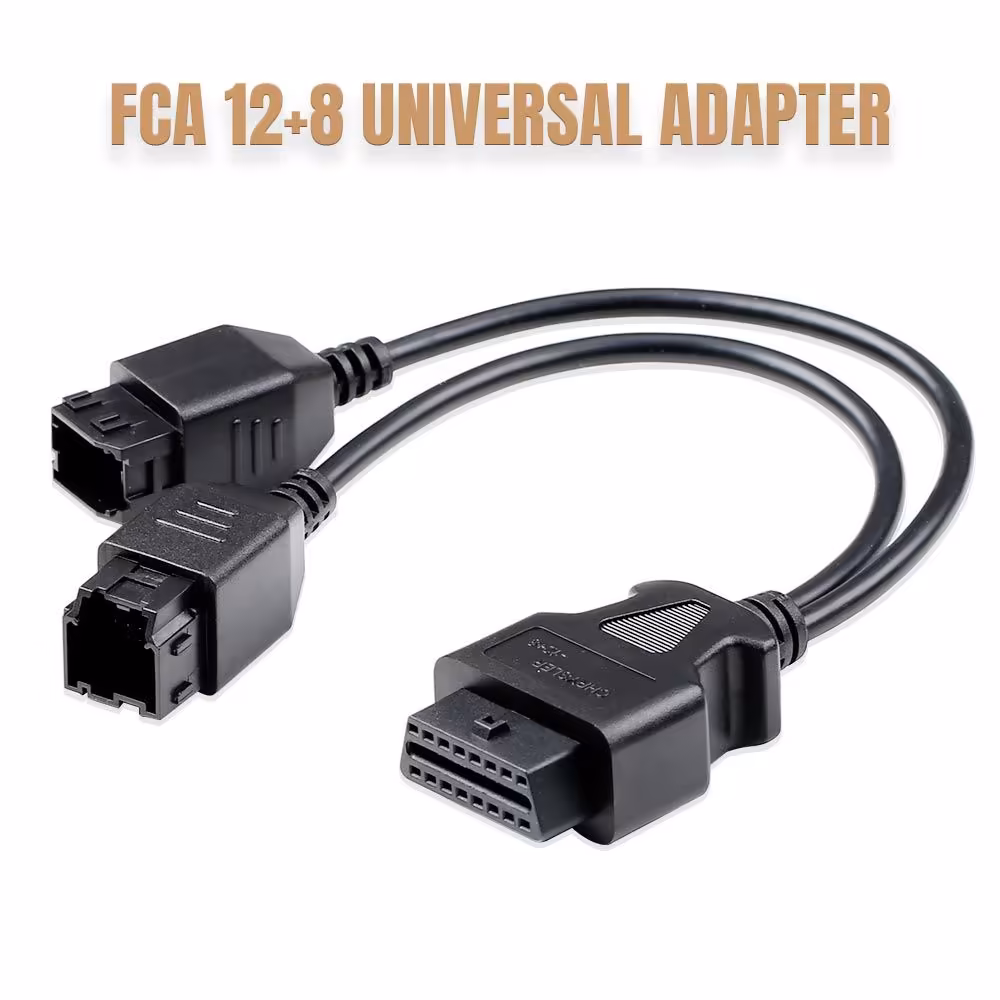

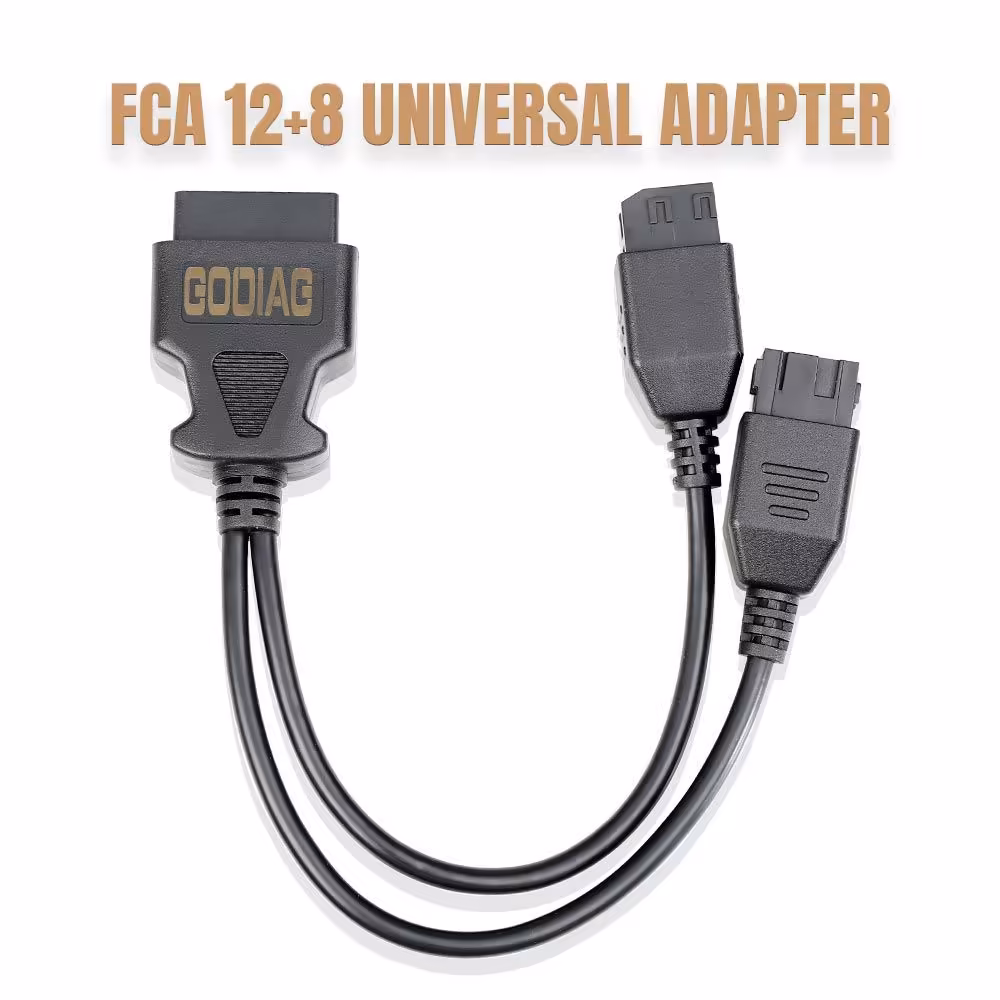

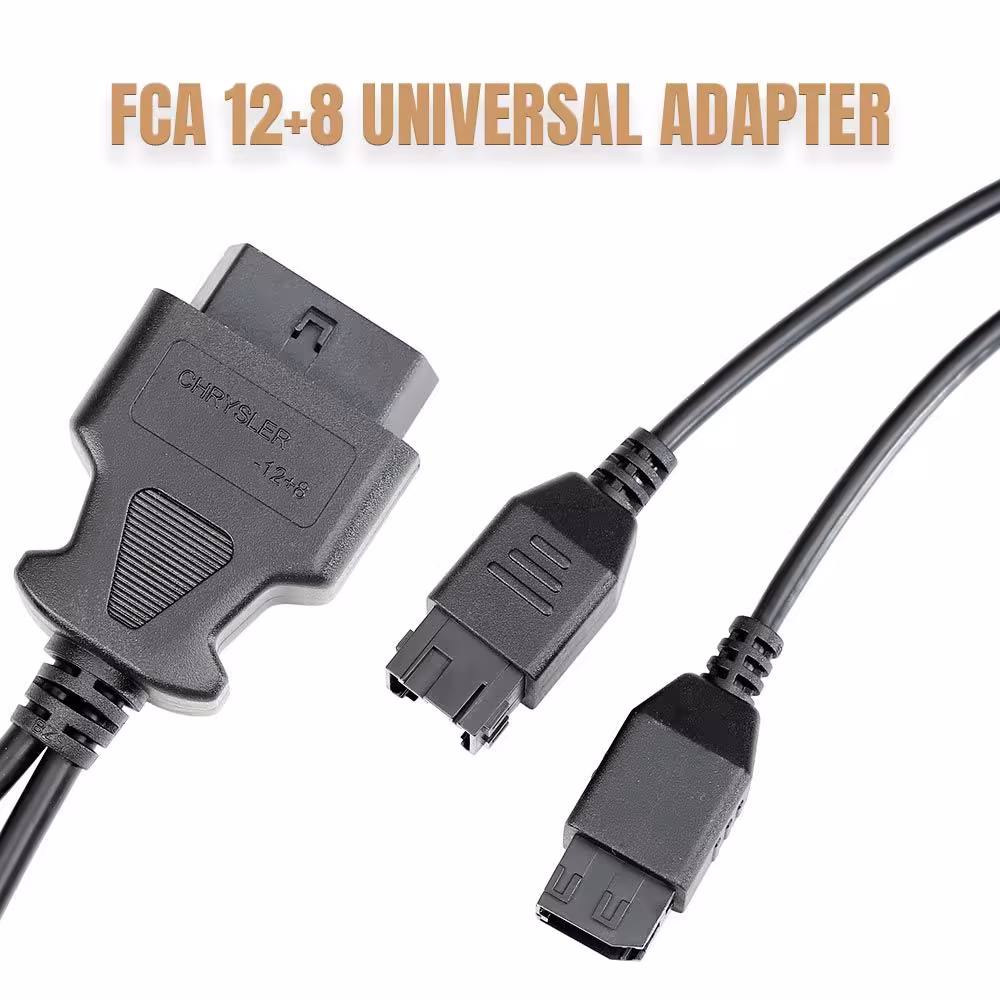

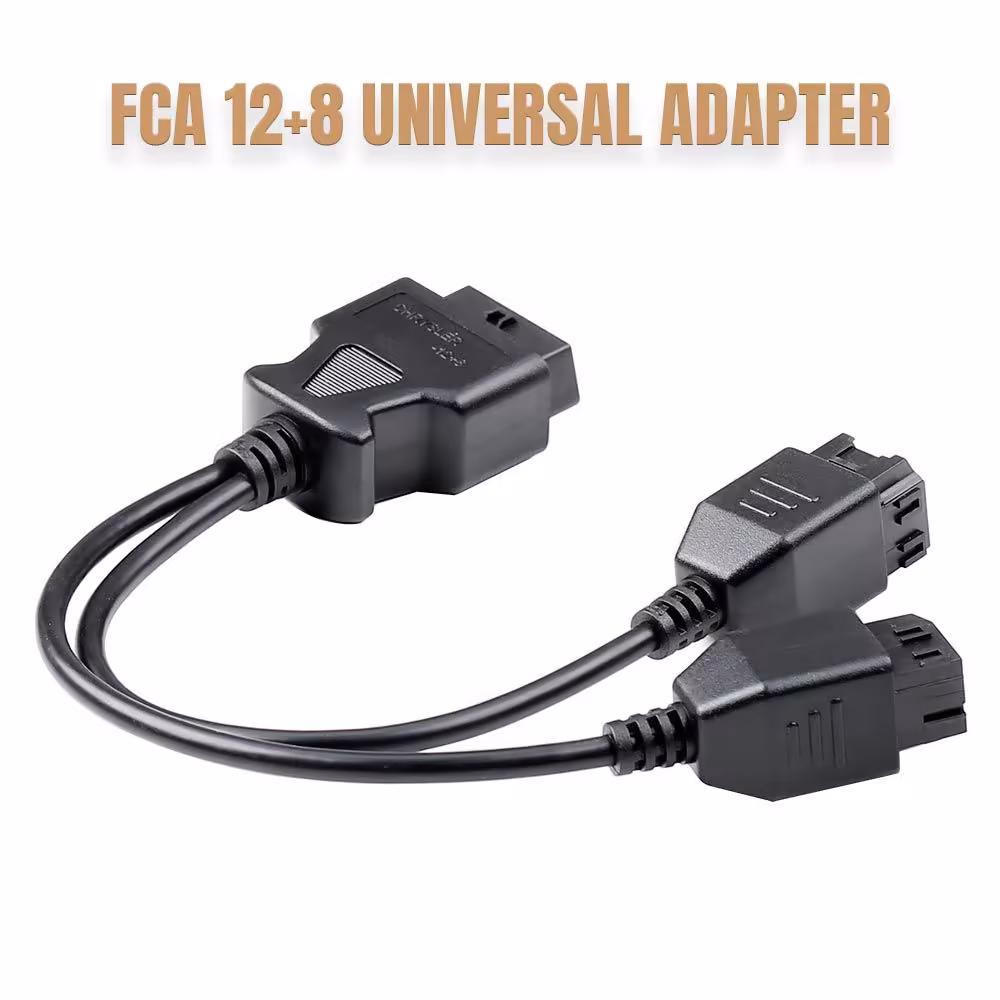

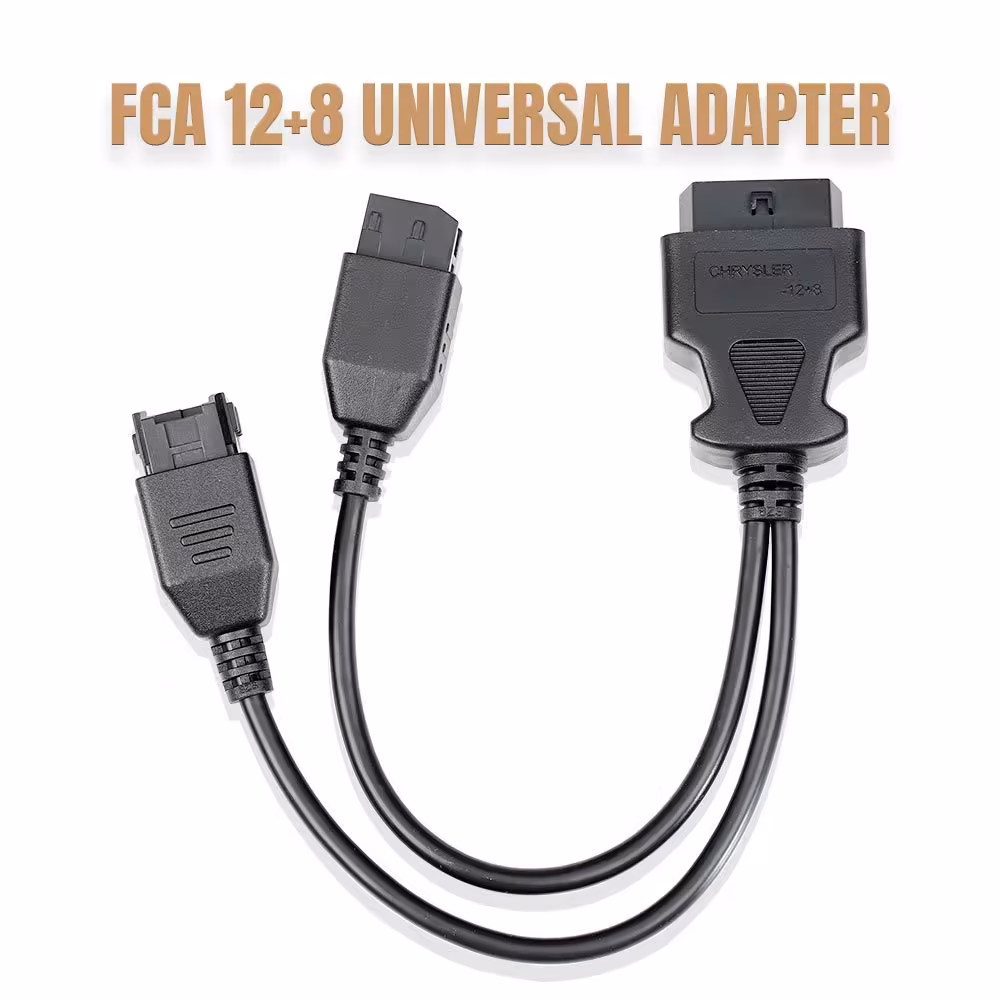

OEM FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300 DP Plus/ Launch X431 V etc

OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS

FCA 12+8 ADAPTER Functions:

1. Used in key programming and cluster calibration via OBDII
2. Used with other diagnostic devices to read and clear fault code
3. It can not only work together with OBDSTAR X300 DP, X300 DP Plus, but also Autel MaxiSYS and Autel IM608.

Development Background:

Vehicles are equipped with sgw safety gateway modules to prevent access to the vehicle from the OBD2 port via a non-original diagnostic scanner.
The purpose of this module is to prevent attacks on the vehicle network via the CAN bus.

How to Use FCA 12+8:

Locate and unplug the 12pin and 8PIN connectors of the SGW module, then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car. At this point, normal communication with the car can be achieved.

FCA 12+8 ADAPTER Vehicles List:

FIAT	MASERATI	CHRYSLER	DODGE	JEEP
2018- FIAT	2018- MASERATI and GHIBLI	2018- CHRYSLER 300 2018- CHRYSLER PACIFICA	2018- DODGE CHALLENGER 2018- DODGE CHARGER 2018- DODGE DURANGO 2018- DODGE JOURNEY 2018- RAM	2018- JEEP CHEROKEE 2018- JEEP GRAND CHEROKEE 2018- JEEP COMPASS 2018- JEEP WRANGLER 2018- JEEP RENEGADE

Examples of some models:

2018-DODGE RAM 1500/2500/3500



2018-DODGE DURANGO and 2018 JEEP GRAND CHEROKEE



2018 MASERATI GHIBLI SGW Location:
Remove the steering wheel guard, at the bottom of steering column



Package includes:

1pc x OBDSTAR FCA 12+8 UNIVERSAL ADAPTER for OBDSTAR X300DP or X300DP PLUS
