Cost-Effective Lexia-3 Lexia3 V48 PP2000 V25 Diagnostic Tool for Peugeot/Citroen With Diagbox V7.8.3

Cost-Effective Lexia-3 Lexia3 V48 PP2000 V25 Diagnostic Tool for Peugeot/Citroen

Top 5 Reasons to Get Lexia-3:

1. Support multi-language: English/ German/ French/ Japanese/ Russian/ Spanish/ Portuguese/ Swedish/ Turkish/ Dutch/ Polish/ Italian/ Hungary/ Greek/ Czech
2. It works for both Citroen and Peugeot. Now support Peugeot 307!
3. Lexia-3 PCB edge is golden with original full chips. Double PCB has 7pcs optocouplers, which are 100% original and new.
4. lexia-3 relays are 12pcs, which are 4.5V, it is more stable.
5. PP2000 have 2pcs Optocouplers

Notice:
1. Software Requires at Least Intel Celeron/Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended)
2. Better to Install Software On Windows XP System
3. Better to Close the Anti-virus Software on Your Computer

Compatible Vehicles:

It compatible with Citroen cars including, C1,C2,C3,C4,C6,C8,C-CROSSER,NEMO,BERLINGO,JUMPY,JUMPER,AX,SAXO,BX and so on.
It compatible with most Peugeot cars from 1995.
Diagnostics is performed via OBD-II connector (which is located near steering wheel) or via manufacturer-specific connector (only older cars, pre-2001).

Supported Functions:

Unlike other universal car scanner tools which only read fault codes, this software performs nearly ALL the functions like the original dealer diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE J1850 bus (both PWM and VPW).

1.Read Identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...

2. Read Fault Codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure").
Program supports report printing or copy to clipboard.

3. Clear Fault Codes
this function clears all stored fault codes and other diagnostic information.

4. Auto-Scan (Complete Car Scan/Test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes.

5. Measured Values
Program displays live Data like Engine Speed, Battery voltage, Oxygen Sensor, Coolant Temperature, etc. Values can be displayed in graph, 9 values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis.

6. Actuator Test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc..)

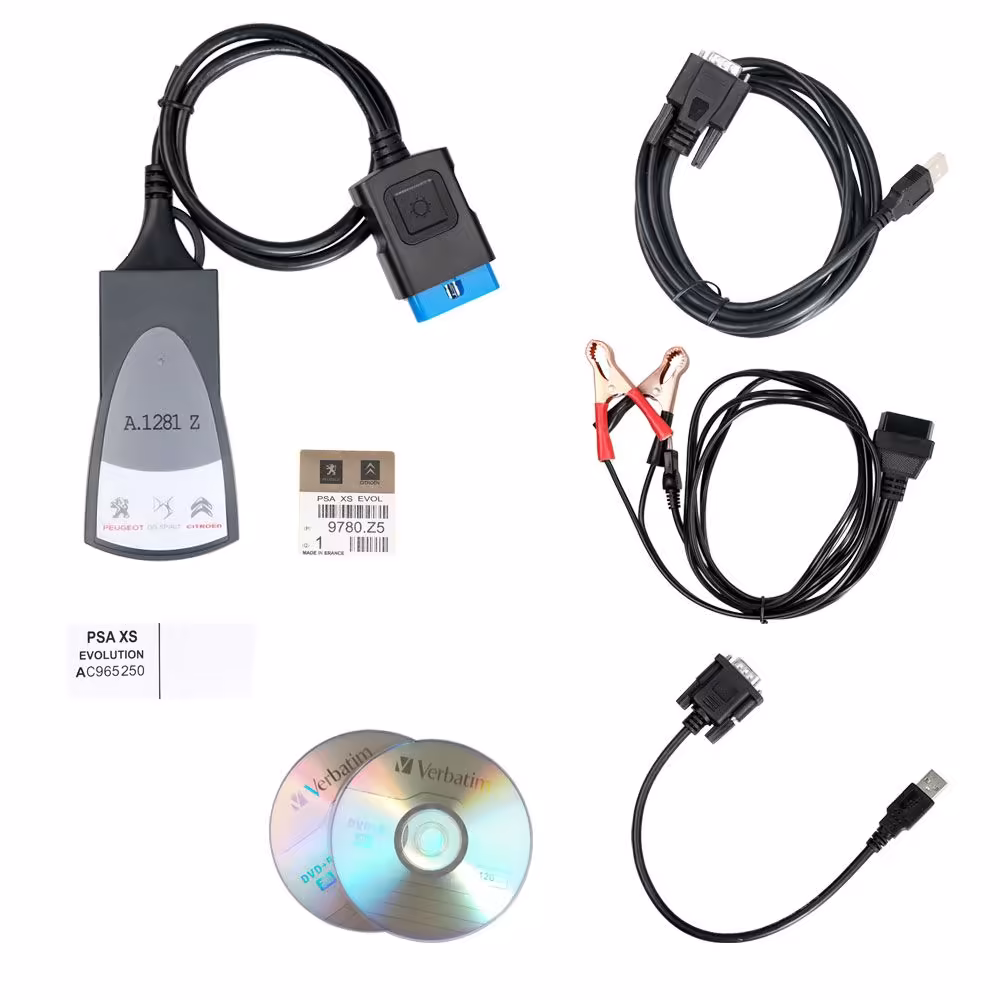

Package includes:

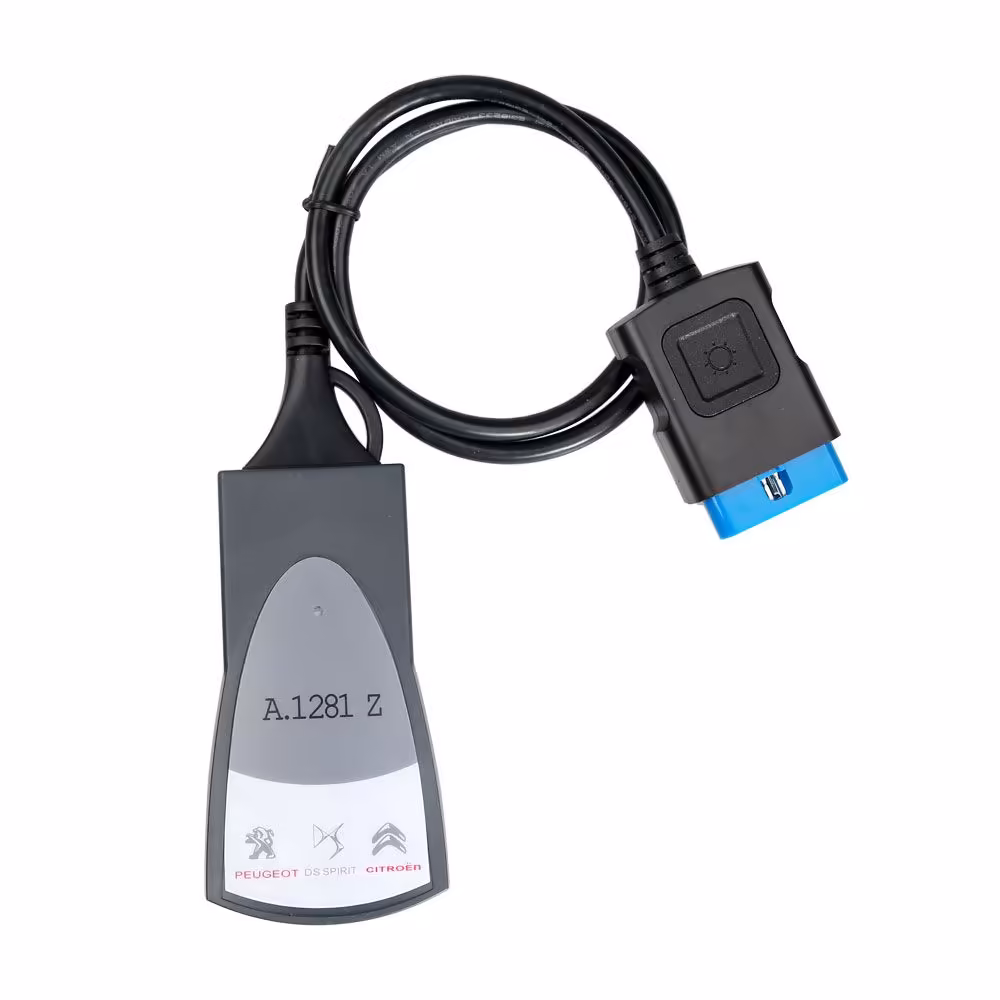

1pc x Main Unit with Extension OBD2 Cable

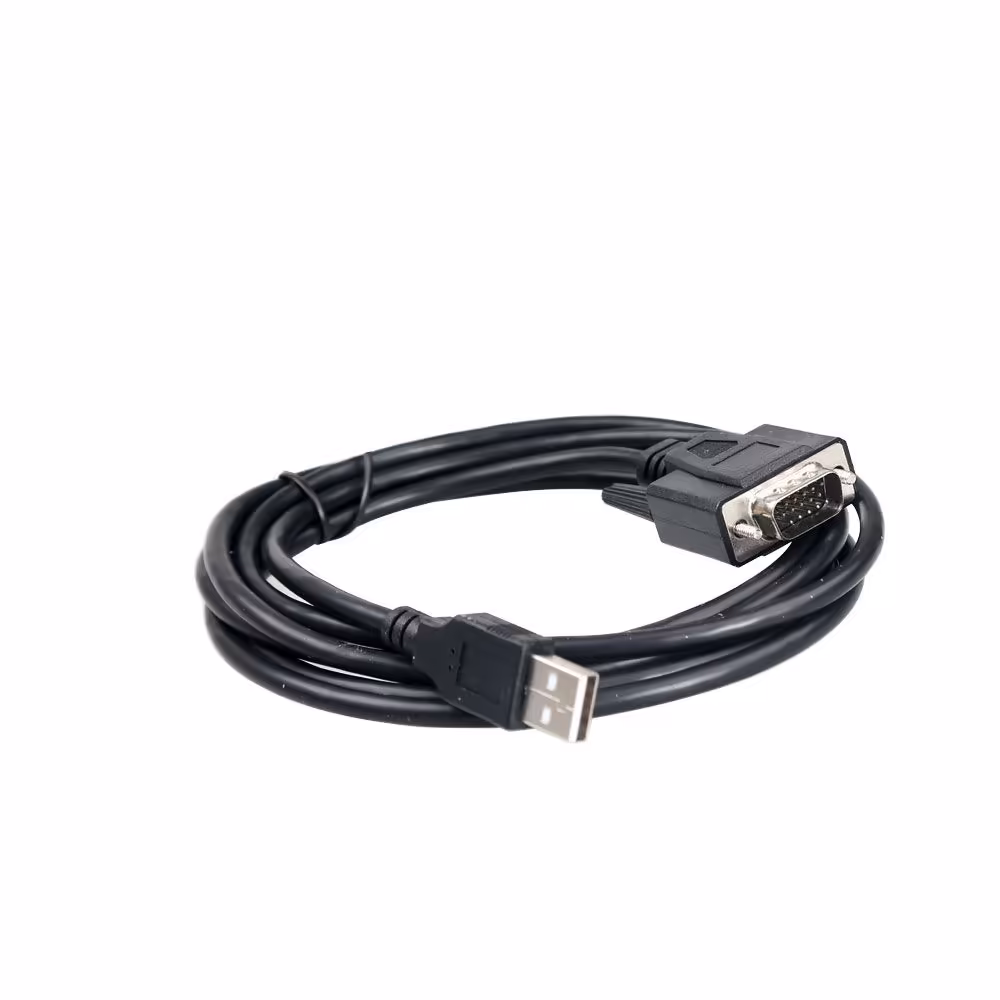

1pc x Long 9Pin to USB Cable

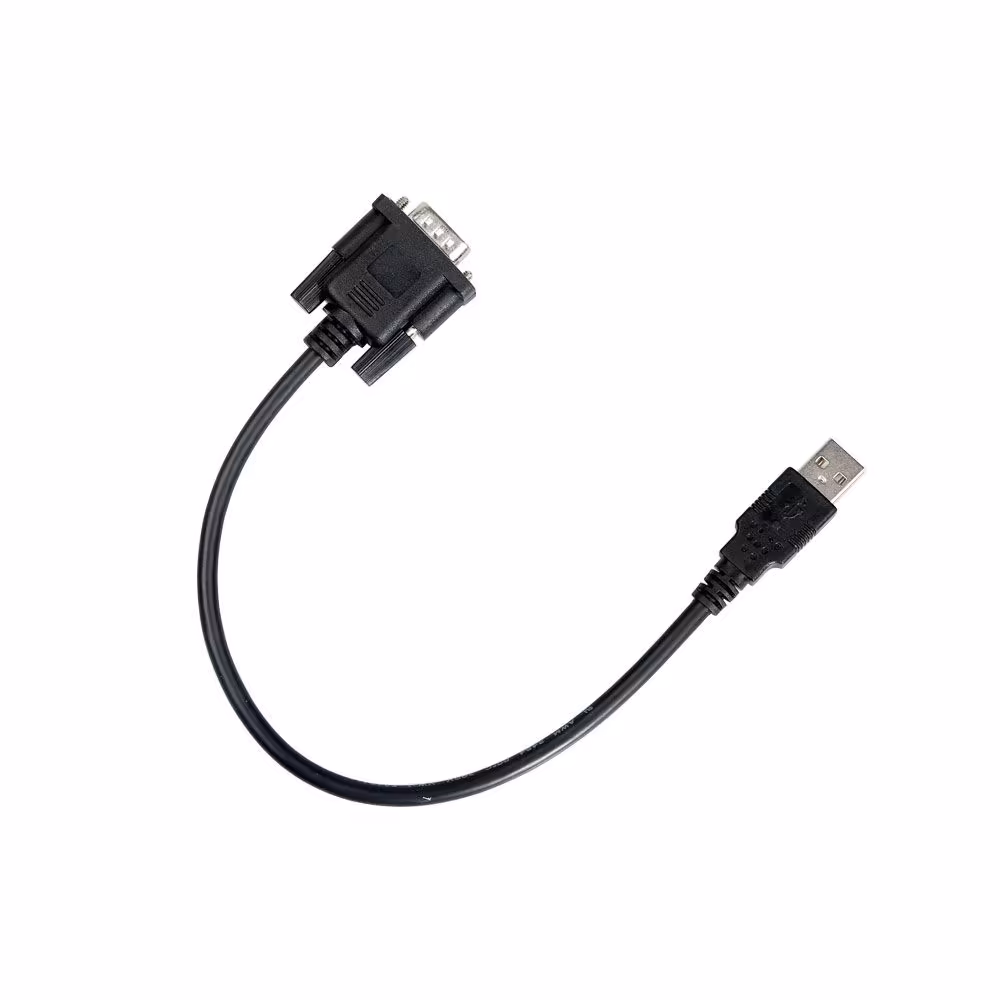

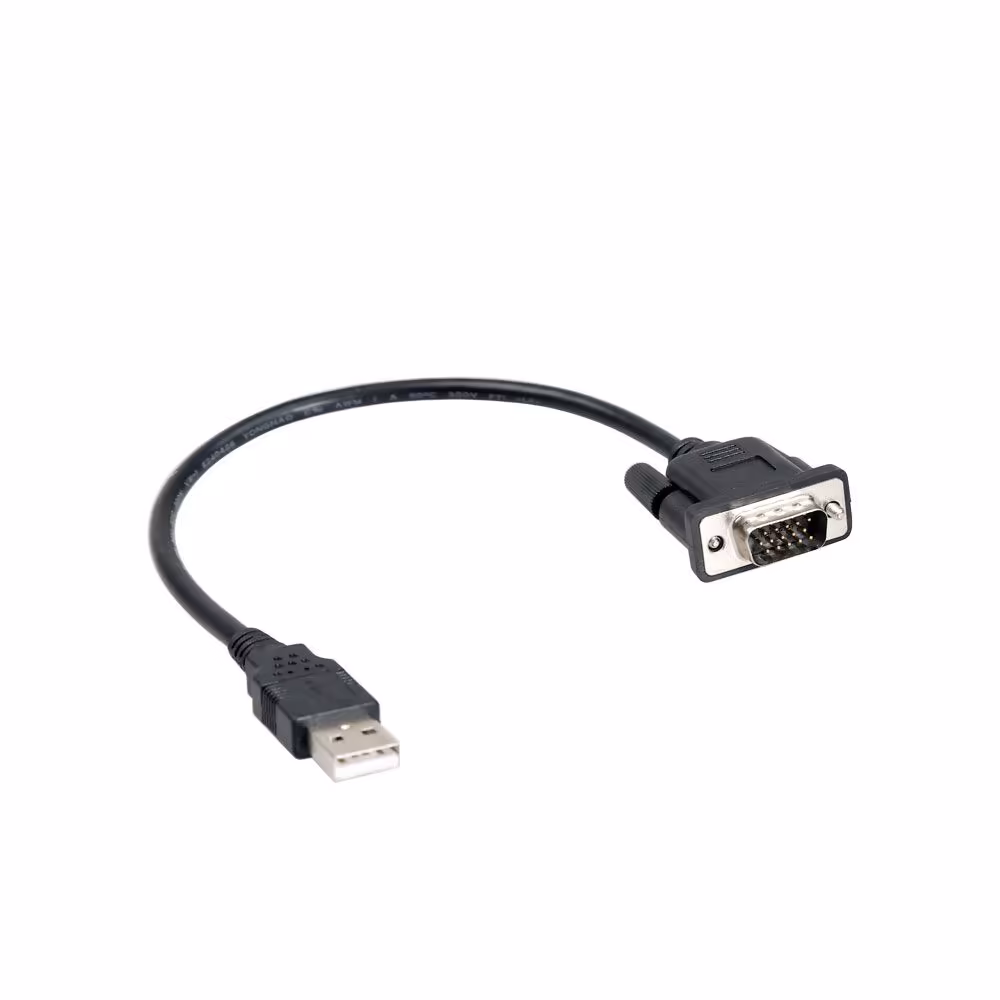

1pc x Short 9Pin to USB Cable

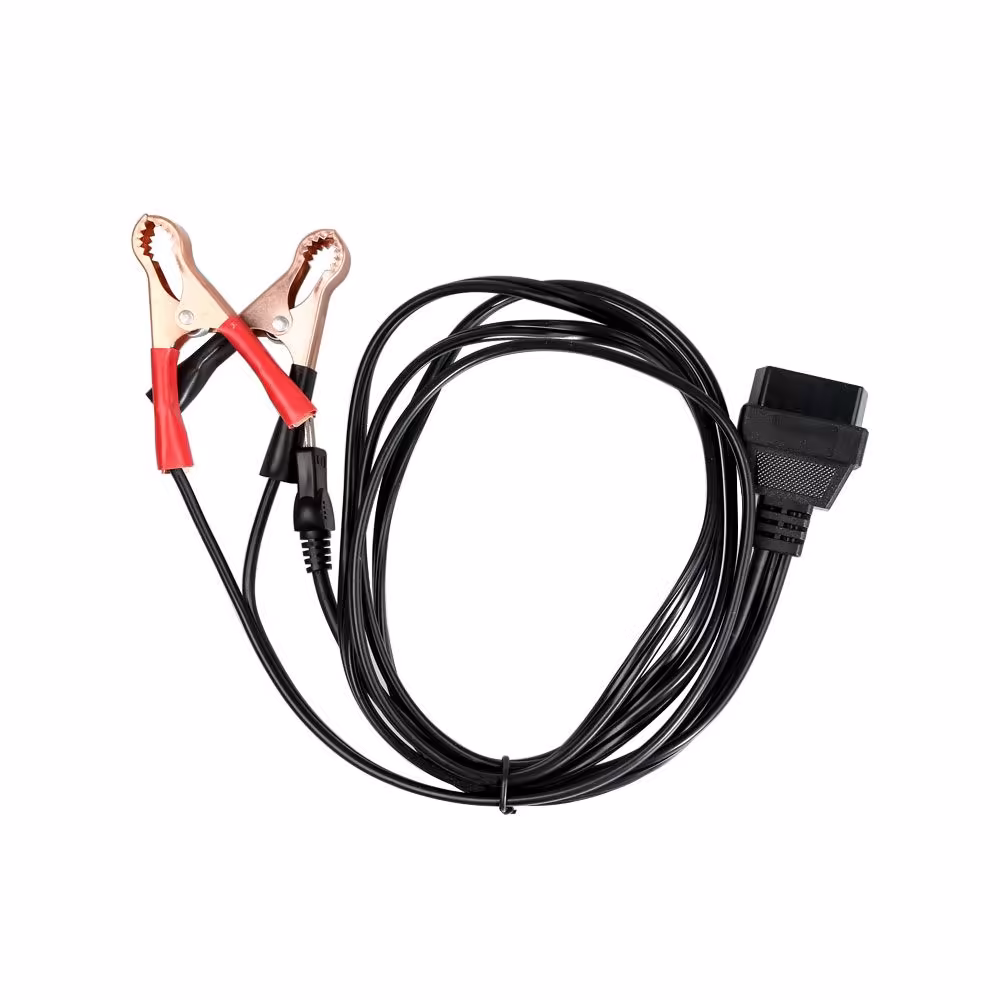

1pc x OBD2 Cable
1pc x Instruction for Installation and Activation DVD for PP2000

Lexia 3 PCB Board:

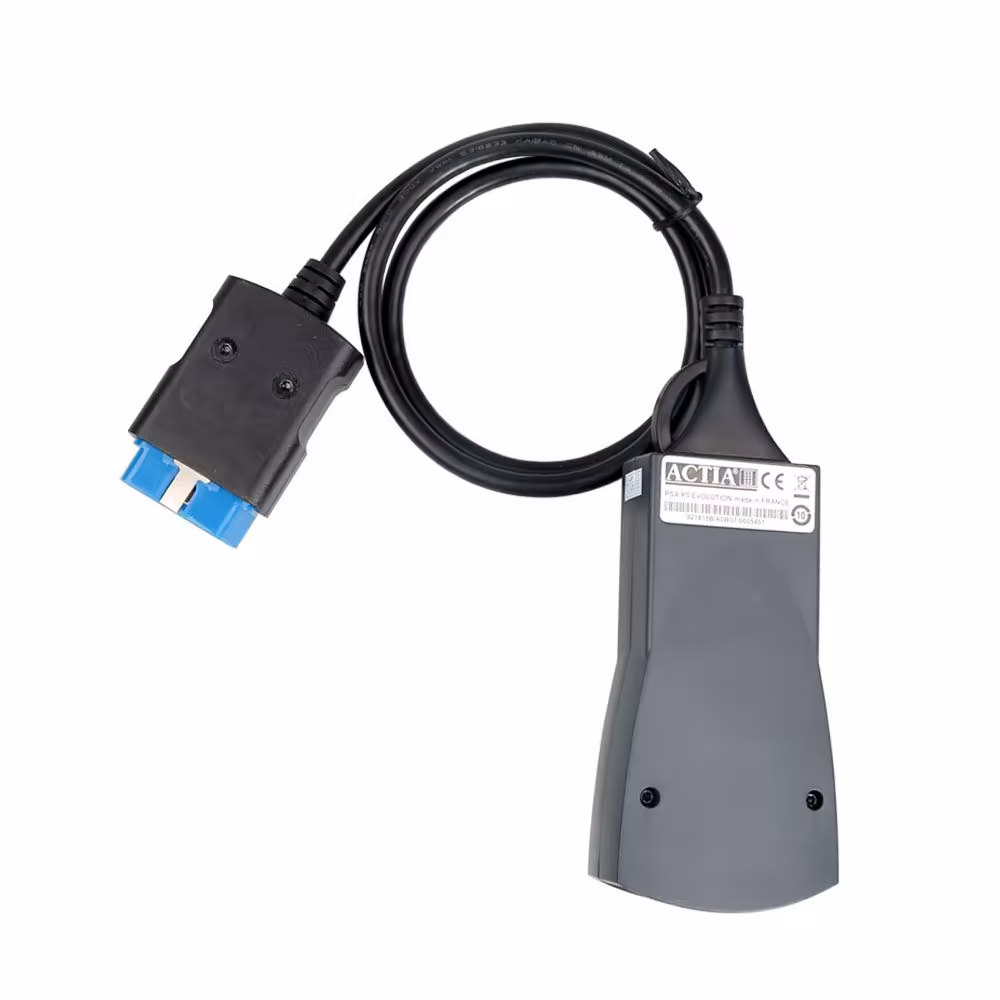

Lexia 3 Main Cable Come With LED Light:
