Original Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA Expanded Key Programming Accessories Kit for Renew & Unlock

Original Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA Expanded Key Programming Accessories Kit for Renew & Unlock

Notice:

1. The XP400Pro - Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
4. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA Key Programming Accessories Kit
5. Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro



Autel XP400 PRO Key and Chip Programmer Plus Autel IMKPA

Description:

The MaxiProgrammer XP400 Pro has been specially designed to work with Autel's IM tablets like IM608, IM608 Pro to aid automotive technicians to program vehicle keys. With the newly upgraded Key Programmer XP400 Pro, the MaxiIM IM608 Pro is the most advanced key Programming tool that combines the powerful IMMO and programming functions with OE-level diagnostics and advanced service functions in one Android based 10.1-inch touchscreen tablet.

AUTEL IMKPA KEY PROGRAMMING ACCESSORIES KIT, compatible with the XP400Pro Key and Chip Programmer, includes 12 adapters for the XP400Pro that enables Read/ Write/ Erase for Mercedes Benz ESL_W209/ W906 Data, Mercedes Benz NEC Key Learning, BMW EWS3 Key Learning and Volkswagen/ AUDI/ BMW/ Benz Key Unlock.

Autel XP400 Pro Functions:

(1) Read transponder data (including Mercedes Benz infrared smart key), and generate exclusive keys.
(2) Read/write on-board EEPROM chip data, and read/write MCU/ECU chip data.
(3) Read/write remote control transponder data and detect key frequency.
(4) Compatible with the key programming diagnostic tablet or a computer with installed key programming software, the XP400 Pro can read/write transponder data quickly and accurately. XP400 Pro Programmer Features:

Advanced all-in-one Key Programmer:

Expanded EEPROM functions for more component access;
170+ Types Odometer component reading functions;
180+ IMMObilizer ECU component types;
40+ Engine ECU component types;
2000+ MCU component types;
440+ EEPROM component types;
Compatible with IM508 and IM608;
Includes 1-Year Warranty / Free Software Update for Life of Tool

IMKPA Kit

Expanded Key Programming Accessories
Supports over 10 key unlock types
BMW EWS3 key learning
Benz NEC key learing
Benz ESL_W209 read/write/erase
Compatible with IM508 and IM608 (XP400 Pro required)
XP400 Pro Specifications:
Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
Port Type: B-USB, DB26, DC12
Input Voltage: 5 VDC, 12VDC
Operating Current: < 500 mA
Maximum Consumption: 2.5 W

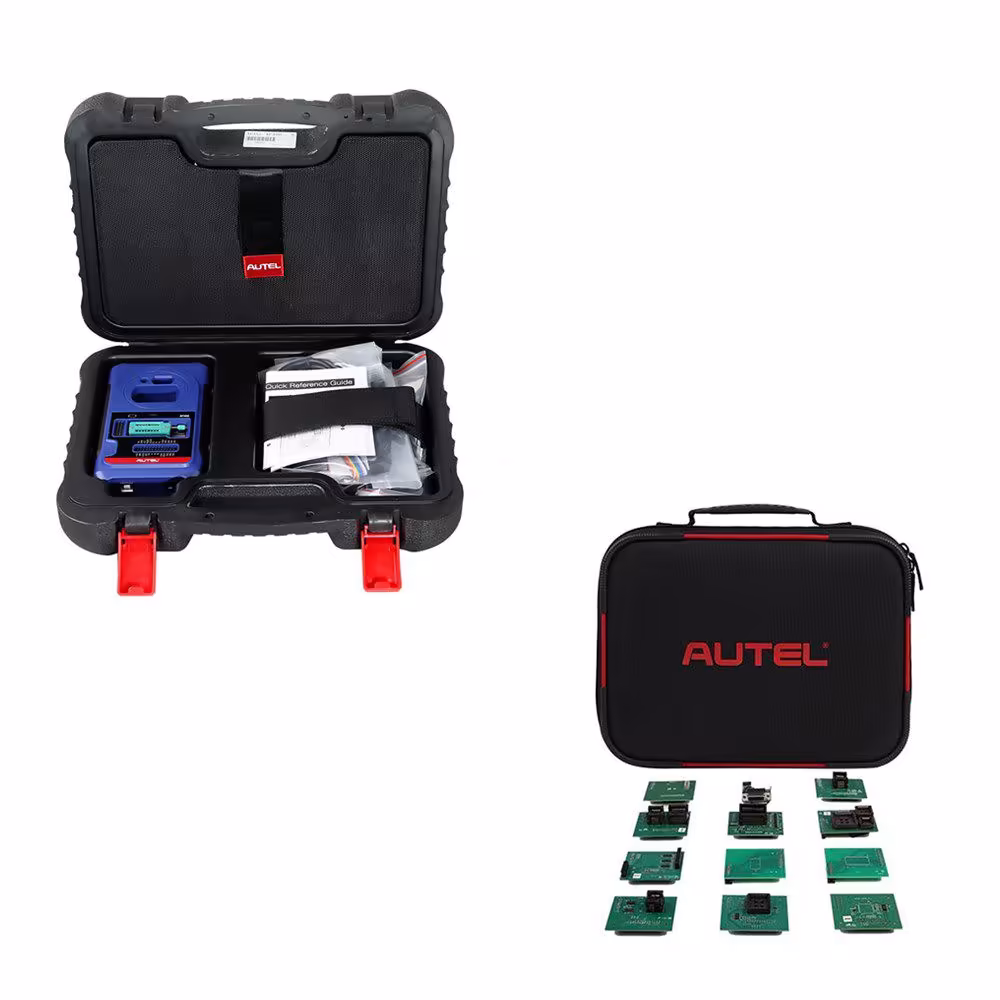

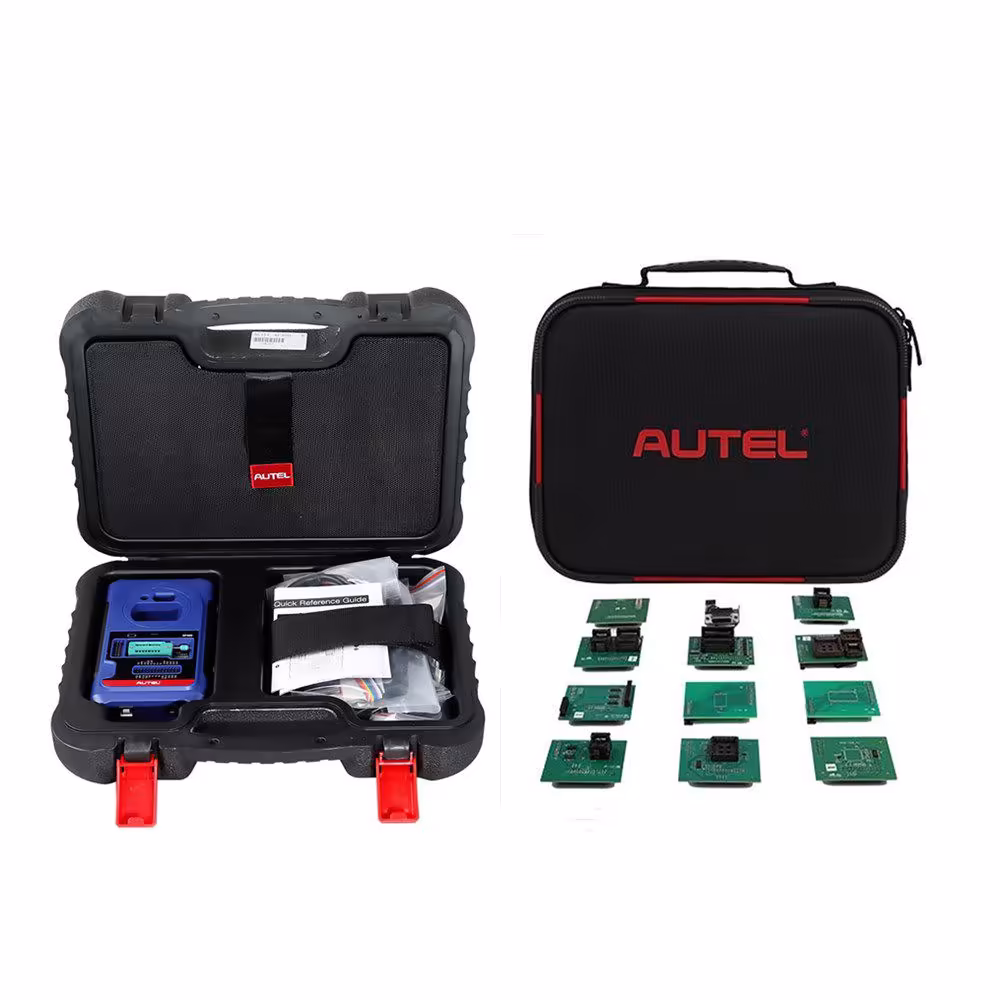

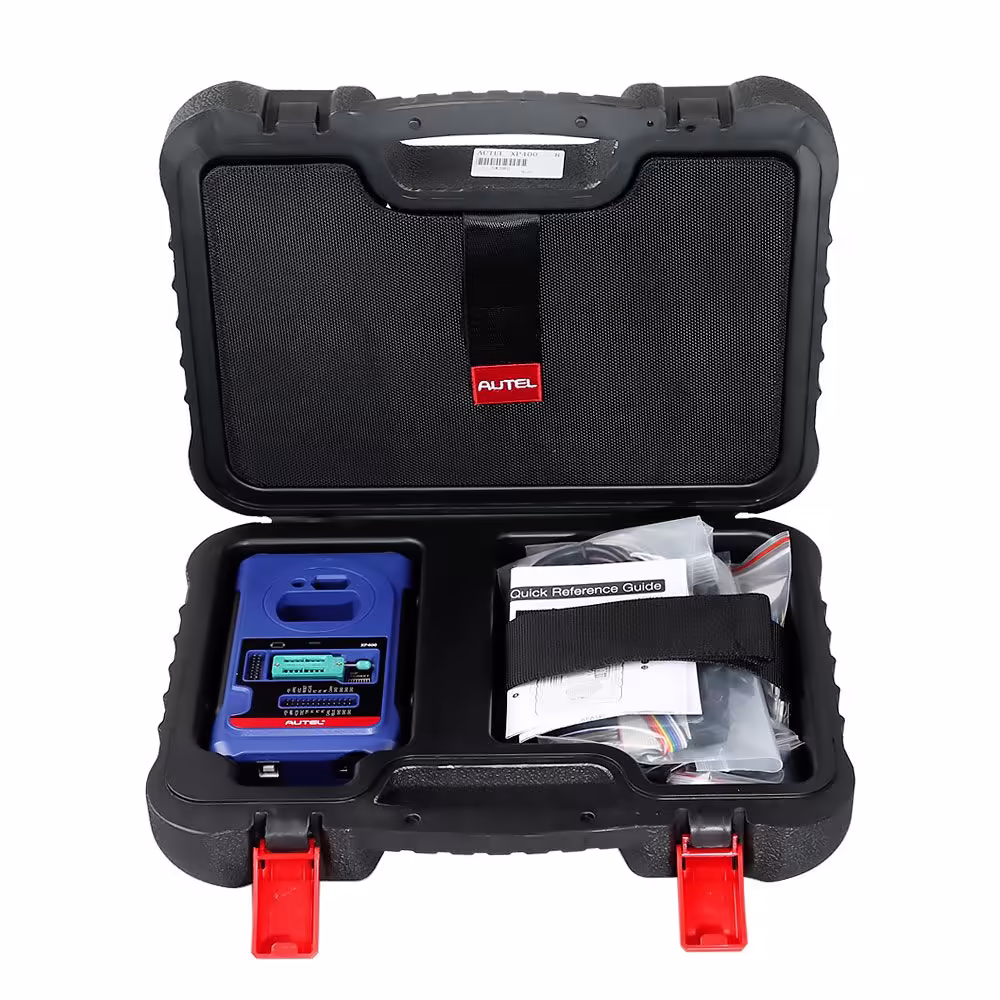

Package List

1 x XP400 Pro Main Unite

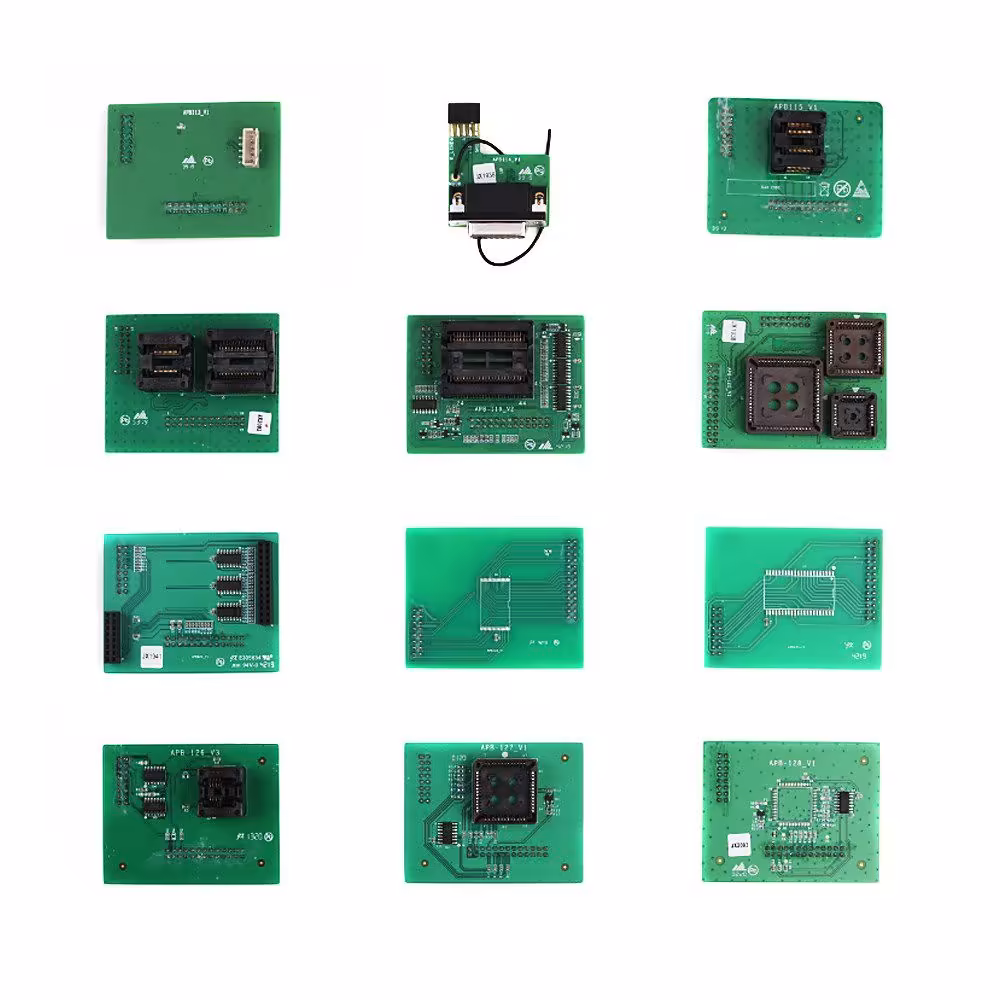

1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector
1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter
1 x APB113 – PCF79XX Adapter (Optional)
1 x APB114 – EWS3 Adapter (Optional)
1 x APB115 – NEC Adapter Plate (Optional)
1 x APB118 – NEC Steering Lock Adapter (Optional)
1 x APB119 – TB28FXXX Adapter (Optional)
1 x APB120 – TMS370 Adapter (Optional)
1 x APB121 – AM29FXXX Adapter Plate (Optional)
1 x APB122 – AM29FXXX Adapter 1 (Optional)
1 x APB123 – AM29FXXX Adapter 2 (Optional)
1 x APB126 – M35080&D80 Adapter (Optional)
1 x APB127 – MC68HC(7)05BXX Adapter (Optional)
1 x APB128 – MC68HC05X32 Adapter (Optional)
1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x Dupont Line
1 x APA107 – ECU Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
