2024 AUTEL MaxiPRO MP900BT KIT Car Diagnostic Scanner Tool 40+ Services, Support DoIP CAN-FD, OE ECU Coding, Bi-Directional

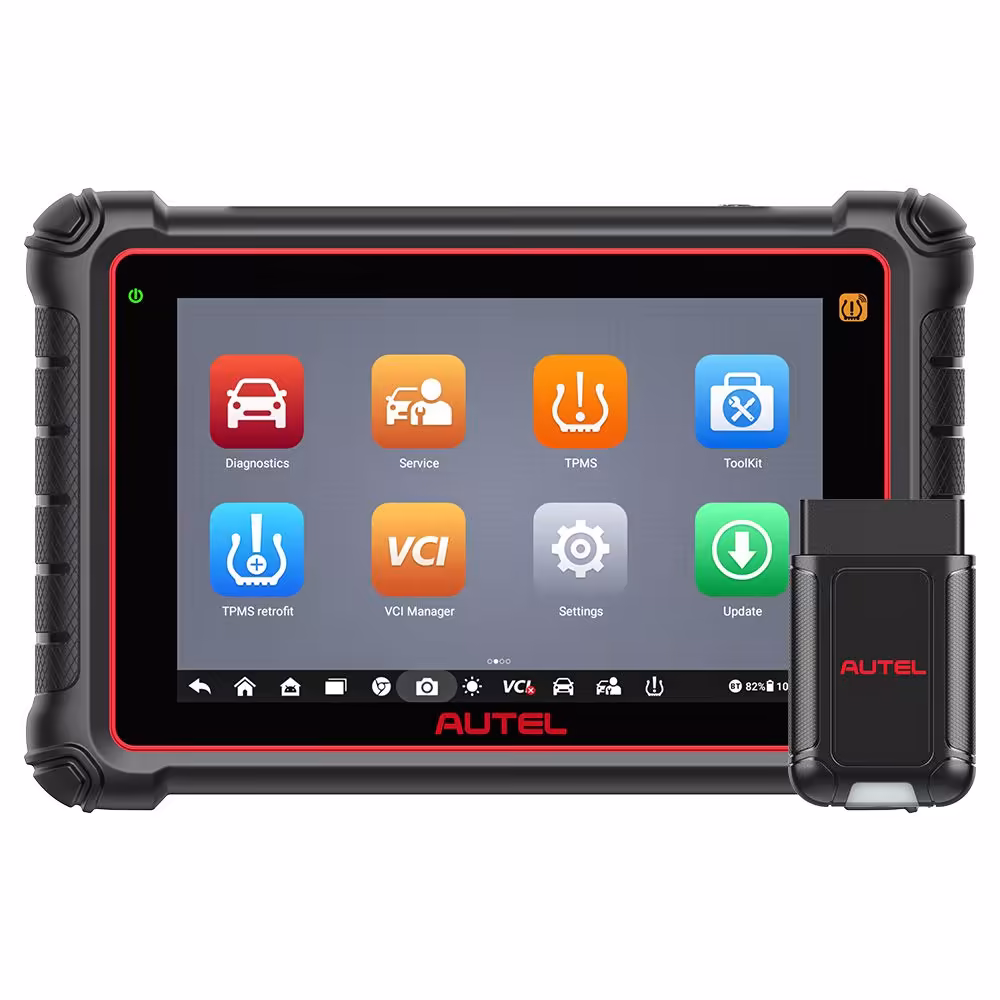

Autel MaxiPRO MP900BT KIT Car Diagnostic Scanner

Featuring the powerful quad-core processor, and an 8.0-inch LCD capacitive touchscreen, based on the Android multitasking operating system, and combined with the ability to quickly read and clear DTCs for all available modules of the majority of the makes and models on the market, the MaxiPRO MP900-BT KIT is your ideal auto diagnostics and service tool. MP900-BT provides you with superior special functions, including Oil Reset, EPB (Electronic Parking Brake), SAS (Steering Angle Sensor), BMS (Battery Management System), and DPF (Diesel Particulate Filter).



Autel MP900BT-Kit Highlights:

Full Level-Up of MP808BT & MS906BT Series
11 PCS OBD Adapters & 5X Faster Hardware
40+ Hot Services and VAG-guided function
Supports CAN-FD, DoIP
Enhanced ECU Coding, Same as MS906 Pro.
OE Bi-directional Control & All System Diagnostics
Scan VIN/License
Supports Pre& Post scan
Supports FCA Autoauth & Renault SGW access
Supports battery Test & Endoscope
13 Languages Support: English, T-Chinese, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, and Italian.
Wider Car Coverage: 150+ car brands, 10,000+ models from the US, European and Asian car markets; FCA & Renault SGW Access, DoIP & Can-FD Support, and still expanding.
software updated to 2020/2021/2022/ and cover the recent new car makes & models in 2024.

ECU Online/Offline Coding + Fresh Hidden Features + Guided Functions



ECU Online Coding
Feel that coding is complex, so don't know how to start? Autel online servers will send coding values in automatic your quick and precise procedure. This is developed as a smart coding solution that can be used by any technician or shop, regardless of experience; only available in pro-level Autel scanners like Autel Maxipro MP900BT Kit, Autel MS906BT and MS906PRO.

This technology is compatible with Nissan, Infiniti, Renault, Kia, V.W, V.W_Brazil, BM.W, Mini, Peugeot, Citroen, Porsche, etc.

ECU Offline Coding
Want more freedom in coding procedures and get richer results? The Autel Maxipro MP900BT Kit also allows you to manually input coding values for more customized builds.

This technology is compatible with Nissan, Infiniti, Nissan GT-R, Toyota, Lexus, Scion, Daihatsu, Be.nz, Maybach, LandRover, Jaguar, Subaru, Ford, Fo.rd-AU, Fo.rd-EU, Mazda, Hyundai, Kia, Chrysler, Au.di, V-W, Skoda, V-W_Brazil, Bentley, Bugatti, Lamborghini, LT3, Seat, V-W_CV, Man_LD, Peugeot, Citroen, DS_EU, Opel, Vauxhall, Porsche, Mitsubishi, etc.; compatible with more models being upgraded from MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906

Fresh Hidden Features
Most car manufacturers include hidden features that are not available in ordinary car settings. This Autel scanner can simply open or close those hidden features via the OBD2 port and is pretty easy to operate. The application includes: revised fuel consumption calculation, seat belt alarm, automatic sta-rt/st-op, hidden menu, daytime running lights, cruise control, automatic lo-cking and unlo-cking of the central lo-ck, comfortable windscreen washer, welcome light, and others.

This technology is compatible with Nissan, Infiniti, NissanGT-R, Audi, VW, VW_Brazil, BMW, MINI, Toyota, Lexus, Scion, etc.

This feature is also called “Personalized Programming Settings” for LandRover, Jaguar.

Guided Functions For VAG & ManLD
Are you struggling to find the correct Security Access Code and Channel Number for Audi, Volkswagen, Skoda, Seat, or ManLD vehicles? Check out this Autel scanner’s Guided Function (previously only available in Autel MS906BT/MS906PRO) to streamline your process greatly.

With it, you can easily skip the Security Access Code and Channel Number for diagnosing the VAG Group and ManLD vehicles, and navigate the steps required for matching, calibration, and basic settings by simply following the provided guidance.

40+ Reset and Maintenance Functions:

Oil Reset EPB Reset, SAS Reset, Airbag Reset, BMS Reset, Brake Bleed, TPMS Reset, DPF Regeneration, IMMO, Clutch, Trans Adaption, WIN DR ROOF, Headlamp, TEC Learn, A/F Setting, Injector Coding, Suspension Calibration, Throttle Adaption, ABS/SRS, Gear Learning, Sunroof Initialization, Seats Calibration, Language Change, Headlamp, CHG Tire Size, Cylinder, Turbocharging, Limit, Trans Adaption, VIN, ACC, HV Battery, Transport Mode, A/C, Rain/Light Sensor, and More.
Several Car Brands and Functions for Your Reference

For Ford: Keyfob Training, Audio configuration, Climate Control, Police Mode, Power balance, Clear the transmission adaptive tables, etc.
For GM: Idle learn reset, Fuel injector tests, Crankshaft position variation learn, Cylinder power balance, RPM control, IAC motor position, Dolby noise reduction, etc.
For Honda: Side impact sensors, ODS sensors, Buckle switch seat position sensor, Torque sensor learn, TPMS sensor position check, Brake pressure sensor, Steering end position learning, etc.
For Toyota: Assist map confirmation/clear, Torque sensor adjustment, Signal check, Blower motor brush wear amount initialization, Middle differential pressure valve status check, Refrigerant gas volume check, Servomotor initialization, etc.
For J-E-E-P: Trans overhauled/replaced, Mirror actuation test, Erase all ignition keys, PCM replaced, ECU initialization, Initialize ESP sensor, Cylinder balance test, Activate/Deactivate front seat video, etc.



Specification Advantages: MP900-BT KIT v.s. Other Autel Scanners

Operating System:

This Autel MaxiPro MP900-BT KIT adopts the US's most-popular Android system: Android 11.0 OS: a mature and highly-refined system for fast processing and multitasking; yet most Autel scanners are based on outdated Android 4.4.4.
Processor CPU

4-Core, 1.8GHz (Rockchip RK3566), a lightning-fast processor allows you to keep pace with fast processing. While other Autel scanners normally adopt dual-core processor that could lead to clumsy operation.

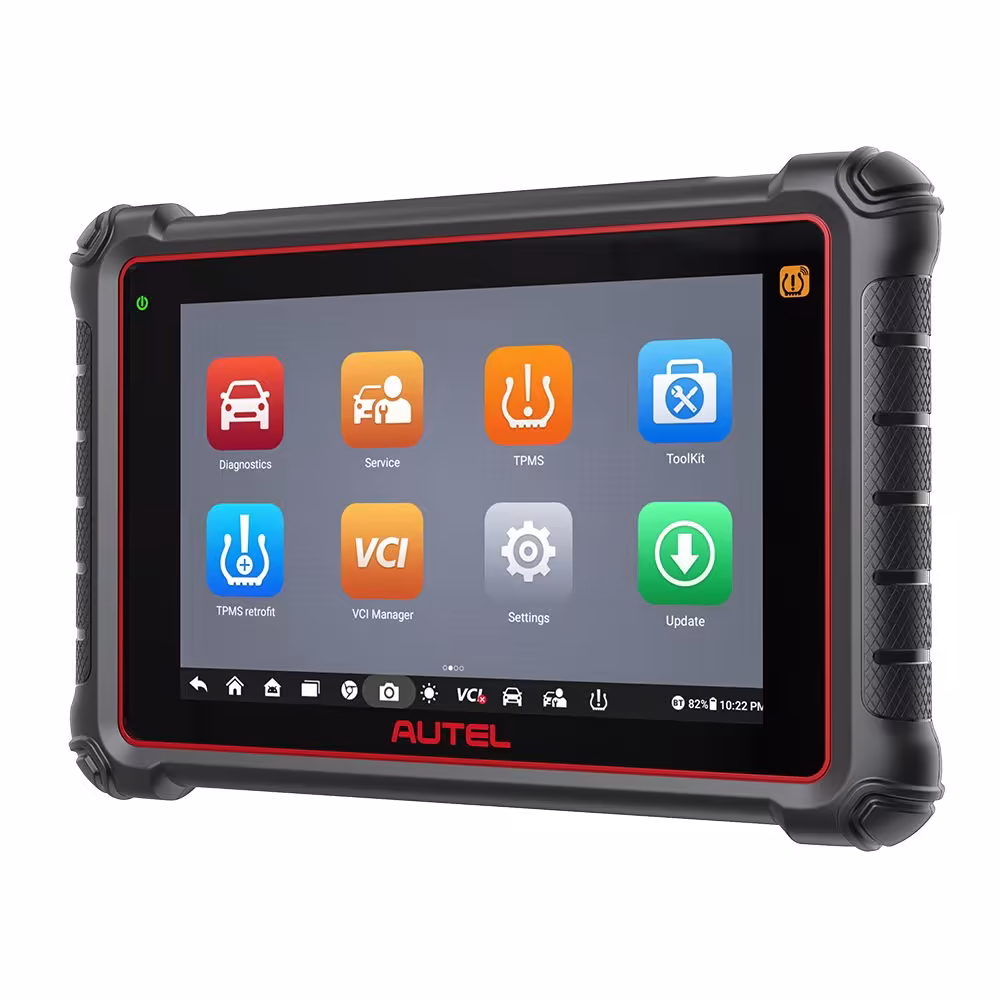

Touchscreen

8”, 1280*800 screen displays clearly in HD; is larger than you’ll find on most diagnostic scanners; easier to use in a dark garage, under the hood, or even under natural daylight.
Memory & Battery

Autel MaxiPro MP900BT Kit can launch apps 20% faster than other 2GB/32GB Autel scanners, thanks to the increased 4GB/64GB memory it has built in.
The massive 3.7V/7700mAh battery allows you to enjoy up to 13 hours of uninterrupted operation. Upgraded from MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906 which only have 5000mAh batteries.
Wireless VCI

The 2024-new V150 connects to the Autel MaxiPro MP900BT wirelessly with up to 10 meters (33ft.) working range. Unlike the old version V100, it can work with DoIP/Can-FD new protocol-compliant vehicles.

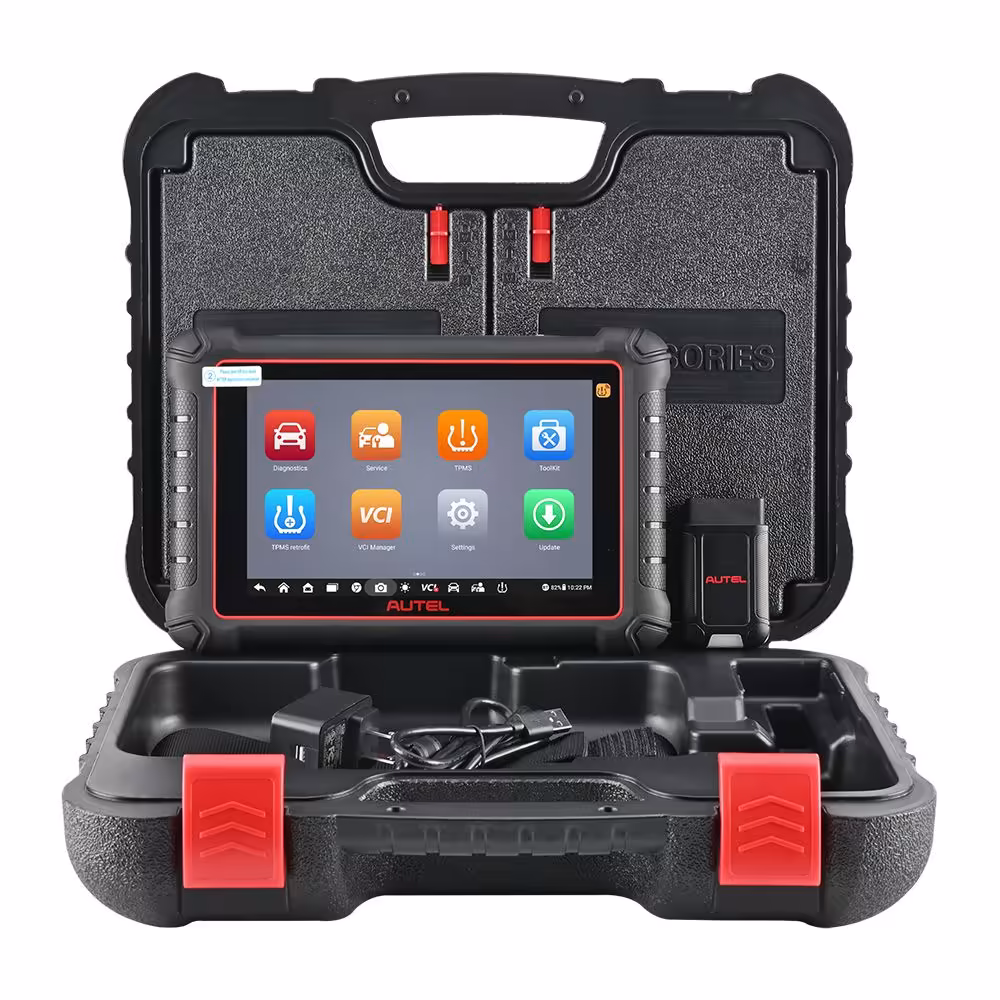

Full Kit: 11 Pieces of OBD1 Cables (200-Buck’s Value)

Although Autel MaxiPro MP900-BT KIT is primarily an OBD2 Autel scanner, it also supports OBD1 OE-level diagnostics fully. It comes with 11 pieces of OBD1 adapter cables for accessing cars that use a specialized port:
“Honda-3, Nissan-14, Hyundai-16, Kia-20, BM.W-20, Au.di-2+2, Fiat-3, PSA-2, G-M/Daewoo-12, B.enz-38, CCD”

5X Faster than Old Version MK808BT PRO MK808BT KIT...



99% Worldwide Vehicles Coverage



Unlike factory diagnostic tools which are often limited to specific vehicles and functions, the Autel MP900-BT KIT offers a comprehensive database that covers over 99% of vehicles from 150+ different brands and more than 10,000 models. It also supports newer protocols like 2018+ FCA SGW, 2015+ Renault SGW, DoIP & CAN-FD. An additional benefit is that this Autel scanner comes with “NO IP Restriction” as MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906/MS906BT/MS906PRO.

NO-IP Limit, Use Anywhere
There is no regional loc.king for Autel MP900-BT KIT, which means this Autel scanner is fully-capable to use across the world without the restrictions of using features or programs in a certain region.

150+ Brands (US/EU/Asia…) & 10000+ Models (1996-2024)
The compatible car list: Asian Cars: Compatible with Acura, Daewoo, Daihatsu, Fuso, Honda, Hyundai, Hyundai CV, Infiniti, Isuzu, Kia, Lexus, Mahindra, Maruti Suzuki, Mazda, Mitsubishi, Nissan, Nissan GTR, Perodua, Proton, Samsung, Scion, Ssang Yong, Subaru, Suzuki, TATA, Toyota; European Cars: Compatible with Abarth, Alfa, Aston Martin, A.udi, Bentley, Be.nz, BM.W, Bugatti, Citroen, Dacia, Ferrari, Fiat, Fo.rd-EU, Jaguar, Lamborghini, Lancia, Land Rover, LT3, Maserati, Maybach, Mini, Opel, Peugeot, Porsche, Renault, Rolls-Royce, Saab, Seat, Skoda, Smart, Vauxhall, Volvo, Volk-swagen, Volk-swagen CV. American Cars: Compatible with Chrysler, Dodge, For.d, G.M, Je.ep, AND MORE.

DoIP & CAN-FD Protocols
CAN-FD: the compatible car list: GM Models: including Onix 2020-2024, Tracker 2020-2024, Suburban 2021-2024, Tahoe 2021-2024, Montana 2023-2024, Silverado 2024, Electra E5 2024, Escalade 2021-2024, Escalade ESV 2021-2024, Sierra 2024, Yukon 2021-2022/2024, Yukon XL 2021-2022/2024 // Chrysler Models: including Grand Cherokee(WL) 2021-2023, Grand Wagoneer 2022-2023. DoIP: compliant cars include Volvo, Land Rover/Jaguar, BM.W F/G Chassis, etc.

2018+ FCA SGW (AutoAuth)
Working with the smart solution “AutoAuth”, you will gain diagnostic access to most FCA SGW-equipped cars made in 2018-2024: compatible with Chrysler 300, Pacifica; Dodge Challenger, Charger, Durango, Journey, Ram (1000, 1500(DS), 1500(DT), 2500, 3500 Cab Chassis, 3500 Cab Chassis 10K, 3500 Pickup, 4500, 5500, Mexico), ProMaster City; Je.ep Cherokee, Compass (Brazil, China, India, Italy, Mexico), Gladiator, Grand Cherokee (W2, WK), Grand Commander, Renegade (B1, BQ-China, BU, BV), Wrangler (JL); Alfa Romeo Giulia, Giulietta/Stelvio; Fiat 500X, 500L, 500BEV, Toro, Doblo, Ducato, Novo Strada, Mobi, etc.

2015+ Renault SGW Access
With the use of Renault unl.ocking software & device, you can diagnose 2015+ Renault RGW-equipped vehicles: compatible with Kadjar, Megane IV, Scenic IV, Talisman, Espace V, Koleos II, and Captur II, etc.

OE-Level All System Diagnostics + Bi-Directional Control (Active Test)



Unlike many other brands’ obd2 scanners on the market, this Autel scanner has the #1 extensive field-tested database for all system diagnostics:

The accessible systems may be:

Engines, Auto Transmission, Airbags, IMMObilizer, Key Coding, ABS, Cruise Control, Instruments, Self Leveling Suspension systems, Seats, Doors, Gateway, Steering Angle, Air Suspension, Body Systems, Electronic Power Steering & Motor Assisted, Power Steering, Tire Pressure, Rain Sensors, 4WD System, Stabilizer, Intelligent Parking Assist/Door Motors, Audio Systems, Air Conditioning, among many others (depending on the vehicle make/model/year). Message us to get details.
Pull 7,000+ OE & generic codes, clear codes, check freeze frame data, view live data (in text, merged graph & analog), and plot PIDs; covering a vast array of car models. Auto repair shops can use this all-system Autel scanner to diagnose even the most-recent cars.

Better, MP900-BT KIT features the complete active test covering more function lists than a dealer car scanner, which could be:

Turn On Radiator Fan, Modulate Throttle, Open/Close Windows, Operate Mirrors, Test Injector Buz, Turn On Interior/Exterior Lights & Sound Horn, Test Door Loc-K Actuators, Test Injector, Turn Off Acc Lane Keeping Assist System (Lkas), Turn On/Off Front & Rear Side ACM Solenoid, Turn On/Off Fuel Pump, Cycle A/C, Clutch On/Off, Test Left Clutch Electromagnetic Coil, Test Acceleration Device, Test Oil Pressure Control, Aim Dynamic Camera, Calibrate Vehicle Level Position, Pump Brake Vacuum, Test Inlet & Outlet Valve, Test Open Brakes, Supply Wheel Speed Sensor, Test Parking Brake, and more (depending on the vehicle make/model/year). Message us to get details.
Manually act.ivate mechanical & electronic components to test sensors, valves, and solenoids so you can more quickly locate and repair malfunctions.
AutoVIN & Scan VIN/License

Like many other Autel scanners MP808S/MP808Z/MP808BT PRO/MP808BT KIT/MS906/MS906BT/MS906PRO, this Autel MaxiPro MP900-BT Kit scanner can automatically read and save your vehicle's VIN number.
It can even get the VIN from a license plate or barcode scan acting as the higher-level Autel scanner MS906PRO. This saves you a lot of time and effort as you won't have to do much research on your vehicle.
Reminder: this technology is mostly for 2006+ cars. If fails, try “manual VIN input and scan''

10+ High-end Features with 2024 Newest Autel MaxiPro MP900-BT Kit



Personalized Programming Setting
This is the high-end function specialized for LandRover, Jaguar models, which most aftermarket scan tools do not support. It allows open/close some of the LandRover, Jaguar’s original functions to be better suited to your specific needs.

Autel Cloud-based Report Manage
With Autel MaxiPro MP900BT Kit, you can also save information such as fault codes detected, component tests performed, and repairs made to the Autel cloud server. These reports can be shared via QR codes/e-mails/text messages, etc., and view them on other smart devices such as tablets/phones/PCs. This way, you can easily get expert advice rather than having the confusing hassle.

Pre- & Post Scan Report
can identify any potential problems with the vehicle before any repairs are made. This Autel scanner can help to prevent unnecessary repairs and reduce the risk of further damage to the vehicle.

Post-Scan Report
can verify that the repairs have been made correctly and that all issues have been resolved. This Autel scanner will back you with evidence if anything wrong happens to the car while repairing.

Wireless Wi-Fi Printing
You can save, share, and print the overall inspection report wirelessly, via the Wi-Fi printer. This will help you easily maintain vehicle health logs or share the information with mechanics.

Expanded Service Tools
Pair with MV105S: have close-up inspection in hard-to-access areas. (sold separately)

Pair with BT506: get effective vehicle battery system analysis. (sold separately)
