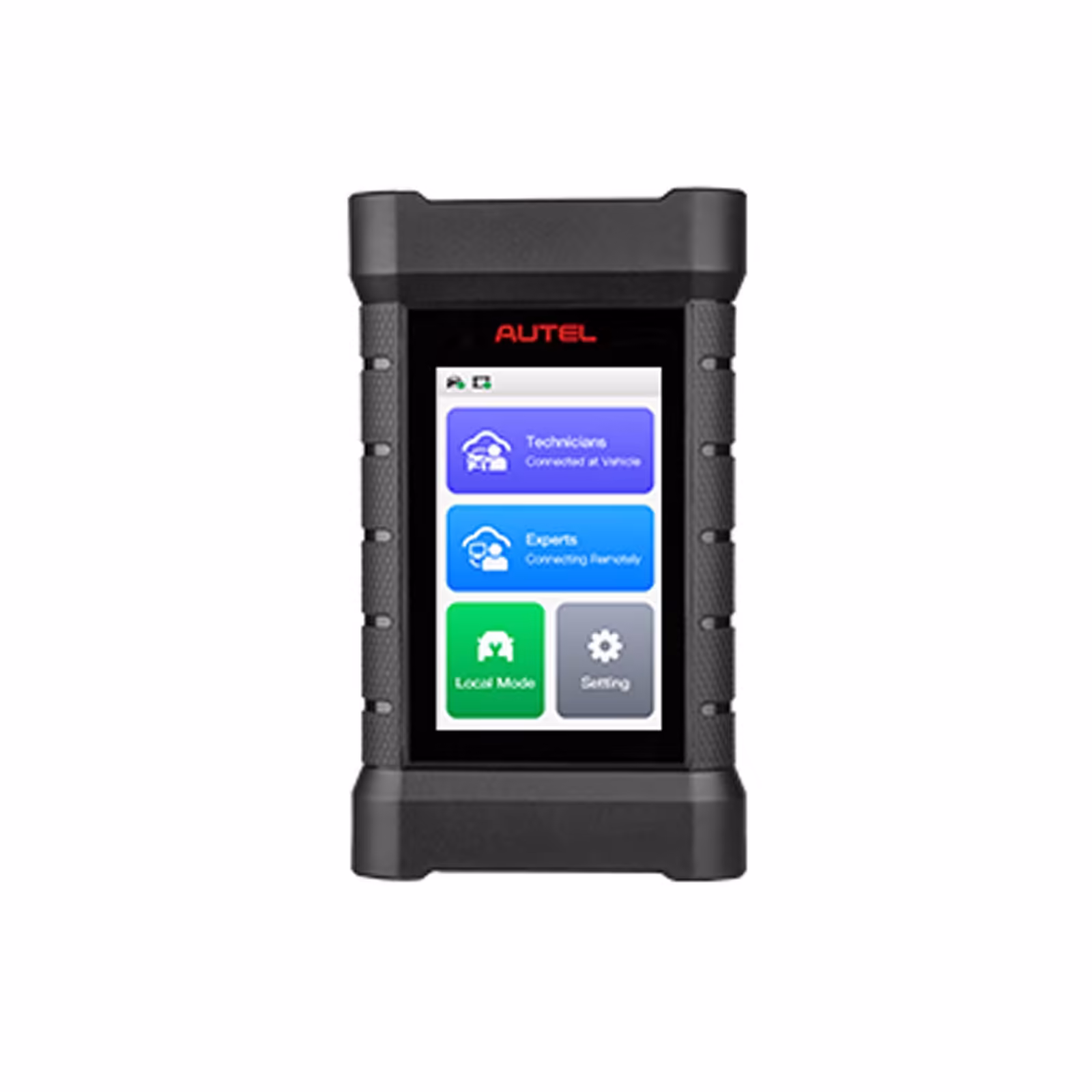

Autel MaxiFlash Xlink – J2534 Reprogramming Tool with Remote Diagnostic Capabilities

The Autel MaxiFlash XLink is a powerful, expert-driven remote diagnostics solution ideal for repairs and module programming. Equipped with a 4-inch touchscreen, the XLink enables both remote programming and local diagnostics.

Product Features

• Remote Expert-ready standalone device: connect with experienced programmers, diagnosticians, and system experts
• Enhanced Vehicle Communication Interface for quicker communication and systems access
• J2534 pass-thru programmer to update modules with OE software
• Supports latest vehicle communication protocols
• Enables onsite and remote module programming
• Compatible with Autel MaxiSYS Ultra MS919 and MS909
• Hard-wire and Wi-Fi network communication options
• Update via Internet connection—no tablet connection needed
• Server and point-to-point dual-channel communication
• Limited 1-year warranty
• Equipped with a 4-inch LCD touchscreen for easy operation
• Automatic software updates for uninterrupted use and support
• Can be used on both client-side (technician or vehicle) and expert-side (programmer with OE software or diagnostician) for remote programming and diagnostics
• Supports D-PDU, J2534, and RP1210 diagnostic protocols for wide vehicle compatibility
• Supports DoIP, CAN, and CAN FD protocols to ensure coverage of the latest vehicles
• Server and point-to-point dual-channel connection ensures smooth remote-service performance
• Supports remote programming on more than 41 U.S., Asian, and European vehicle brands

Enhanced, Multi-Protocol VCI

Pair with Autel MaxiSYS Tablets (MS909, MS919, Ultra) to perform advanced diagnostics with multiple communication protocols including CAN, CAN FD & DoIP. Updates via Wi-Fi. It will not add Mercedes and BMW coding to tablets that do not already include that feature. (i.e., using this with an MS906 Pro will not gain programming through the tablet)

J2534 Pass-Thru Programmer

• Perform module programming on most U.S., Asian, and European vehicles
• Supports CAN FD/DoIP protocols
• Compatible with Windows PC and Autel Maxi PC Suite

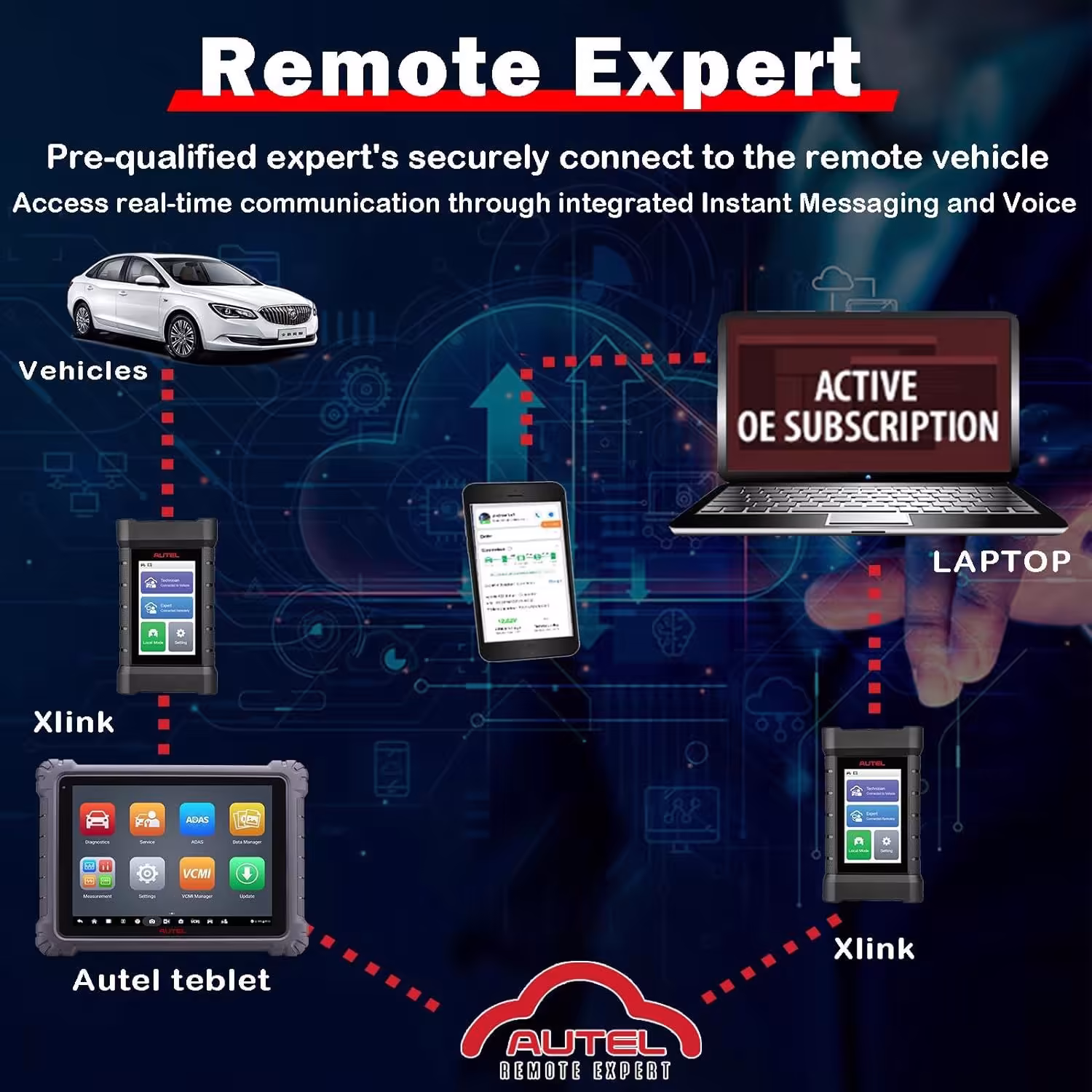

Remote Expert-Ready Device

• Connect with Autel Remote Expert module programmers, automotive diagnosticians, and system experts for tasks requiring OE data, software, or tools
• Post orders to the Remote Expert platform via the Autel MaxiFix mobile apps (iOS, Android)
• Connect the XLink to the vehicle and use the MaxiFIX app to post, monitor, and pay for the session

Product Specifications

Display

4.0 inch TFT screen (480x800)

Operating Voltage

• DC 9 to 36V power provided via OBD (Technician-side)
• DC 9 to 15V power provided via adapter (Expert-side)

Communication Method

Ethernet

Storage

32GB

Memory

4GB

Power Consumption

<5W

Operating Temperature

-10 ℃ to 50 ℃

Storage Temperature

-20℃ to 60 ℃

Package Includes

• 1pc x main unit
• 1pc x main cable V2.0
• 1pc x main cable (expert side)
• 1pc x AC/DC adapter (12V)
• 1pc x Ethernet cable
• 1pc x quick reference guide
• 1pc x packing list
• 1pc x carrying case
