2023 New Autel MaxiCOM MK908 PRO II Automotive Diagnostic Tablet Support Scan VIN and Pre&Post Scan

Newest Autel MK908PRO II Automotive Diagnostic Tools J2534 ECU Online Programming+Online Coding+36 Reset services+Active Test+Hidden Refresh+VAG Guided Function+Post-Scan Reports

Autel MaxiCOM MK908P II, the upgraded version of MS908P, is a professional diagnostic tool with a 10.1-inch touch screen and advanced hardware from the Samsung Exynos hexa-core processor and Android 7.0 OS for quick and comfortable car diagnostics. Offering comprehensive OE-level diagnostics, ECU coding and BMW/Benz ECU Programming, the MK908P is an ideal automotive diagnostic tool for mechanics to troubleshoot the warning lights and fix the vehicle control modules'issues.

Why choose MK908PRO II?

【Same as Maxisys Elite II with ECU Programming】

Coming with J2534 ECU reprogramming device, Autel MK908PRO II is competent for online programming specific BENZ/ BMW. EXACTLY the same functions as Autel MaxiSys Elite II, making itself the most cost-effective high-end diagnostic scanner in Autel product line. Also upgraded of MS908S Pro, Autel MK908P auto scanner enjoys superior configuration, serves 13 languages with no IP restrictions (MS908S Pro ONLY supports English).

The diagnostic tool comes with a J2534 ECU Programming tool (also used as a VCI box) that is a SAE J2534-1 & J2534-2 compliant pass thru reprogramming interface device. Using the updated OEM software, it is capable of helping BMW and Benz users replace the existing software/firmware in the Electronic Control Units (ECU), program new ECUs and fix software-controlled drivability issues and emission issues.

It supports BT and USB communications and can transmit vehicle data to the MaxiCOM display tablet with or without a physical connection.
There are 3 indicators on the J2534 ECU programming device:

Vehicle LED - Flashes green when communicating with the vehicle's system

Connection LED -Illuminates solid green when properly connected with the display tablet via the USB cable; Illuminates solid blue when connected with the display tablet via wireless (BT) connection

Power LED-Illuminates solid green when powered on: Flashes red when system failure occurs: Illuminates amber automatically at power up when the device is performing self-test procedure

【Online Coding + Active Test】

Autel MK908PRO II offer online coding for VW, Au di, Porsche, Benz, BMW. Online configuration for Renault is unique among diagnostic industries. Besides, Autel MK908P features Bi-Directional Control (Active Test) to request information or command an actuator to perform specific tests, like cycling the a/c clutch on and off, perform an evaporative emissions leak test and more tests to solve the specific repairing work.

【All-system Diagnose + 36 Service Functions】

Provided with full-systems diagnosis (ABS, SRS, engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System, etc.). MK908PRO II also offers another 36+ service functions to help your repairing work faster, easier, and more professional. These service functions include IMMO keys/throttle/injecor coding/trans adaption/suspension/tyre retrofit/brake bleed/Oil Reset and more.

【36+ Special Functions】

The various scheduled service and maintenance performances including : Oil Reset, EPB, TPMS, BMS, Brake Bleed, DPF, IMMO Keys, Injector, SAS, Suspension, Throttle, WIN DR ROOF, Seats, Odometer, Lang Change, Headlamp, CHG Tire Size, TEC Learn, ABS/SRS, Cylinder, Turbocharging, Limit, Clutch, Trans Adaption, Airbag Reset.


Oil Reset Service: Allows you to perform reset for the engine Oil Life system, which calculates an optimal oil life change interval depend on the vehicle driving conditions and climate.

EPB Service: Helps maintain the electronic braking system safely and effectively, deactivating and activating the brake control system, assisting with brake fluid control, opening and closing brake pads, and setting brakes after disc or pad replacement, etc.

SAS Service: Allows you to perform calibration for the Steering Angle Sensor, which permanently stores the current steering wheel position as the straight-ahead position in the steering angle sensor EEPROM.

DPF Service: Allows you to carry out numerous functions to the Diesel Particulate Filter system.

TPMS Service: Allows you to quickly look up the tire sensor IDs from the vehicle's ECU, as well as to perform TPMS programming and reset procedures after tire sensors are replaced.

IMMO Service: Programs a new anti-theft key, and performs key matching when the ignition switch, the combined instrument panel, ECU, BCM, or the remote control battery is replaced.

And Many More...

【VEHICLE COVERAGE】

The software of MK908PRO II has a wide range of compatibility and can be used to diagnose vehicles from over 80 brands in the US, Europe and Asia. Moreover, you can get more newly added car models with the fast-release software update service.

【Multiple Languages】

English, Simplified Chinese, Traditional Chinese, Spanish, French, German, Polish, Italian, Japanese, Korean, Dutch, Portuguese, Turkish, Swedish, Thai, Arabic, Russian

【Remote Technical Support】

By using this function, users can receive ad-hoc remote support from Autel’s technical engineers, colleagues, or friends, by allowing them to control this tablet device on their PC via the TeamViewer software.

【Auto VIN Scan】

Just one touch, which allows technician to quickly detect vehicle and run diagnostics on the selected system.

【ADVANCED HARDWARE】

MK908P, as the advanced version of MS908P, features Hexa-Core processor upgraded from Quad-Core, Android4.4.2 OS upgraded from Android4.2, the 10.1" 1920*1200 screen upgraded from 9.7" 1024*769, and 15000mAh battery capacity increased by 4000mAh.

【Additional Features and Functions】

To well serve the users, the diagnostic tool is equipped with rich array of features and functions in addition to the Diagnostic and Service functions, including Remote Desk, MaxiFix, Shop Manager, Digital Inspection, MaxiScope, etc.

Remote Desk:
With the simple, fast and secure remote control interface, you can receive ad-hoc remote support from Autel's support center, colleagues, or friends, by allowing them to control your MaxiCOM tablet on their PC via the TeamViewer software.

MaxiFix:
This is an additional feature in the cloud which enables users to network and access a database of procedures, repair and diagnostic tools. You are able to interact with fellow technicians and share knowledge via MaxiFix.

Digital Inspection & MaxiScope:

The diagnostic scan tool can also be used in conjunction with the automotive oscilloscope Autel MP408 to perform electrical and electronic circuit testing and monitor signal activity,

and it also supports performing a close vehicle inspection with the Autel digital inspection camera MV105/MV108.

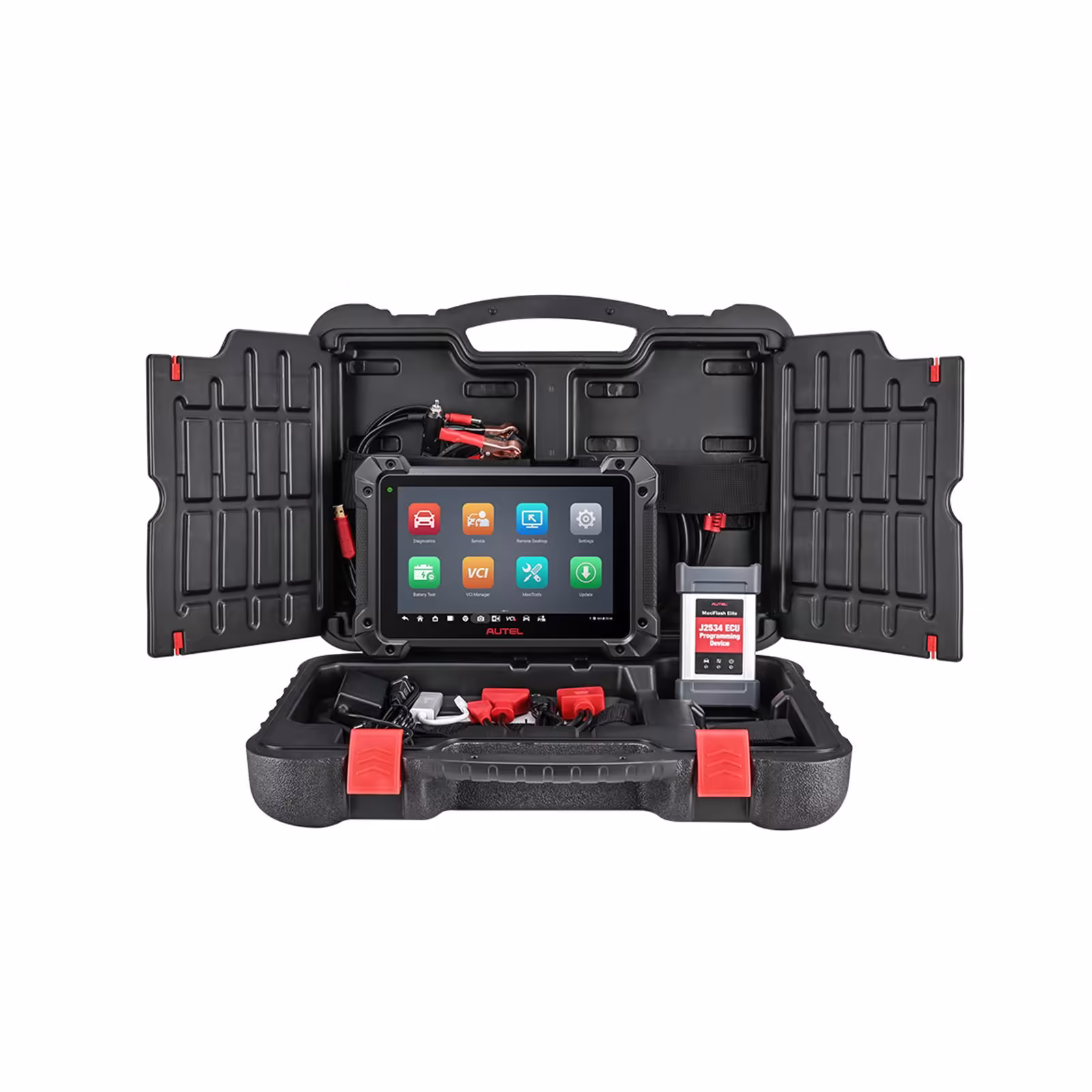

【 Package List】

1 * Main Unit
1 * J2534 Box
1 * Main Cable
1 * Standard 2.0 USB Cable
1 * Mini USB Cable
1 * AC/DC External Power Adapter
1 * Ethernet Serial Cable
1 * Cigarette Lighter
1 * Clipper Cable
2 * Light Fuse
1 * USB Ethernet Adapter
14 * OBDI Adapters (Benz-14 (EU version MK908 PRO II); Chrysler-16 (US version MK908 PRO); BMW-20; Kia-20; Nissan-14; GM/Daewoo-12;
Honda-3; Fiat-3; PSA-2 Benz-38; VW/Audi-2+2; Mitsubishi/Hyundai-12+16)

NOTE:
Benz-14 is only for Europe area with EU version MK908 PRO.
Chrysler-16 is only for areas except Europe with US version MK908 PRO.

If you are not sure which kind is version you will get, please contact us to confirm. Thanks~
