Original Autel MaxiIM IM508 Plus XP400 Pro with APB112 and G-BOX2 Full Kit Same IMMO Functions as Autel IM608PRO

Original Autel MaxiIM IM508 Plus XP400 Pro with APB112 and G-BOX2 Full Kit

Highlights:

1. 100% Original Autel Brand.
2. One Year Free Update online On Autel Official Website. After one year it will cost $350 only. Check Autel MaxiIM IM508 One Year Update Service
4. Global Version No IP Blocking Problem
4. Android Operating System for fast boot-up and multitasking
5. Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
6. Vehicle Supported: Powerful OE level diagnostics for more than 80 US, Asian and European makes and models
7. Advanced maintenance services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
8. Language for both Diagnosis and IMMO Menu: English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, Russian and Traditional Chinese.
9. Autel IM508 Plus XP400 Pro just equal IM608 Pro in terms of IMMO functions. With IM508, XP400 Pro, APB112 and G-BOX2, this full kit can cover 95% of the cars for key programming function in the world.

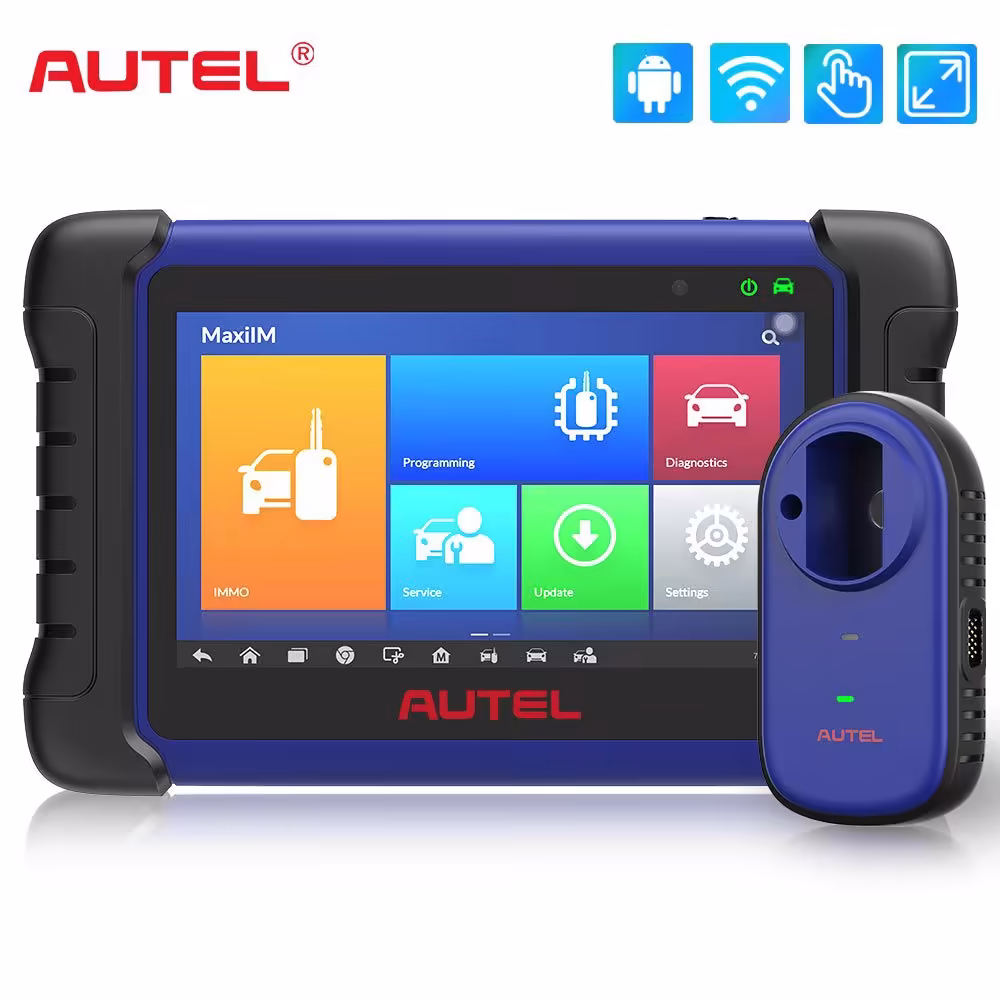

Autel MaxiIM IM508 is a fast, easy-to-use, and ultraportable immobilizer and key programming device. The Android-based touchscreen tablet features powerful quad-core processor, intuitive design and straight-forward interface. Euipped with the XP200 Key Programmer, IM508 is capable of providing extraordinary service functions for the immobilizer system. Together with the ability to quickly diagnose all modules of the majority of the makes and models on the market, IM508 provides you with superior special functions. IM508 is the perfect solution for shops and technicians who demand affordable and powerful IMMO and diagnostic services.

Autel MaxiIM IM508 Function List:

All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record, Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
Key Read / Write
EEPROM / MCU Read / Write

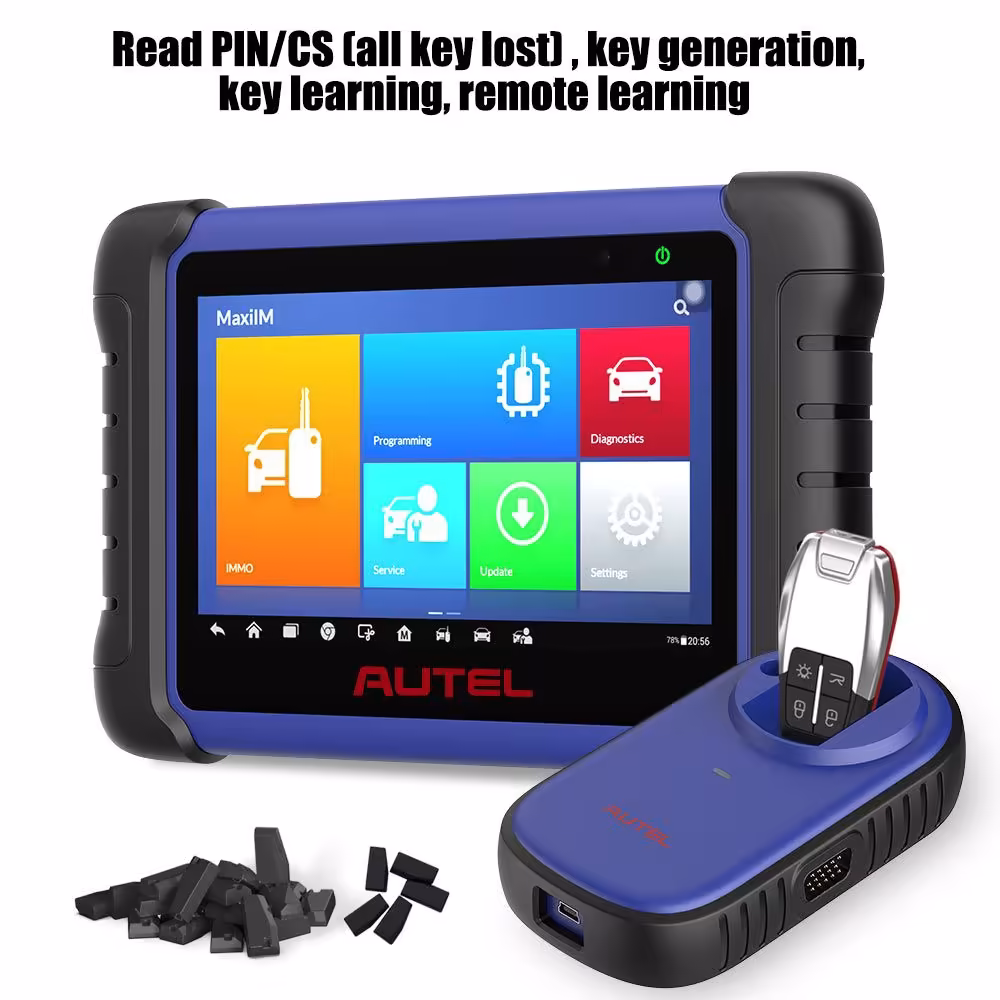

Read PIN / CS (All Key lost)
Key Generation
Key Learning
Remote Learning
Backup / Restore IMMO Data
IMMO ECU Reset / Adaptation
IMMO ECU Refresh / Coding
BMW FEM / BDC Key Learning and ECU Adaptation
VW / Audi MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All Key lost, and More



Autel XP400Pro is a replacement for XP400. It adds more functionality for BMW, Mercedes-Benz, as well as EEPROM reading. With the new protocols, the end-user will be able to read over 2000 (chips, components, devices) types including EEPROM and MCU Read, additional Odometer Read/Write, and more. Also, added functions for EWS3, W209, NEC, and more.

Autel XP400 Pro Highlights:

1. XP400 Pro is an Advanced All-in-One Key Programmer
2. One Year Free Update Online on Autel Official Website
3. Could Be Used with Autel IM508 and Autel IM608, Also IM100 and IM600 as well
(Notice: XP400Pro is compatible with IM100 / IM600. The only thing the IM100 and IM600 will not have when used with XP400Pro is the 4 channel Labscope software and AutoAuth)
4. Supports Key Renewal on 11 Key Types with Additional Adapters - IMKPA, Key Programming Accessories Kit
Please note that the product does NOT support Read/Write IC Card function. The "IC Card Induction Area" was also removed from XP400 Pro.

Why You Need XP400 Pro?

1. Expanded EEPROM functions for more component access
2. 170+ types Odometer component reading functions
3. 180+ Immobilizer ECU component types
4. 40+ Engine ECU component types
5. 2000+ MCU component types
6. 440+ EEPROM component types
7. Compatible with IM508 and IM608
8. Includes 1-Year Warranty
9. Free Software Updates for Life of Tool

ADVANCED KEY PROGRAMMING VEHICLE COVERAGE when combined with XP400PRO:

Benz
* One-tap Key Programming via OBD
* 3rd Generation IMMO CAN-Line/ K-Line Add Key, All Key lost

BMW
* Smart IMMO Programming (support EWS3/ 4, CAS 1/ 2/ 3/ 4, FEM/ BDC)
* Add Key/All Key Lost

Volkswagen/ Audi
* One-tap Online Programming
* Add Key/All Key Lost Via OBD for 2013 - 2020 Models

GM
* Read IMMO Password, Add Key/ All Key Lost up to 2020

Ford
* Add Key/All Key Lost (No PIN Needed) up to 2020

Mazda
* Add Key/All Key Lost (No PIN Needed) up to 2020 FCA
* Read IMMO Password, Add Key/All Key Lost up to 2020

Renault
* Add Key/All Key Lost (No PIN Needed) up to 2020

LandRover/Jaguar
*Add Key/All Key Lost up to 2019

Volvo
* Semi-smart Key Learning via OBD up to 2018
* Smart/Blade/Fobik Key Learning via Dump

Comparison Table for XP400, XP400 Pro and Xhorse VVDI Prog:

Features	XP400	X400 Pro	VVDI Prog
EEPROM read/ write	330 chip types	445 different chip types newly added support (AM29FXXX seriesMB29FXXX series)	429 different chip types
MCU read/ write	1541 chip types	2067 chip types	1758 different chip types
Engine ECU read/ write	40 chip types	41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE	Engin ECU read (74 types)
Immoblizer ECU read/ write	40 chip types	41 chip types add write support for SIMTEC76(AM29F800BB)_WRITE	Engin ECU read (74 types)
Odometer read/ write	168 chip types	181 chip types	171 chip types
Airbag read/ write	read odometer module 9 types	read odometer module 171 types (update in July)	read odometer module 171 types
Frequency detection	read airbag module 5 types	read airbag module 5 types	read airbag module 54 types
Key read/ write	315/ 433/ 868MHz	315/ 433/ 868MHz	N/A
Unlock key	N/A	support 11 key types (Audi/ BMW)	6 key types
Write key via dump	Mitsubishi, suzuki, fiat, landrover, Jaguar	Mitsubishi, suzuki, fiat, landrover, Jaguar	Support 40+ vehicle makers
Easy to use/ stability	1. menus are too value and can't select intuitively 2. with high-definiton wiring diagrams (not sufficiently covered)	1.Stability of key read/ write, chip read/ write, IR key read/ write are greately enchanced. 2.menus are too vague and can't select intuitively 3.with high-definiton wiring diagrams (not sufficiently covered)	1.menus are clear and easy to use 2.with high-definiton wiring diagrams (sufficiently covered) 3.high stability of chip read/ write

Autel APB112 smart key simulator is used to collect the data sent from the ignition coil, aiming to identify the ignition coil troubles and decode the data of the vehicle key chip. It can also simulate the vehicle key chip.

What Autel APB112 Can Do for You?

1. Smart key simulator
2. Compatible with IM508 and IM608
3. 46, 4D data collection
4. 46 smart key password calculation
5. 46 chip simulation
6. Toyota 4D (94/ D4, 98) smart key simulation
7. Toyota H (88/ A8, A9, 39) smart key simulation
8. Collects data from the ignition coil
9. Identify ignition coil troubles
10. Decode vehicle key chip data
11. Simulate vehicle key chip (ex - 4D chip)
12. Must be used with an Autel diagnostic tool
13. Toyota/ Lexus smart key all key lost
14. Chip decoding (Hyundai 46)

Autel G-BOX2 Function List:

1. Support Mercedes Benz All Key Lost, faster calculate password
2. Work together with both IM608 or IM508 with XP400
3. Used for Faster Mercedes ECU data and EIS password calculation
4. Mercedes DAS3 can EIS/EZS all keys lost
5. Reduces reading time of W204 ECU data & W207 EIS by over 85%
6. No need to remove and reinsert the key for W221 & W164 after 2009 Models

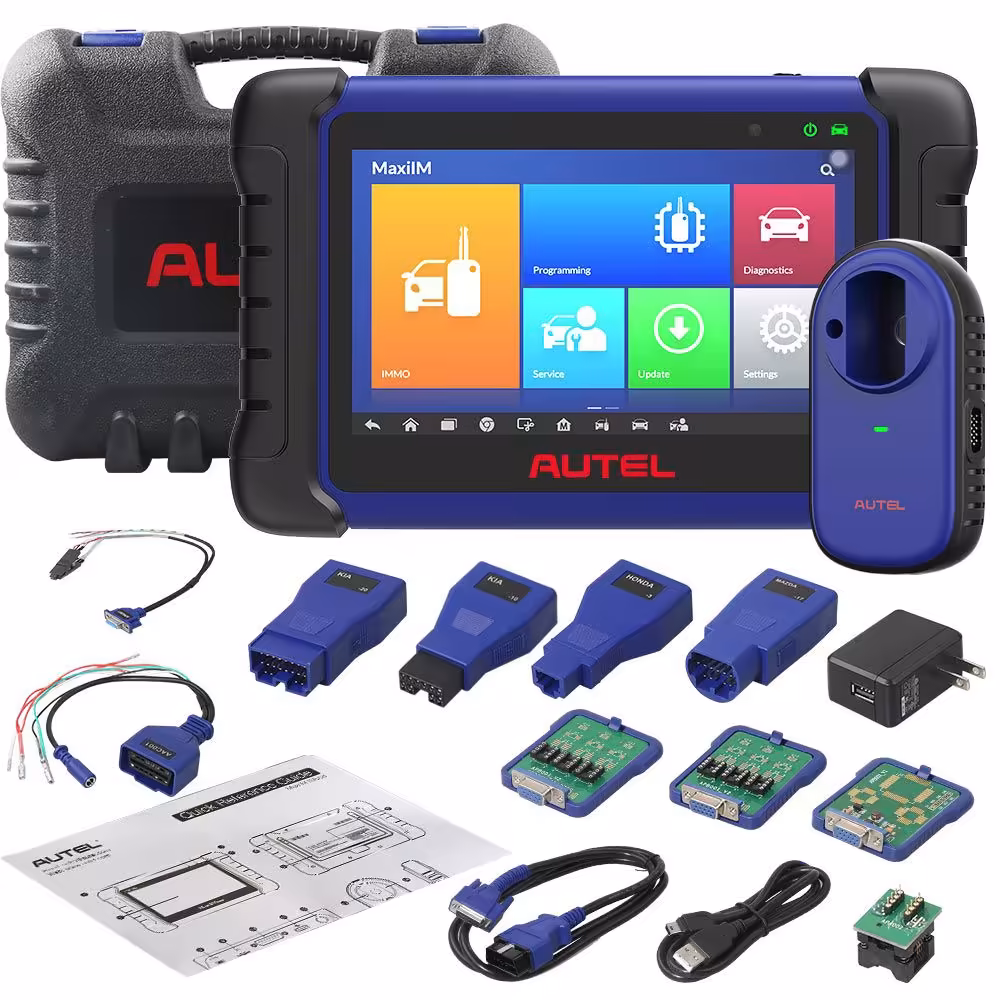

Package List:

Autel MaxiIM IM508
Autel MaxiIM IM508 Tablet
XP200 Key Programmer
AAC001–MED17 Cable
Honda-3 Adaptor
KIA-20 Adaptor
KIA-10 Adaptor
Mazda-17 Adaptor
USB External Power Adapter
Carrying Case
Main cable
Quick guide
Mini USB Cable
Carry Case

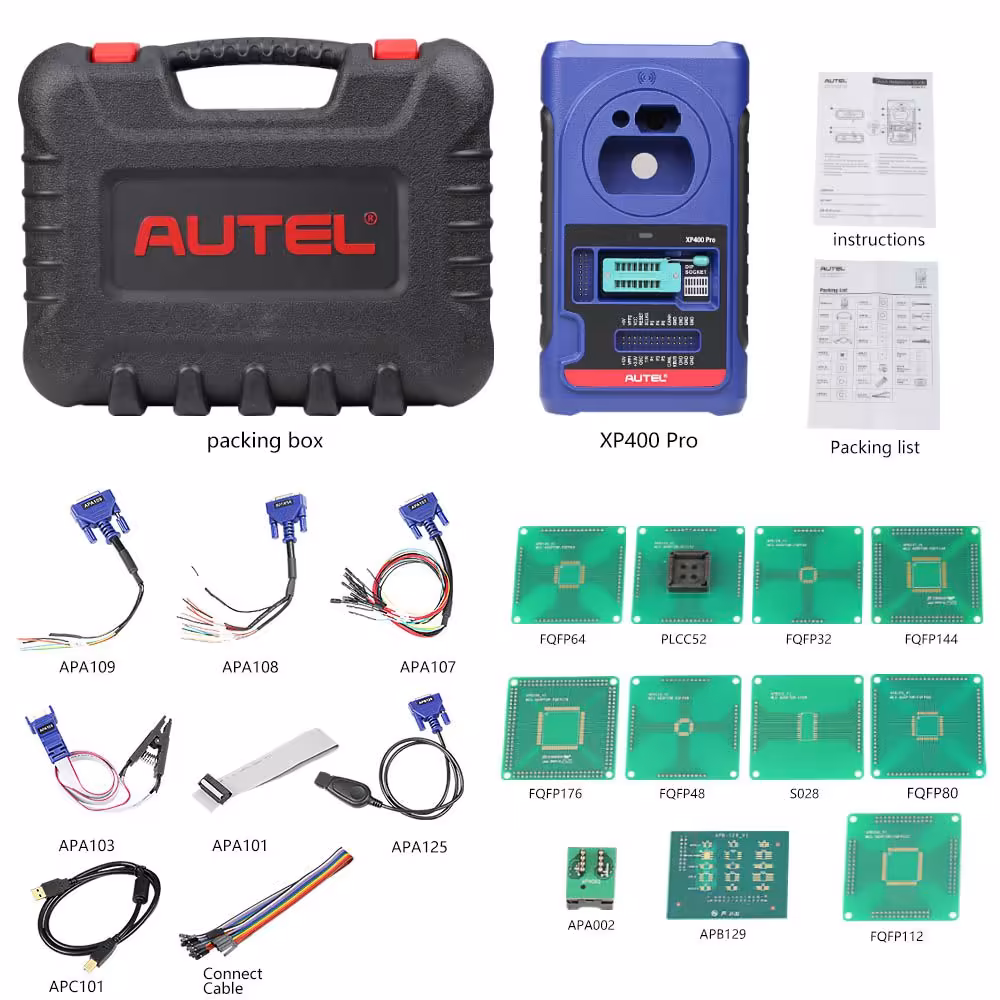

Autel XP400Pro
1 x XP400 Pro Main Unit
1 x APB129 – EEPROM Adapter
1 x APA002 – EEPROM Socket
1 x APB125 – Mercedes Infrared Collector
1 x APB103 – MCU_PLCC52 Adapter
1 x APB104 – MCU_FQFP64 Adapter
1 x APB105 – MCU_FQFP80 Adapter
1 x APB106 – MCU_FQFP112 Adapter
1 x APB107 – MCU_FQFP144 Adapter
1 x APB108 – MCU_FQFP176 Adapter
1 x APB109 – MCU_FQFP32 Adapter
1 x APB110 – MCU_FQFP48 Adapter
1 x APB111 – MCU_SO28 Adapter
1 x APA101 – Spare Signal Cable
1 x APC101 – USB Cable (Standard USB –Type B USB)
1 x APA103 – EEPROM Clamp
1 x APA107 – ECU Cable
1 x APA108 – MCU Cable
1 x APA109 – MC9S12 Cable
1 x Dupont Line

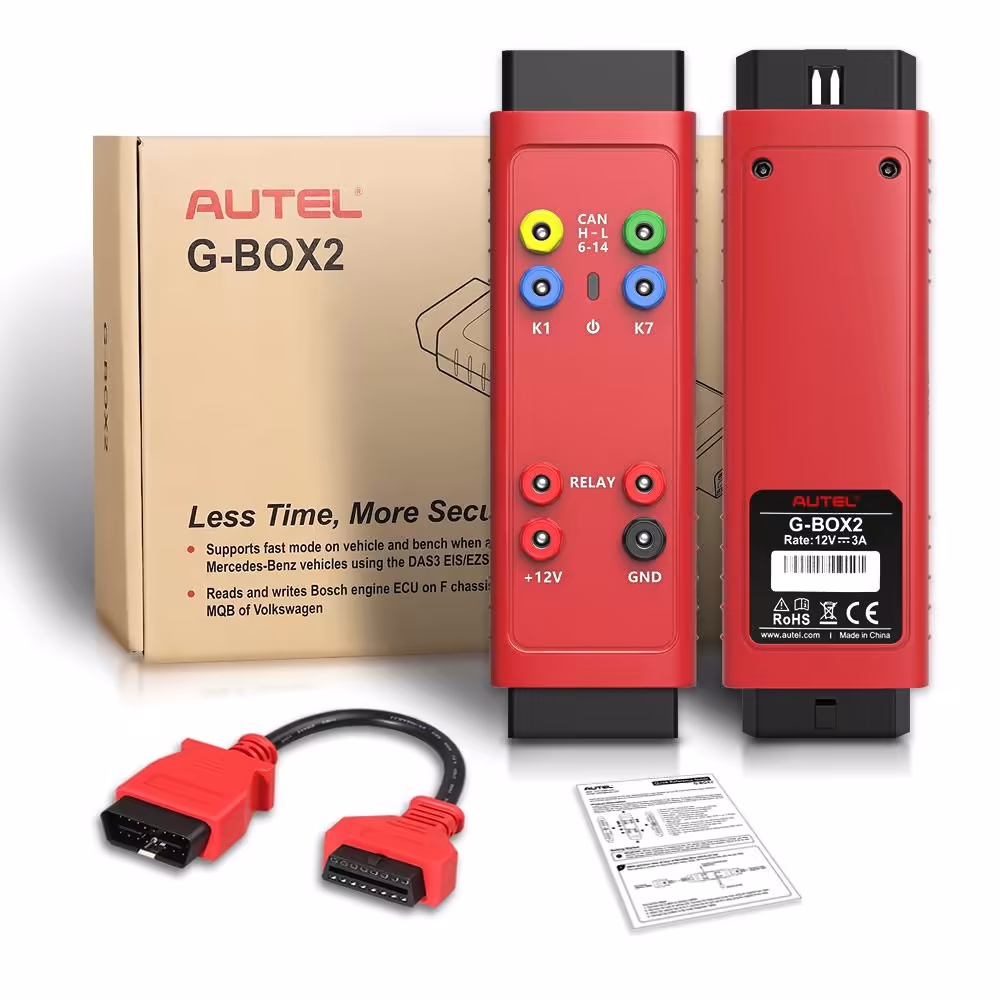

Autel G-Box2
1pc x Autel G-BOX2
1pc x DB15 Cable
1pc x K-Line Cable
1pc x Fuse Cable
2pcs x Fuse (5A)
2pcs x Clamp Cable
1pc x OBDII Extension Cable
1pc x Quick Reference Guide

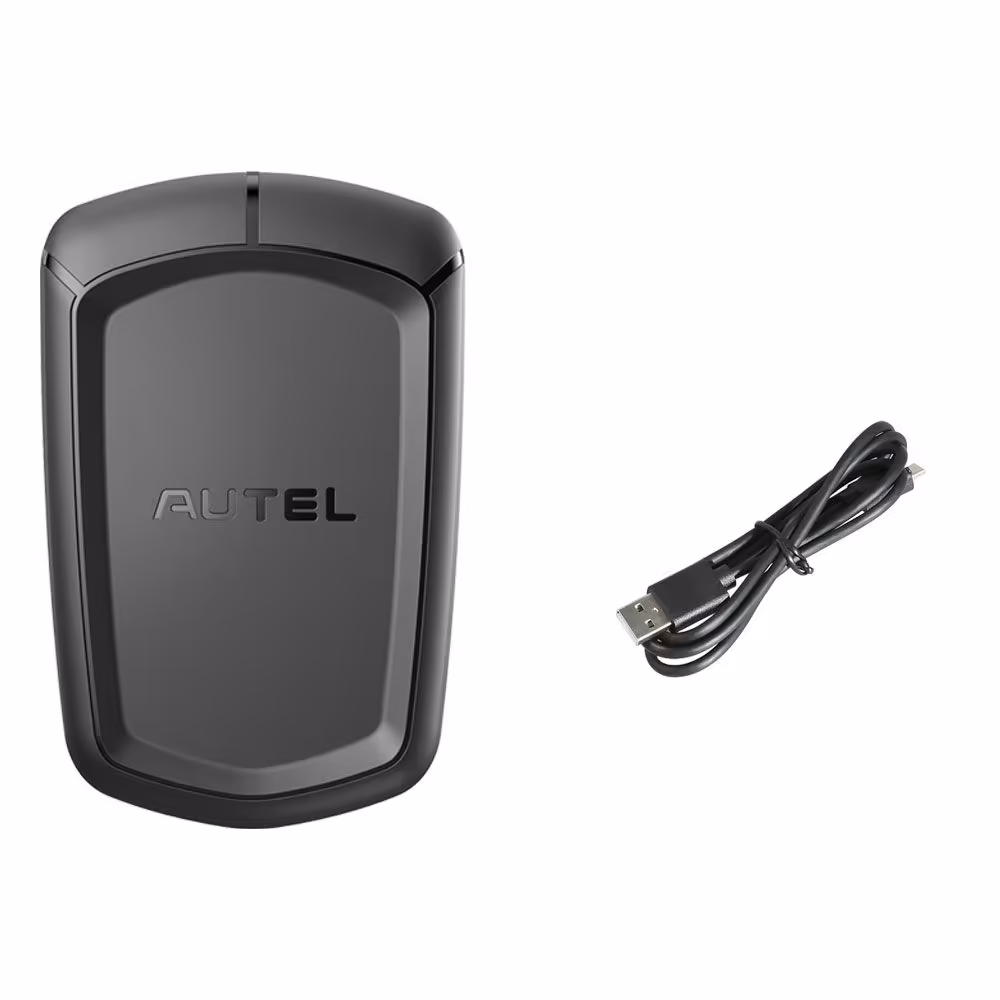

Autel APB112 Simulator
1pc x APB112 Smart Key Simulator
1pc x USB cable
Notice: No Carton Box for APB112.
