Ancel FX9000 OBD2 Automotive Scanner Professional OBD 2 Car Tools All System SRS TPMS TPS DPF IMMO Reset ODB2 Diagnostic Tool

1.Smart(Auto-Detect) Diagnosis: Once the tool and the vehicle are properly connected, the system starts auto-detect process. Once the whole process is successfully finished, a diagnostic report will be automatically generated and sent to your email box (if bound).

2.Manual All Systems Diagnosis: If Auto-Detect failure occurs, manual diagnosis is also available. Diagnosis functions include: Version Information, Read DTCs, Clear DTCs and Read Data Stream (supports 3 display modes: Value, Graph and Merged).

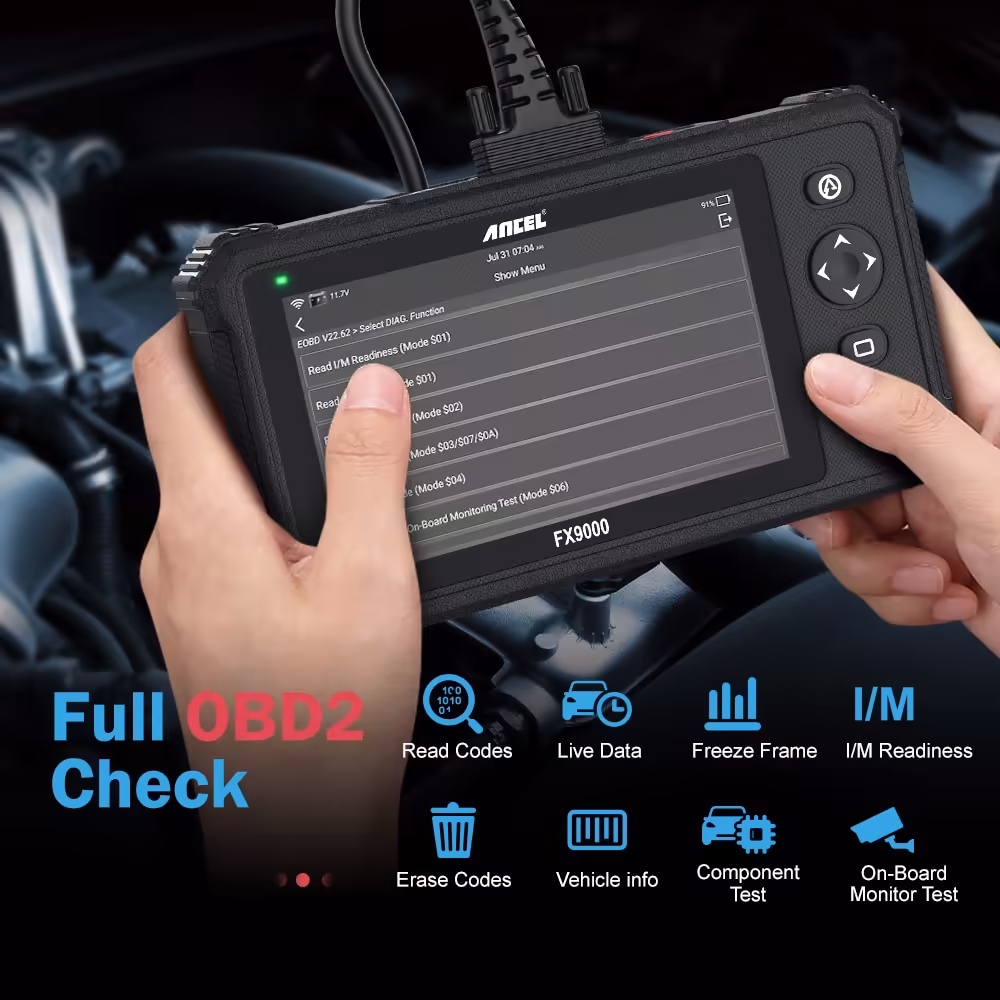

3.Full OBDII Diagnosis: 10 modes of OBD II test are supported, including EVAP, O2 Sensor, I/M Readiness, MIL Status, VIN Info, and On-board monitors testing etc.

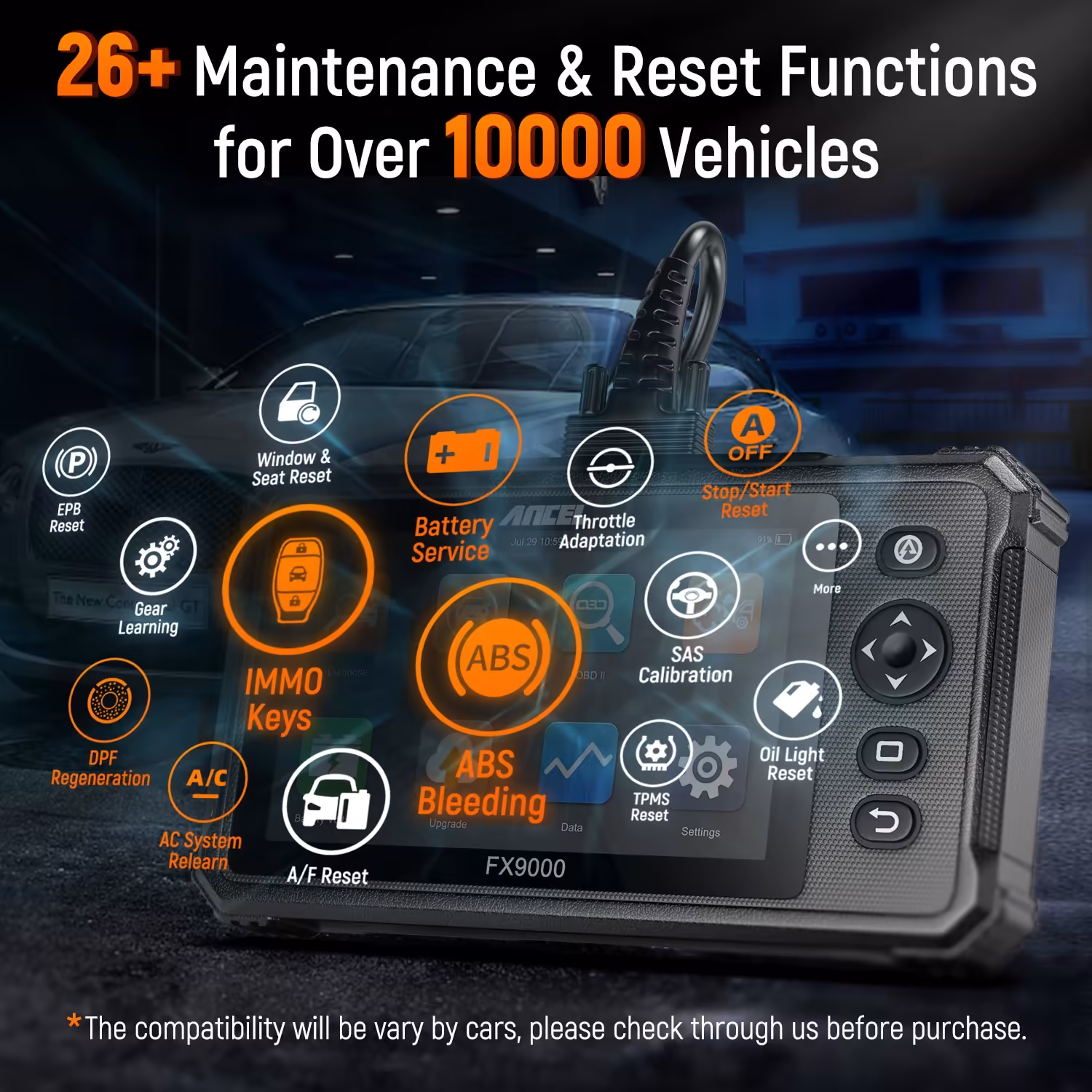

4.26+ Special Reset Function: Frequently used maintenance and reset items can be done. It includes Oil Reset Service, Electronic Parking Brake Reset, Steering Angle Calibration, ABS Bleeding, TPMS (Tire Pressure Monitor System) Reset, Gear Learning, IMMO Service, Injector Coding, Battery Maintenance System, Diesel Particulate Filter (DPF) Regeneration, Electronic Throttle Position Reset, Gearbox Matching, AFS (Adaptive Front-lighting System) Reset, Sunroof Initialization and Suspension Calibration etc....

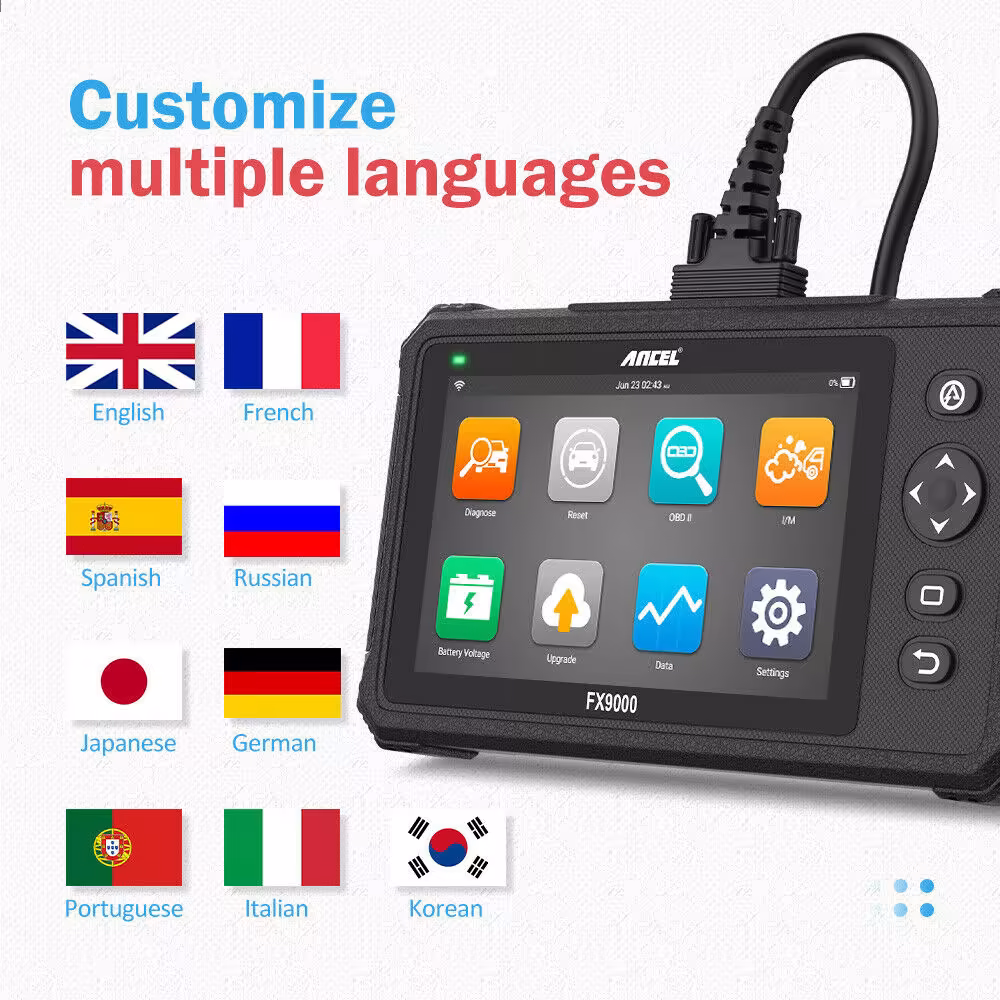

5.Support Multi-language: English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean. meet the needs of customers in various countries.

6.Multiple Car Models Supported (covering over 68 prevailing models from Asia, America and Europe,Russian). • One-click Update: 7inch high configuration Android touch tablet, Let you update your diagnostic software and APK via WIFI.

7.Diagnostic History: This function provides a quick access to the tested vehicles and users can choose to view the test report or resume from the last operation, without the necessity of starting from scratch.

8.Diagnostic Feedback: Use this option to submit the vehicle issue to us for analysis and troubleshooting.

9.DTC Library: Allows you to retrieve the definition of the diagnostic trouble code from the abundant DTC database.

10.Displays car battery real-time voltage once properly and tablet 6000mAh battery life more than 8 hours.

11.Sensitive Touch & Keypad input are supported.

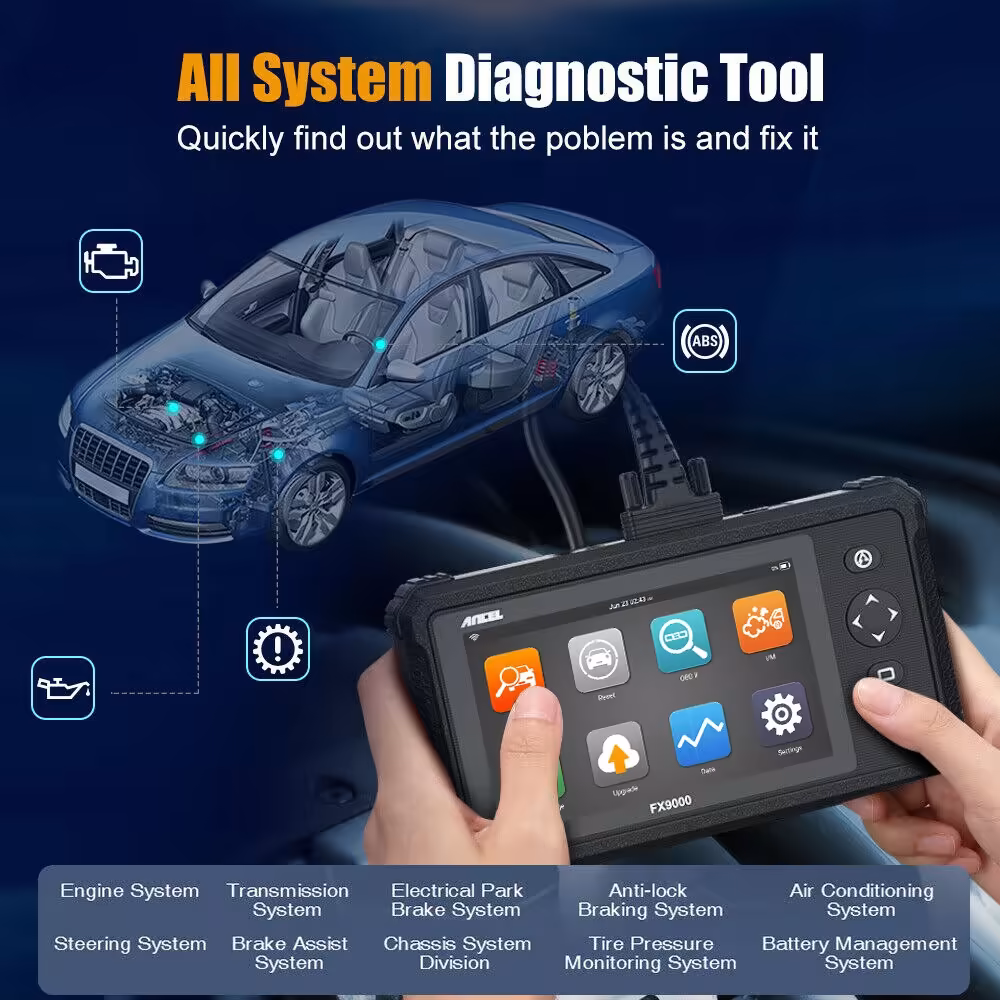

The Diagnostics application enables a data link to the electronic control system of the test vehicle for vehicle diagnosis. The application performs functional tests, retrieves vehicle diagnostic information such as trouble and event codes and live data for various vehicle control systems, such as ABS, SRS, engine, Transmission, Brake System, Emission System, Fuel system, Light system, Wiper System etc.

1.Oil Lamp Reset Service
Allows you to perform reset for a new calculation of engine Oil Life system once changed the oil.

2.EPB Electronic Park Brake Reset
It is important in the maintenance of electronic braking system's safety and efficiency.

3.BAT battery service
Allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

4.DPF Diesel Particulate Filter Reset
Specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

5.SAS Steering Angel Sensor Reset
Helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

6.TPMS Tire Pressure Monitoring System Reset
Makes sense in displaying sensor IDs from the vehicle's ECU, inputting TPMS sensor replacement IDs and testing sensors.

7.IMMO Key Programming
The unique car key programming and read pin code function, it is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8.ABS Bleeding
ABS brake bleeding to get a firm brake pad after air exhaustion after repair ABS pump system.

9.Sunroof Reset
The sunroof needs to be reset when the sunroof control unit have communication problem or changed.

10.Suspension Reset
Try reset electronic suspension air ride with the massage system close all doors koeo flip through messages system go to suspension reset or on off.

11.Gearbox (Transmission )Reset
Procedure Reset Transmission Adaptive Learning DIY. Start the car and drive. Once you perform this procedure the Engine Control Unit (ECU) and Transmission Control Unit (TCU) will work together to learn how you drive by monitoring your driving pattern. After you follow this programming method of the TCU / ECU drive the car.

12.AFS Headlamp Reset
'AFS' means Adaptive Front lighting System (at night with the Bi-Xenon headlights) it swivels either side, pressing that button means they stay pointing straight ahead and don't turn when you turn the steering wheel.

13.Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Other problems with the ignition system and mechanical components also may not show an rpm loss when an injector is turned off.

14.Throttle Adaptation
The throttle body is a tube containing a pivoting flat valve (butterfly) that is used to control the amount of air entering an engine. In an electronically fuel injected car, a throttle position sensor and air flow sensor communicate with the computer, which supplies the corresponding amount of fuel needed at the injectors. It must need re-learning throttle sensor position after clearing or repair.

15.Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running.

And many more....

English, French, Spanish, Russian, Japanese, German, Italian, Portuguese, Korean.

Full System Diagnose Scan:

For Abarth, For Accura, For Alfa Remeo, For Audi, For BMW, For Bugatti, For Buick, For Cadillac, For Chevrolet, For Chrysler, For Citoren, For Dacia, For Daewoo, For Daihatsu, For Dodge, For Eurford, For Fiat, For Ford, For GM, For GMsa, For Honda, For Hyundai, For Ifiniti, For Isuzu, For Jaguar, For Jeep, For Kia, For Lancia, For Landrover, For Lexus, For Lincoln, For Mahindra(Indian), For Maruti(Indian), For Maserati, For Mazda, For Mercedes, For Mini, For Mitsubishi, For Nissan, For Nissangtr, For Opel, For Peugeot, For Porsche, For Renault, For Renault Samsung, For Saab, For Seat, For Skoda, For Smart, For Sprinter, For Ssangyong, For Subaru, For Suzuki, For Tata(Indian), For Tlisuzu, For Toyota, For Vauxhall, For Volvo, For VW, For VAZ

Note:

NOTE: These special function NOT for all car models, if you are confused, you can send your car brand, model and release year to me, I will check for you.

1.Input email address to register your account after WIFI connected.
2. Download the vehicle brands.
3.Connect FX9000 with car OBD2 port and start diagnose

1.Android 7.1 System, a scanner also a tablet
2.16GB Micro Card, for files saving and smooth operation.
3.7''IPS touch screen and WIFI sonnection, easy to use.
4.6000mAh long stand by battery for daily needs.
5.Powerful Quad-Core Processer
6. Mini USB 2.0, Wi-Fi
7.Product Size: 9.8x5.5x1.5(inch)
8.Product Net Weight: 700g
