Foxwell OS100 Four Channel Automotive Measurement Oscilloscope
- Shipping:
- Express Shipping Service
Estimated delivery time: 3-15 working days.See details ? - Returns:
- Return for refund within 30 days, buyer pays return shipping.Read details ?
- Support:
- Online Chat WhatsApp Skype Ask a question
- Product Details
- Product's Reviews (0)
- Write a Review
- Related Products

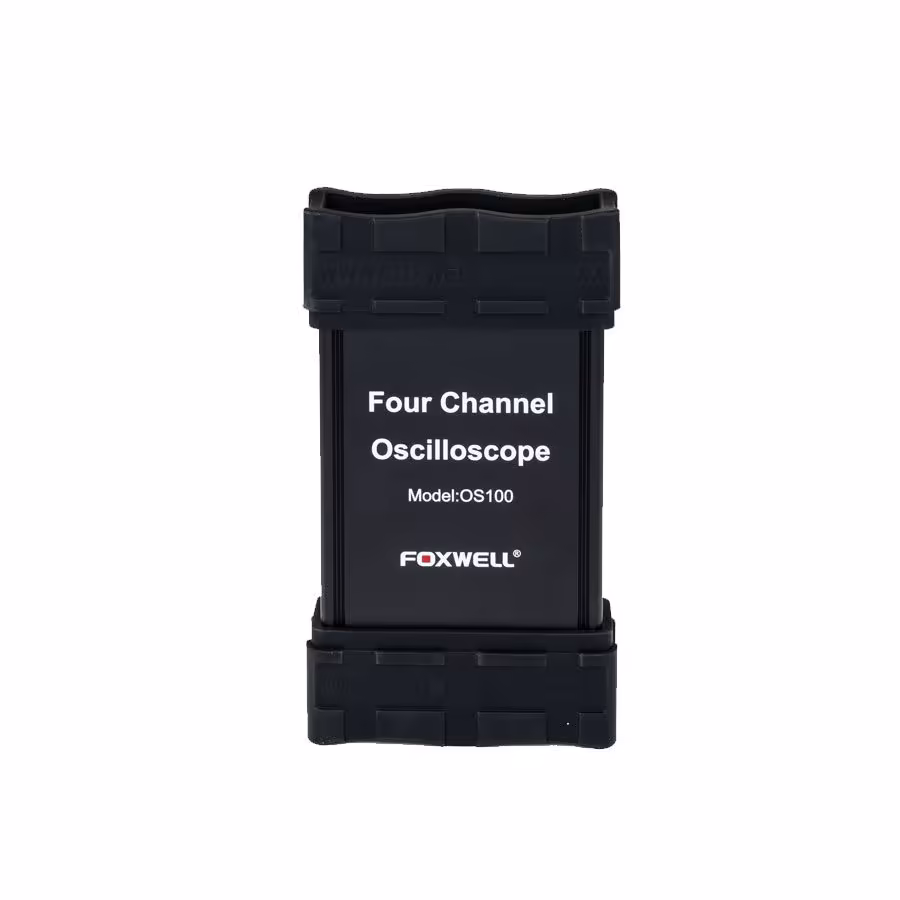

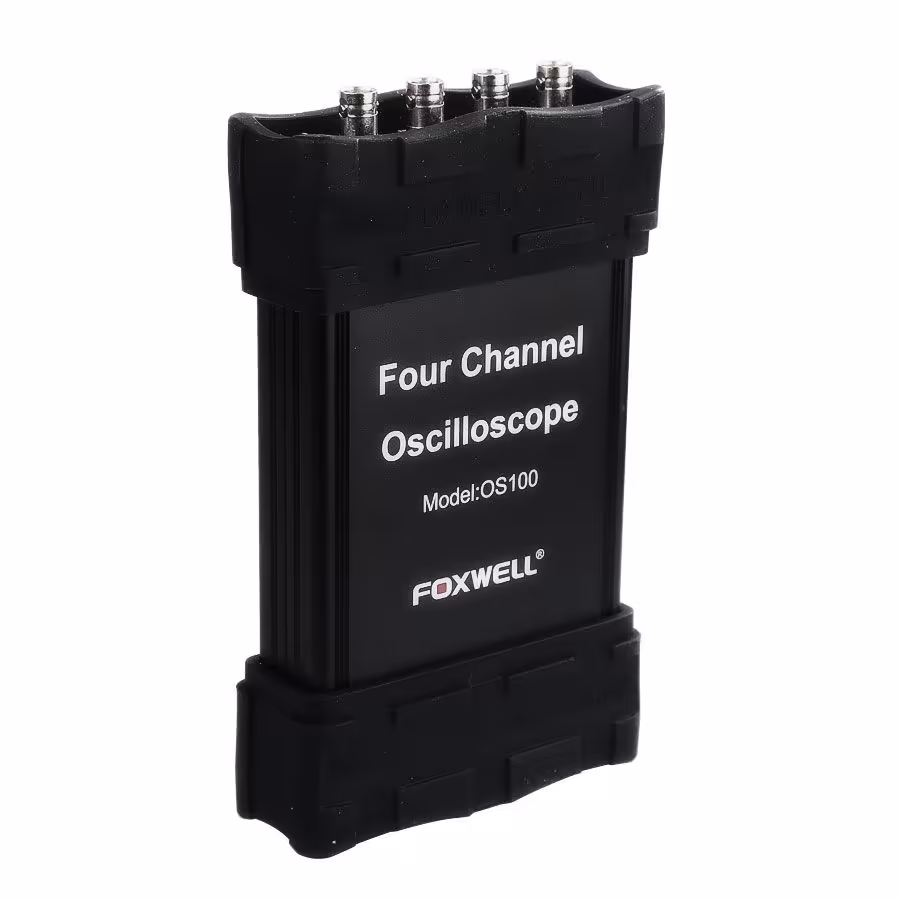

Foxwell OS100 four Channel Oscilloscope
Foxwell OS100 Language: English, Korean, Chinese (Simplified), spanish
Foxwell OS100 Update: update on www.foxwelltech.com
Foxwell OS100 warranty: one-year warranty
Foxwell OS100 four Channel Oscilloscope Features and benefits
Equipped over80types of automotive measurement function;
First Diagnosis: Intake manifold vacuum& ignition, Petrol fumes adjusting valve vacuum& ignition, Idle exhaust ignition, Starting exhaust ignition
Ignition: Primary and secondary
Sensor: Air Flow Meter Camshaft Crankshaft, Distributor; Lambda sensor; Throttle Position
Bus Diagnosis: CAN bus data examine, CAN bus signal integrity, CAN bus LH1ong time acquisition, LIN bus
Performer: Petrol/Diesel
Starter and charging circuits
Fit for the portable computers, table PC, and suitable for wild mobile use and business trip use.
Support WIN10/ WIN8/WIN7 etc.

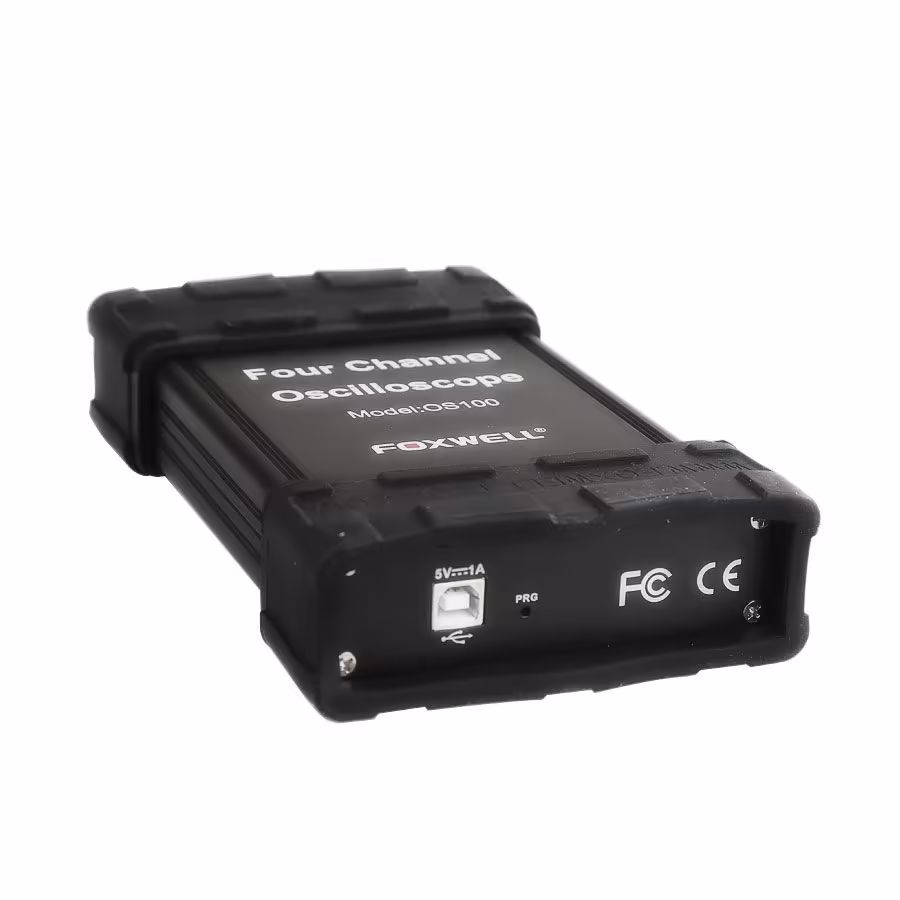

USB2.0 interface plug and play, and no need extra powers supply;
Great function, more than20 kinds of automatic measurement function, RASS/FAIL Check function. Resourceful trigger function, dynamic cursor tracking, waveform record and replay function.
Good mechanical design with small size is easy for carrying. The outercase is made by the same material with iPad- Anodised aluminum. It has great heat resistance and abrasive resistance with beautiful appearance. The hardness of aluminum alloy surface is greatly improved.
4 isolated channels, IGSa/s real time sampling rate, 2mV-10V/DIV high input sensitivity and large input range, 70MHz high band-width.
The waveform data could be output to EXCEL,BMR or JPG format.
Waveform averaging, afterglow, lightness control, reverse, add, subtract, multiply,,divide, X-Y display.
FFT spectrum analyzer
One computer could connect with multiple oscilloscopes, expand the channel number easily.
Provide secondary development library DLL; Provide Labview/VB/VC/QT developing examples.

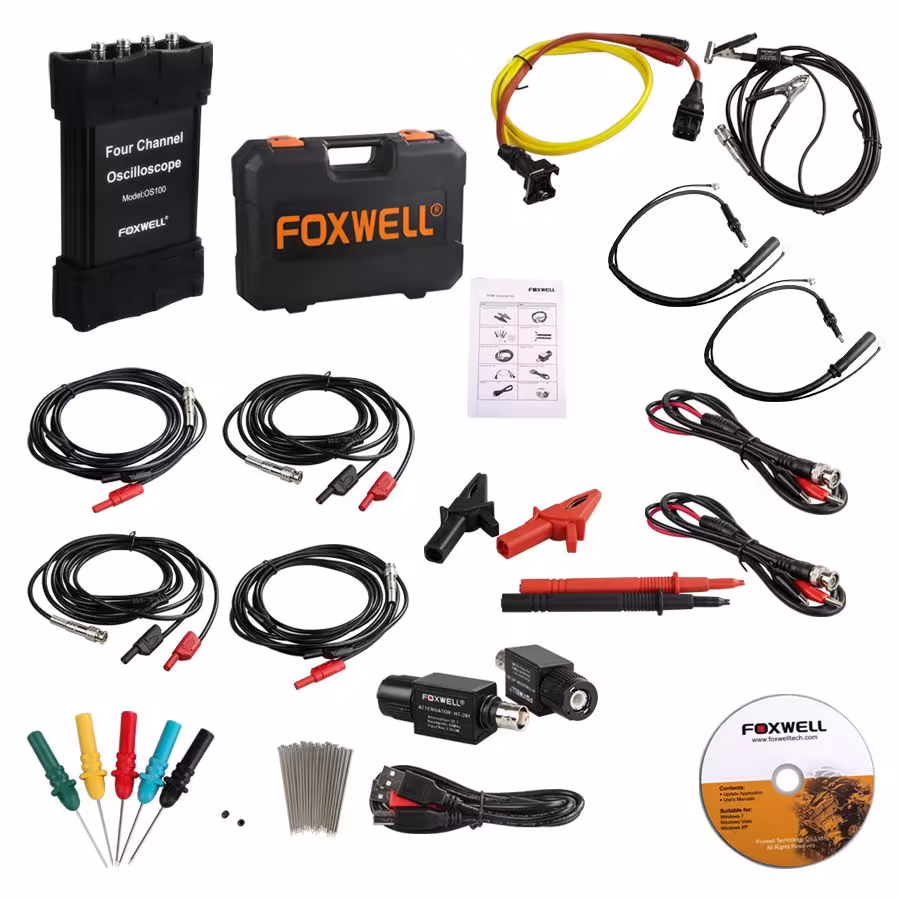

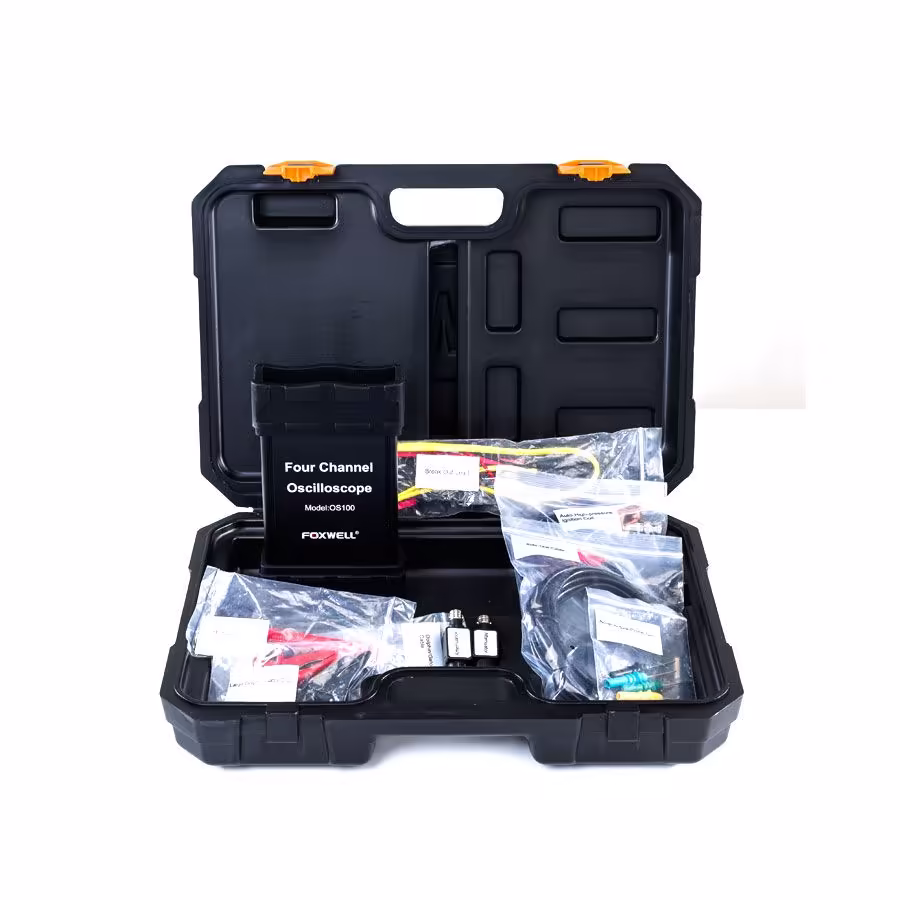

Package List:
1pc x OS100 Interface
2pc x large dolphin/Gator clip
1pc x Auto high-pressure ignition probe

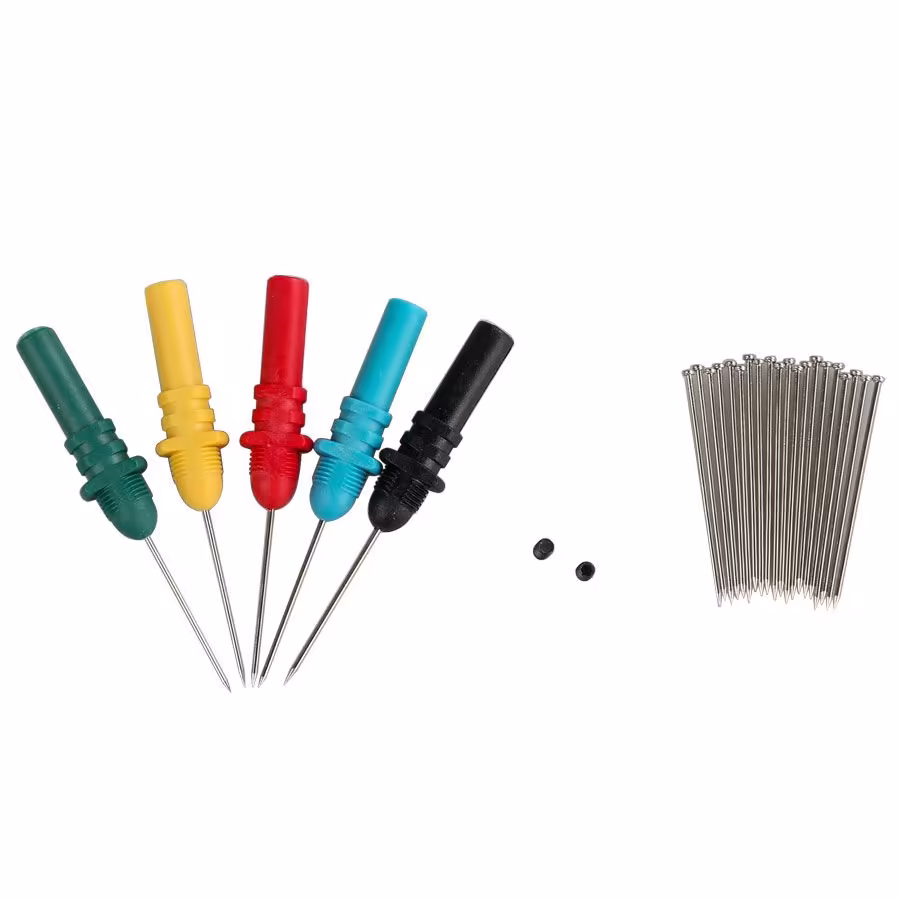

1pc x acupuncture probe set
2pc x Multimeter probe

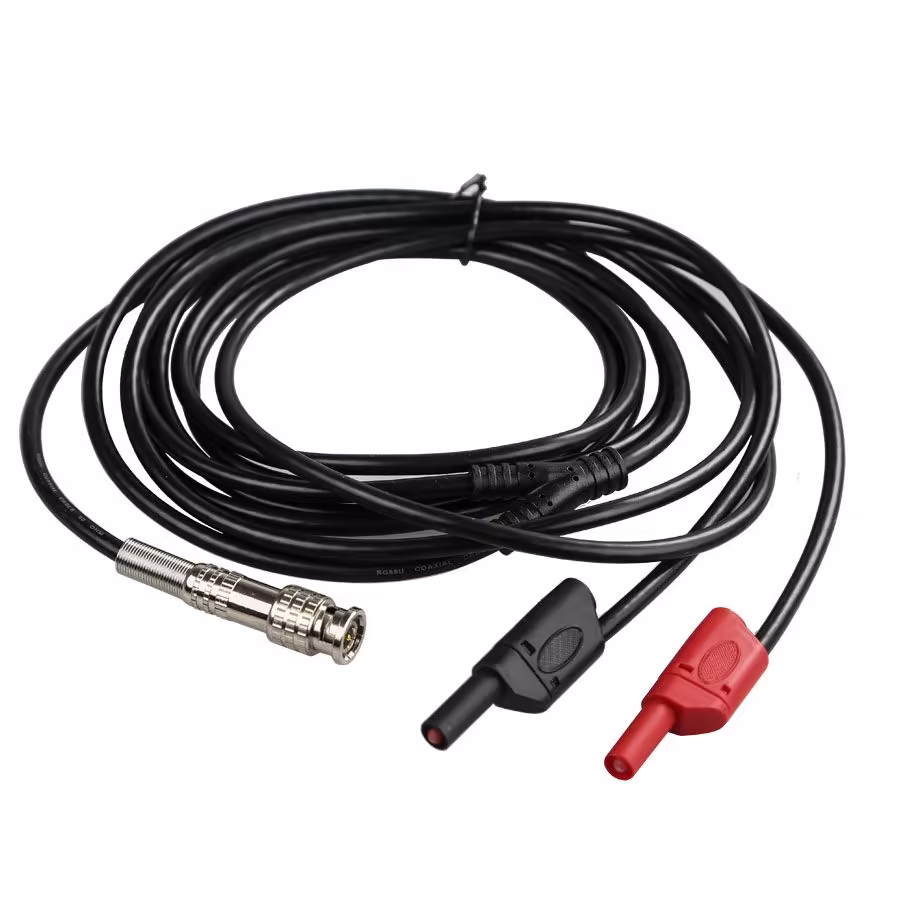

4pc x auto test cable
2pc x attenuator
1pc x Break out lead
2pc x Dolphin/Gator Clip cable
1pc USB cable
1pc Software installation CD
