vci diagnostic device

The Bluetooth Diagnostic Interface is a multi-brand device which comes with the MaxiSys tool kit.
It is designed to connect wirelessly with the MaxiSys Display Tablet, as well as standalone PCs, as a vehicle communication interface (VCI) for vehicle data transmission.

Autel Wireless Diagnostic Interface Bluetooth VCI Device for Maxisys Tool is a one of our vci diagnostic device Tools, you can buy Autel Wireless Diagnostic Interface Bluetooth VCI Device for Maxisys Tool from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of Autel Wireless Diagnostic Interface Bluetooth VCI Device for Maxisys Tool

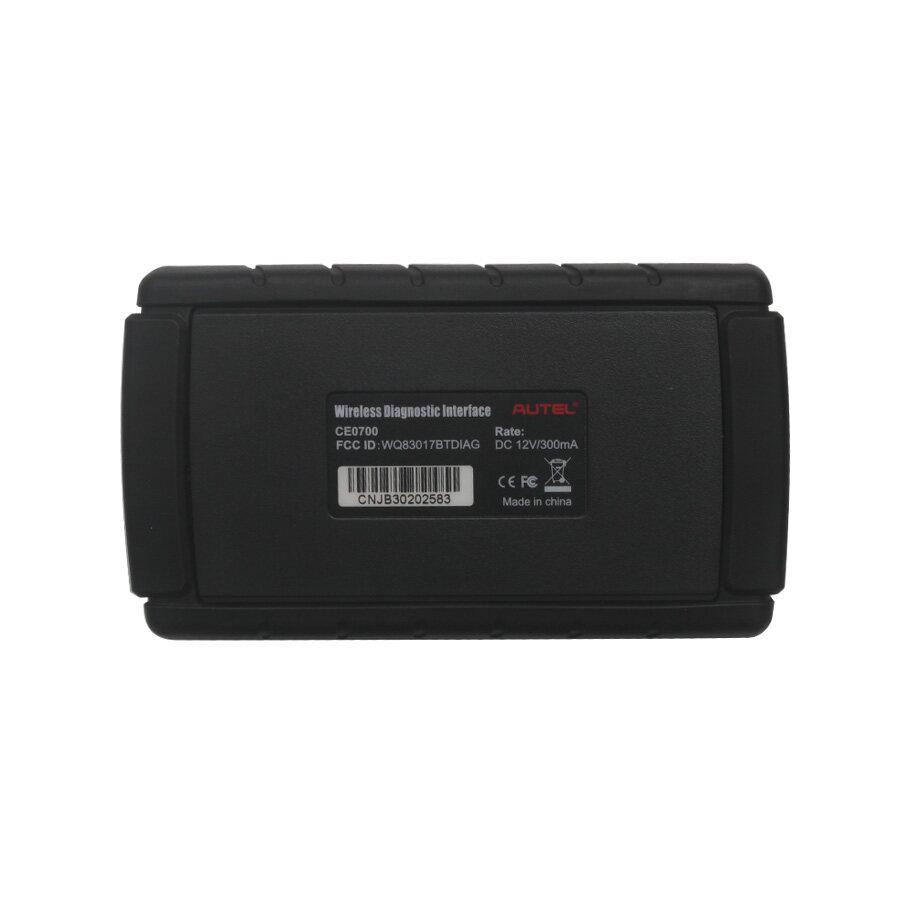

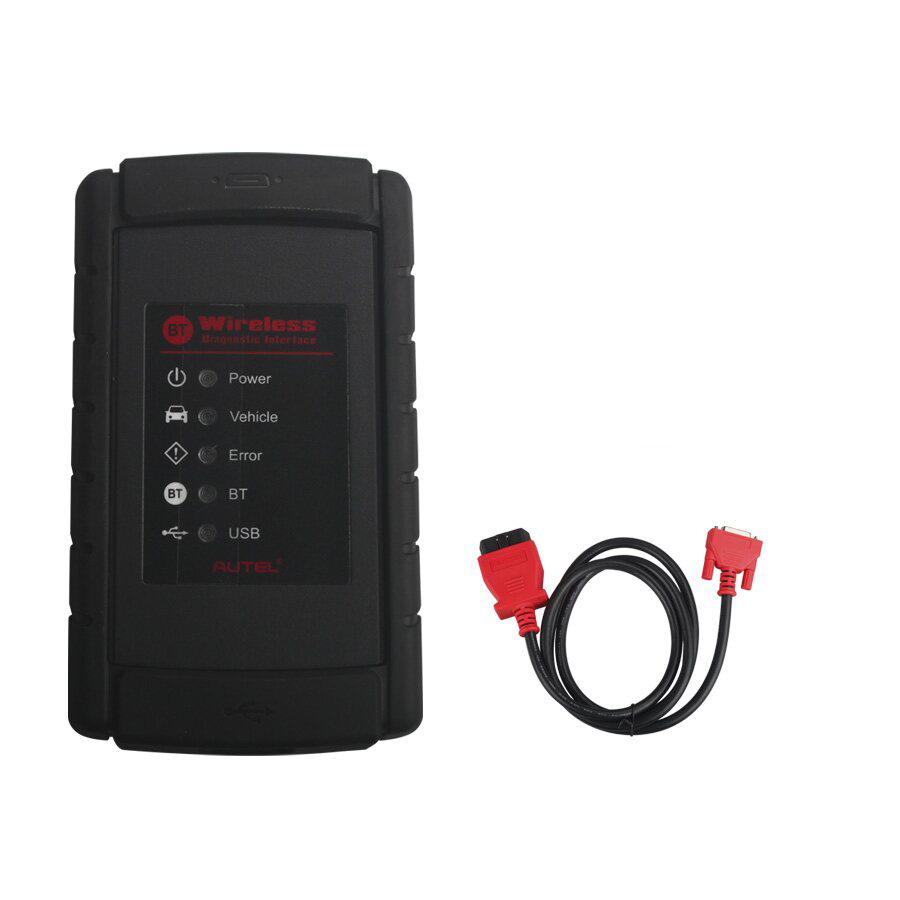

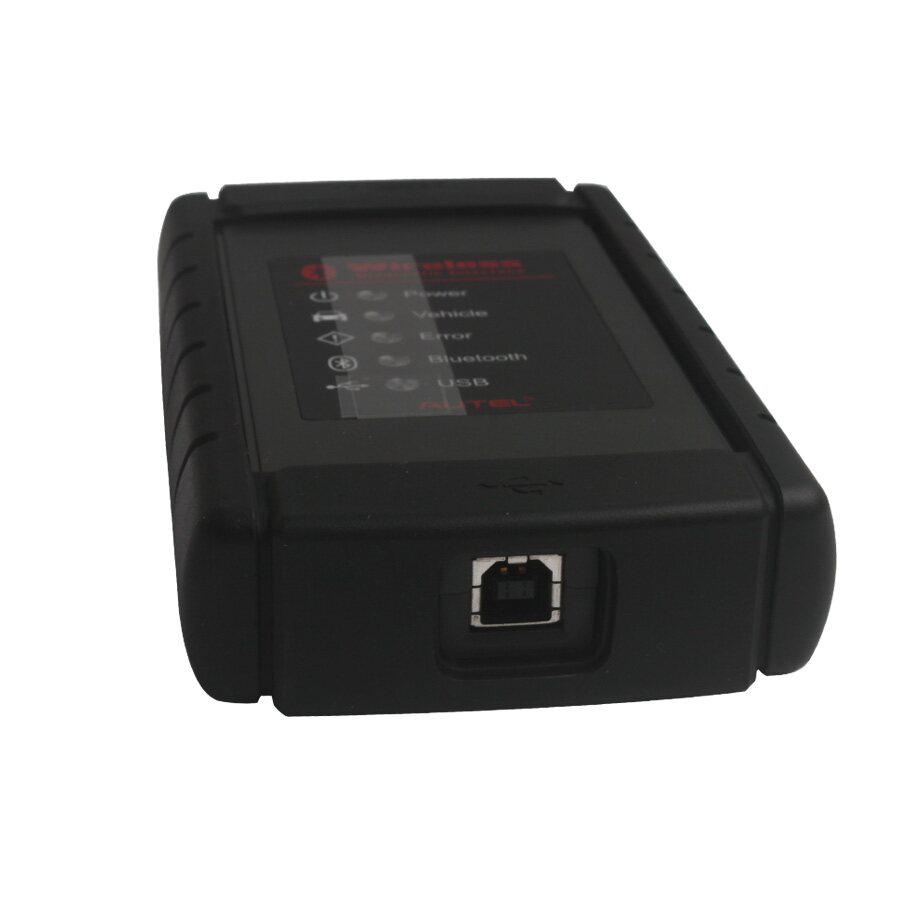

Autel Wireless Diagnostic Interface Bluetooth VCI Device for Maxisys Tool

• Thanks to the wireless Bluetooth technology, with which you are allowed to work freely around the vehicle.
• This interface device can communicate with vehicles’ electronic control units (ECUs), guaranteeing performance and speed that redefine multi-brand diagnostics.
• The development of this interface has been focused on reducing the communication time, and ensuring the tool is practical to use.

Reasons to Get Autel Wireless Diagnostic Interface

1. Supports comprehensive diagnosis and reading of control modules.
2. Designed to connect wirelessly with the MaxiSys Display Tablet, as well as standalone PCs via a USB 2.0 full-speed connection.
3. Features convenient wireless Bluetooth technology, which allows you to work freely around the vehicle.
4. Reduces the communication time, and guarantees performance and speed that redefine multi-brand diagnostics.5.
5. Support Update online.

Functions of Autel Wireless Diagnostic Interface

• Auto diagnostics to read and clear the error memory, to display system parameters and the status of the ECU;
• Activation, adjustments and configurations that are essential for ensuring a complete repair;
• Resetting the service lights or the airbag systems;
• Configuration of the ECUs, keys and remote controls, etc.

Specifications of Autel Wireless Diagnostic Interface

• Communications: Bluetooth V.2.1 + EDR/USB 2.0
• Wireless Frequency: 2.4 GHz
• Input Voltage Range: 12 VDC
• Supply Current: 200 mA @ 12 VDC
• Operating Temperature: 0°C to 50°C (ambient)
• Storage Temperature: -20°C to 70°C (ambient)
• Dimensions (L x W x H):147.5 mm (5.80”) x 85.5 mm (3.37”) x 29.0 mm (1.14”)

Package Including

• 1pcs x Autel Wireless Diagnostic Interface

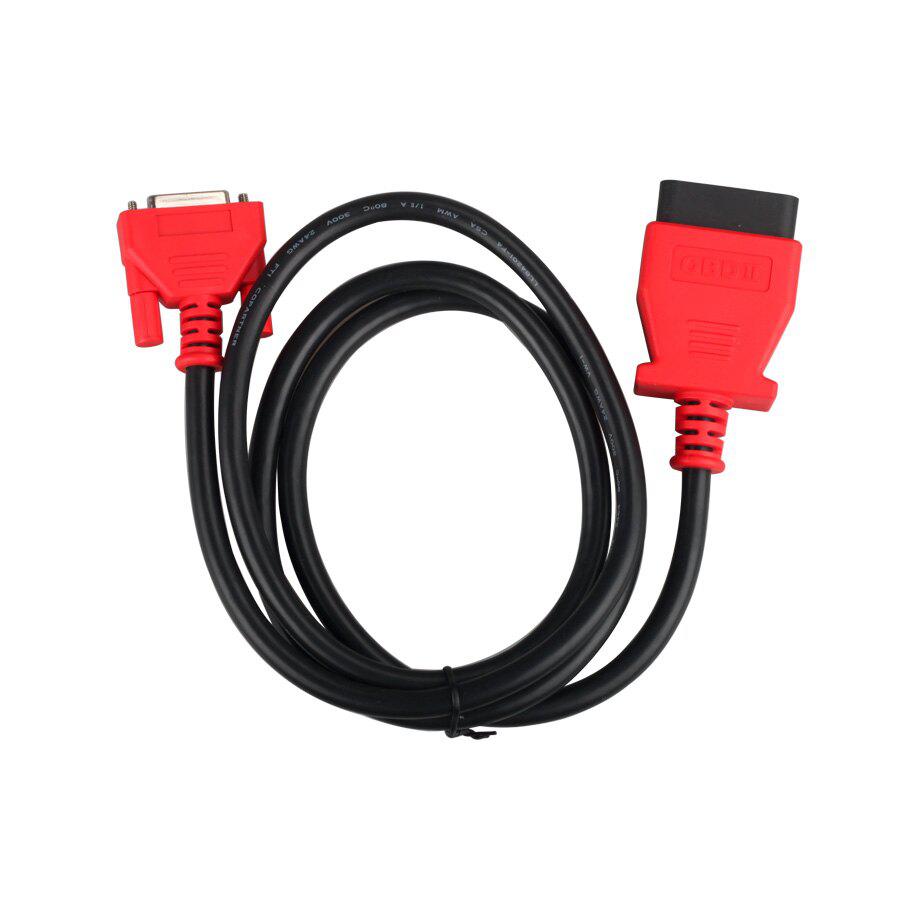

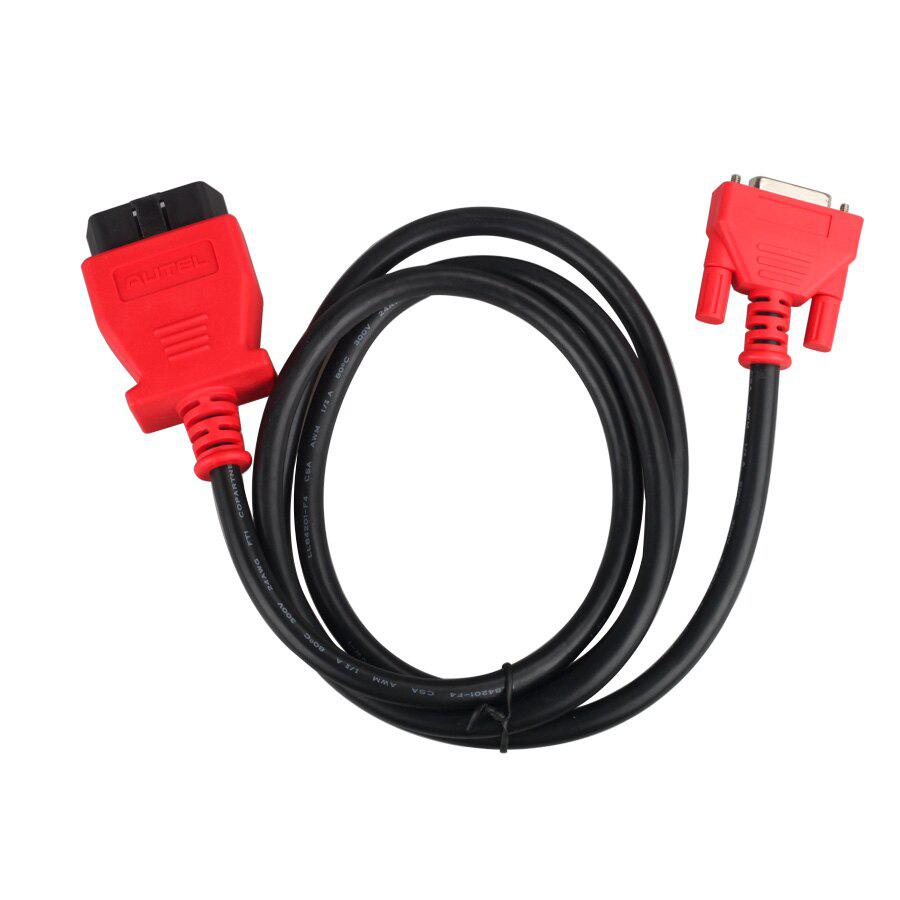

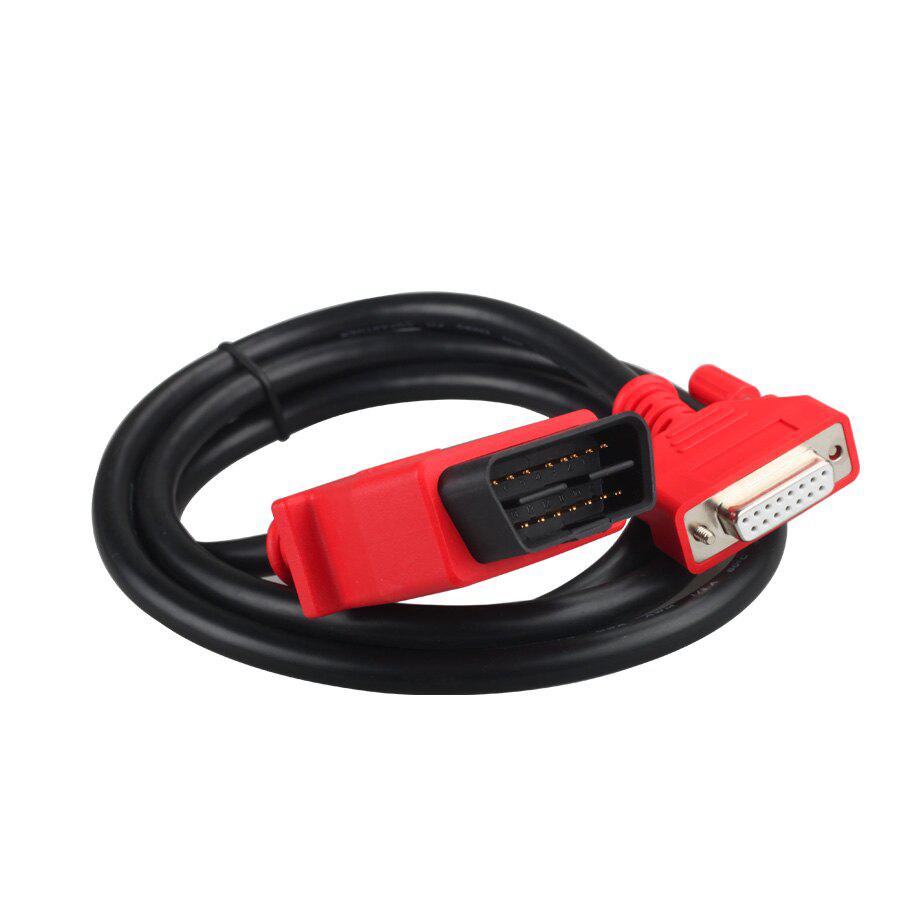

• 1pc x DB15 to OBD2 Cable
• 1pc x USB Cable
• 1pc x User's Manual

Go to Buy: Autel Wireless Diagnostic Interface Bluetooth VCI Device for Maxisys Tool
