CNC-602A is an advanced electromechanical product, which can clean and test injectors by simulating engine working conditions. It can also perform cleaning on the injectors and fuel supply system on vehicle.

Original CNC-602A injector cleaner & tester is a one of our launch scanner Tools, you can buy Original CNC-602A injector cleaner & tester from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

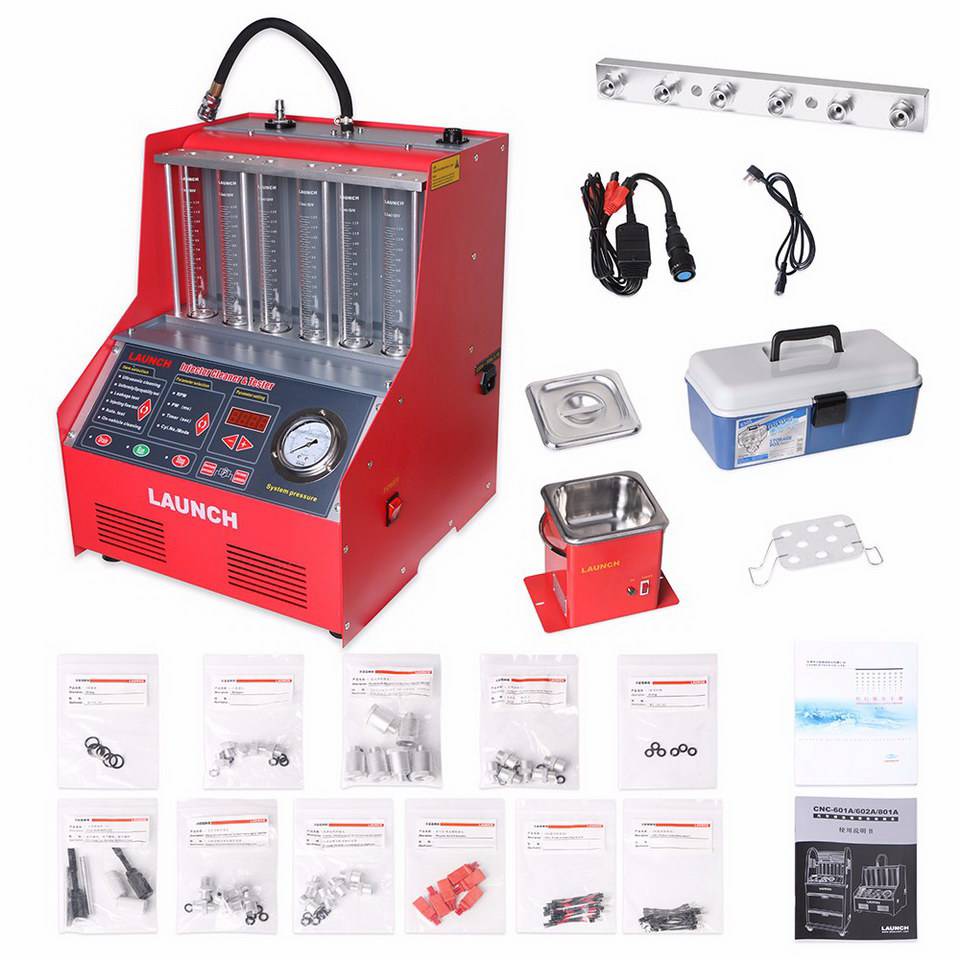

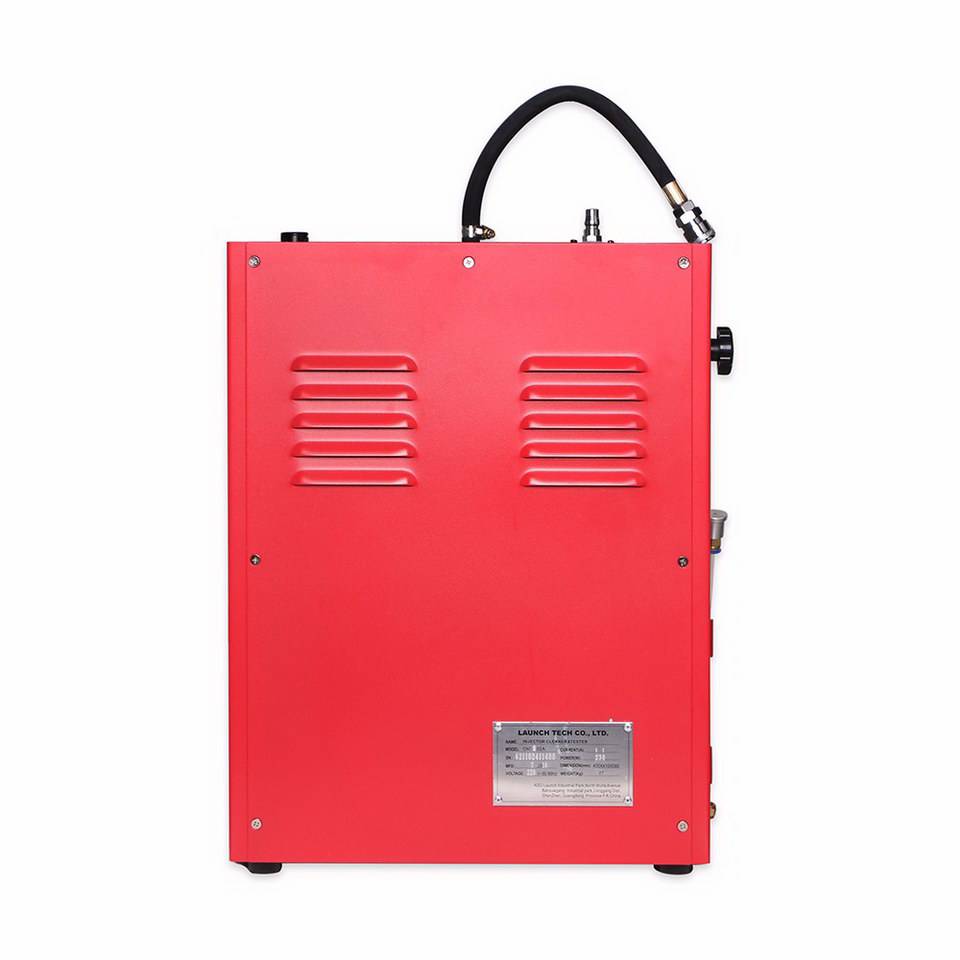

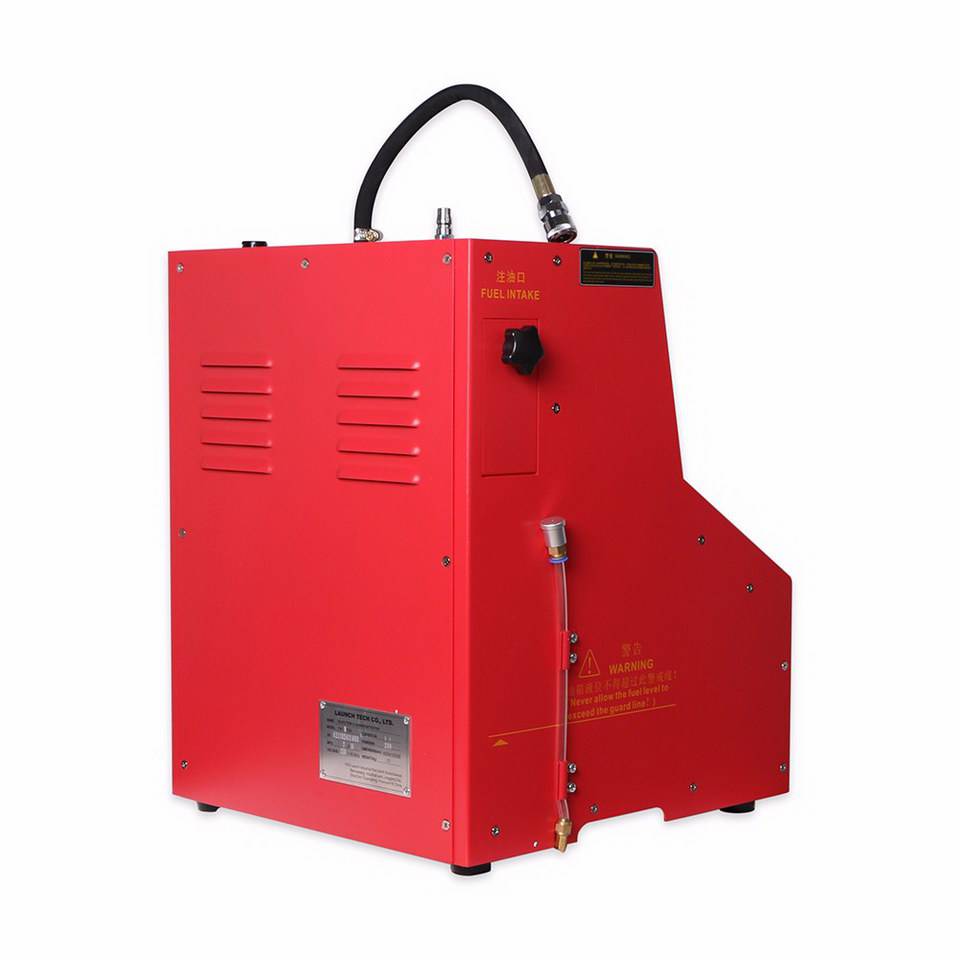

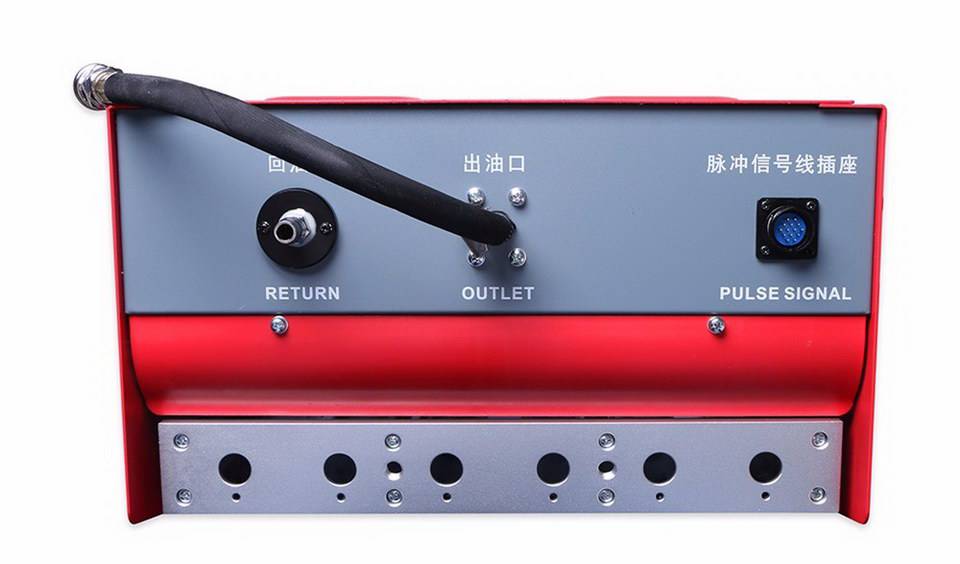

images of Original CNC-602A injector cleaner & tester

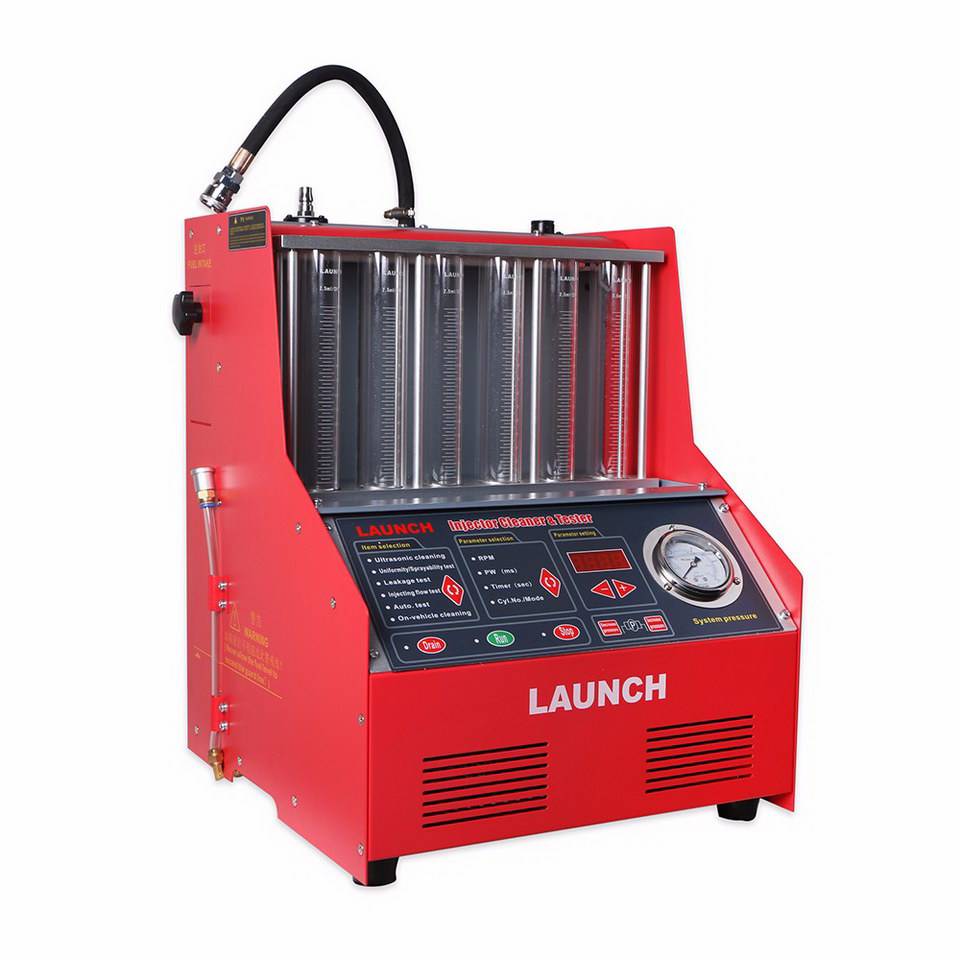

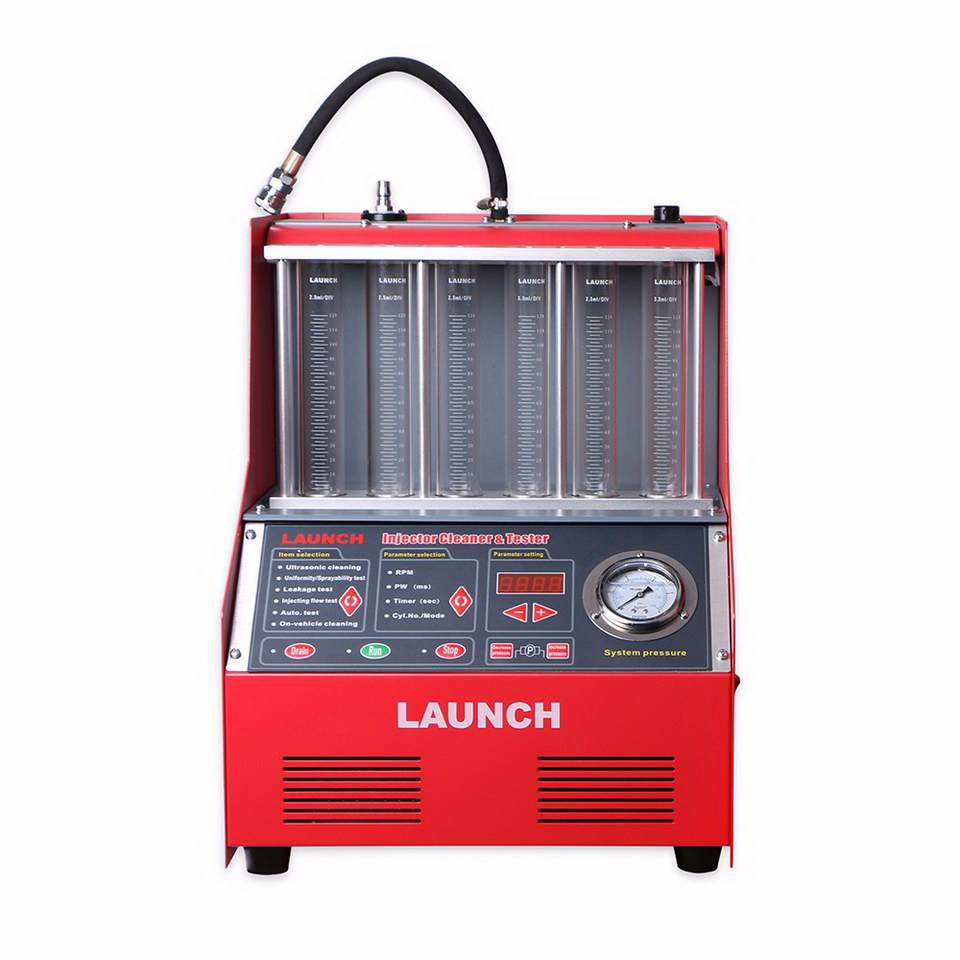

Original 220V/110V CNC-602A Injector Cleaner & Tester

Attention: We do not provide the Cleaning Fluid and Testing Liquid in the package because of the customs problem. you can buy them in your country

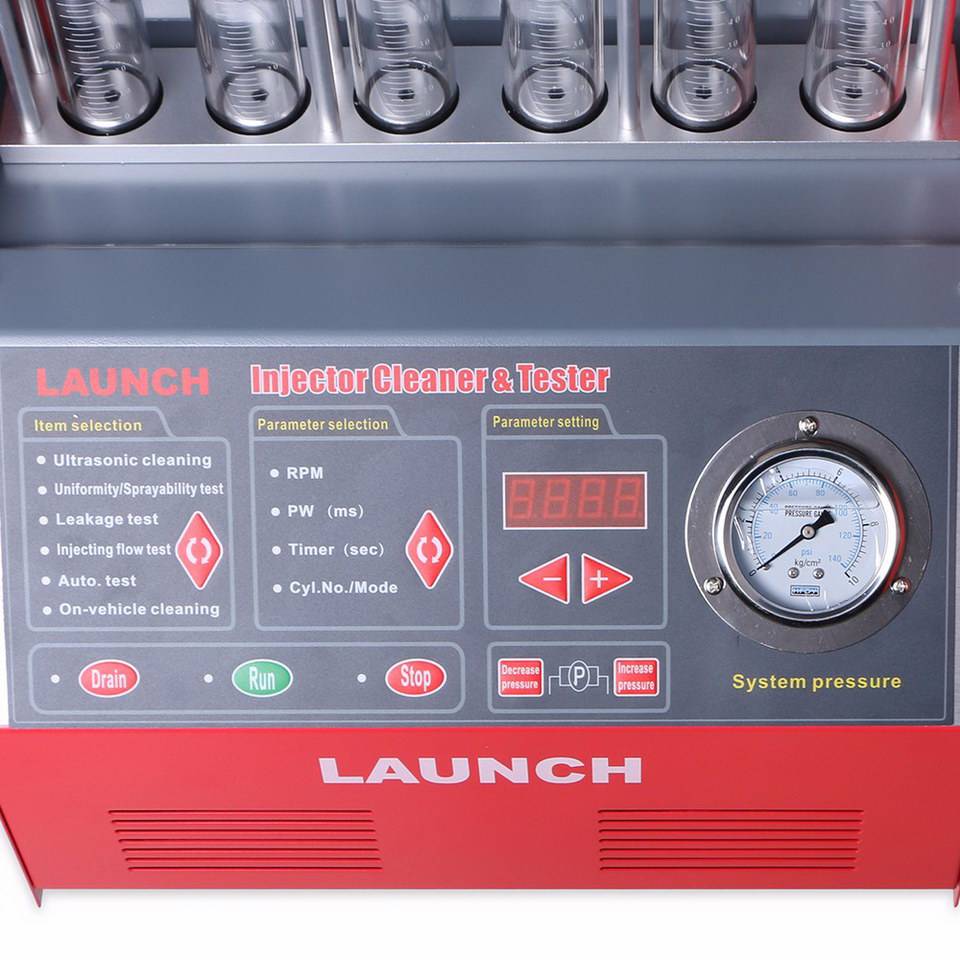

Function:

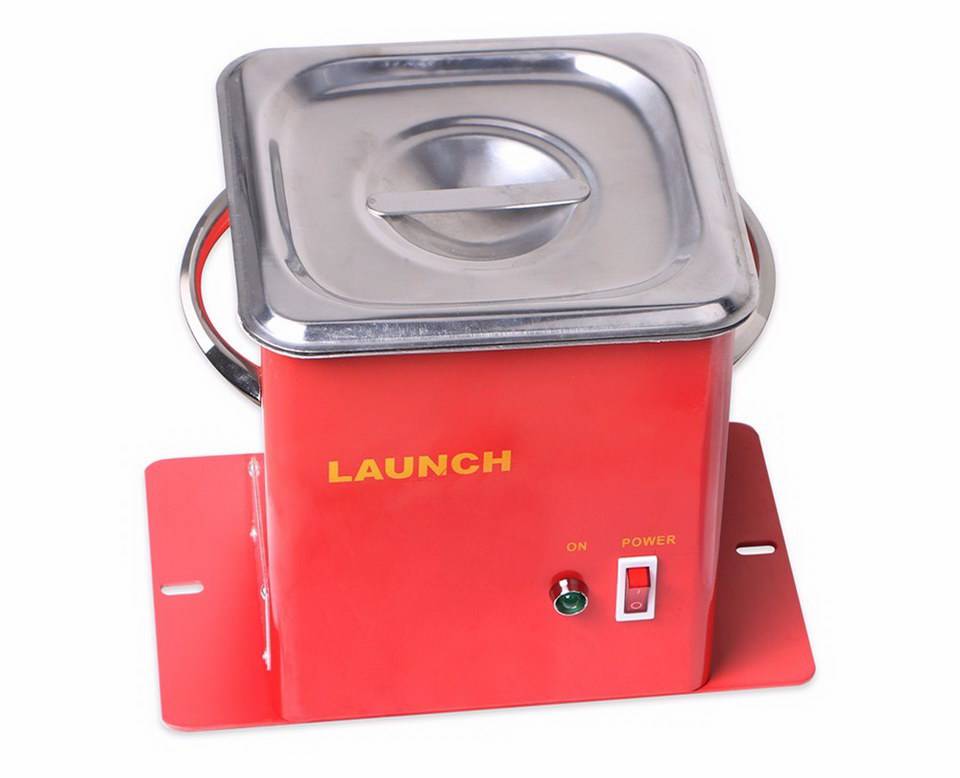

Ultrasonic cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

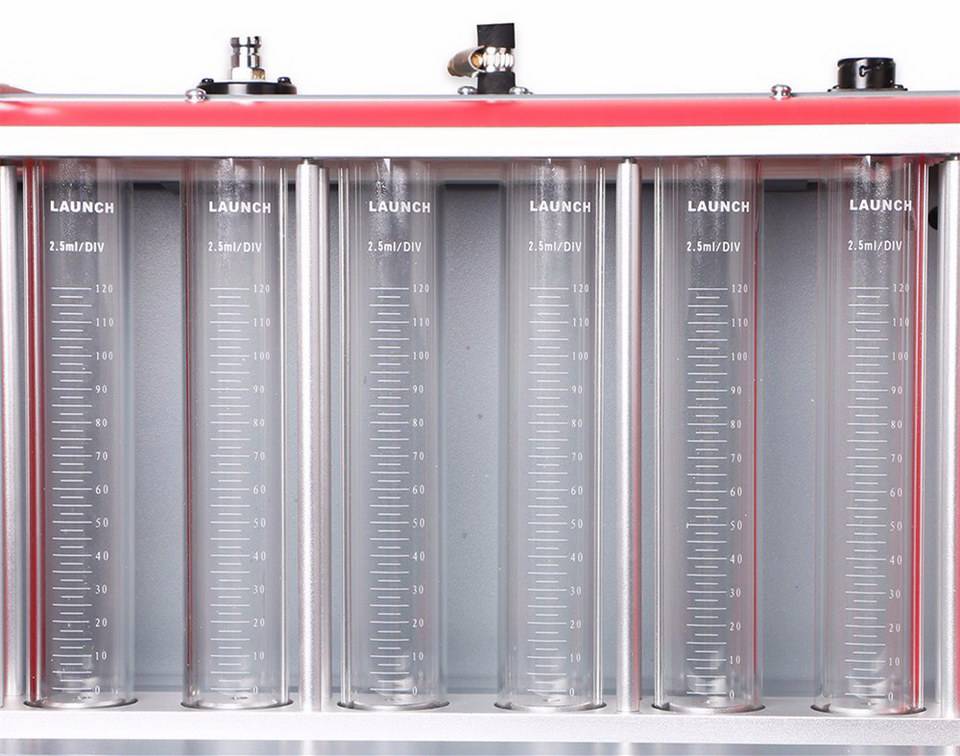

Uniformity/Sprayability test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.
Leakage test: To test the sealing and dribbling conditions of injectors under system pressure.
Injecting flow test: To check the injecting amount of the injector in 15 seconds of constant injection.
Auto. test: To test injectors by simulating different working conditions.

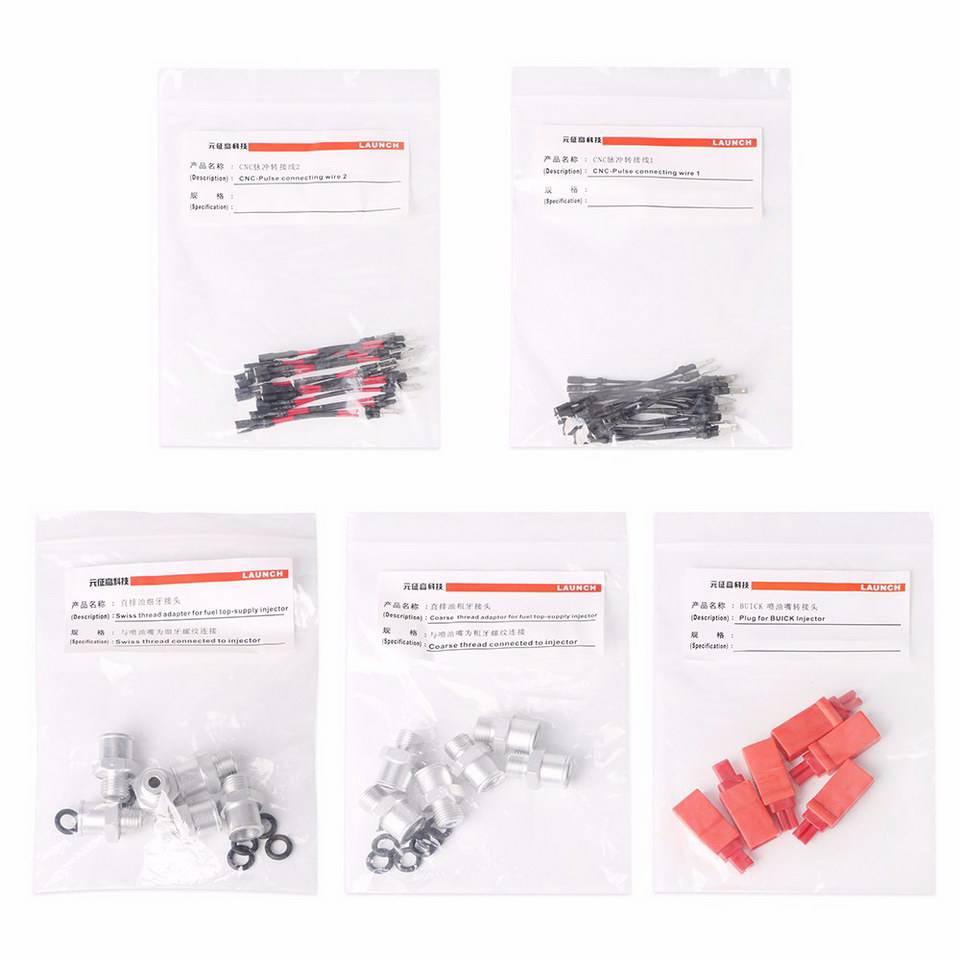

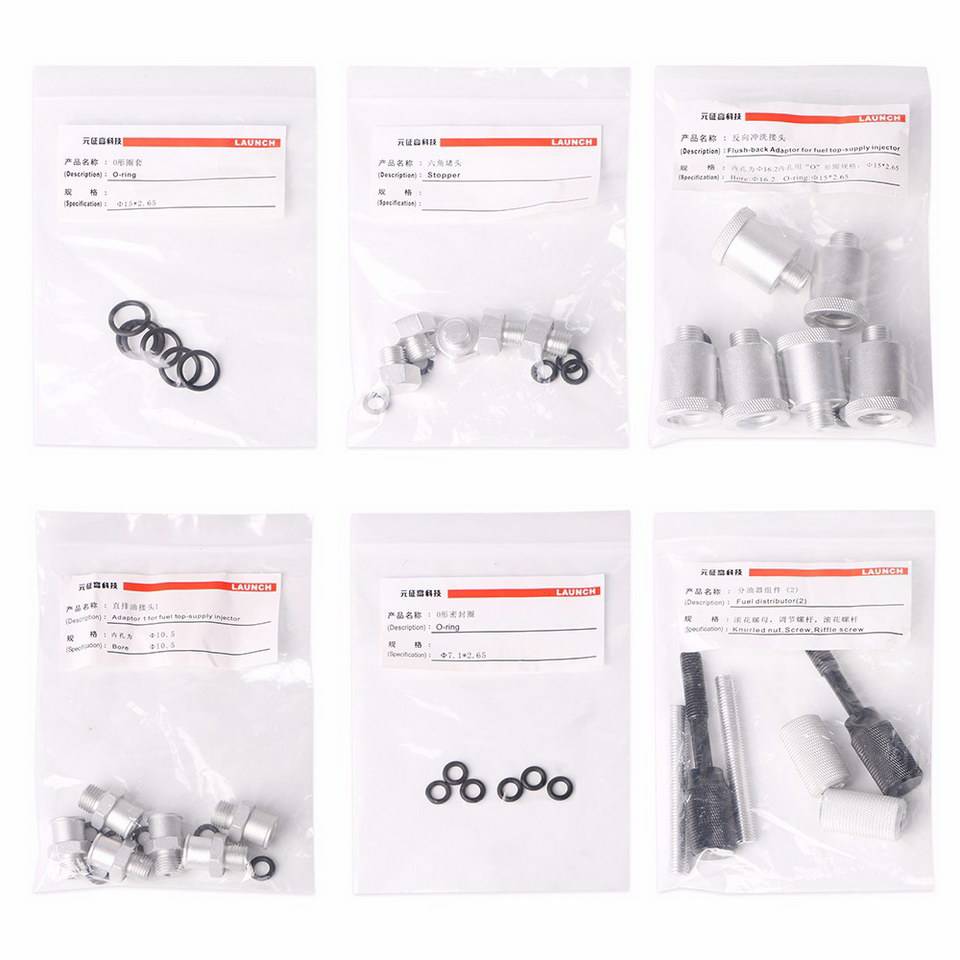

On-vehicle cleaning: The unit is equipped with various adaptors and couplers that facilitate cleaning on the injectors on vehicle.

Techenical Parameter:

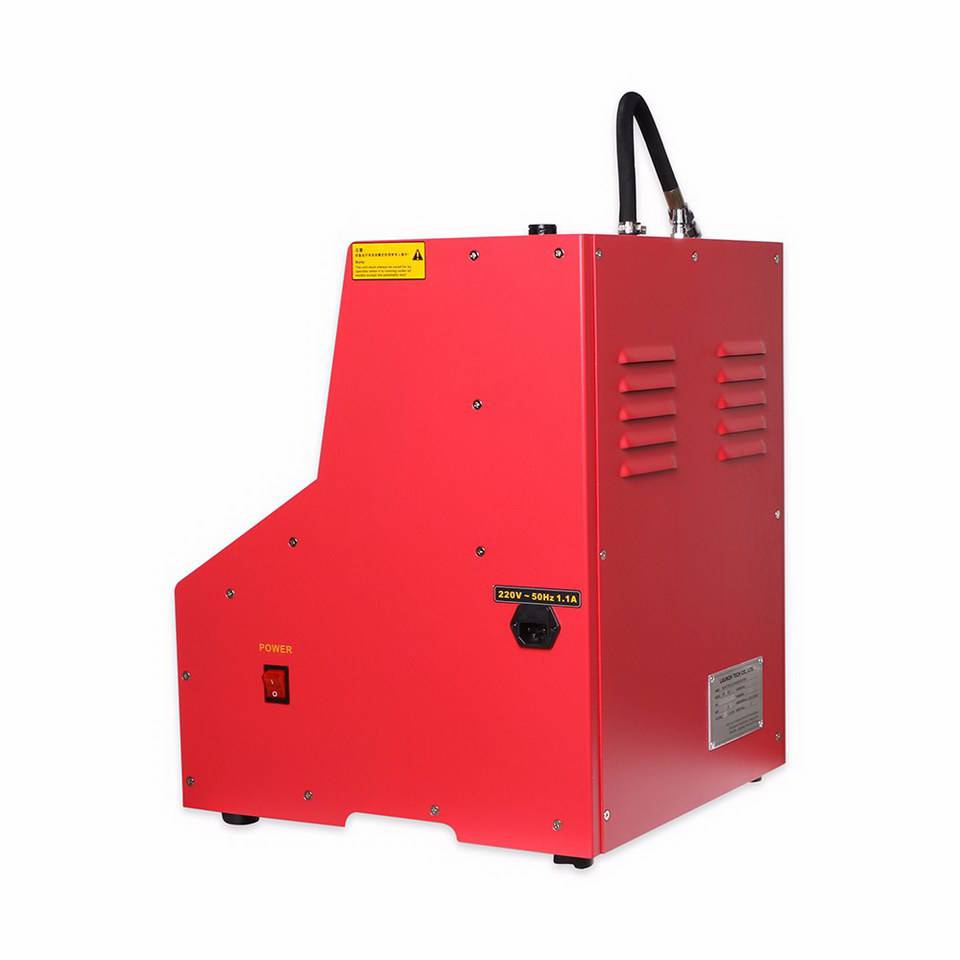

Power supply: AC220V±10%, 50/60Hz; AC110V±10%, 50/60Hz.
Input power: 250W;
Ultrasonic cleaner power: 100W;
Simulated RPM range: 10～9990rpm; step: 10rpm;
Time range: 1～9999s;
Pulse width: 0.5～25ms; step 0.1 ms;
Fuel tank capacity: 4700ml;
