9. ECU and TCU connect wires with pdf
11. Software can be download on official website: https://www.dfb-technology.com/
12. With the Latest firmware and updates. Use
full proof, and reliable.
13. FoxFlash ECU TCU Car List, or check driver list on dfb-technology, it is much easier to search than pdf
14. Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Romanian, Czech, Turkish
15. Please Check the FoxFlash Installation Instruction

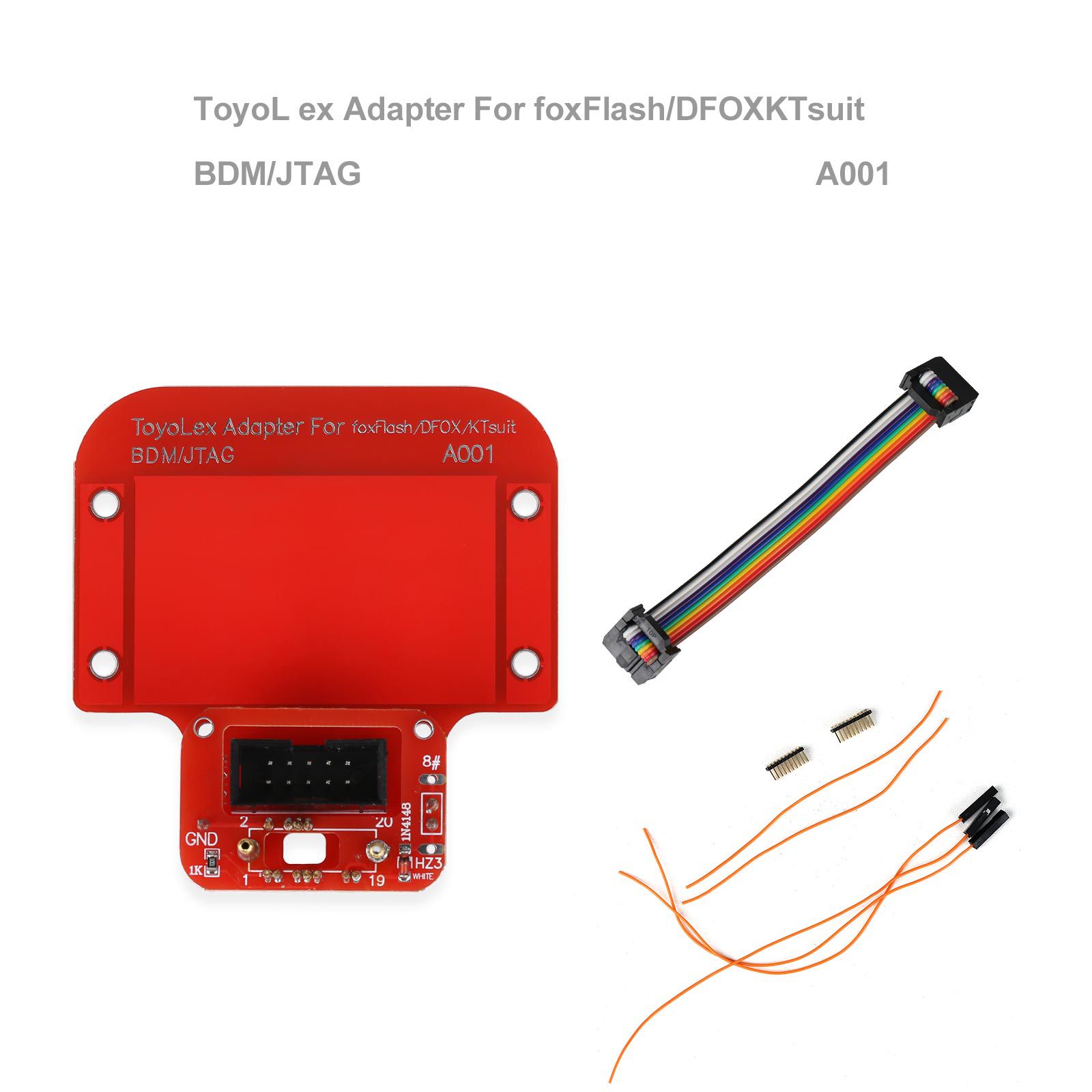

6. BDM mode: some of the ecu need read and write in bdm mode ,open the ecu and use ours adapter connect it
FoxFlash Support types:CAR
TRUCK
MOTORBIKE
TRACTOR
BOAT
Additional TCU package available for Automatic Transmissions.
FoxFlash Compatible Operating Systems:Windows 7
Windows 8/8.1
Windows 10
Windows 11
Recommended minimum requirements:
CPU > 2.5 GHz (Intel i5, i7)
RAM > 4GB
64 bits
FoxFlash Software Display:
FoxFlash Function List:ECU clone
TCU clone
Chiptuning
Stage1-stage4
Vmax off
Adblue and SCR off
DPF OFF
Flaps OFF
popbangs
gearbox data to adjust LC
sport display
dpf off
dtc off
GPF/OPF Removal
DPF Removal
EGR Removal
DTC Removal
ADBlue Removal
HOT Start Fix
Readiness Calibration
Flaps / Swirl Removal
TVA Removal
Sport Displays Calibration
Cold Start Noise Reduction
Kickdown Deactivation
StartStop Disable
MAF Removal
Speed Limiter Removal
Torque Monitoring Disable
Burbles Activation
Popcorn Activation
EVAP Removal
Exhaust Flap Removal
SAP Removal
AGS Removal
Lambda/O2 Removal
Launch Control
OBD Reading Protection
Boost Sensor Calibration
LC, AL and NLS for MED9.1
Checksum Fix
vmax, swirl off
restoring ECU or TCU factory setting service
VIN fix (EEPROM support checksum , so you can easy change VIN then write back )
Support Winols damaosAs we all know, winols damaos and A2L is very expensive ,we supply these to ours customer for free, so you can get it for chitpuning, dtc off, and so on.
Supported Control UnitsWe believe a control units list can be considered as a more safe approach to correctly target the overall tuning procedure due to the fact that a lot of brands offer identical car models & versions that share different Control Unit types.
Please note that foxFlash can help you select the right protocol with its auto-detection feature when identifying on most control units.
Support Vehicle Types: AUTO
CAMION
TRATTORI
MOTO
MARINE
BIKE
CAMBI AUTOMATICI
Multiple connection possibilities:EXA
MPLES OF CONNECTION IN FULL SYSTEM BOSCH / DELCO / DELPHI / DENSO / MARELLI / SIEMENS / CONTINENTAL / TEMIC

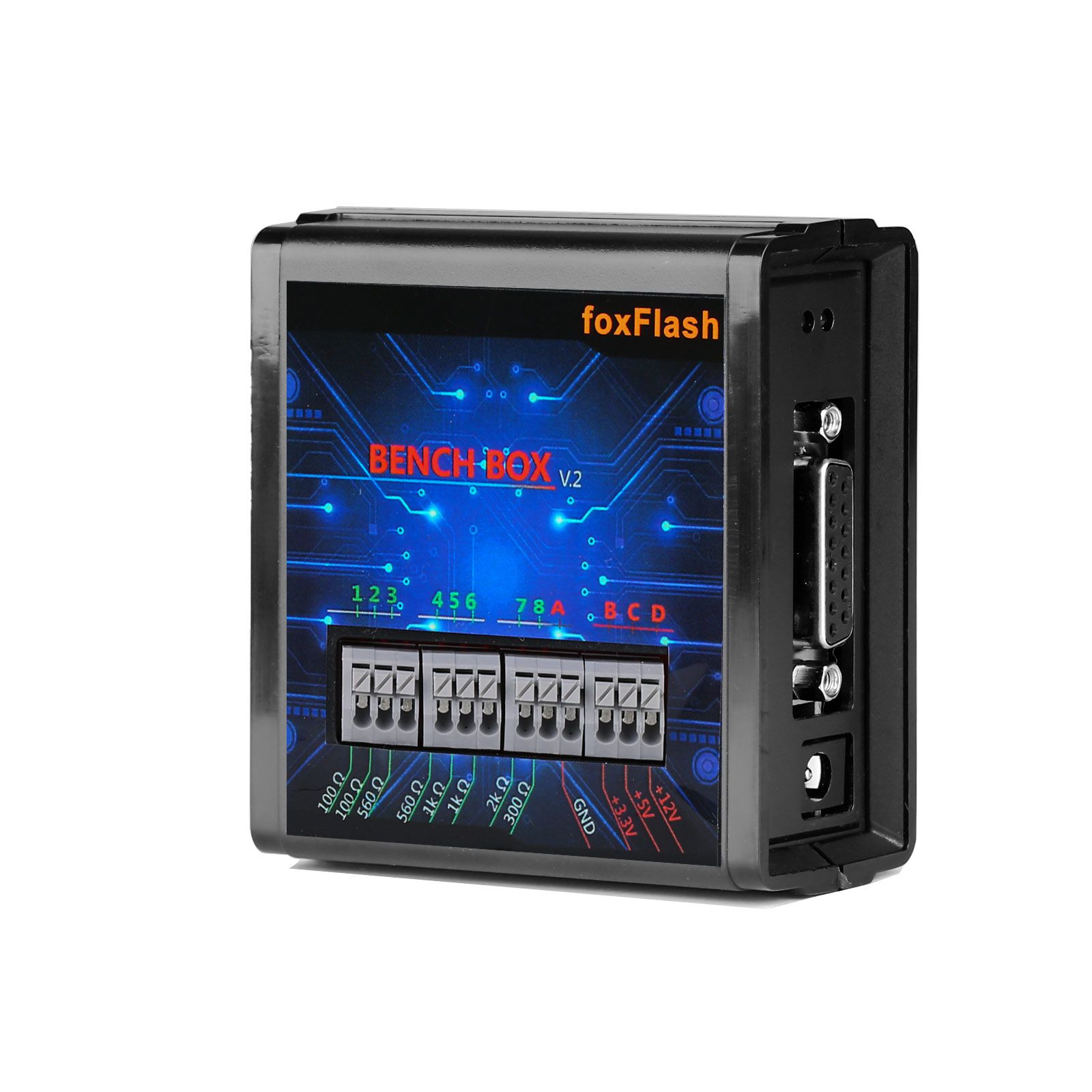

BENCH CONNECTIONBDM CONNECTION
JTAG CONNECTION
BOOT MODE CONNECTION
FoxFlash Update Information:December 26, 2023
foxFlash 1.3.9 Update:OBD VR file update:
MED17.5.25 DCM6.2A DCM6.2V DCM6.2C
PCR2.1 SIMOS18.1 EDC17C74
foxFlash Manager Update:FW update to D086
Notifications add
Checksum fix:Marelli 9DF
Marelli MJD602.M1 - 603.S3
Bosch EDC17CP44
September 25, 2023
Special customized version foxFlash Manager 1.3.6 verisonThe foxFlash team is proud to announce the 1.3.6 management software update, through which we will
1: Improve all VR databases.
2: Personal equipment customization.
3: Customize your brand tuning logo into the tool software.
4: Special personal beta version customization and testing.
5: Private tool VR database, exclusive VR model database.
6:Special personal VR data needs to be opened on the official website and contact us through the online chat tool to assist you in updating the individual VR file database.
Update method: Open foxFlash Manager software and it will automatically push the update. During this period, keep the USB connection of the device until the download is co
MPLeted and reinstalled, you will see a new function.
September 14, 2023
Update for checksum fix for mcu TC1766 TC1793 TC1797 TC1724F TC1767foxFlash is now able to perform the following operations:
software caculate checksum
On the following ECU reference:
Audi Bosch MED17.5 TC1766
Audi Bosch MED17.5.5 TC1766
Audi Bosch MED17.5.20 TC1766
Audi Temic VL381F TC1766
BMW Bosch EDC17C76 TC1793
Honda Bosch EDC17CP50 TC1797
Hyundai Bosch ME17.9.21.1 TC1724F
Jaguar Bosch MED17.9.7 TC1797
Kia Bosch ME17.9.21.1 TC1724F
Land Rover Bosch MED17.9.7 TC1797
Mercedes Bosch EDC17CP01 TC1796
Mercedes Bosch MED17.7.7 TC1793
Mercedes Bosch MED17.7.7 TC1797
Renault Bosch EDC17CP58 TC1767
Seat Bosch MED17.5 TC1766
Seat Bosch MED17.5.5 TC1766
Seat Bosch MED17.5.20 TC1766
Skoda Bosch MED17.5 TC1766
Skoda Bosch MED17.5 TC1766
Skoda Bosch MED17.5.5 TC1766
Skoda Bosch MED17.5.20 TC1766
TOYOTA Bosch EDC17C60 TC1793
Volkswagen (
VW) Bosch ME17.5.6 TC1766
Volkswagen (
VW) Bosch MED17.5 TC1766
Volkswagen (
VW) Bosch MED17.5.5 TC1766
Volkswagen (VW) Bosch MED17.5.20 TC1766
September 06, 2023 update
BMW MINI BENCH BOOT READ&WRITE BMW Install Bosch MEVD17.2.7 Bench read/write
foxFlash is now able to perform the following operations:
Bench Read
Bench Write
Boot Read
Boot Write
On the following ECU reference:
Bosch MEVD17.2.7
BMW Bosch MEVD17.2.7 BENCH BOOT
Citroen Bosch MEVD17.2.7 BENCH BOOT
Mini Bosch MEVD17.2.7 BENCH BOOT
Peugeot Bosch MEVD17.2.7 BENCH BOOT
Update method: Click the download button in foxFlash manager till all file donwloading is completed.
May 23, 2023 updateBench/Boot protocol for Isuzu EDC17C83.May can't get any better as we release a new exclusive protocol today! In this update, you'll find the BENCH protocol for Isuzu EDC17C83.
Supported Control Units & VehiclesECU:
Bosch EDC17C83 TC1793
Supported Vehicles:Isuzu Dmax 2017-2022 1.9D 164cv
Isuzu Dmax Rodeo 2017-2022 1.9D 164cv
Isuzu M21 2017-2022 1.9D 123cv
BENCH read is real.
R/W time: ~6 minutes at first programming, then ~ 30s.
ATTENTION: Some of the latest vehicles might have a secure gateway.
Update method: Run the foxFlash Manager software, and click the download button till all is done.
Mar.14, 2023FoxFlash is now able to perform the following operations:Boot Read
Boot Write
On the following ECU reference:
Continental GPEC2 GPEC3 GPEC4LM GPEC2A
Chrysler 200 Continental GPEC3 BOOT
Chrysler 300 mk2 Continental GPEC2A BOOT
Chrysler Aspen Continental GPEC2A BOOT
Chrysler Grand VojagerContinental GPEC2A BOOT
Chrysler Town & CountryContinental GPEC2A BOOT
Dodge Avenger Continental GPEC2A BOOT
Dodge ChallengerContinental GPEC2A BOOT
Dodge Charger Continental GPEC2A BOOT
Dodge Dart Continental GPEC3 BOOT
Dodge Durango Continental GPEC2A BOOT
Fiat Tipo Continental GPEC4LM BOOT
Fiat Toro Continental GPEC3 BOOT
Fiat Toro Continental GPEC4LM BOOT
Fiat 500X Continental GPEC3 BOOT
Fiat 500X Continental GPEC4LM BOOT
JeepCherokee Continental GPEC3 BOOT
JeepCherokee Continental GPEC4 BOOT
JeepCompass Continental GPEC3 BOOT
JeepCherokee Continental GPEC4LM BOOT
JeepGladiator Continental GPEC2A BOOT
JeepGran Commander Continental GPEC4 BOOT
JeepRenegadeContinental GPEC3 BOOT
JeepWrangler Continental GPEC4 BOOT
Update method: Run the foxFlash Manager software, and click the download button till all is done
Mar.3, 2023FoxFlash ECU Tool Ducati Update: install Bosch ME17.9.21 can easy Read and Write now.
FoxFlash is now able to perform the following operations:
- Bench Read
- Bench Write
- Boot Read
- Boot Write
On the following ECU:
Vehicles concerned:
Support BENCH and BOOT option
Update method: Run the foxFlash Manager software, and click the download button till all is done.
Feb.25, 2023FoxFlash ECU Tool Update Protocols for Porsche PDK, Easy to read and write Porsche PDK gearbox now.
BOOT
Porsche 911.2 Siemens PDK4000
Porsche 918 Siemens PDK3000
Porsche 918 Siemens PDK4000
Porsche Boxster 718 Siemens PDK3000
Porsche Boxster 981 Siemens PDK4000
Porsche Carrera 991 Siemens PDK3000
Porsche Carrera 991 Siemens PDK4000
Porsche Cayman Siemens PDK4000
Porsche Macan Siemens PDK3000
Porsche Macan Siemens PDK4000
Porsche Panamera Siemens PDK3000
Porsche Panamera Siemens PDK4000
Reading & Writing Time
Read: 12 minutes and 36 seconds
Write: 6 minutes and 18 seconds
How to update FoxFlash ECU Tool with latest version?:
Run the foxFlash manager, click the donwload button till everything done. a
January 27, 2023FoxFlash is now able to perform the
TOYOTA Denso Gen1 (76F00xx) OBD read/write
FoxFlash is now able to perform the following operations:
On the following ECU reference:
Denso Gen1 (76F00xx)
- Hino 4.0 VVT-i 147ch
- Lexus/TOYOTA 2.5 205ch
- Lexus 200H (1.8 E-CVT) 99ch
- Lexus 220d 177ch
- Lexus 250 (GSE20) 200ch
- Lexus 300 (3.0 V6) 204ch
- Lexus 330 (3.3 V6) 230ch
- Lexus 350 (3.5i V6) 275/300ch
- Lexus 400h (3.3i V6) 272ch
- Lexus 430 290ch
- Lexus 450h (3.5i V6) 292/299ch
- Lexus 460h (4.6 V8) 247ch
- Lexus 600h (5.0 V8) 394ch
- Toyota 1.0 (1KR-DE) 64ch
- Toyota 1.3 VVT-i 87/100ch
- Toyota 1.6 VVT-i 132ch
- Toyota 1.8 VVT-i HSD/TS 99/129/133ch
- Toyota 2.0 (1AZFE) 145ch
- Toyota 2.0 D4-D 116/126ch
- Toyota 2.0 DOHC 16v 156ch
- Toyota 2.0i 150ch
- Toyota 2.2 D4-D 136/150/177ch
- Toyota 2.4 (2AZFE) 160ch
- Toyota 2.5 205ch
- Toyota 2.5 D4-D 101/125/144/150ch
- Toyota 2.7i 161/188ch
- Toyota 3.0 D4-D 172ch
- Toyota 3.5 (2GRFE) 270ch
- Toyota 3.5i V6 266ch
- Toyota 4.0 V6 239/249/260/273ch
- Toyota 4.3 VVT-i 300ch
- Toyota 4.5 D4-D 272ch
- Toyota 4.5 V8 D4-D 198ch
- Toyota 4.6i VVT-i D-45 314ch
- Toyota 4.7 V8 280/288ch
- Toyota 5.0 VVT-i 295ch
- Toyota 5.7i VVT-i D-45 286ch
- Lexus GS 300
- Lexus GS 350
- Lexus IS-F
- Toyota Prius
- Toyota RAV 4
- Toyota Sequoia
- Toyota Tacoma
- Toyota Tundra
- Toyota Verso
- Toyota Auris
- Toyota Auris
- Toyota Avensis
- Toyota Camry
- Toyota Corolla (Verso)
- Toyota Crown
- Toyota Dyna
- Toyota Estima
- Toyota FJ Cruiser
- Toyota Fortuner
- Toyota Hilux
- Toyota Land Cruiser
- Toyota Mark X
- Toyota Optimo
ECU UPDATE New Protocols for Bentley Skoda (BOSCH )
Today we added multiple protocols for Bentley, Skoda, Honda, Volvo, etc. More info on supported ECUs and cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BENCH /BOOT/OBD
BOSCH
BAIC Bosch ME17.8.8 TC1728: Senova x25 1.5 VTI (2016), Senova X35 1.5 VTI (2016) , BJ20 1.5 VTI (2016)(BOOT)
Honda Bosch ME17.9.55 TC1724: City/Jazz/BRIO/FIT 1.2L i-VTEC (2014)(BOOT)
Mahindra Bosch EDC17C53 TC1767: XUV500 2.2 CRD (2014)(BENCH BOOT)
Bentley Bosch MG1CS163 TC298: Continental GT W12 6.0 (2018)(BENCH)
Volvo Bosch EDC16C34 MPC562: V70/S80 1.6D (2010)(OBD BENCH JTAG)
Skoda Bosch MED17.1.27: Fabia 1.0 TSI (2017)(OBD BENCH BOOT)
Bentley Bosch MED17.1.62: Bentayga W12 6.0 (2016)(BENCH BOOT)
BMW MSV90 Protocols BOOT Mode
This time it is for BMW cars with Siemens MSV90 TC1796 ECU. More info on supported cars can be found below.
SUPPORTED CONTROL UNITS & VEHICLES
BOOT
SIEMENS
MSV90 TC1796
CARS:
BMW 5 Series F10 – 530i N53B30A/N52B30B
BMW 5 Series F11 – 530i N53B30A/N52B30B
BMW 7 Series F01 – 730Li N52B30A/N52B30B
BMW 7 Series F02 – 730Li N52B30A/N52B30B
BMW X3 Series F25 – 28i xDrive N52B30A/N52B30B
Delphi DCM6.2AP DCM6.2A DCM6.2C DCM6.2V
FoxFlash is now able to perform the following operations:
DCM6.2A/C/V
OBD Read
OBD Write
JTAG_BOOT
DCM6.2APJTAG_BOOTOn the following ECU reference:
Hyundai
Audi
Citroen
Fiat
Kia
MAN
Peugeot
VW
Toyota
Ssangyong
January 26, 2023
FoxFlash Can Support AUDI VW Group TCU DQ250C/E/F OBD virtual read/write-BENCH Read&Write
FoxFlash is now able to perform the following operations:
OBD Virtual Read
OBD Write
BENCH Read
BENCH Write
On the following TCUs:
Temic DQ250C
Temic DQ250E
Temic DQ250F
Vehicles concerned:
AUDI/SKODA/VAG 2.0 TSI/TFSI
AUDI/SKODA/VAG 2.0 TDI CR
January 20, 2023– BENCH MODE BY PROCESSOR INFINEON TRICORE TC1782
With this update you will be able to fully read and write the following ECUs directly
From pinout without having to open them:
– VAG GROUP VW-AUDI-SEAT-SKODA: MED17.5.21, MED17.5.25
–
FORD: MED17.0.7
– NISSAN: EDC17 C84
– RENAULT: ME17.9.20, EDC17 C84
– TOYOTA: MED17.9.52, EDC17 C47
January 16, 2023EXTRACT PASSWORD FROM FILE – NEW DRIVERS TO EXTRACT PASSWORDS FROM FILES
New utilities useful for extracting the password by loading a Tricore processor file.
As of now, the software will also save the tricore password locally for each Tricore processor reading.
FULL SYSTEM FOR TCU TEMIC 6T50 OPEL, CHEVROLET– Complete reading and writing of Micro,
– Complete reading and writing of EEPROM,
– Cloning
– RIVERGIN function
