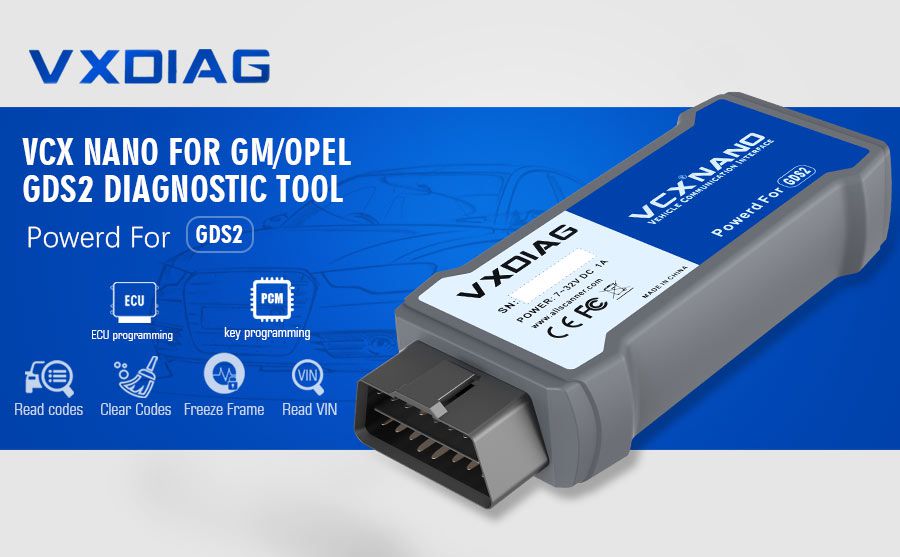

VCX NANO

Highlights:

1. Support GM Tech2Win and GDS2, perfectly replace GM MDI and GM MDI2.
2. Compatible with applications that diagnose engines, transmissions, ABS, instrument panels and more
3. Mixed fleet capabilities with broad protocol support
4. Quick access to vehicle data for maintenance or management reports
5. Quickly attaches to vehicle's diagnostic connector
6. Supports GM Online Programming if you have the online account
7. Support GM vehicle from year 2000 to 2022
8. Software Free Update by Link, Firmware Free Update Online
Software Version:
GDS2 V2022.05
Tech2WIN 16.02.24
9. Support Language:
GM GDS2 Languages: English, Spanish, French, Italian, Portuguese, Netherlands, Russian, Arabic, Japanese, Chinese, Vietnamese
GM Tech2win language: English
10. With USB Disk in Package containing latest Software.

Notice:
Only GDS2 supports Opel and Saab. Tech2Win DOESN'T support Opel and Saab (2000-2010). Can't work on Holden.

VXDIAG VCX NANO for GM/OPEL Features:

* Fully compatible with SAE-J2534-1 & SAE-J2534-2

* USB Vehicle-to-PC connectivity (Check: VXDIAG VCX NANO for GM/OPEL WIFI Version)

* All current and most legacy vehicle protocols: CAN, UART, KW2000, Class2, GM LAN, etc.

* CE and FCC compliance for hardware

* Firmware Updatable

* Support PC-based diagnostics with rollout of the Global Diagnostic System GDS & GDS2

* Support GM TIS2WEB online Service Programming System (SPS)

* Support Tech2Win application to offering a larger screen with all of the Tech 2 tool functionality

Global Diagnostic System (GDS & GDS2)

* New Diagnostic Application Software required for all GM Global Architecture (Global A) Vehicles.

* GDS & GDS2 is software which runs on a specific PC. Updates received via TIS2Web.

VCX Nano GM Kit support both GDS & GDS2. GDS 2 works similar to the original GDS. easier and faster

* Read codes, code status, Freeze Frame data and Clear Codes.

* Read VIN, ECU part numbers and software numbers.

* Record, store and replay Stored data.

* Control and monitor Output Control functions.

* Configure and Reset functions.

* Record or display history of the previous vehicle diagnostic sessions.

Service Programming System (SPS)
You need have your own GM account if you want to do online programming.

* passthrough programming on GM past model and Global A vehicles

* Increase reprogramming speed 20-70% and get ready to service new models

For pass-through programming of electronic control units on all vehicles built since 1996 and future model releases. The VCX Nano Prime GM KIT is between 20% and 70% faster than Tech 2.For example, on a new Tahoe hybrid with 7 ECUS, it would normally take 2 full hours to reprogram. But, with VCX Nano the process is completed in just 45 minutes. That’s a 64% difference and means you could service 10vehicles rather than 4in an 8-hour day! The potential to increase revenues is dramatic.

VCX Nano Prime GM KIT is the only full-spectrum diagnostic and reprogramming tool capable of servicing new Delta and Epsilon vehicles (with auxiliary CAN bus that cannot be serviced by Tech2).Below is the list of vehicles being delivered this year that will rely exclusively on this tool for service.

Tech2Win, an application version of the Tech 2 and CANdi (Control Area Network diagnostic interface) moduleTech2Win can be used during a vehicle road test, offering a larger screen with all of the Tech 2 tool functionality. The Tech2Win application offers all of the features and functions of the Tech 2 for Opel, Saab etc.

VXDIAG NANO GM USB Connection:


FAQ:
Q: Can this do 2006 Cadillac CTS via Tech2Win?
A: Yes, it can support.

Packing Including:

1pc x VXDIAG VCX NANO for GM WIFI Version
1pc x USB Cable
1pc x U Disk with Software
