VDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating Meter

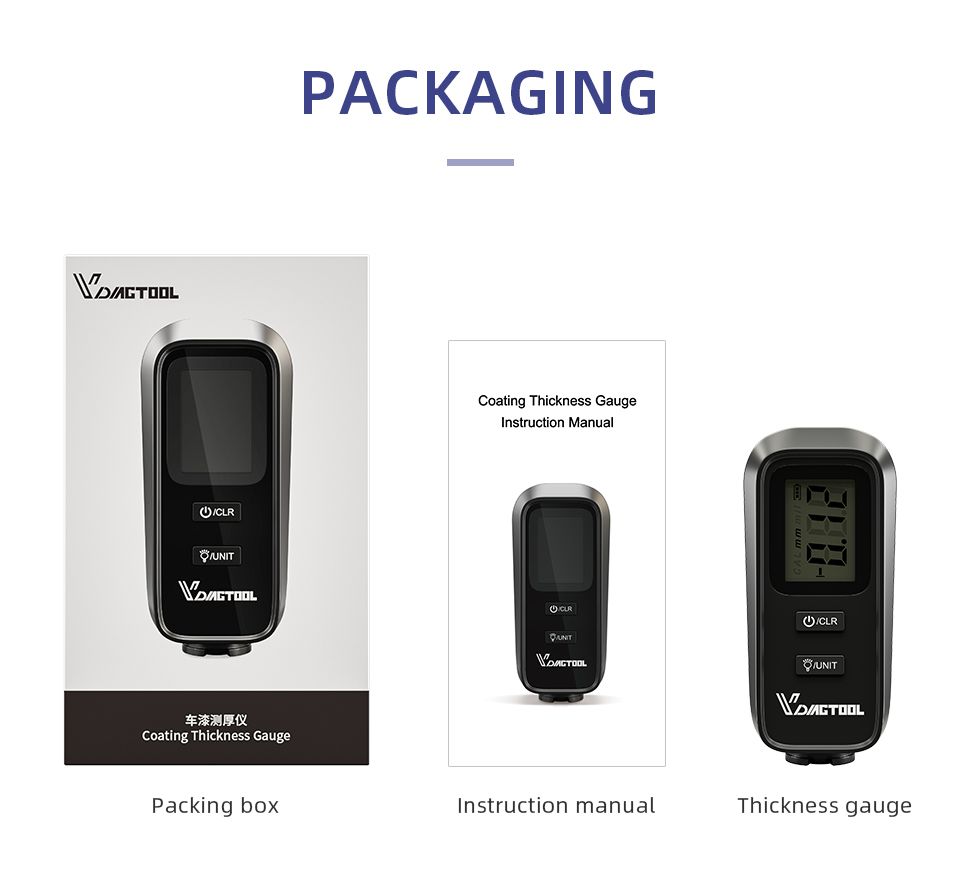

the package do not include battery.

VDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating Meter is a one of our Thickness Detection Tool Tools, you can buy VDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating Meter from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of VDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating Meter

VDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating MeterVDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating MeterVDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating MeterVDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating MeterVDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating MeterVDIAGTOOL VC100 Car Thickness Gauge Meter Digital Paint Films For Car Paint Tester LCD Backlight Thickness Coating Meter

VDIAGTOOL VC100 Car Thickness Gauge Meter_01

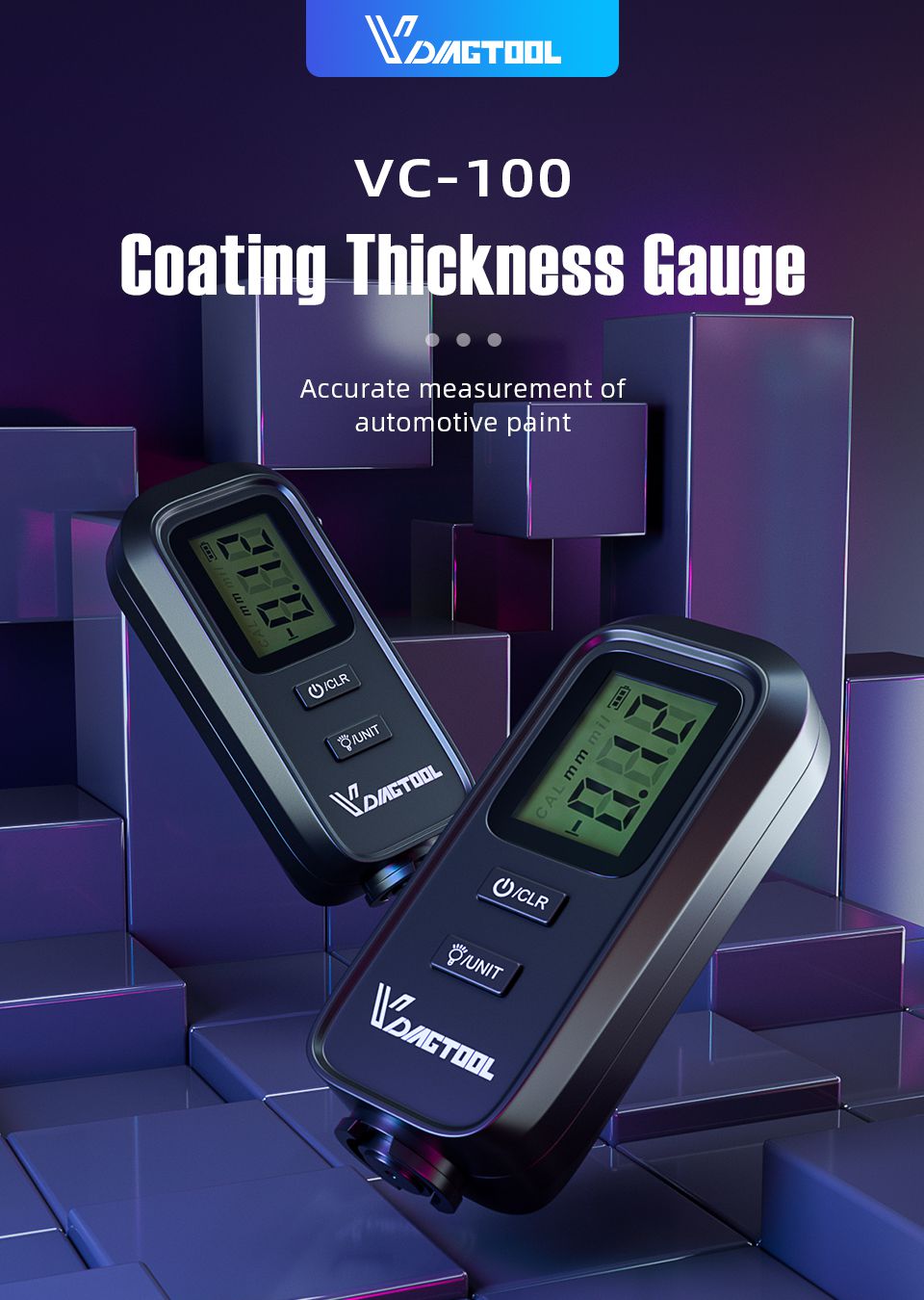

Car Paint Tester Introduction

The Car Paint Tester is a portable obd2 obdii coating thickness gauge,which can meansure the thickness of non-metallic coating(such as paint,film,etc.) On netal substrate quickly,nondestructively,and accuratly.It is mainly used to measure the thickness of the vehicle's surface paint and other coating meaurement.

VDIAGTOOL VC100 Car Thickness Gauge Meter_02

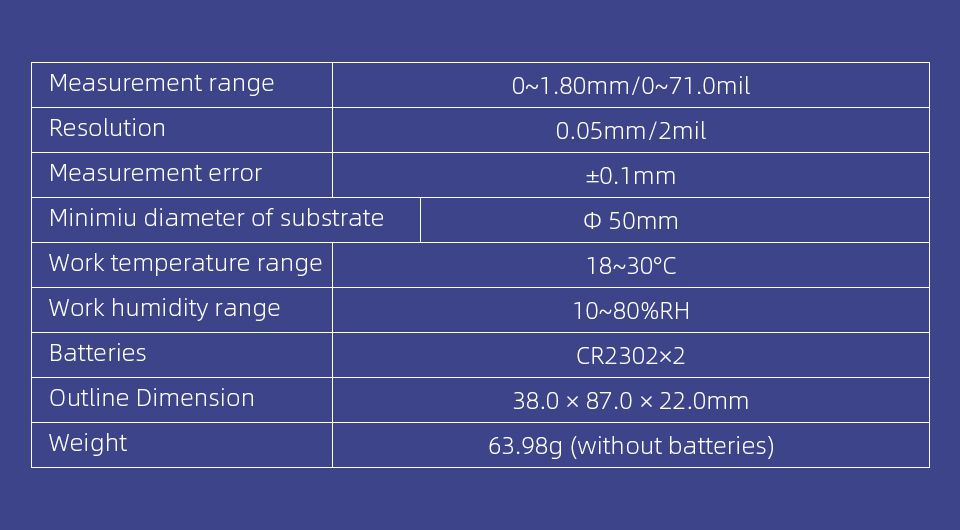

Car Paint Tester Parameters

VDIAGTOOL VC100 Car Thickness Gauge Meter_04

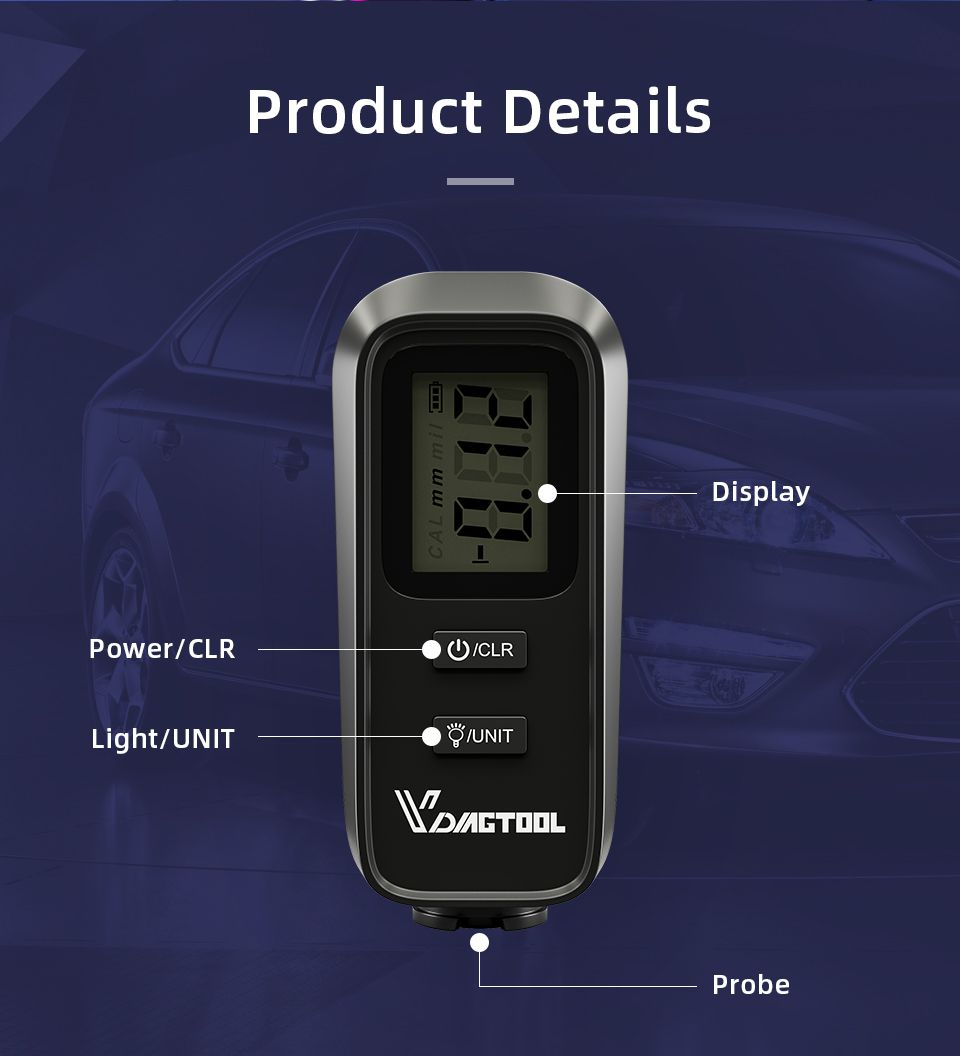

Car Paint Tester Button Functions
1.Botton"CLR":Turn on/off,clear.
2.Botton"UNIT":Unit Switch,backlight

Car Paint Tester Operation Instructions

1.Measurement preparation

Open battery cover and load two CR2032 button batteries(Not Includes); Pay attention to positive and negative pole.

2.Turn on/off

Leave the instrument hang in the air and press"CLR"button to turn it on,LCD full screen display,which means it enters the measurement state.Then long press"CLR"button to turn it off.

Note:Keep it away from the substrate when starting up.

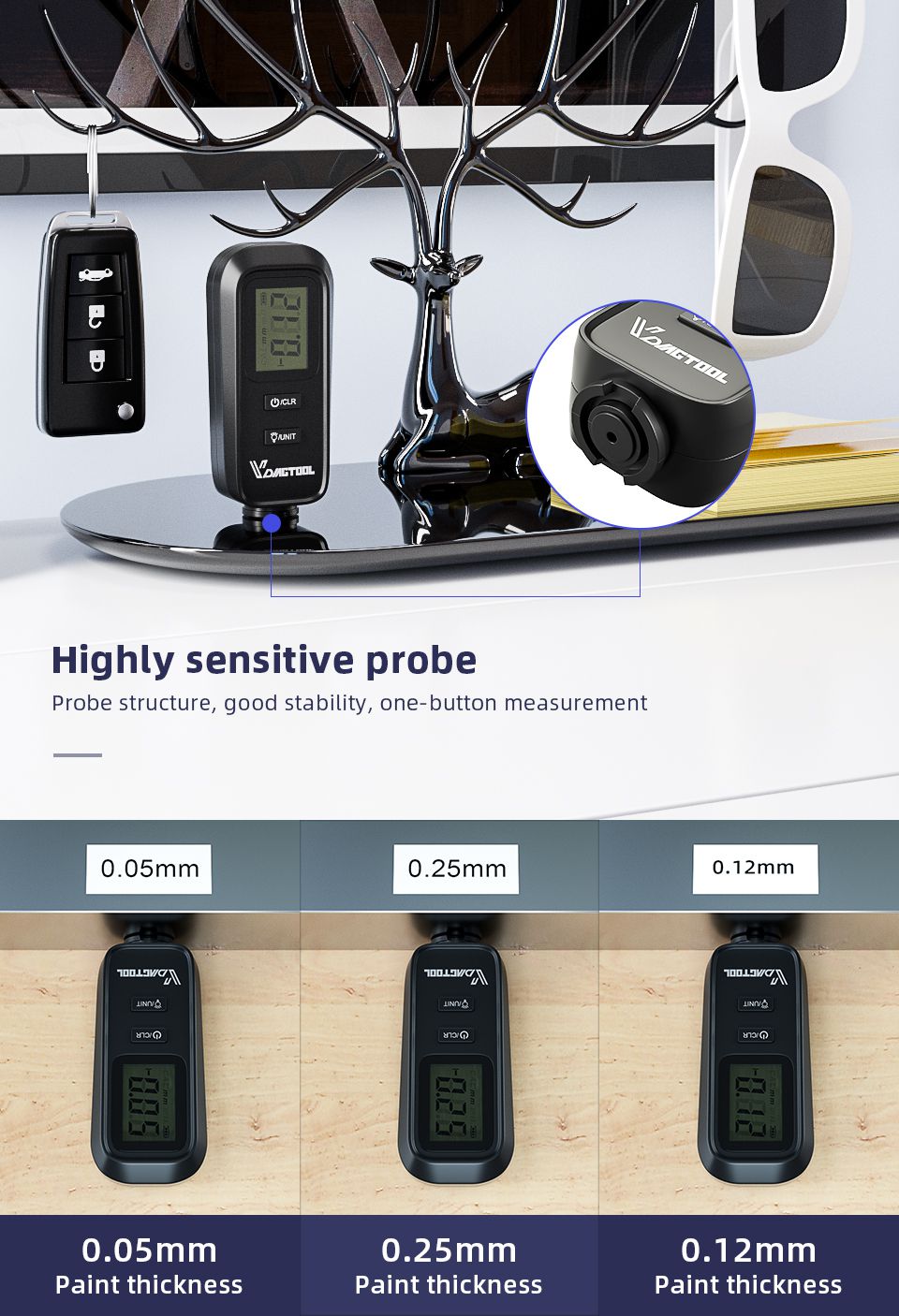

3.Measurement

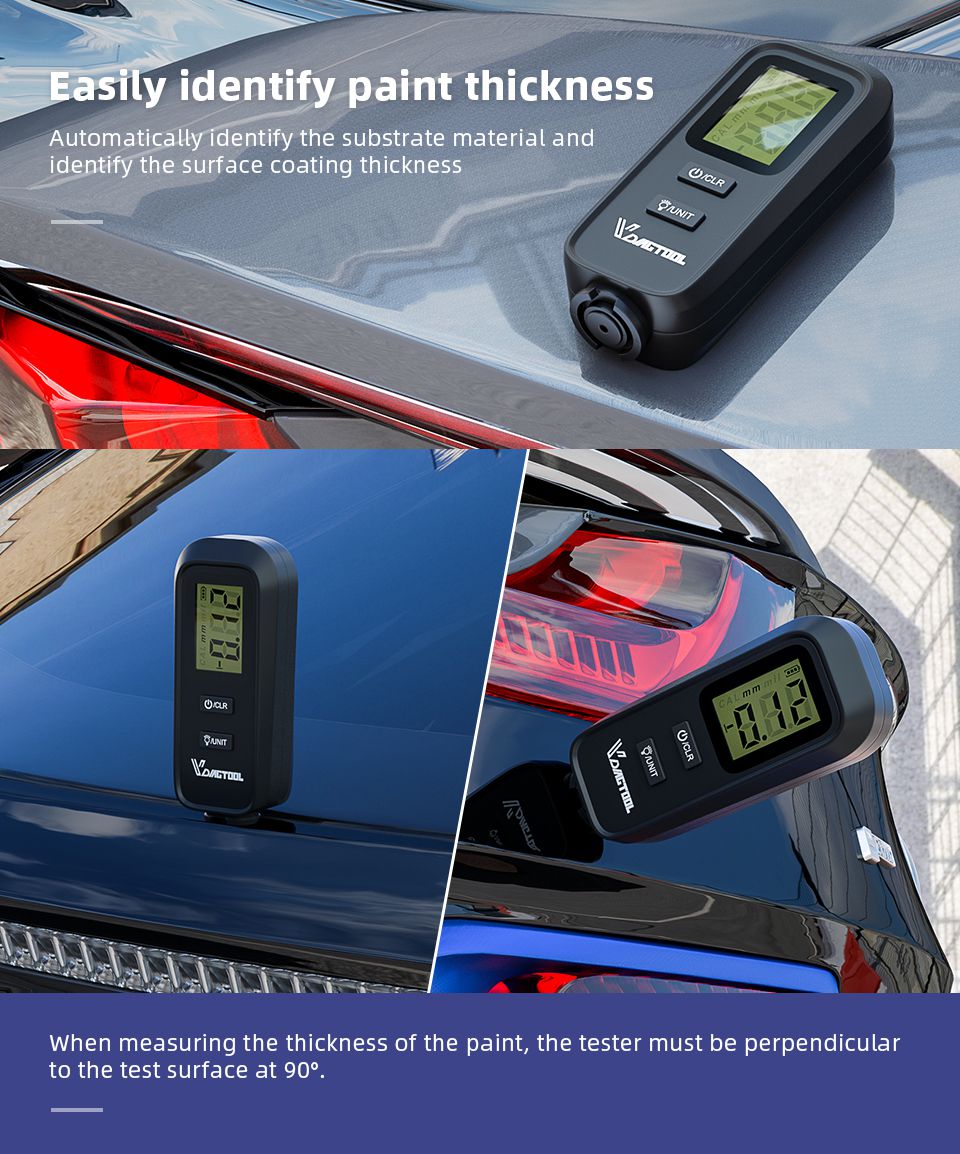

Press the probe onto the coated metal substrate lightly,ensure that the instrument should be perpendicular to the surface of the object that being measured.
Note:When the probe was pressed on the substrate,the LCD will display"---",then you must wait unit the measurement value displayed the LCD,then remove it from the substrate.If removing before a value is displayed,it will display the last measured value.
4.Unit selection
After start-up,short press"UNIT"button to select measurement unit mm or mil.

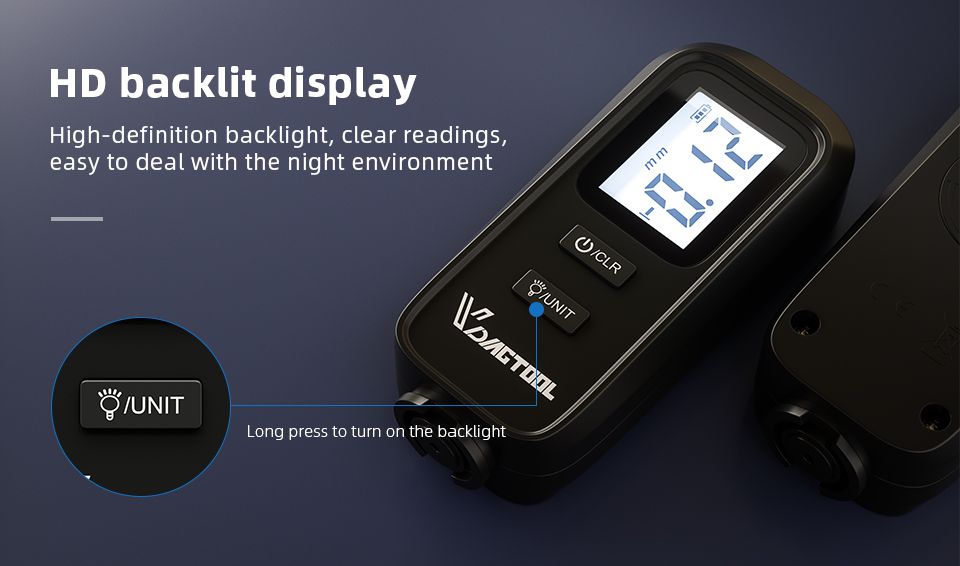

5.LCD backlight
After start-up,long press"UNIT"button to turn on/off the backlight.
6.Clear screen data
After start-up,press"CLR"button to clear the data displayed on LCD screen.
7.Power off automatically

The Car Paint Tester will power off automatically if two minutes no operation after start-up.And it will power off automatically as well after five minutes start-up,even when you are operating it.

Note: If The Screen Show You "OL" It Means Over Range,Can Test Range(0-1.80mm/0-71.0mil)

VDIAGTOOL VC100 Car Thickness Gauge Meter03VDIAGTOOL VC100 Car Thickness Gauge Meter_05描述_06

VDIAGTOOL VC100 Car Thickness Gauge Meter_07VDIAGTOOL VC100 Car Thickness Gauge Meter_08
