Newest TagFlash ECU Programmer Support OBD/BENCH/BOOT/BDM/ JTAG Mode Full Read TCU For Car Truck Motorbike Chip Tuning Tool
Newest TagFlash ECU Programmer Support OBD/BENCH/BOOT/BDM/ JTAG Mode Full Read TCU For Car Truck Motorbike Chip Tuning Tool is a one of our TagFlash ECU Programmer Tools, you can buy Newest TagFlash ECU Programmer Support OBD/BENCH/BOOT/BDM/ JTAG Mode Full Read TCU For Car Truck Motorbike Chip Tuning Tool from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of Newest TagFlash ECU Programmer Support OBD/BENCH/BOOT/BDM/ JTAG Mode Full Read TCU For Car Truck Motorbike Chip Tuning Tool
TagFlash ECU Programmer BENCH / OBD / BOOT / BDM / JTAG mode Full reading TCU (MICROEEROM)
TagFlash is a powerful ECU Programmer that enables the reading and programming of engine control units (ECUs) and transmission control units (TCUs) for various cars, trucks, motorcycles, Marine worldwide from Europe, USA, India, Asia, China etc. It reads and writes EEPROM and flash memory of ECUs i.e Bosch, Marelli, Siemens, FORD, Delphi, Denso, Transtron, Delco, Continental,Motorola, Valeo, Siemens Continental etc. TagFlash read/write ECU in the mode of OBD, on Bench, Boot mode, BDM, and Jtag systems. Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.
Also, ECUHELP provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
TagFlash Highlights:
1. This new system developed with high-speed USB2.0 currently the fastest and safest production in the market.
2. It is easy to install and use by anyone.
3. The Driver will always be clickable, the options will not become gray.
4. Time synchronization is no need, it allows for some margin of error.
5. On bench mode, directly identify the chip type before reading/writing .
6. Stable to read / write eeprom & flash via OBD.
7. Checksum calculations: Reliable and Faster
8. Add speed limit off.
9. It is relatively up to date that the protocol is synchronized to the original tools.
10. It is not easy to damage the ecu. It can work directly if it can be written; if it cannot be written, it won't be possible from the beginning.
11.There is no need to restart the software when the software reports an error, and there is a direct reset function in the option.
12. Support working in offline mode.
13. Synchronize Agreements Until April 1st, 2023
14. Stability/Comprehensive: Yes
15. Own Servers in Multiple countries
TagFlash Compatible Vehicles:
Car
Truck
Tractor/Marine
Motorbike
Read / Write ECU
Read /Write TCU (a part)
TagFlash ECU List / TCU List:
Please refer to the attachments of Cars / Trucks / Marine / Tractor / Motorbike Support Lists. If you have any question, please contact contact sales
TagFlash ECU Reading /Writting Method: BENCH / OBD / BOOT / BDM / JTAG mode
Communication: Offline mode (with dongle)
TagFlash Update: Free update
Annual Subscription: No need
TagFlash is confirmed to read/write ECU on many ECU types such as:
DCM2.7AP yes
DCM2.7 yes
MD1CS018 Yes: choose the chip type spc58 to read/write
sid208-sid209 read write on bench ok.
dcm7.1b can read via obd ok
dcm6.2v read via obd no problem
VOLVO EMS 2.2 Read OK with Tag Flash Waiting mod file to write in ....
MD1cs089 working well
Denso NEC76F0085 working
Edc16u1 written and read ok check correction obd.
Delphi DMCI 3 socket type DAF Hyundai UD truck Read OK - Write OK
SID310 MB written and read well.
DELPHI MPC555 READ no problem, for FORD / Ssangyong
Mitsubishi 4D56 RA6 ECU Read ok-- data checked,same with other tools read out.
SID807,SID208,SID209 read/write on Bench, boot, OBD.
TagFlash is not able to read/write:
Sim2k260 NO
DCM7.1AP No
Free DownloadTagFlash Software
*** Important Note ***
You MUST disable your anti-virus and firewall in order to download the software, driver and updates. Any active anti-virus will try to delete the files as it does not recognize the file as safe. They are safe but because of language issue it is often seen as a virus and it will delete your files. YOU MUST DISABLE YOUR ANTI-VIRUS AND FIREWALL or you will not be able to download the software properly.
TagFlash Compatible Operation System:
Windows XP 32 64 bit
Windows Vista 32 64 bit
Windows 7 32 64 bit
Windows 8
Windows10
TagFlash Language:
Ltaliano, English, Deutsch, Francais, Espanol, Polish, Portugues, Czech, Romana, Turkish, Hungarian, Russian, Bulgarian, Chinese, Japanese, Korean and Serbian
·5/30V Car, Industrial vehicles, WP
·Boot Mode C167,ST10
·RS232 RS485
·CAN BUS V2.0 50 Kb>10 Nkb
·J1850 VPW PWM GM-FORD
·BDM MPC5XX
·BOOT MODE TRICORE
·Auto setup Pull up K-ine 250,500,1000 ohm
·Auto setup termination Can bus 0,60,120ohm
·Master
·Recovery mode
·Checksum automatic
Look at the screen of TagFlash Software:
Available with options: Car, Truck, Tractor/Marine, Motorbike, Full Mode, Recondition, Tool Boot, Bench Mode,BDM/JTAG.
TagFlash Motorbike ECU List:
Reading DCM2.7AP:
TagFlash Questions and Answers:
Q: I can install in same pc.. Together with Kt200? Or we need Kt200 uninstall..?
A: Yes, you can install both TagFlash and KT200 in same PC, but need to switch the driver.
Q: Does TagFlash support online VR reading/writing?
A: not support yet, will be available in the near future.
Q: Does TagFlash offline mode need one extra offline dongle？
A: yes, it needs.
Q: Will TagFlash be connected to the computer when installing the driver?
A: yes, it needs.
TagFlash Package List:
TagFlash is a powerful ECU Programmer that enables the reading and programming of engine control units (ECUs) and transmission control units (TCUs) for various cars, trucks, motorcycles, Marine worldwide from Europe, USA, India, Asia, China etc. It reads and writes EEPROM and flash memory of ECUs i.e Bosch, Marelli, Siemens, FORD, Delphi, Denso, Transtron, Delco, Continental,Motorola, Valeo, Siemens Continental etc. TagFlash read/write ECU in the mode of OBD, on Bench, Boot mode, BDM, and Jtag systems. Its versatility and broad compatibility make it a valuable tool for automotive technicians and enthusiasts.
Also, ECUHELP provide the following service: DTC code Removal, EGR & DPF Removal, IMMO OFF, releasing speed limit, mileage correction, Hot start or Cold Start Vmax, and so on.
TagFlash Highlights:
1. This new system developed with high-speed USB2.0 currently the fastest and safest production in the market.
2. It is easy to install and use by anyone.
3. The Driver will always be clickable, the options will not become gray.
4. Time synchronization is no need, it allows for some margin of error.
5. On bench mode, directly identify the chip type before reading/writing .
6. Stable to read / write eeprom & flash via OBD.
7. Checksum calculations: Reliable and Faster
8. Add speed limit off.
9. It is relatively up to date that the protocol is synchronized to the original tools.
10. It is not easy to damage the ecu. It can work directly if it can be written; if it cannot be written, it won't be possible from the beginning.
11.There is no need to restart the software when the software reports an error, and there is a direct reset function in the option.
12. Support working in offline mode.
13. Synchronize Agreements Until April 1st, 2023
14. Stability/Comprehensive: Yes
15. Own Servers in Multiple countries
TagFlash Compatible Vehicles:
Car
Truck
Tractor/Marine
Motorbike
Read / Write ECU
Read /Write TCU (a part)
TagFlash ECU List / TCU List:
Please refer to the attachments of Cars / Trucks / Marine / Tractor / Motorbike Support Lists. If you have any question, please contact contact sales
TagFlash ECU Reading /Writting Method: BENCH / OBD / BOOT / BDM / JTAG mode
Communication: Offline mode (with dongle)
TagFlash Update: Free update
Annual Subscription: No need
TagFlash is confirmed to read/write ECU on many ECU types such as:
DCM2.7AP yes
DCM2.7 yes
MD1CS018 Yes: choose the chip type spc58 to read/write
sid208-sid209 read write on bench ok.
dcm7.1b can read via obd ok
dcm6.2v read via obd no problem
VOLVO EMS 2.2 Read OK with Tag Flash Waiting mod file to write in ....
MD1cs089 working well
Denso NEC76F0085 working
Edc16u1 written and read ok check correction obd.
Delphi DMCI 3 socket type DAF Hyundai UD truck Read OK - Write OK
SID310 MB written and read well.
DELPHI MPC555 READ no problem, for FORD / Ssangyong
Mitsubishi 4D56 RA6 ECU Read ok-- data checked,same with other tools read out.
SID807,SID208,SID209 read/write on Bench, boot, OBD.
TagFlash is not able to read/write:
Sim2k260 NO
DCM7.1AP No
Free DownloadTagFlash Software
*** Important Note ***
You MUST disable your anti-virus and firewall in order to download the software, driver and updates. Any active anti-virus will try to delete the files as it does not recognize the file as safe. They are safe but because of language issue it is often seen as a virus and it will delete your files. YOU MUST DISABLE YOUR ANTI-VIRUS AND FIREWALL or you will not be able to download the software properly.
TagFlash Compatible Operation System:
Windows XP 32 64 bit
Windows Vista 32 64 bit
Windows 7 32 64 bit
Windows 8
Windows10
TagFlash Language:
Ltaliano, English, Deutsch, Francais, Espanol, Polish, Portugues, Czech, Romana, Turkish, Hungarian, Russian, Bulgarian, Chinese, Japanese, Korean and Serbian
·5/30V Car, Industrial vehicles, WP
·Boot Mode C167,ST10
·RS232 RS485
·CAN BUS V2.0 50 Kb>10 Nkb
·J1850 VPW PWM GM-FORD
·BDM MPC5XX
·BOOT MODE TRICORE
·Auto setup Pull up K-ine 250,500,1000 ohm
·Auto setup termination Can bus 0,60,120ohm
·Master
·Recovery mode
·Checksum automatic
Look at the screen of TagFlash Software:
Available with options: Car, Truck, Tractor/Marine, Motorbike, Full Mode, Recondition, Tool Boot, Bench Mode,BDM/JTAG.
TagFlash Motorbike ECU List:
Reading DCM2.7AP:
TagFlash Questions and Answers:
Q: I can install in same pc.. Together with Kt200? Or we need Kt200 uninstall..?
A: Yes, you can install both TagFlash and KT200 in same PC, but need to switch the driver.
Q: Does TagFlash support online VR reading/writing?
A: not support yet, will be available in the near future.
Q: Does TagFlash offline mode need one extra offline dongle？
A: yes, it needs.
Q: Will TagFlash be connected to the computer when installing the driver?
A: yes, it needs.
TagFlash Package List:
| No. | Adapter/Cable | Image | Notes |

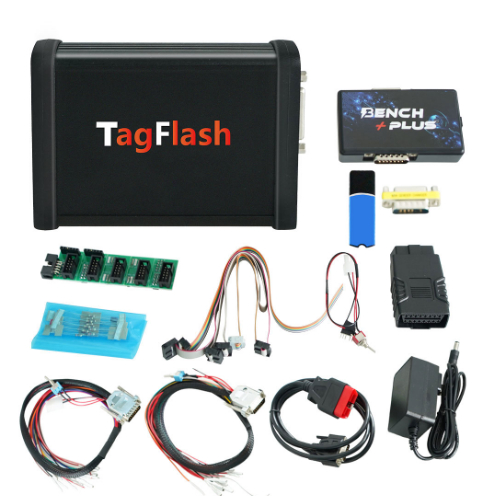

| 1 | Full Kit |  | |

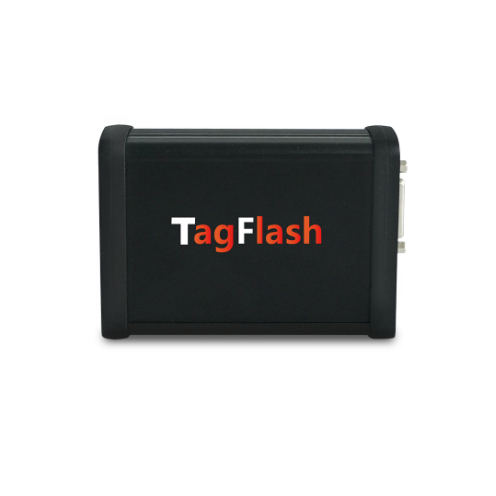

| 2 | Main Unit /Host |  | |

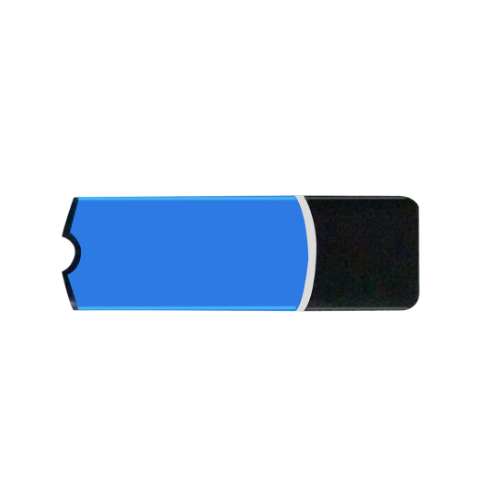

| 3 | Offline Dongle |  | For runing software offline |

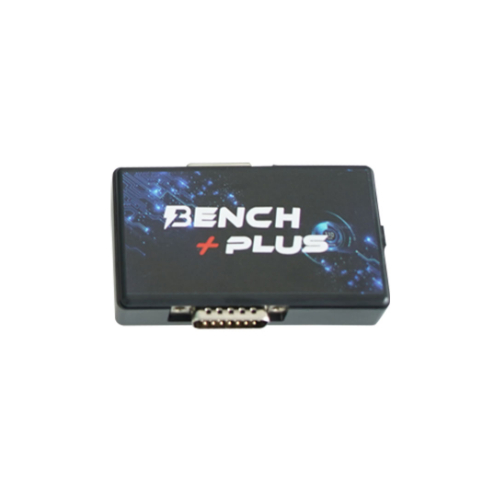

| 4 | Bench Box |  | For Bench reading |

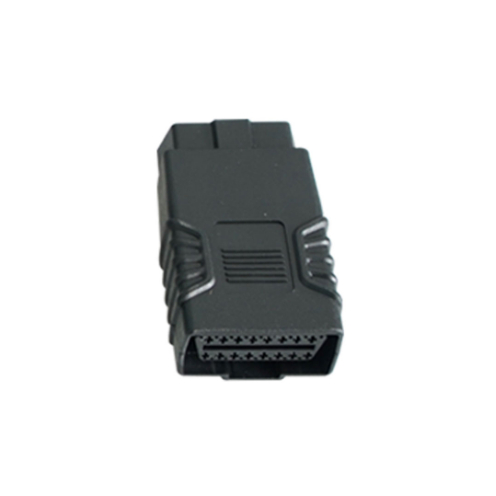

| 5 | Volvo Truck OBD Plug |  | For VOLVO truck reading by OBD |

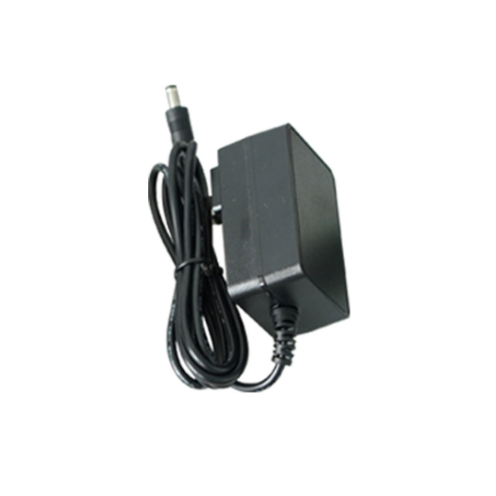

| 6 | Power Adapter |  | 12V/3A power out |

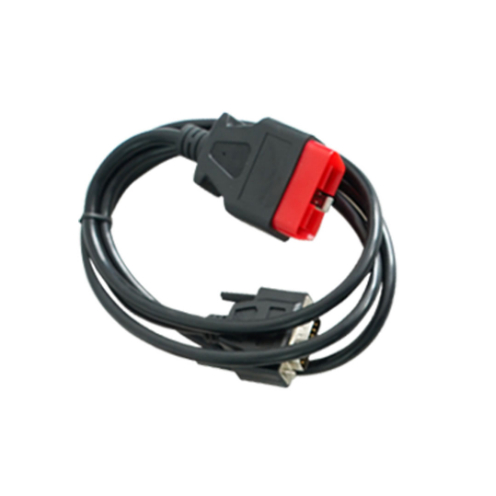

| 7 | OBDII Cable |  | For ecu reding by OBD |

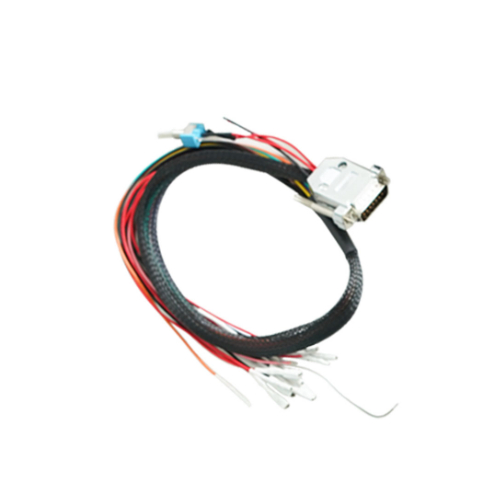

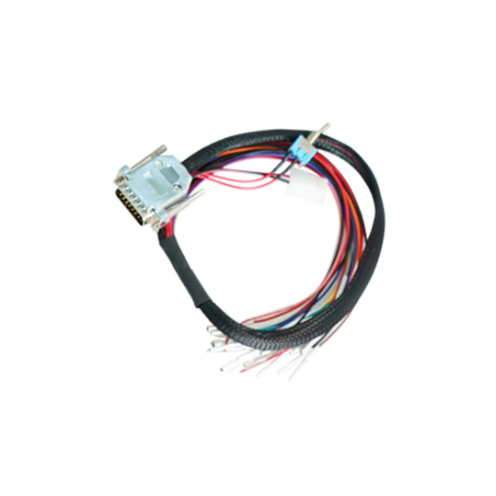

| 8 | Multifunction Cable |  | For ecu reding by bench/boot/pinout |
| 9 | Mitsubishi Cable |  | For mitsubshi reading in boot |
| 10 | Flat cable |  | The cable for BDM/JTAG function |
| 11 | BDM Cable |  | The cable for BDM function |

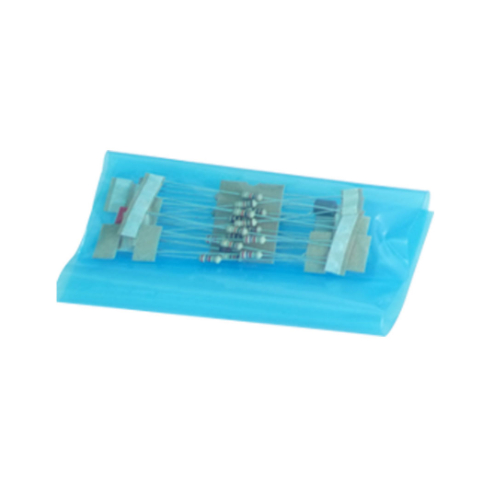

| 12 | Resistor |  | The parts in using |

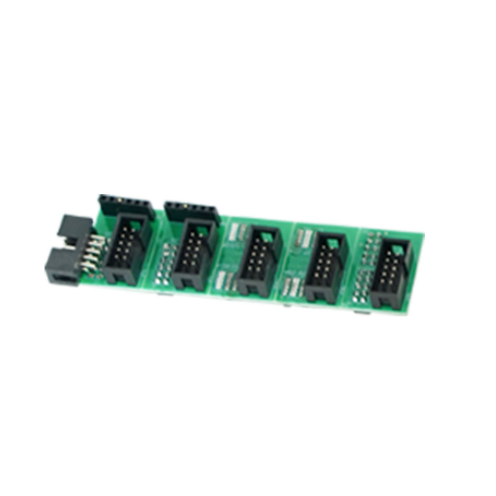

| 13 | BDM adapter |  | The parts in BDM function |

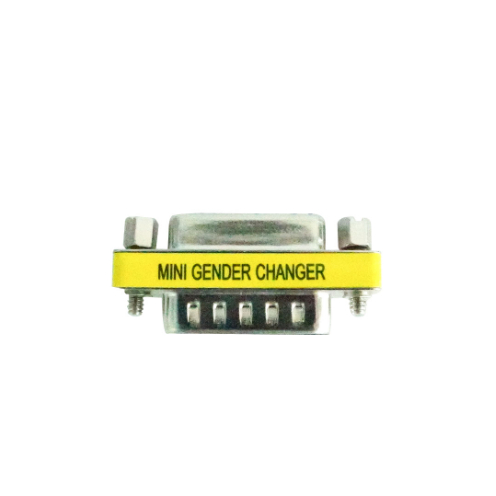

| 14 | Mini Gender Changer |  | The adapter for OBD function |
