Autel MaxiTPMS TS501 Pro Professional TPMS Tool

Autel MaxiTPMS TS501 is a 2024 new generation professional TPMS tool ,upgrade of Maxitpms TS501, activate all known TPMS sensors, ID clone or reprogram sensors to the vehicle's ECU, and turn off warning lights, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

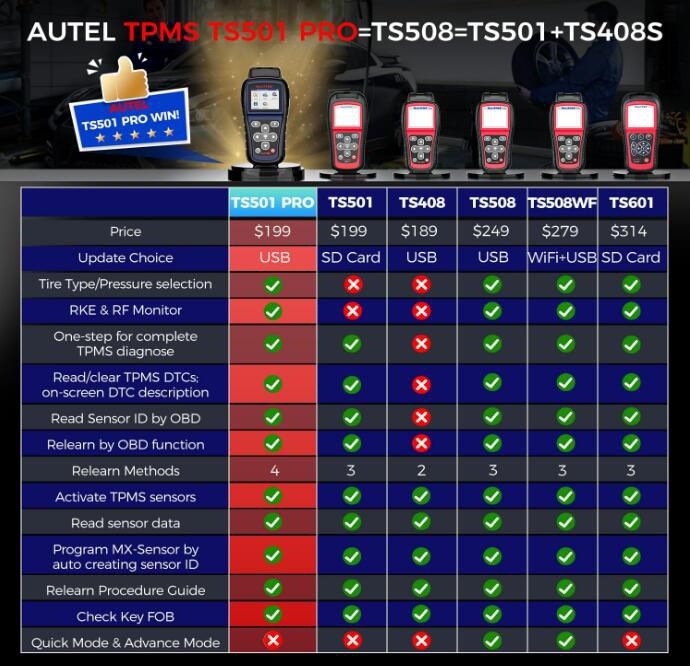

Autel MaxiTPMS TS501 Pro TPMS Tool = TS508 = TS501 + TS408S



MaxiTPMS TS501 Pro Main Features

• Trigger/Activate all known TPMS sensors
• Read sensor IDs, pressure, temperature, and battery voltage (vary on OE sensors)
• Multiple methods to program Autel MX-Sensors for 99% vehicle coverage
• Widest OBD relearn coverage (OBDIl cable is included)
• Read sensor IDs from ECU and compare ECU IDs with activated sensor IDs
• 25% lower or higher tire pressure warning (for some vehicles)
• TPMS status screen for fast TPMS health check Read/Erase TPMS DTCs (on-tool DTC description)
• Batch program 1-16 MX-Sensors by auto create at the same time
• On-tool relearn procedure guide
• Offer 2 or more new ID relearn type options for over 50% vehicles
• OE sensor information & on-tool tech tips
• Check Autel MX-Sensor ID, pressure, temperature and battery voltage
• Check Key FOB
• Lifetime free software updates via Maxi PC Suite using USB cable
• Built-in rechargeable Li-ion battery
• Compact and ergonomic design for easy portability
• Multilingual support

Complete TPMS System Diagnosis

TS501 Pro can let you know the vehicle TPMS system by one step for complete check the status ,DTC Details/Clear DTCs/Live Data/Retry Diagnosis.

TPMS diagnosis result allows you to easily read direct feedback from all 4 sensors, clearly understand the status of all TPMS features, compare sensor and ECU data, then instantly pinpoint system faults to identify the fix. You can view all sensor information easily shows the location of which sensor battery is low and needs to be replaced soon.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

3 Ways to Relearn All-Brand OEM Sensors

This function is used to write the newly programmed sensor IDs into the vehicle ECU for sensor recognition. TS501 Pro support 3 ways for Relearn: OBD II Relearn, Automatic Relearn,Stationary Relearn.

OBD Relearn: The OBD Relearn function allows the TS501 Pro to directly write the TPMS sensor IDs to the TPMS module. To perform Relearn, activate sensors on FL, FR, RR, and RL wheels. (Recommend)
If a sensor is triggered, the tool will ask whether to clear the saved data, press N to use the saved data and reactivate one sensor, the tool will instruct you to connect OBDII cable and then perform OBD Relearn, or press Y to clear the data and display the Relearn Procedure. The Relearn Procedure displays when no sensor is triggered.
Automatic Relearn: Automatic Relearn requires driving to complete. For some vehicle models, the Automatic Relearn procedures can be completed directly by driving, while for some vehicle models, you need to follow the on-screen Learning Process Guide to let the vehicle enter the Automatic Relearn mode before driving
Stationary Relearn: Stationary Relearn requires the vehicle be placed in the “Learn Mode.” Follow the on-screen instructions to activate all sensors mounted on the
vehicle.Once all sensors are successfully activated, follow the Relearn Procedure to perform Stationary Relearn.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

4 Ways to Program Autel MX-Sensor

This function allows Autel TS501 Pro to program the sensor data to the Autel MX-Sensor and replace faulty sensor with low battery life or the one that is not work. There are 2 ways to program MX-Sensor: Copy by OBD/Auto Create. (Note:Programming function will only work with Autel MX-Sensor)

Copy by OBD: The tablet will program the sensor IDs retrieved from the ECU of the test vehicle to the new MX-Sensors.
Copy By Activation: This function is used to activate or trigger the original sensor and retrieve the ID of the sensor, and then write the original sensor ID into the new MX-Sensor.
Copy by Manual Input: This function is used to manually input the original sensor ID and program it to new MX-Sensor.
Auto Create 1-16 Sensors: This function is used to auto create unique ID(s) to 1–16 MX-Sensor(s). A random ID will be created for the MX-Sensor. This new ID differs from the ID stored in the TPMS ECU. Therefore, the sensor will have to be relearned to the TPMS ECU.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

Active & Read TPMS Sensor Info

After press "Trigger" to active the sensor ,TS501 Pro can view sensor data such as sensor ID, tire pressure, sensor frequency, tire temperature, sensor battery, and sensor position. It also sends the sensor data to vehicle’s ECU to let the ECU learn the positions of sensors whenever wheels are rotated or sensors are replaced.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

Tire Type/Pressure Selection

If all TPMS faults are cleared and the four tires are inflated to the reference pressure
listed on the placard, but the TPMS Malfunction Indicator Lamp (MIL) is still on, you may
need to use this function to select your tire type and set the right tire pressure value.

Autel MaxiTPMS TS501 Pro Professional TPMS Tool

Update by USB

This function allows you to update the TS501 Pro software through your PC by installing the Maxi PC Suite application. This is the significant upgrade of TS501,TS501 can only update with SD card.

MaxiTPMS TS501 Pro Specifications

Display: TFT color display (320 x 240 dpi)
Power: 3.70 V Li-polymer battery
Operating Temp.: -20 to 60 °C (-4 to 140 °F)
Storage Temp. -10 to 45 °C (14 to 113 °F)
Dimensions(W x H x D): 105 mm (4.13”) x 215 mm (8.46”) x 37 mm (1.46”)
Weight: 0.39 kg (0.86 lb.)

Q&A:

Q: What‘s the difference for MaxiTPMS TS501 Pro and MaxiTPMS TS501?
A: MaxiTPMS TS501 Pro is a upgraded version of TS501, MaxiTPMS TS501 Pro support Tire Type/Pressure selection ,and Internet updata by USB, but TS501 is SD Card.

Q: How long the free update ?
A: Lifetime free update.

Q: Support Multi-language?
A: Yes, TS501 Pro support multi-language ,if you need other language ,please send us the machine S/N number after you receive the machine.

Package List
1pc x TS501 Pro Main Unit
1pc x Main cable
1pc x Mini USB Cable
1pc x Adaptor plug
1pc x Instructions
1pc x Carring Case
