TPMS Service Tool
The MaxiTPMS® TS508 is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.
Autel MaxiTPMS TS508 TPMS Diagnostic and Relearn Tool with Quick/ Advanced Mode (Upgraded Version of TS501/TS408) is a one of our TPMS Service Tool Tools, you can buy Autel MaxiTPMS TS508 TPMS Diagnostic and Relearn Tool with Quick/ Advanced Mode (Upgraded Version of TS501/TS408) from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of Autel MaxiTPMS TS508 TPMS Diagnostic and Relearn Tool with Quick/ Advanced Mode (Upgraded Version of TS501/TS408)
Support Update Online Free Lifetime
Language: English Only

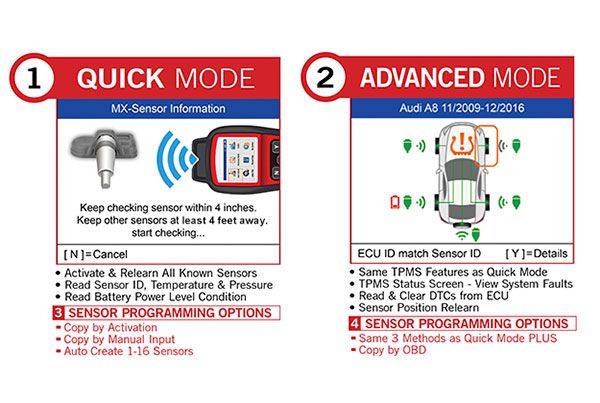

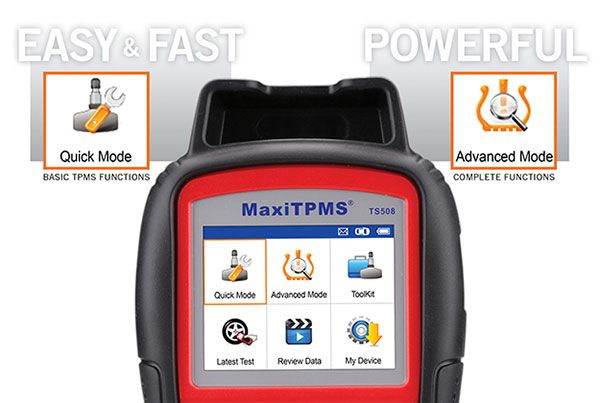

TWO TPMS SERVICE MODES
The TS508 is a new generation complete TPMS tool that offers the option to choose one of two service modes from the home screen, to provide faster and smarter TPMS repairs. Based on the TPMS service type needed, the option to choose the basic Quick Mode or the complete Advanced Mode will decrease repair time.
QUICK MODE / ADVANCED MODE COMPARISON
TPMS Quick Mode: basic TPMS functions to check TPMS sensors and program MX-Sensors quickly;
TPMS Advanced Mode: complete TPMS functions to perform sensor check , TPMS diagnose, MX-Sensor program and sensor position relearn.

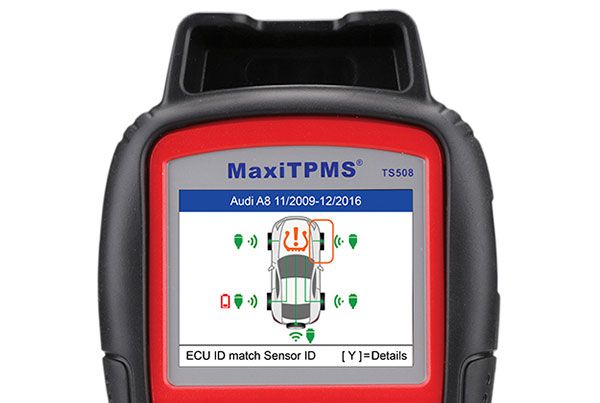

EXCLUSIVE TPMS STATUS SCREEN
1.Read ECU sensor ID;
2.Check sensor ID and ECU ID matching condition;
3.Read DTCs from ECU and erase DTCs;
4.View DTCs detail description;
Autel MaxiTPMS TS508 Specifications
| Display | TFT color display (320 x 240 dpi) |
| Power | 3.7 V Li-polymer battery; 3200 mAh |
| Operating Temp. | 0°C to 50°C (32°F to 122°F) |
| Storage Temp. | -20°C to 70°C (-4°F to 158°F) |
| Dimensions | 215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”) |
| Weight | 0.39 kg (0.86 lb.) |
Package includes:
1pc x OBD II cable
1pc x User manual
1pc x Carry case
1pc x USB cable
1pc x AC Adapter
1pc x Magnet 1pc x CD
