2023 Newest Version THINKCAR THINKTOOL PAD8 OBD2 Auto Diagnostic Tool ECU Coding Active Test IMMO ABS EPB Oil Reset Professional Automotive ScannerThinktool PAD 8 is a high-end product of the thinkcar brand
THINKCAR THINKTOOL PAD8 OBD2 Auto Diagnostic Tool ECU Coding Active Test IMMO ABS EPB Oil Reset Professional Automotive Scanner is a one of our THINKTOOL PAD8 OBD2 Scanner Tools, you can buy THINKCAR THINKTOOL PAD8 OBD2 Auto Diagnostic Tool ECU Coding Active Test IMMO ABS EPB Oil Reset Professional Automotive Scanner from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of THINKCAR THINKTOOL PAD8 OBD2 Auto Diagnostic Tool ECU Coding Active Test IMMO ABS EPB Oil Reset Professional Automotive Scanner
2023 Newest Version THINKCAR THINKTOOL PAD8 OBD2 Auto Diagnostic Tool ECU Coding Active Test IMMO ABS EPB Oil Reset Professional Automotive Scanner
Thinktool PAD 8 is a high-end product of the thinkcar brand. It is not only a simple full-system diagnostic device, but also includes 34 maintenance functions. The most important thing is to support tire pressure programming, ECU Coding and motion testing. It will save a lot of manpower and money for car maintenance.
Advances OE-LEVEL Professional Car Diagnostic Tool
[2022 New Thinktool PAD 8, Work with HD Module] OE-Level featuresADAS Calibration (need Thinkcar ADAS calibration rack)AutoAuth for FCA SGW which makes Thinktool Pad 8 works with Chrysler, Dodge, Jeep, Alfa Romeo and Fiat after 2017.Setting & Changeover (adblue reset, unlock the engine after collision, cancel ABS driving test, etc...) for Benz Modification for BMW Offline Coding Customization Personalization, for worldwide vehicles, and keep growing. Support Heavy Duty Modules
[Bi-Directional +ECU Coding+ All System+Over 34+Reset Services+ Active Test + Adaptation+ Initialization + Matching] Thinktool PAD 8 works for all the modules /systems, actuate solenoids and actuators for active testing,Cover diagnostic and reset, graphing detailed parameters live data for FULL systems (Key matching,Gear/SAS/EPB/TPMS/DPF/IMMO/BMS/ETS/Oil/Brake/AFS/EGR/GEARBOX/SUNROOF/SUS Reset, ABS Bleed, Injector coding). Find hidden issue for Full automotive systems.
[Best Hardware And Software + 99% Car Brands + 2 Years Free Update] Thinkcar Pad 8 is equipped with newer Android 10 system, 8 inch bigger Screen, 6000Mah larger battery capacity, and larger 4+32G memory. New vehicles, newly added parameters, and functionality at your fingertips, up to 100000 car models in the world.
[Support 8 Extra Diagnosis Module from Thinkcar + All system Topology Display + Tire Pressure Program] Work with 8 modules (printer, work lamp, endoscope, battery detection, oscilloscope, thermal imaging, charging base, wireless tire pressure diagnosis tool), for professional technicians. Using the tire pressure diagnosis module, you can learn/program/match the tire pressure
THINKCAR THINKTOOL PAD 8 Support 34+ Special Functions
1.Oil Reset
The lightening of the car maintenance light indicates that the vehicle needs maintenance.Reset the cluster or driving time to zero after the maintenance,so the maintenance light will go out and the system will start a new maintenance cycle.
2.DPF Regeneration
DPF Regeneration is used to clear PM(Particulate Matter)from the DPF filter through continuous combustion oxidation mode(such us high temperature heating conbustion,fuel additive or catalyst reduce PM ignition conbustion)to stabilize the filter perfornance.
DPF regeneration may be performed in the following cases:
a)The exhaust back pressure sensor is replaced.
b)The PM trap is removed or replaced
c)The fuel additive nozzle is removed or replaced
d)The cataytic oxidizer is removed or replaced.
e)The DPF regeneration MIL is on and maintenance is performed.
f)The DPF regeneration control module is replaced.
3.AFS(headlamp) Reset
The feature is used to initialize the adaptive headlamp system.According to the ambient light intensity,the adaptive headlamp system may decide whether to automatically turn on the headlamps,and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.
4.EGR Adaption
This function is used to learn the EGR(Exhaust Gas Recirculation)valve after it is cleaned or replaced.
5.Brake-pad Reset
If the brake pad wears the brake pad sense line,the brake pad sense line sends a signal sense line to the on-board computer to replace the brake pad.After replacing the brake pad,you must reset the brake pad.Otherwise,the car alarms.
Reset must be performed in the following cases:
a)The brake pad and brake pad wear sensor are replaced.
b)The brake pad indicator lamp is on.
c)The brake pad sensor circuit is short,which is recovered.
d)The servo motor is replaced.
6.IMMO Service
To prevent the car being used by unauthorized keys,the anti-theft key matching function must be performed so that the immoblizer control system on the car identifies and authorizes remote control keys to normally use the car.When the ingnition switch key,ignition switch,combined instrument panel,ECU,BCM,or remote control battery is replaced,anti-theft key matching must be performed.
7.Windows Calibration
This feature is designed to perform door window matching to recover ECU initial memory,and recover the automatic ascending and descending function of power window.
8.Coolant Bleeding
Use this function to activate the electronic water pump before venting the cooling system.
9.Steering Angle Reset
To reset the steering angle,first find the relative zero point position for the car to drive in straight line.Taking this position as reference,the ECU can calculate the accurate angle for left and right steering.After replacing the steering angle position sensor ,replacing steering mechanical parts(such as steering gearbox,steering column,end tie rod,steering knuckle),performing four-wheel alignment,or recovering car body,you must reset the steering angle.
10.Injector Coding
Writing injector actual code or rewrite code in the ECU to the injector code of the corresponding cylinder so as to more accurately control or correct cylinder injection quantity.After the ECU or injector is replaced,injector code of each cylinder must be confirmed or re-coded so that cylinder can better indentify injectors to accurately control fuel injection.
11.Seat Calibration
This function is applied to match the seats with memory function that are replaced and repaired.
12.Transport Mode
In order to reduce power consumption,the following functions may be disabled,including limiting the vehicle speed,not waking up the door opening network,and disabling the remote control key,etc.At this time,the transport mode needs to be deactivated to restore the vehicle to normal.
13.Battery Matching
This function enables you to perform a resetting operation on the monitoring unit of vehicle battery,in which the original low battery fault information will be cleared and battery matching will be done.
Battery matching must be performed in the following cases:
a)Main battery is replaced.Battery matching must be performed to clear original low battery information and prevent the related control module from detecting false information.If the related control module detects false information,it will invalidate some electric auxiliary functios,such as automatic start&stop function,sunroof without one-key trigger function,power window without automatic function.
b)Battery monitoring sensor.Battery matching is performed to re-match the control module and motoring sensor to detect battery power usage more accurately,which can avoid an error message displaying on the instrument panel.
14.Airbag Reset
This function resets the airbag data to clear the airbag collision fault indicator.When the vehicle collides and the airbag deploys,the corresponding fault code of the colision data appears,the airbag indicator lights up,and the fault code can't be cleared.Since the data inside the airbag computor is disposable,it is required that all new accessories must be ewplaced,but after performing this function,the data of the airbag computer can be recovered and the fault code can be cleared,the airbag light will go out,and the airbag computer can continue to use.
15.Tyre Reset
This function is used to set the size parameters of the modified or replaced tire.
16.Cluster Reset
a)cluster reset is to coopy,write,or rewrite the value of kilometers in the chip of cluster by using a car diagnostic computer and data cable,so that the cluster shows the actual cluster.
b)Usually when the cluster is not correct due to the damaged vehicle speed sensor or cluster failure,it is necessary to do cluster reset after maintenance.
17.ABS Bleeding
When the ABS contain air,the ABS bleeding function must be performed to bleed the brake system to restore ABS brake sensitivity.If the ABS computer,ABS pump,brake master cylinder,brake cylinder,brake line,or brake fluid is replaced,the ABS bleeding function must be performed.
18.Gear Learning
The crankshaft position sensor learns crankshaft gear machining tolerance and saves to the computerto more accurately diagnose engine misfires. lf gear learning is not performed for a car equipped withDelphi engine, the MlL turns on after the engine is started.The diagnostic device detects the DTC P1336'gear not learned'. In this case, you must use the diagnostic device to perform gear learning for the car.After gear learning is successful, the MIL turns off. After the engine ECU, crankshaft position sensor, orcrankshaft flywheel is replaced, or the DTC 'gear not learned" is present, gear learning must be performed.
19.Language Change
This function is used to change the system language of the vehicle central control panel.
20.Adblue Reset
After the diesel exhaust treatment fluid (car urea) is replaced or filled up,urea reset operation is required.
21.Elec. Throtle Adaption
Elec. Throttle Adaption is to utilize the car decoder to initialize the throttle actuator so that the learningvalue of the ECU returns to the initial state.By doing these, the movement of the throttle (or idle motor)can be more accurately controlled, thus adjust the intake volume.
22.Suspension Matching
This function can adjust the height of the body.When replacing the body height sensor in the air suspension system,or coontrol module or when the vehicle level is incorrect,you need to perform this function to adjust the body height sensor for level calibration.
23.A/F Reset
This function is applied to set or learn Air/Fuel ratio parameters.
24.Nox Sensor Reset
Nox sensor is a sensor used to detect the content of nitrogen oxides (NOx)in engine exhaust.If the NOx fault is re-initialized and the NOx catalytic converter is replaced,it is necessary to reset the catalytic converter learned value stored in the engine ECU.
25.TPMS Reset
After the tire pressure MIL turns on and maintenance is performed, the tire pressure resetting functionmust be performed to reset tire pressure and turn off the tire pressure MIL.Tire pressure resetting mustbe performed after maintenance is performed in the following cases: tire pressure is too low, tire leaks, tirepressure monitoring device is replaced or installed, tire is replaced, tire pressure sensor is damaged,andtire is replaced for the car with tire pressure monitoring function.
26.A/T Learning
This function can complete the gearbox self-learning to improve gear shifting quality. When the gearbox isdisassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impactproblem. In this case, this function needs to be done so that the gearbox can automatically compensateaccording to the driving conditions so as to achieve more comfortable and better shift quality.
27.Sunroof Initialization
This function can set the sunroof lock off,closed when it rains,sliding/tilting sunroof memory function,temperature threshold outside the car etc.
28.Stop/Start Reset
This function is used to open or close the automatic start-stop function via setting the hidden function in ECU(provided that the vehicle has a hidden function and supported by hardware)
And many more......
Professional ECU Coding Deep programming
The Coding function is used to re-flash the vehicle control modules, it allows you to reprogram adaptive data for certain components after making repairs or replacements.including for Benz, for FORD and more. It also supports quick diagnosis via one-button VIN scanning.
Bi-directional (Active Test)for Diagnosis
Active test(Bi-deireactioanal)is used to test whether the execution components in the electronic control system can work normally.
such as :Turn on the radiator fan / Turn on interior & exterior lights / Turn on sound horn / Modulate the throttle / Open & close windows / Operate mirrors / Test door lock actuators/ Injector Test ;Turn Off ACC Lane Keeping Assist System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test,Acceleration Device Test,Oil Pressure Control Test,DYNAMIC camera aiming,Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Botors, Wheel Speed Sensor Supply, PARKING BRAKE tests (Vary by car, Hundreds of actuation test functions …
Professional Thinktool PAD 8 read DTCs and data streams, perform active test, Coding for ALL systems.

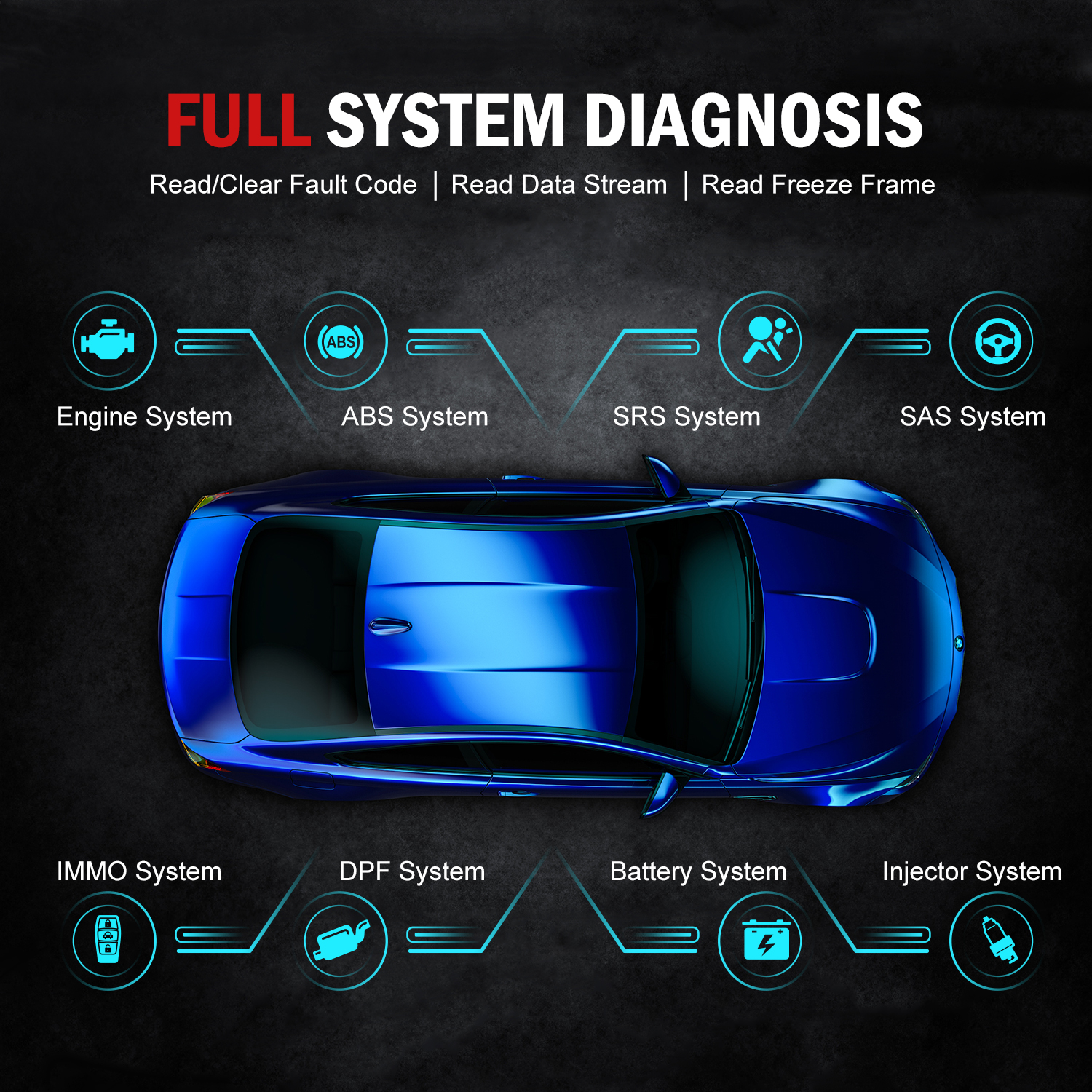

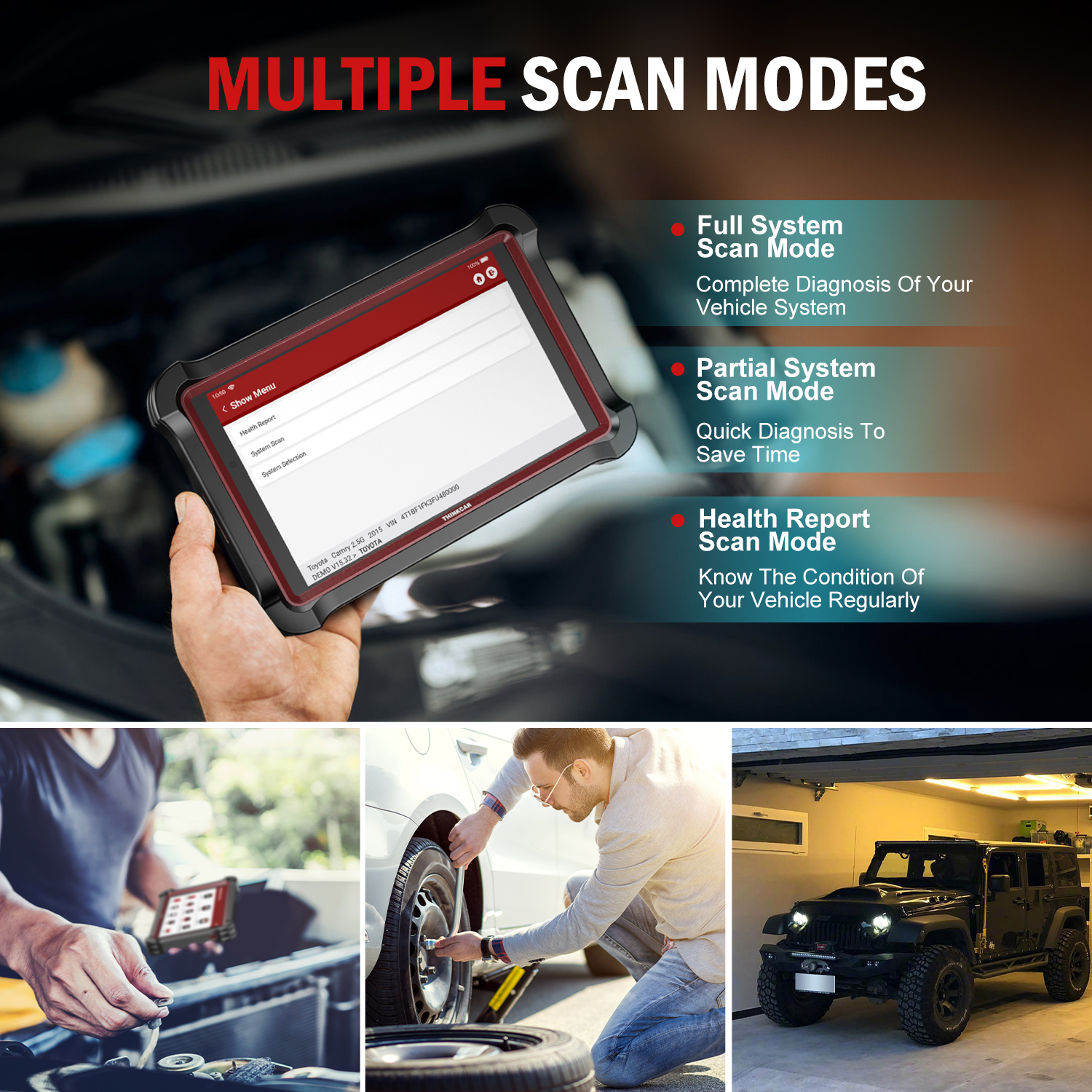

Full system diagnosis of intelligent topograph (identification of normal and fault equipment)
THINKTOOL PAD 8 is a professional system-wide diagnostic scanning tool
It can scan the available modules of the vehicle including PCM, ECM, EPS, PDM, TPM, BCM, ABS and SCCM, etc., and has the Complete code, real-time data, active testing, ECU information, adaptation, matching, ECU coding and other functions

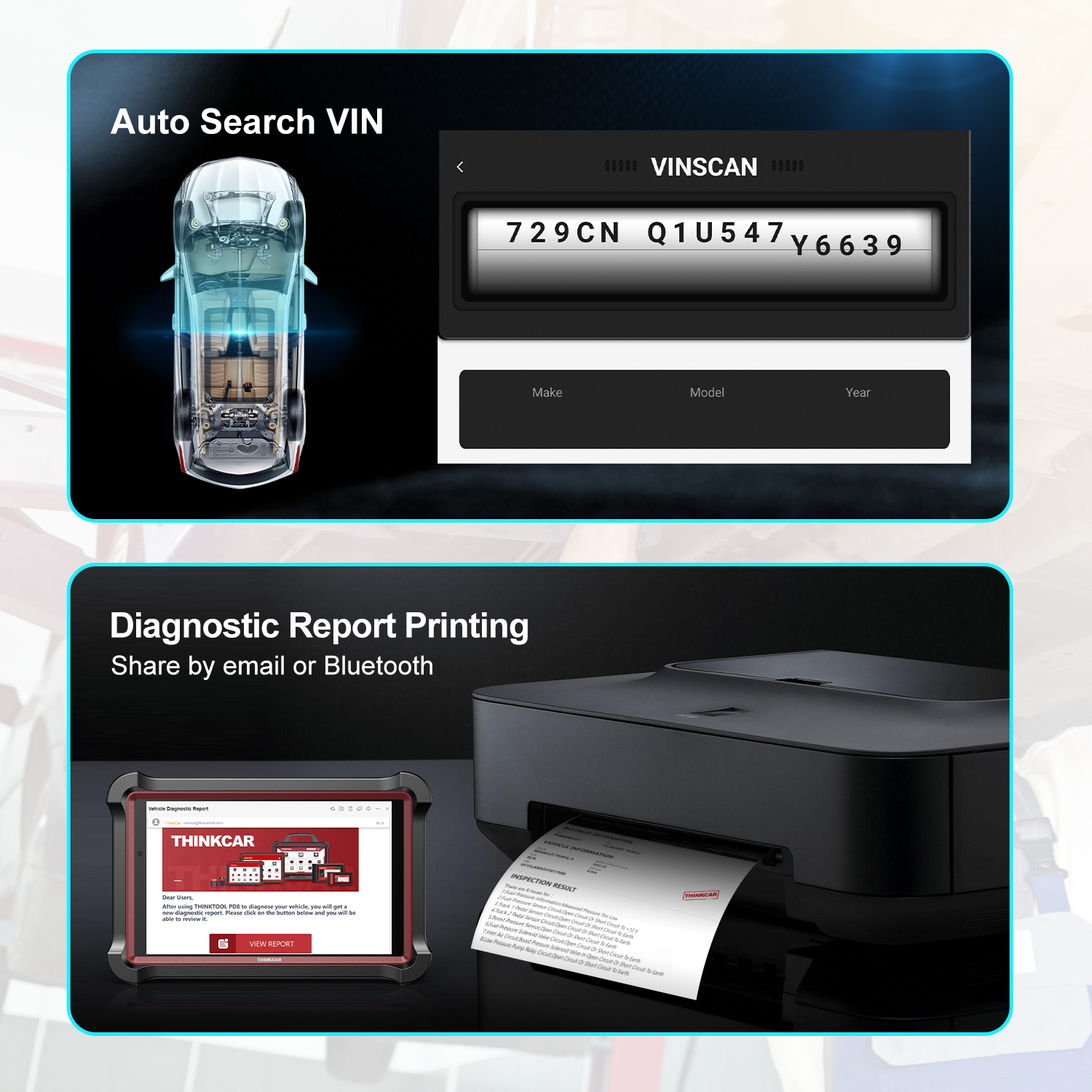

Search VIN Reading and Quick Diagnostic report printing
THINKTOOL PAD8 provides multiple methods of VIN identification without navigating through the complex car identification process, saving you time and increasing your productivity.
As well as providing a diagnostic report, it is convenient for you to compare the condition of the car at different times.

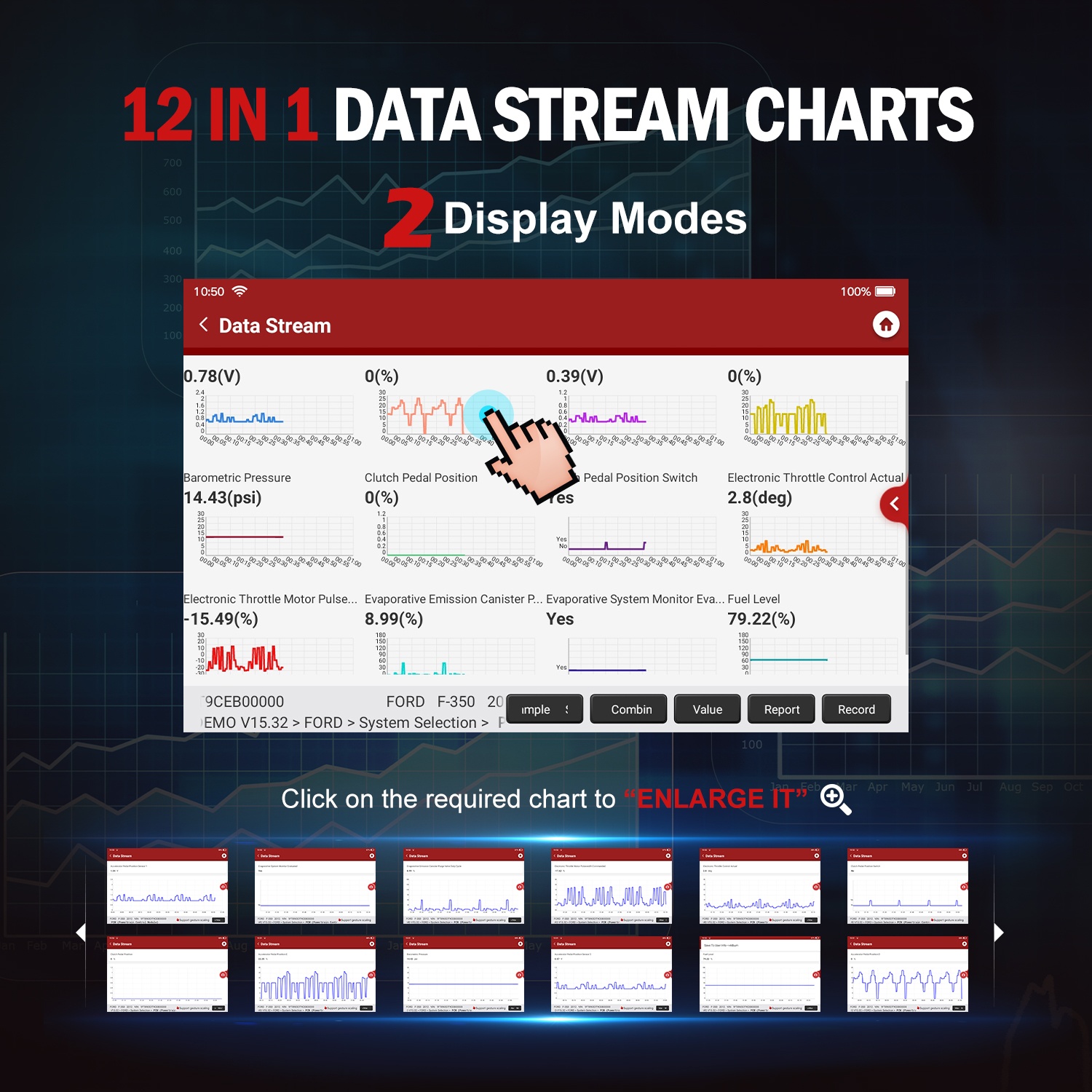

12 IN 1 DATA STREAM CHARTS
Thinkcar Thinktool PAD 8 Professional Diagnostic Tool Support 13+ Multi-lannguage
English, German, Italian, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish, Dutch, Hungarian, Chinese(traditional)

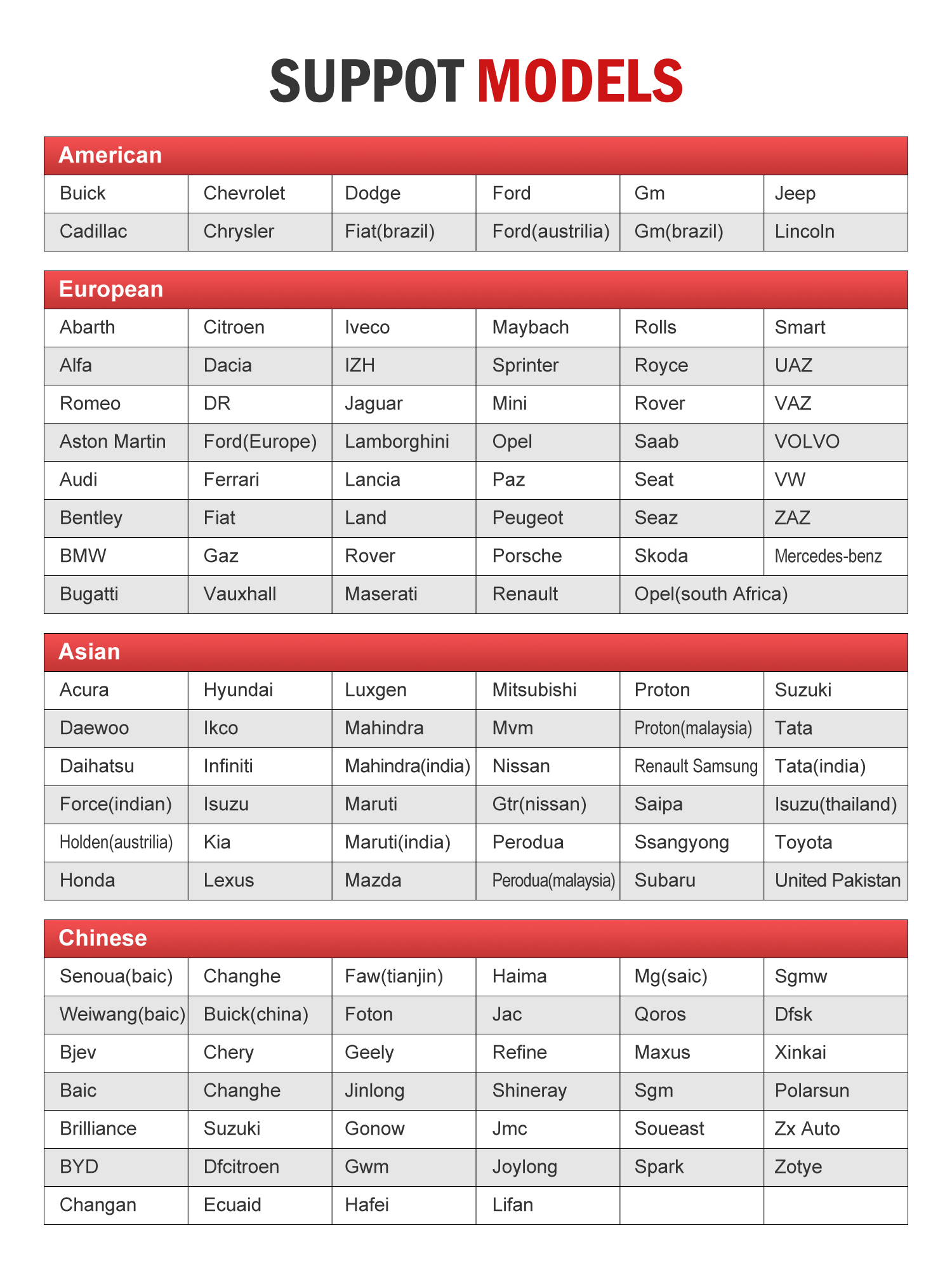

THINKCAR THINKTOOL PAD 8 Support 10000+ models
American Area
FOR BUICK,FOR CADILLAC,FOR CHEVROLET,FOR CGRYSLER,FOR DODGE,FOR FIAT(BRAZIL),FOR FORD,FOR FORD(AUSTRALIA),FOR GM,FOR GM(BRAZIL),FOR JEEP,FOR LINCOLN
European Area
FOR ABARTH,FOR ALFA ROMEO,FOR ASTON MARTIN,FOR AUDI,FOR BENTLEY,FOR BMW,FOR BUGATTI,FOR CITROEN,FOR DACIA,FOR DR,FOR FORD(EUROPE),FOR FERRARI,FOR FIAT,FOR GAZ,FOR OPEL(SOUTH AFRICA),FOR IVECO,FOR IZH,FOR JAGUAR,FOR LAMBORGHINI,FOR LANCIA,FOR LAND ROVERFOR ,MASERATI,FOR MAYBACH,FOR MERCEDES-BENZ,FOR MINI,FOR OPEL,FOR PAZ,FOR PEUGEOT,FOR PORSCHE,FOR RENAULT,FOR ROLLS ROYCE,FOR ROVER,FOR SAAB,FOR SEAT,FOR SEAZ,FOR SKODA,FOR SMART,FOR SPRINTER,FOR UAZ,FOR VAUXHALL,FOR VAZ,FOR VOLVO,FOR VW,FOR ZAZ
Asian Area
FOR ACURA,FOR DAEWOO,FOR DAIHATSU,FOR HOLDEN(AUSTRILIA),FOR HONDA,FOR HYUNDAI,FOR IKCO,FOR INFINITI,FOR ISUZU,FOR KIA,FOR LEXUS,FOR LUXGEN,FOR MAHINDRA,FOR MAHINDRA(INDIA),FOR MARUTI,FOR MARUTI(INDIA),FOR MAZDA,FOR MITSUBISHI,FOR MVM,NISSAN,FOR GTR(NISSAN),FOR PERODUA,FOR PERODUA(MALAYSIA),FOR PROTON,FOR PROTON(MALAYSIA),FOR SAMSUNG,FOR RENAULT SAMSUNG,FOR SAIPA,FOR SSANGYONG,FOR SUBARU,FOR SUZUKI,FOR TATA,FOR TATA(INDIA),FOR ISUZU(THAILAND),FOR TOYOTA,FOR UNITED PAKISTAN
Chinese Area
FOR SENOUA(BAIC),FOR WEIWANG(BAIC),FOR BJEV,FOR BAIC,FOR BRILLIANCE,FOR BYD,FOR CHANGAN,FOR CHANGHE,FOR BUICK(CHINA),FOR CHERY,FOR CHANCHE SUZUKI,FOR DFCITROEN,FOR ECUAID,FAW(TIANJIN)FOR ,FOTON,FOR GEELY,FOR JINLONG,FOR GONOW,FOR GWM,FOR HAFEI,FOR HAIMA,FOR JAC,FOR JAC REFINE,FOR SHIERAY,FOR JMC,FOR JOYLONG,FOR LIFAN,MG(SAIC),FOR QOROS,FOR MAXUS,FOR SGM,FOR SOUEAST,FOR SPARK,FOR SGMW,FOR DFSK,FOR XINKAI,FOR POLARSUN,FOR ZX AUTO,FOR ZOTYE

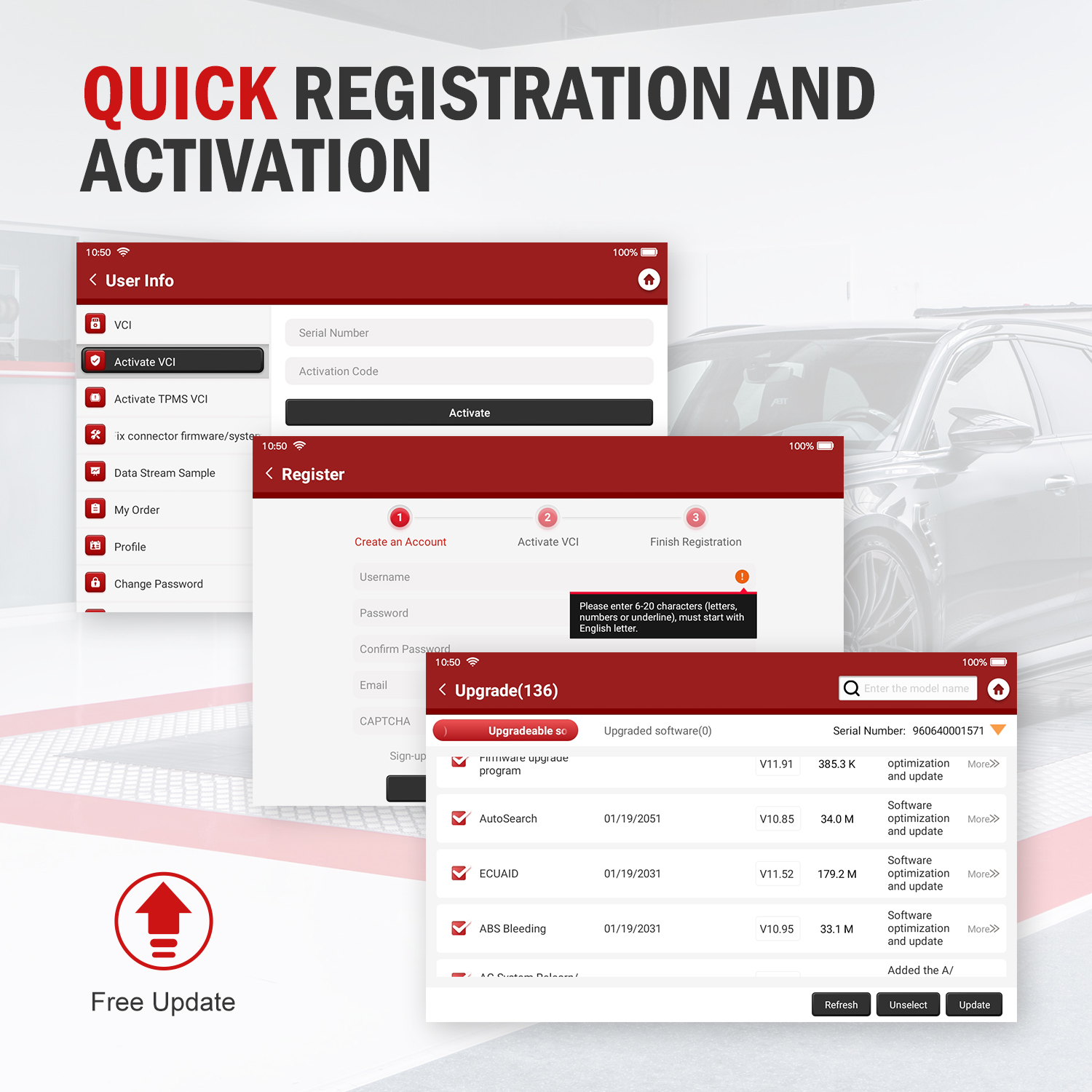

Quick registration and activation, one-click upgrade
There is no complicated operation, and there will be a full operation prompt when starting up.
THINKCAR THINKKTOOL PAD 8 Support remote diagnosis and feedback
If you enter an unsolved problem during use ,our engneer will operate it for you remotely.You can also give us feeback about your suggestion or needs, we will keep improve our best.

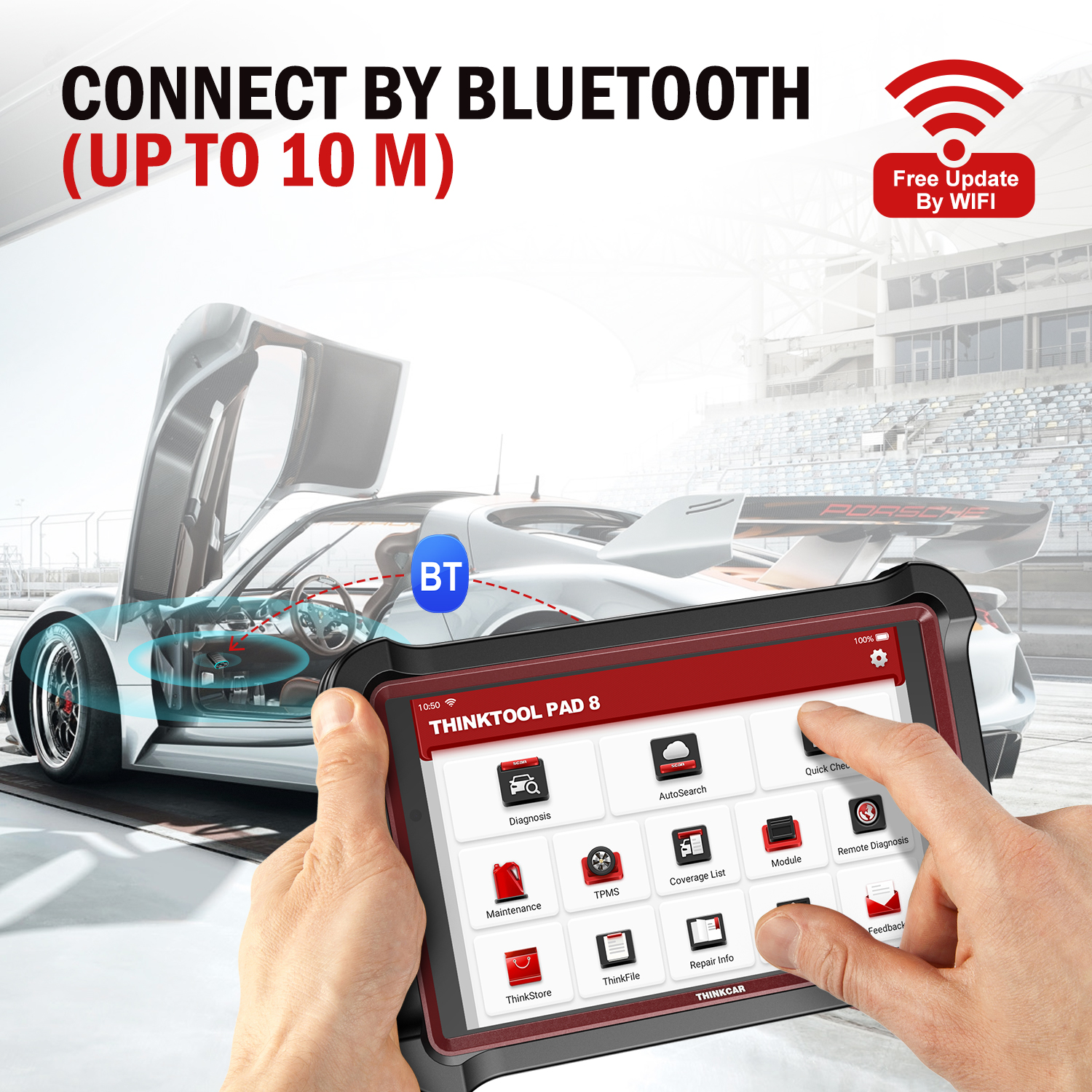

CONNECT BY BLUETOOTH,UP TO 10M

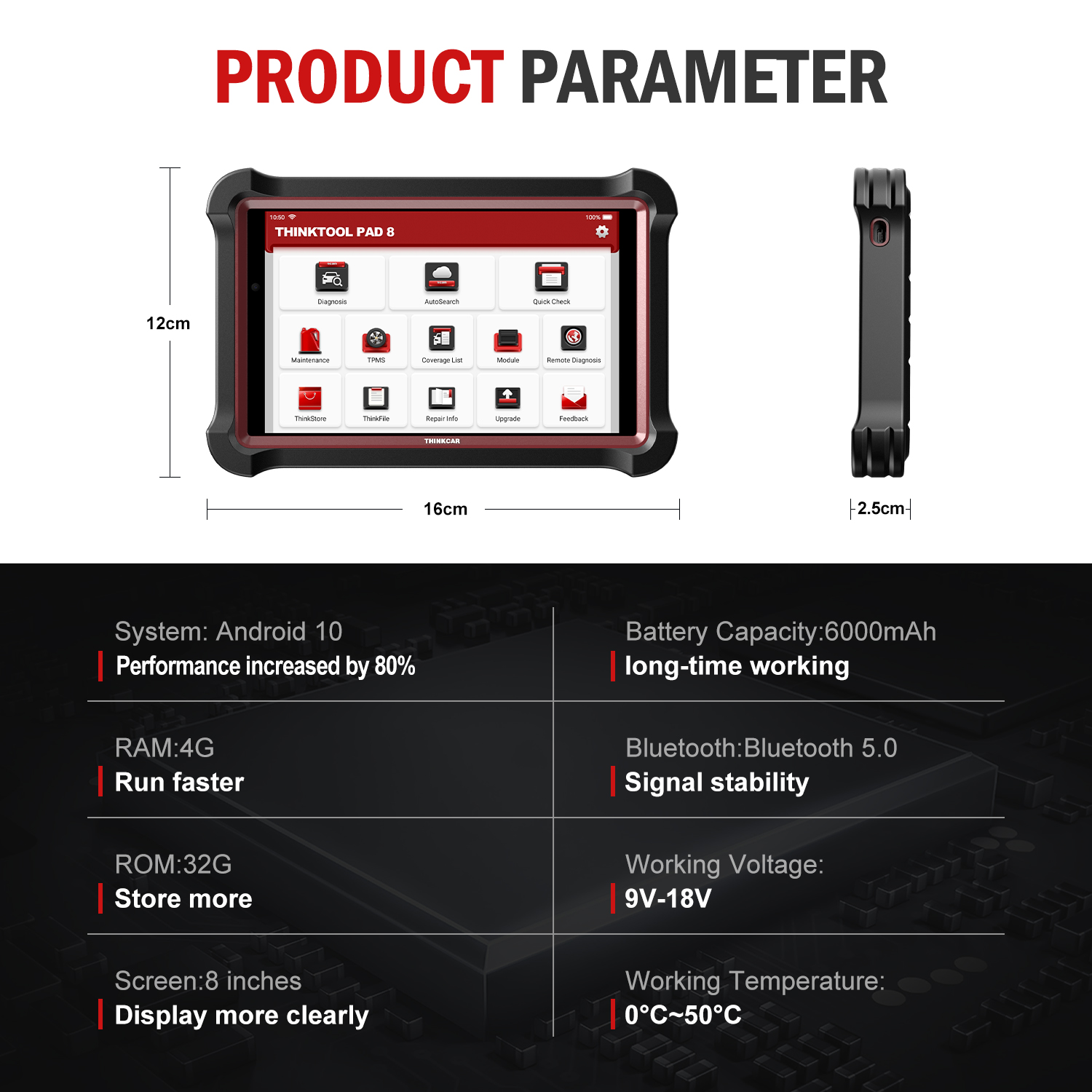

PRODUCT PARAMETER
PRODUCT DETAILS

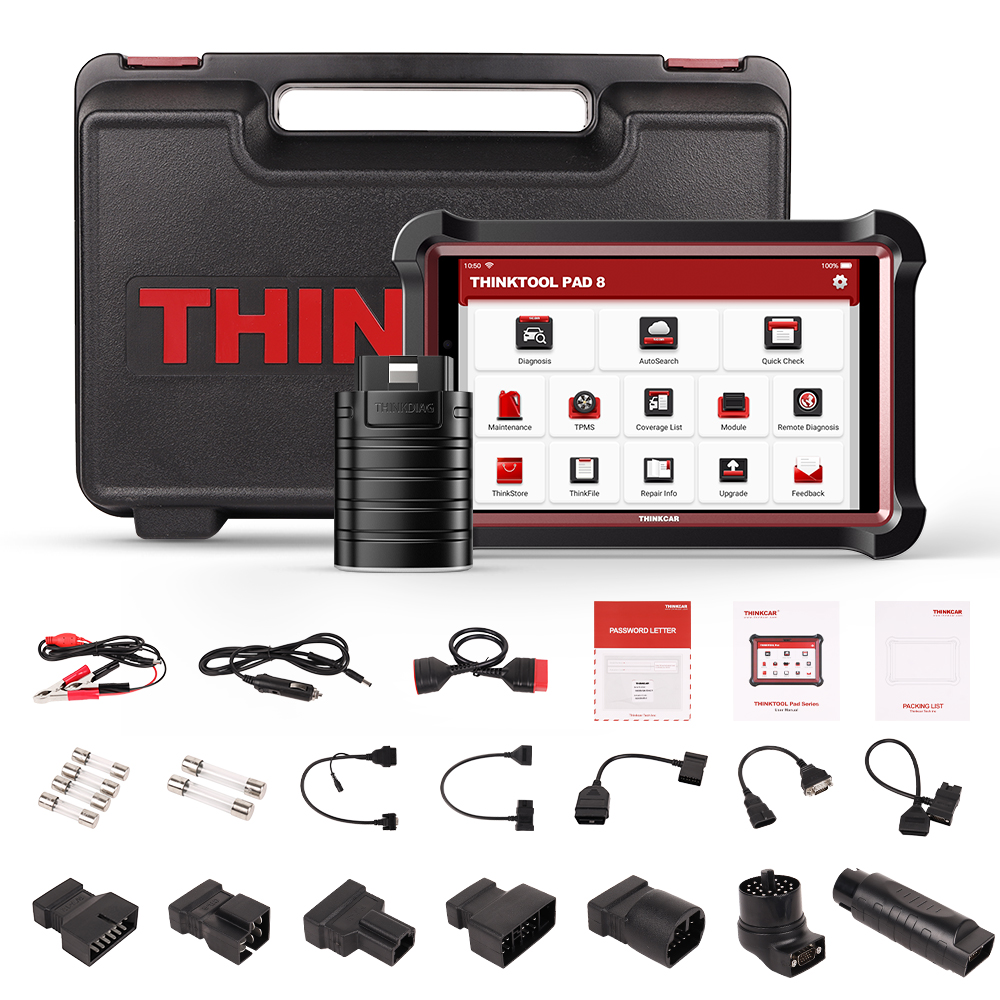

Packing list
THINKTOOL PAD 8*1
VCI DIAGNOSTIC Connector *1
Chipper Cable(LCDSS)*1
Cigarette Lighter Cord*1
Fuse (AC520V/5A,5*20mm)*4
Fuse (AC520V/5A,6*30mm)*2
Charging Cable(Micro USB)*1
NN-14+16*1
OBD1 Adaptor*1
M/H-12+16*1
BZ-38*1
TA-22*1
TA-17*1
G/V-12*1
B-20*1
CR-6*1
HA-3*1
FT-3*1
3-IN-1 Charger(Matched with US.UK.EU PLUG)*1
Diagnostic extension Cable*1
Packing list*1
Password Letter*1
User Manual*1
Plastic box*1
