SD100 OBD2 Code Reader

XTOOL SD100 Volle OBD2 Code Reader works on all 1996 and newer cars & light trucks that are OBD2 compliant (including the VWM,PWM,ISO,KWP2000 and CAN protocols).

XTOOL SD100 Volle OBD2 DIY OBD2 Diagnostic Tool Code Reader is a one of our SD100 OBD2 Code Reader Tools, you can buy XTOOL SD100 Volle OBD2 DIY OBD2 Diagnostic Tool Code Reader from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

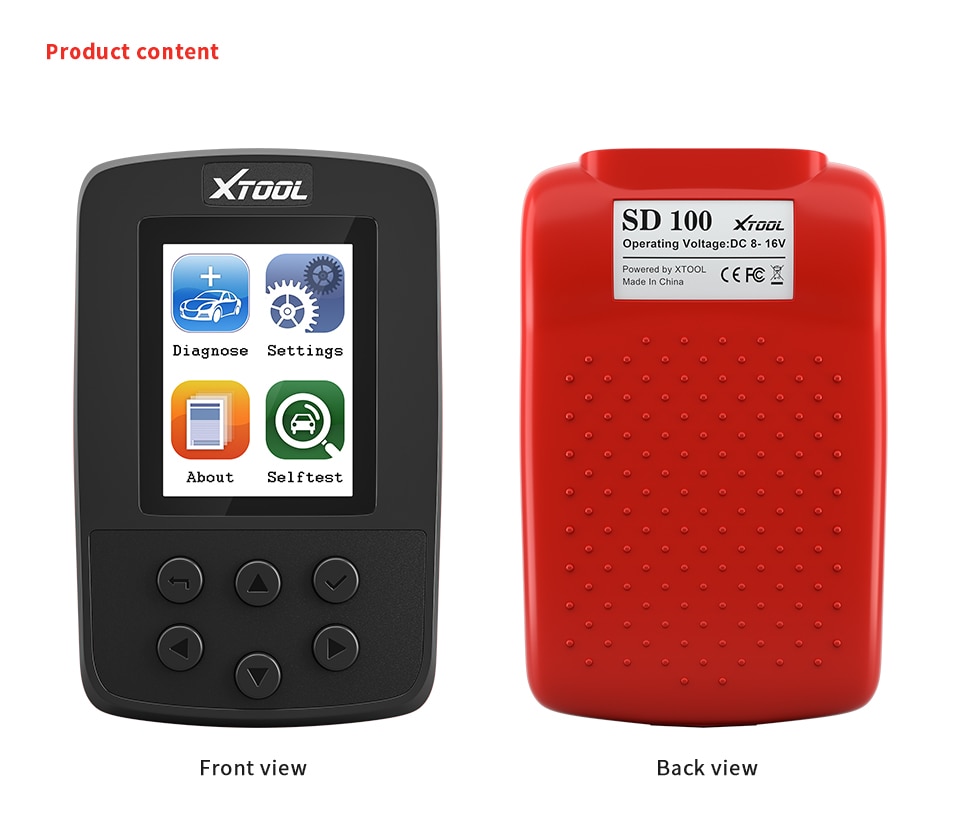

images of XTOOL SD100 Volle OBD2 DIY OBD2 Diagnostic Tool Code Reader

XTOOL SD100 Volle OBD2 DIY OBD2 Code Reader Diagnostic Tool

XTOOL SD100 OBD2 Code Reader Highlights:

1. Supports 9 test modes of the latest OBD II test specs
2. Support ALL OBD2 compliant (including VWM,PWM,KWP2000 and CAN )
3. Support Multi Languages:German,English,Spanish,France,Portugues,Russian
4. 1 Year free update

XTOOL SD100 Volle OBD2 Code Reader Functions:

• Read codes
• Erase codes
• Live data
• Freeze frame
• Vehicle Information
• Component test
• On-Board monitor test
• O2S monitoring test
• I/M Readiness

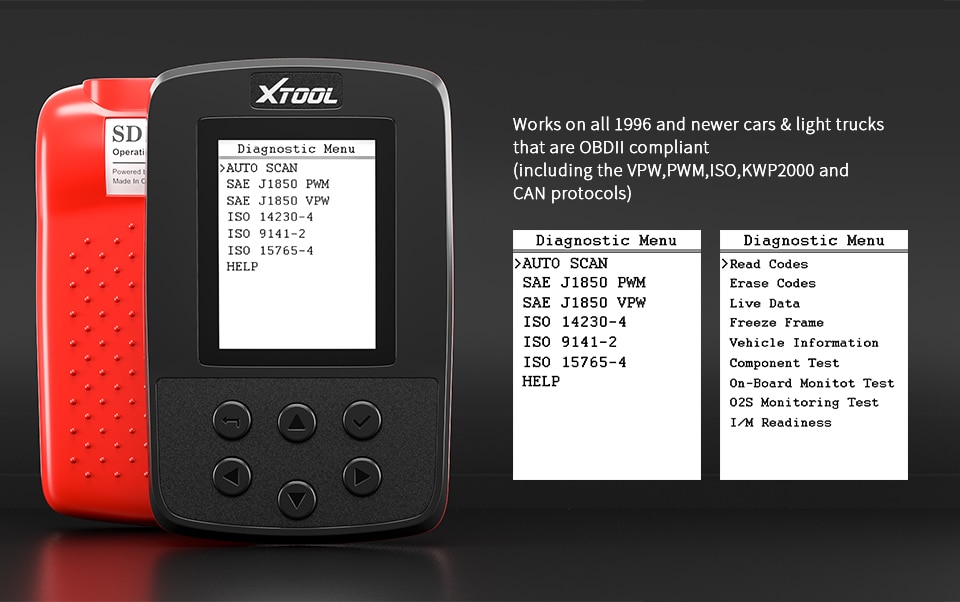

XTOOL SD100 Volle OBD2 Code Reader Support:

Works on all 1996 and newer cars & light trucks that are OBD2 compliant (including the VWM,PWM,ISO,KWP2000 and CAN protocols)

Vehicle Coverage:
ACURA, AUDI,AUSFORD, BENTLEY, BENZ, BMW, BUGATTI,BUICK, CHRYSLER,CADILLAC,CHRYSLER,CHEVROLET, CITROEN, CVVW,DACIA,DAIHATSU,DODGE,DAEWOO
FORD,FIAT,GM,GMC,HOLDEN,HONDA,HUMMER,HYUNDAI,INFINITI,ISUZU,JAGUAR, JEEP, KIA, LAND ROVER, LEXUS, MAYBACH, MAZDA, MINI, MITSUBISHI
NISSAN,OPEL,PORSCHE,PEUGEOT,PONTIAC,PEUGEOT,RENAULT,SAAB,SCION,SEAT,SKODA,SMART,SPRINTER,SUBARU,SUZUKI,TOYOTA,VAUXHALL,VOLVO
VOLKSWAGEN,VW

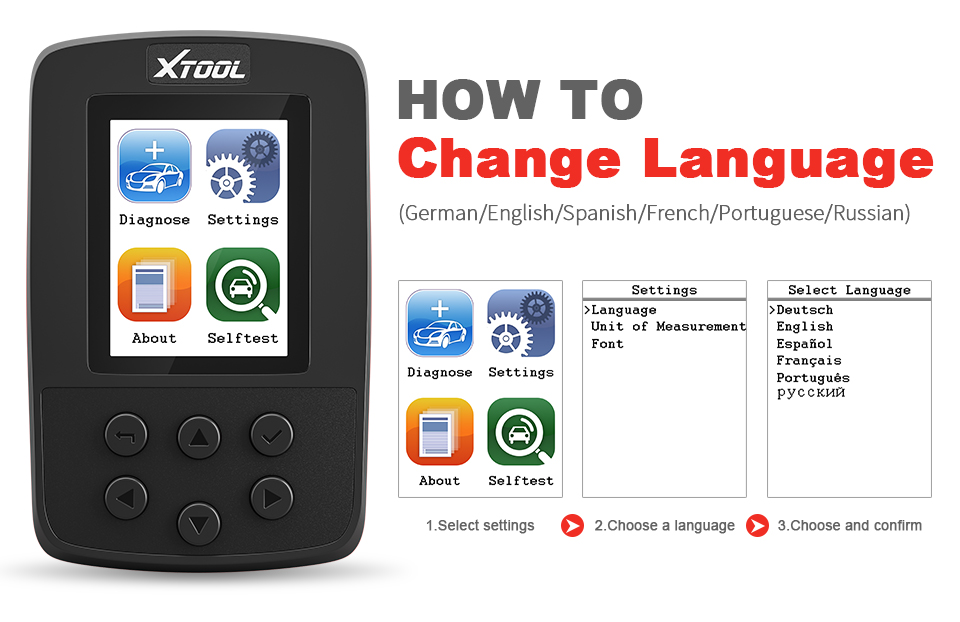

XTOOL SD100 Volle OBD2 Code Reader Language Support:

German,English,Spanish,France,Portugues,Russian

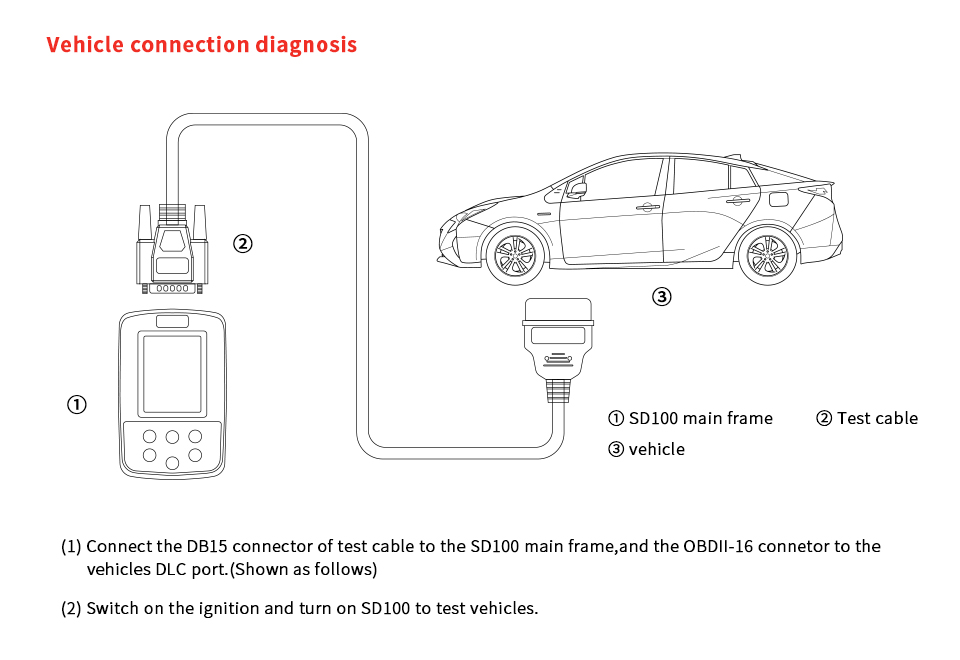

How to Connect XTOOL SD100 to Vehicle:

1. Connect the DB15 Connector of test cable to the XTOOL SD100 main frame,and the OBDII-16 connector to the vehicle DLC port.(show as below)
2. Switch on the ignition and turn on SD100 to test vehicles.

XTOOL SD100 FAQs:

Question 1: I went to the xtools web site and this model is not even listed. only the sd500 model is. so.. is the sd100 a discontinued model .
Answer 1:XTOOL SD100 is a new product that launched by XTOOL. It is a unique solo model. Just for basic functions of 9 modes on engine. And still can upgrade like other XTOOL products does.

Question 2: What does the USB cable use for ?
Answer 2: The USB cable in the package is use for software update.

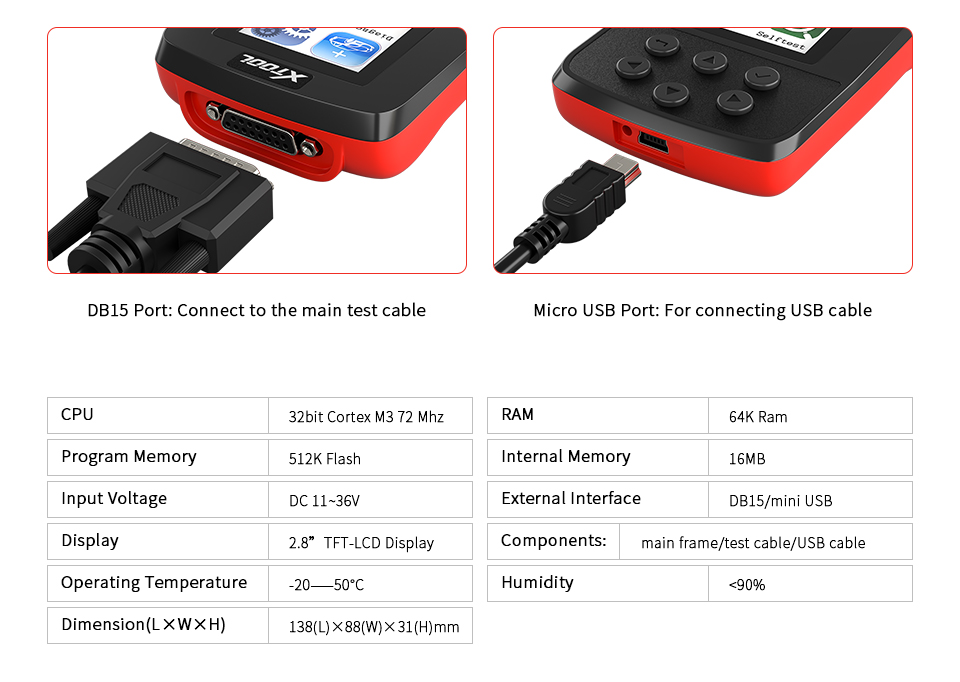

XTOOL SD100 Technical Parameters:

• CPU: 32bit Cortex M3 72MHz
• Program Memory: 512K Flash
• Input Voltage: DC 11-36V

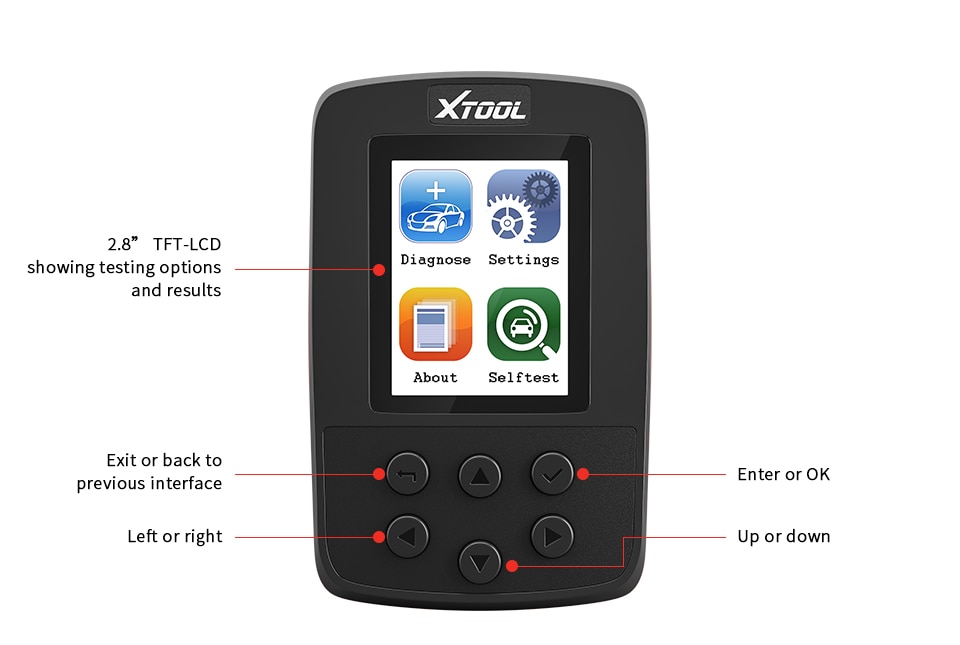

• Display: 2.8" TFT-LCD Display
• Operating Temperature: -20-50°C
• Dimension (LxWxH): 138(L)x88(W)x31(H)mm
• RAM: 64 Ram
• Internal Memory: 16MB
• External Interface: DB15/mini USB

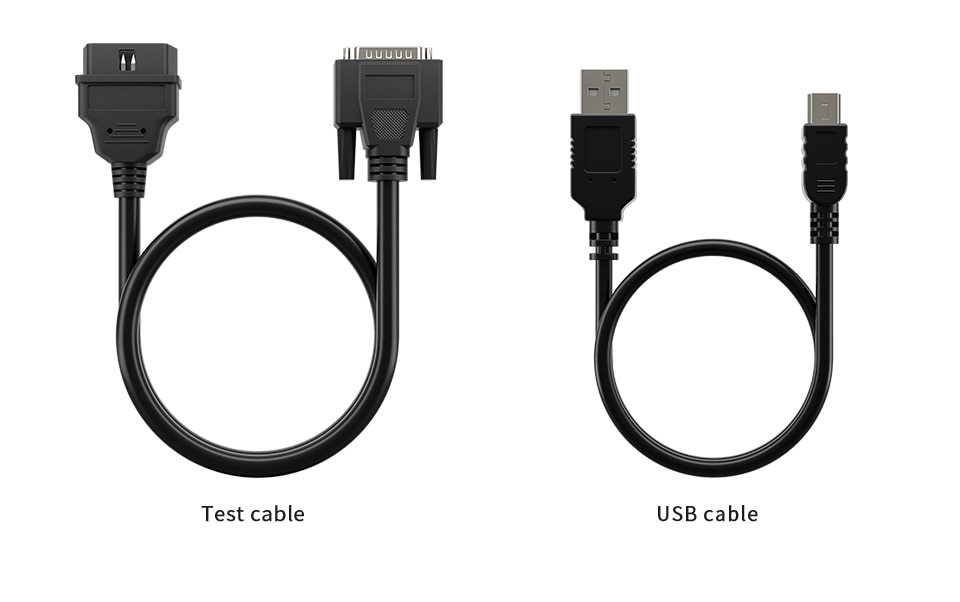

• Components: Main frame/test cable/USB cable
• Humidity: <90%

Package includes:

1pc x XTOOL SD100 Volle OBD2 Code Reader
