OTOFIX IM1

Notice:

OTOFIX IM1 Supports Same Functions of IM508. While The Following Software Need To Be Paid for Using. When You Have the IM1, It just has the basic immo function. There are also optional part like XP1 Pro, G-BOX2, APB112, and BA AKL Cable for following expended vehicles.

1) Diagnostics: Full systems diagnostics and services functions
2) Mercedes: All key lost (on vehicle, fast), renew immobilizer components. (Need XP1 Pro)
3) BMW: ECU replacement (FEM/ BDC, CAS1/23/3+),read ISN by Bench. (Need G-Box2)
4) Volkswagen: Read PIN by Bench (Need G-Box2), and read PIN by OBD for MED17, MQB ECM replacement and forth-generation replacement
5) Toyota: All keys lost for transponder 8A. (Need APB112, G-BOX2 and 8A AKL Cable)
6) Ford/ Mazda: PIN bypass for 2020 Mazda(Mazda3/Cx-30)，Ford China and Mazda China(Mazda PMI/Mazda2013+) new parameter reset
7) Mitsubishi: All keys lost for ID47 smart key
If you want these expanded vehicle coverage with subscriptions, it will cost $69 for each of them.

1. OE-Level Diagnostics

Autel OTOFIX IM1 also is a professional automotive diagnostic scanner that provides full system diagnostics and 26 special services for more than 80 US, Asian and European vehicles by additional purchase advanced features.

* Powerful and fast diagnosis for all vehicle systems
* Supports ECU information, read/erase codes and live data
* Guide Function provides more DTC tips (Supports Volkswagen/ Audi)
* Supports advanced features of Volkswagen and Audi including online coding, online IMMO, and hidden function renewal

2. Smart IMMO Functions

OTOFIX IM1 key programming tool support for expansive list of makes and models, including BMW, Volkswagen, Audi, GM, Ford, Mazda, and Nissa. Equipped with OTOFIX XP1 Key Programmer to support key read/write and EEPEROM/MCU read/write.

Supports OBD key programming for 80% of vehicle models
Supports All keys lost programming via OBD for Volkswagen IV, V and MQB IMMO system
Supports Add Key and All keys lost programming via OBD from CAS1 to CAS4 and FEM&BDC IMMO system
Supports key programming bypassing PIN code for all 2005-2020 Ford models
Supports key programming bypassing PIN code for 2019-2020 Promaster, DT-RAM, Jeep Commander, etc.
Supports read password for Hyundai Kia key ID46, 47, 4A, 8A, etc.

Key Programmiing Vehicle Coverage: Support more than 95% of common vehicle models, 2000 models of more than 60 car series.



3. One-Tap Access to More Advanced Features

Require additional purchase and some only come with XP1 Pro.
* Supports basic functions, including diagnostics, read code, clear code, live data, and more.
* Mercedes-Benz IMMO functions: Supports All keys lost, IMMO parts renew features, and more. BMW functions: Supports ECU replacement (FEM/BDC), ECU renew CAS1/2/3/3+.
* Volkswagen IMMO function: Supports MQB engine replacement, IMMO IV engine and instrument replacement, engine MED17 read password via OBD and read password on bench methods

4. AutoVIN Technology

OTOFIX IM1 professional car key programmer scan tool can automatically identify vehicle make, model, and year with AutoVIN/ ScanVIN

One-Stop Cloud Service

1. Remote Expert Support Online
IM1 car diagnostic tool is able to connect seamlessly with OTOFIX cloud service to obtain professional remote expert support online, share diagnostic reports and assist you with any diagnostics problem. (Coming Soon)
2. Highly Detailed Diagnostics Cases
IM1 key programming tool can provide highly detailed diagnostics cases are available for you to consult anytime. (Coming Soon)
3. Maintenance Reports Management
With the OTOFIX IM1 key programming & diagnostic scan tool, all maintenance reports are stored in the cloud, allowing you to view device and test records anytime, anywhere. (coming soon)

Comparison Table for OTOFIX IM1, Autel IM508 and XTOOL X100 PAD2 Pro:

OTOFIX IM1 Specifications:

Operating System: Android 9.0
Processor: 4x ARM Cortex-A35 (1.5GHz)
Screen Display: 7" LCD capacitive touchscreen with 1280*800 resolution
Storage: 64 GB
DDR: 2 GB
Camera: Rear 8M
Battery: 5800 mAh
Connectivity: USB OTG Type C /USB HOST Type C/ Bluetooth
Working Temperature: 0 to 45°C (32 to 113°F)
Storage Temperature: -10 to 60°C (14 to 140°F)
VCI (Vehicle Communication Interface): V1
Wi-Fi: Wi-Fi 5

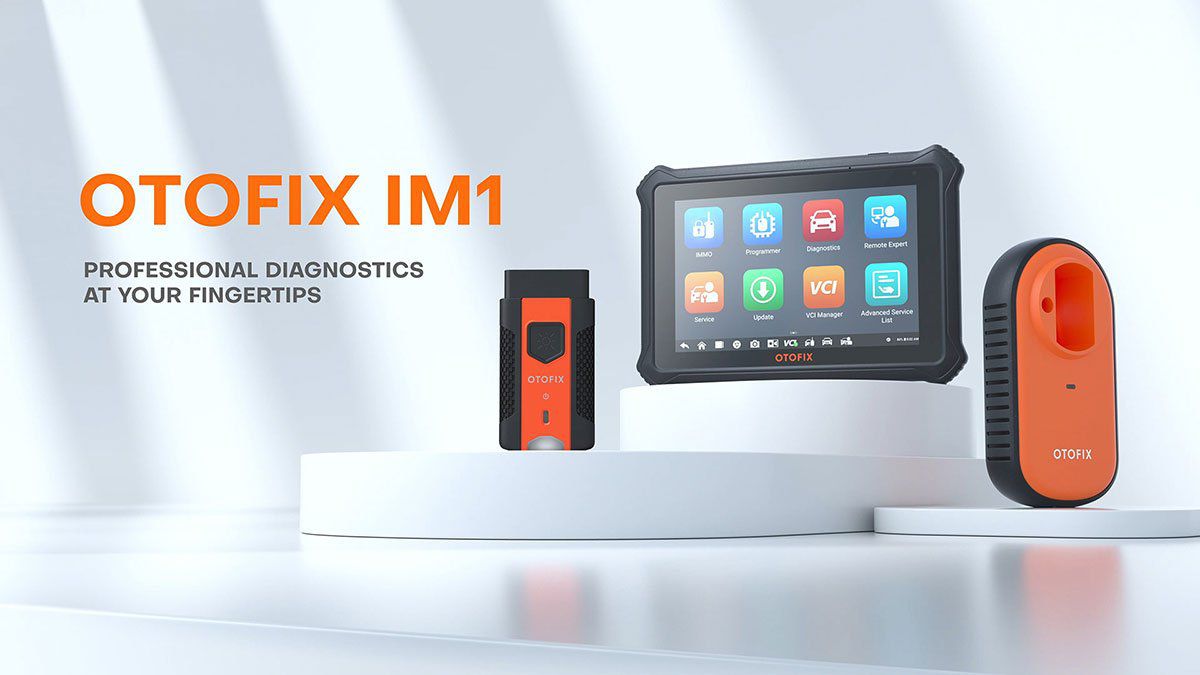

OTOFIX IM1 Overview:

OTOFIX IM1 Tablet

1. 7-inch Touchscreen
2. Microphone
3. Power LED
4. Ambient Light Sensor
5. Loudspeaker
6. Camera
7. Camera Flash
8. USB OTG/Charging Port
9. USB Port
10. Micro SD Card Slot
11. Power/Lock Button

OTOFIX XP1

12. Vehicle Key Chip Slot — holds the vehicle key chip.
13. Vehicle Key Slot — holds the vehicle key.
14. Status LED Light — indicates the current operating status.
15.DB15-Pin Port — connects EEPROM Adapter and EEPROM Clamp Integrated MC9S12 Cable.
16.Mini USB Port — provides data communication and power supply

OTOFIX V1

17.Flashlight Power Button
18.Power LED
19.Vehicle/Connection LED
20.Vehicle Data Connector (16-pin)
21.USB Port

OTOFXI IM1 Package List:

1pc x Main Unit
1pc x USB-C to USB-C Cable
1pc x APA002
1pc x XP1
1pc x Power Adapter
1pc x APA001
1pc x OTOFIX V1
2pcs x APB001
1pc x USB-A to USB-C Cable
1pc x APB002
1pc x USB-C to Mini USB Cable
1pc x Carrying Case
1pc x Quick Reference Guide
