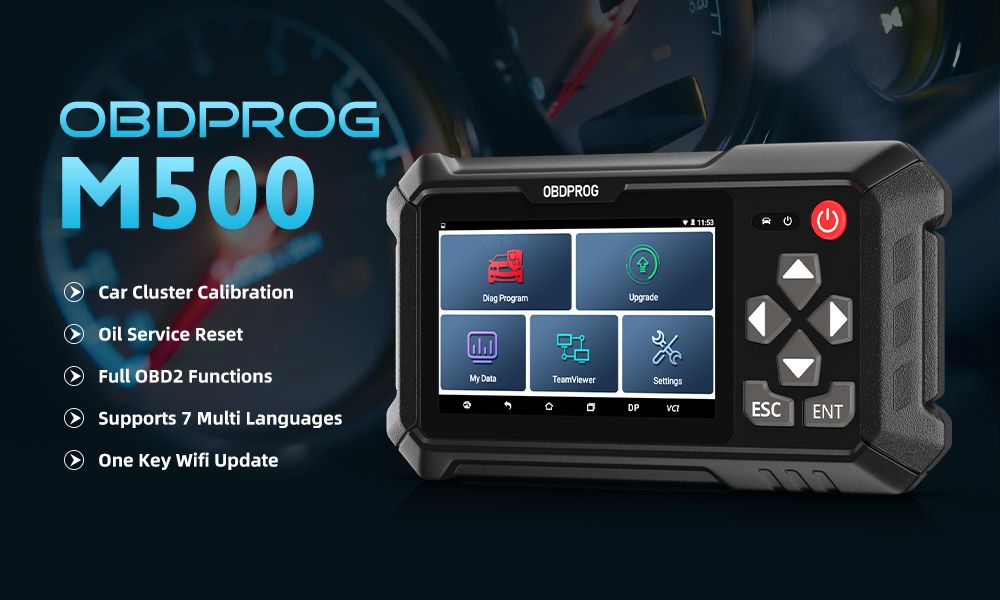

OBDPROG M500 Professional Odometer Correction Tool

Introduction

OBDPROG M500 ODO Doctor is a new Android based 5inch tablet, specialized for cluster Calibration function. It inherits the latest cluster odometer adjust from OBDPROG technology company with various advantages of easy-to-use, world wide newest vehicle model coverage, fast operation and durable features which can meet the actual needs of different users inquire, such as personal second-hand car owner, automobile repair plants and fast repair workshops.

OBDPROG M500 ODO Functions List:

1. Via OBDII/EOBD Engine Diagnostic
2.Cluster Calibration Correction
3.Read Odometer
4.Write Odometer
5.Data Backup
6.Data Recovery
Read Odometer
8. Oil Service Reset
9. Read & Clear DTC codes
10. Turn off MIL fault lamp

Full OBDII/EOBD Engine Diagnostic Tool

Reading Codes:Show the detailed description of the Diagnostic Trouble Code (DTCs)

Erasing Codes & Reset:Turns off Check Engine Light (MIL), clears codes and resets monitors.

Data Stream:Reads and displays live ECU/PCM data stream, plotting functions graphically and stores freeze frame data.

Retrieving I/M Readiness Status:Shows whether the various emissions-related systems on the vehicle are operating properly and are ready for inspection and maintenance testing.

Read Live Data Stream:Show the information of continuous data stream from a vehicle in live graphic (waveform) display.

View Freeze Frame Data:Check the certain vehicle conditions which are recorded by the on-board computer at the time the emission-related fault occurs.

O2 Sensor Test:Allows retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle's on-board computer.

On-Board Monitor Test:Retrieves and displays test results for emission-related powertrain components and systems.

Read Vehicle Information:Display the information such as VIN (Vehicle Identification Number), CID (Calibration ID) and CVN (Calibration verification number), etc.

Component Test:Certain vehicle components can be actuated by commands sent from the scanner to test their operability.

OBDPROG M500 Supports Languages:

It supports English, Spanish, Polish, Portuguese, French, German, Italian.

Note:

The default language of the device is English, if you want to update it to other languages, please provide us with the product serial number, we will update it for you

One-Click Upgrand Via Wifi

OBDPROG M500 ODO Support Car Software list:

Europe:

For Audi, for BENZ, for BMW,
for Mini, for CITROEN, for PEUGEOT,
for FIAT, for Jaguar, for Land Rover,
for OPEL, for PORSCHE, for RENAULT,
for VOLVO, for IVECO, for Skoda,
for Seat, for VW

Japan:

For ISUZU, for MAZDA, for MITSUBISHI,
for INFINITE, for NISSAN, for SUBARU,
for TOYOTA

Korea:

For Hyundai, for KIA, for SANGYONG

America:

For FORD, for LINCOLN, for Chrysler, for GM, for Chevrolet, for Cadillac, for Jeep,for Dodge

China:

For GEELY,for BESTURN,for MG,for ROEWE

Note:

1.not support luxury brands key programming function

2.Even though it compatible with most cars, but different regions support the vehicle list at different times, or some car is special design, so it may not compatible with some car, please Leave us message in below format, we will reply you within 8 hours. for example : for Audi A4 2005, 2.0cc diesel, dashboard type is 24C64

Recent Device Updates Content

Jeep Grand Cherokee 2019-
Jeep Wrangler 2018
Jeep Wrangler 2010-
Jeep Commander 93C76
Jeep Grand 93C76
Cheysler PT 93C76
Fiat Viaggio

OBDPROG M500 Support Car Software list:

For BMW

M500 only supports some types of cluster reset, and does not support changing the data at will

Product Highlights

For Volkswagen/Audi/Skoda/Seat:

support MQB(VDO/Continental) -2014.6 and after 2014.6,AUDI A6/A7/A8 after 2010,some models support after 2018.

For Land Rover/Jaguar:

most models are supported after 2015, and some models such as for DISCOVERY SPORT, for VELAR, etc. will be supported until 2018

For Renault:

support Captur after 2017,support Clio after 2017,support Trafic IV after 2017,support Twingo III

For Volvo:

support most models

For Fiat:

support most models,for Ducato 2015

For FORD:

for FOCUS support until 2019,for F250/350/450/550, for TRANSIT CUSTOM,for KA support until 2018, for ECOSPORT, for EXPEDITION, for F150,for MKZ, for FUSION, etc. support until 2017

For GM:

for XT6, for CAMARO support until 2019; for ESCALADE , for XTS, for COLORADO support until 2018; for ENCORE, for ENVISION, for LACROSSE, for REGAL, for VERANO,for CT6, for XT4, for XT5, for CORVETTE, for MALIBU, for SILVERADO, for TAHOE, for SIERRA, for YUKON support until 2017

For Chrysler:

for 300C, for PACIFICA, for CHALLENGER, for CHARGER, for DURANGO, for RAM, for CHEROKEE, for COMPASS, for GRAND for CHEROKEE, for RENEGADE support after 2018

For TOYOTA:

for CAMRY supports until 2018; for COROLLA, for AURIS, for TACOMA, for AVENSIS supports until 2016

For Hyundai:

for Hyundai Sonata 9 hybrid version; for Accent, for Elantra, for IX35, for KONA, for Solaris support until 2018

OBDPROG M500 ODO Highlights:

1. The update cycle is short and fast
2. Free Update Online for One Year, Dealer Code: is 0086B002
3. Strong competitiveness and industry advantage
4. Some models can support 18/19 years of car (such as GM/Chrysler)
5.World Wide Vehicle Coverage and One-Click Upgrade Online
6.Add a new help function as shown below: (Applicable to some models, R & D information is being update)

M500 Interface Display

Professional Cluster Calibration Tool Technical Parameter

Operation system: Android 5.1.1
CPU: RK3128 Quad-Core ARM Cortex A7
Battery: 2500mA,rechargeable polymer lithium battery
Extension memory card: 32G Micro SD (TF) card supported
Storage capacity: 16GB
LCD: 5.0 inch
LCD resolution: 800*480
Touch screen: capacitive touch screen
Wi-Fi: supported
Working temperature: -20℃ ~ 55℃ (14℉ ~ 131℉)
Storage temperature: -20℃ ~ 70℃ (-4℉ ~ 158℉)
Weight: about 458g
Dimension: 220mm*115mm*28mm

Product Details

Package list
