MaxiIM IM608
Autel introduces MaxiIM IM608, a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVCI ECU programmer, IM608 is a comprehensive immobilizer and key programming tool and ideal for auto technicians and locksmiths.
Original Autel MaxiIM IM608 Advanced Diagnose + IMMO + Key Programming Tool is a one of our MaxiIM IM608 Tools, you can buy Original Autel MaxiIM IM608 Advanced Diagnose + IMMO + Key Programming Tool from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of Original Autel MaxiIM IM608 Advanced Diagnose + IMMO + Key Programming Tool

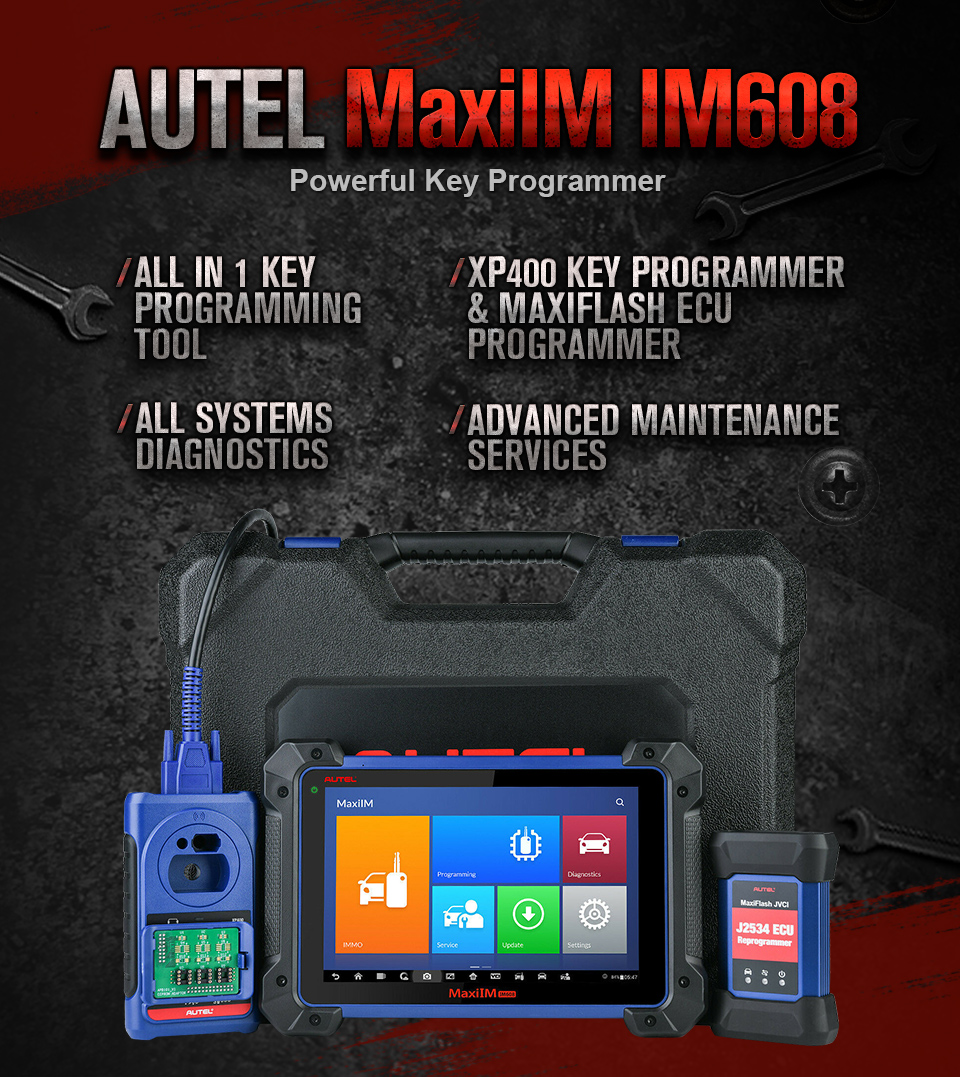

Autel Introduces MaxiIM IM608
Autel introduces MaxiIM IM608, a state of the art 10-inch Android-based touchscreen tablet combining the most advanced key programming and immobilizer capabilities with OE-level diagnostics and service functions. Equipped with XP400 key programmer and MaxiFlash JVC_I ECU programmer, IM608 is a comprehensive IMMObilizer and key programming tool and ideal for auto technicians and locksmiths.
Autel MaxiIM IM608 Features:
Support IMMO functions for over 60 worldwide makes and models.
Support PIN/CS read, transponder read/write/identification, MCU/EEPROM chip read/write and IMMO ECU Reset/Adaption.
Extensive vehicle coverage for more than 80 US, Asian and European vehicle makes.
Complete capabilities for codes, live data, actuation tests, adaptations.
Displays live data in text, graph, analog and digital gauge for easy data review and analysis.
Auto VIN technology can automatically identify the vehicle’s make, model and year information in no time.
Quick access for more than twelve common service functions including Oil Reset, EPB, DPF, BMS, SAS, TPMS and more.
Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes.
Remote technical support for convenient demonstration, training and increased customer satisfaction.
Print out recorded data anytime and anywhere with Wi-Fi technology.
Automatic Wi-Fi updates available in new software releases.

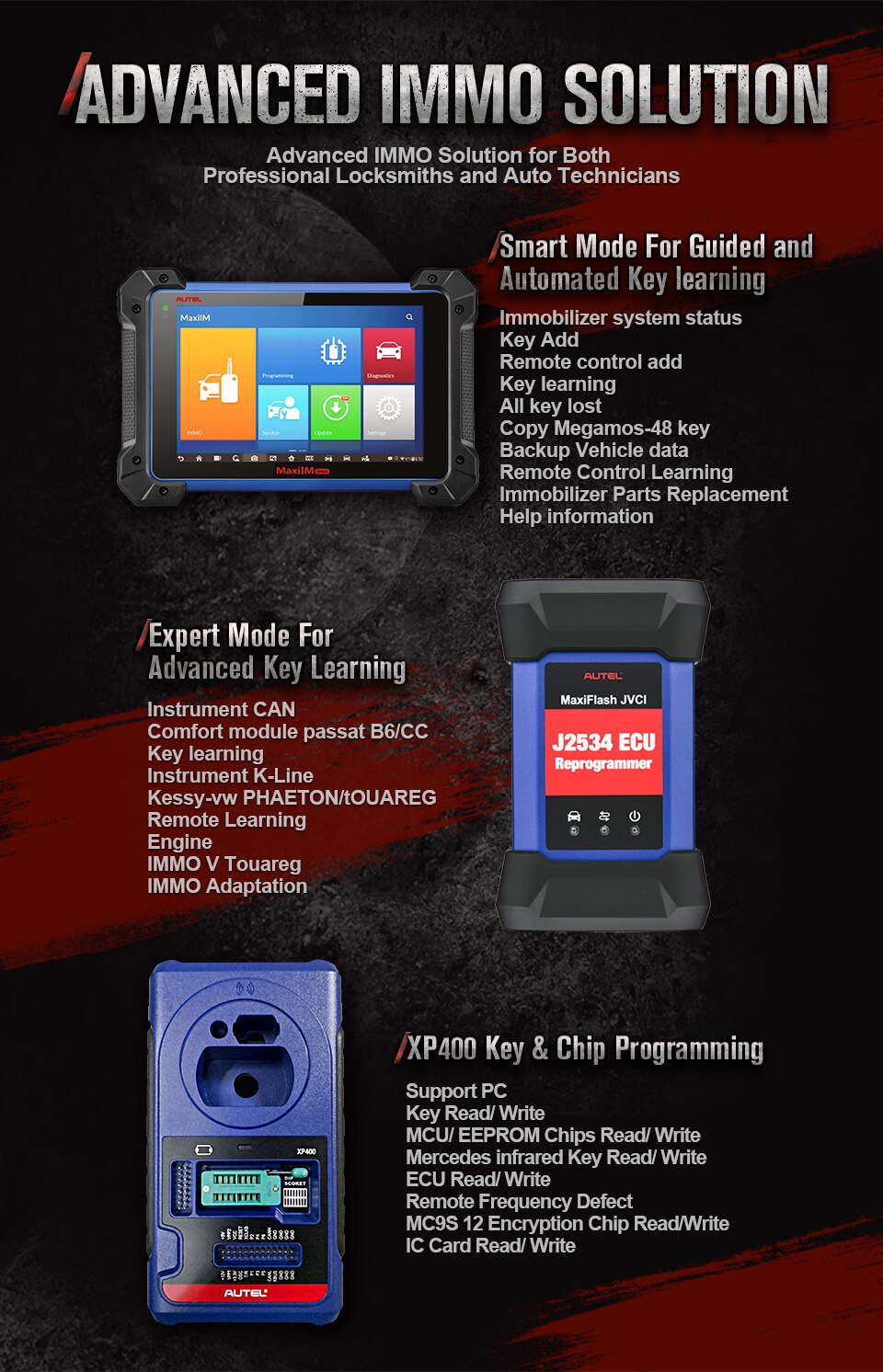

Autel MaxiIM IM608 Functions List:
Smart Model: for Guided and Automated Key Learning
Expert Model: for Advanced Key Learning
Read PIN / CS (All Key Lost)
Generate Key
KeyLearning
Remote Learning Backup / Restore
IMMO Data IMMO
ECU Reset / Adaptation
IMMO ECU Refresh / Coding
Benz 3rd Generation IMMO Add Key, All Key Lost, Key Learning
BMW FEM / BDC Key Learning and ECU Adaptation
BMW CAS4/3/2 Key Learning
VW / Audi MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All
Key Lost, and More

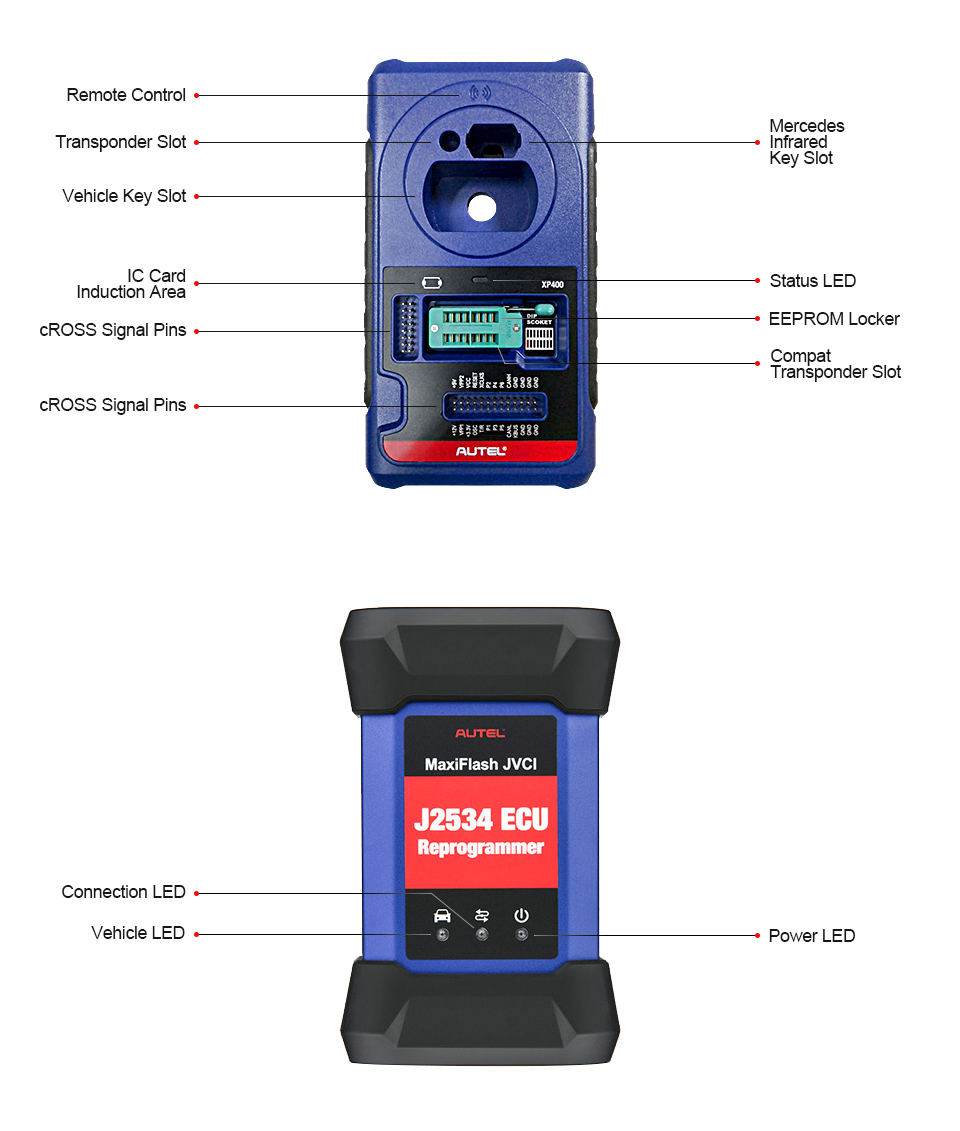

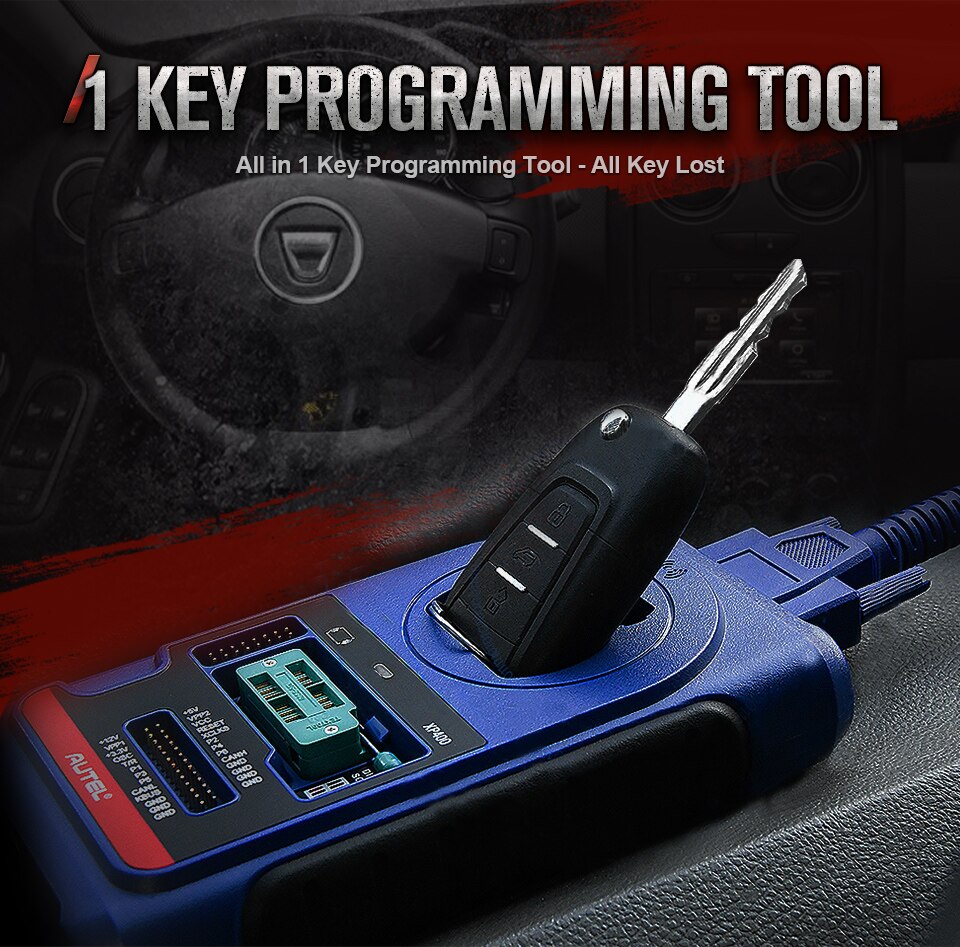

XP400 KEY & CHIP PROGRAMMER
Support PC
MCU / EEPROM Chips Read / Write
ECU Read / Write
MC9S12 Encryption Chip Read / Write
Key Read / Write
Mercedes Infrared Key Read / Write
Remote Frequency Detect
IC Card Read/Write
OE-LEVEL DIAGNOSTICS FOR 80+ VEHICLE MAKES
All Systems Diagnostics
AutoVIN / AutoScan
Read / Erase Codes
View, Record and Playback Live Data
View Freeze Frame Data
Shop and Data Manager Applications
MaxiFlash JVCI ECU Programmer (Bluetooth/USB cable)

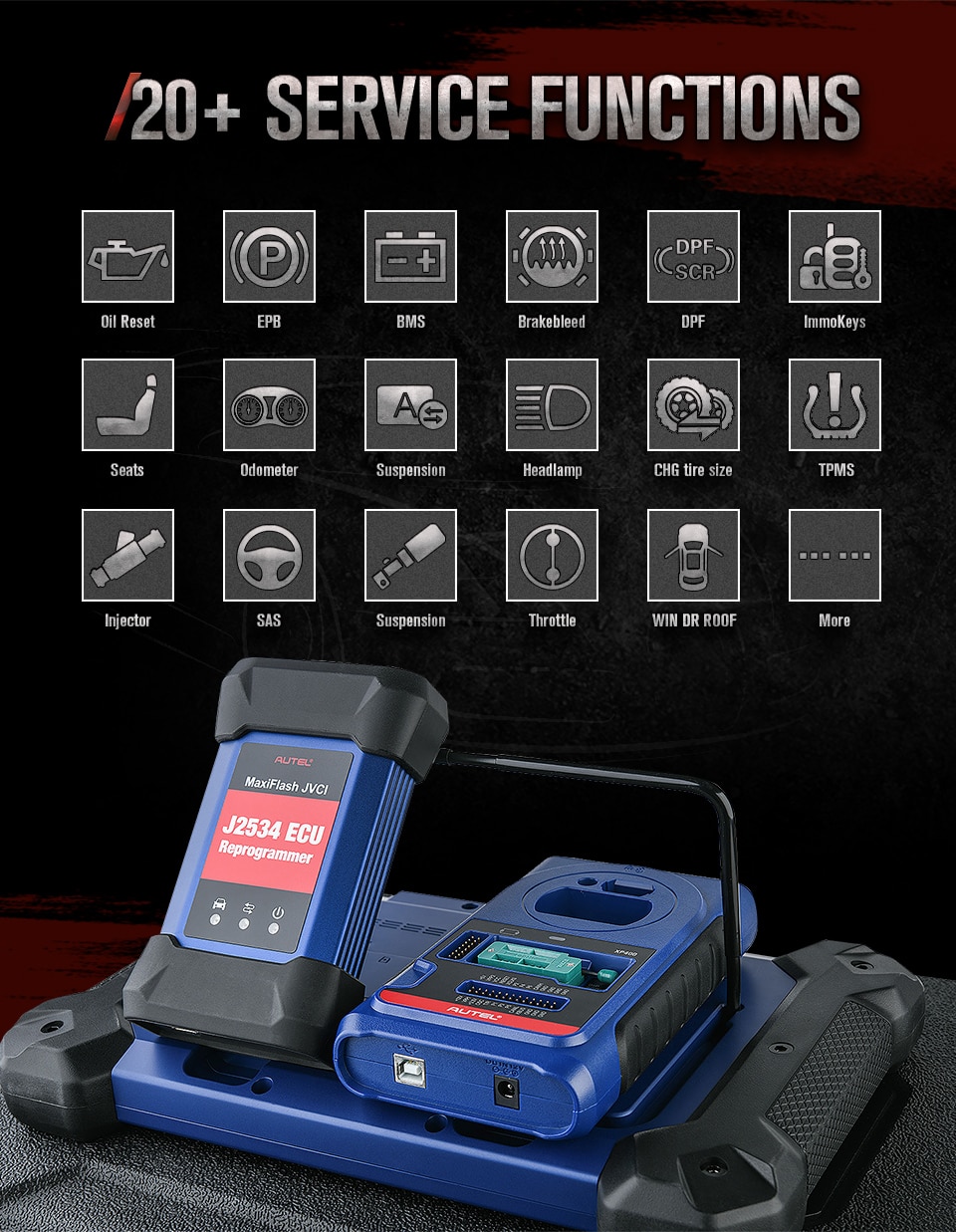

ADVANCED SERVICE FUNCTIONS

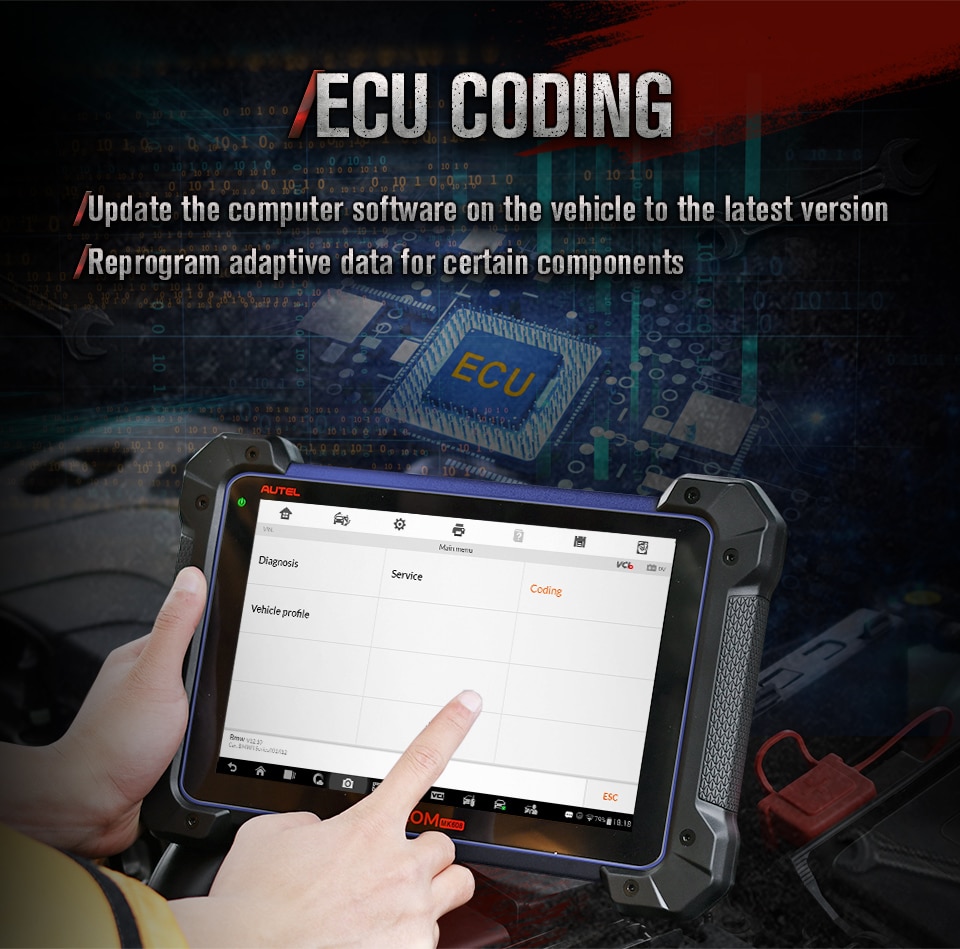

All Special Functions, e.g. EPB, DPF, SAS, Oil Reset, BMS and TPMS Sensor ID Relearn, etc.ECU Coding
Autel MaxiIM IM608 Customers Feedbacks:
Golf MK5 2005 AKL - add key OK - 2min
Scirocco 2011 - add key OK - 2min40sec
Honda Civic 2006 - add key OK - 55sec
Golf V AKL 2007 without remove dashboard
Done Tiguan 2013, Scirocco and few others VAGs. Works fine on them
Autel MaxiIM IM608 program key for Volvo XC60 successfully
Benz W212 akl can be done by OBD
2014 Seat Ibiza, 2 keys added
Mercedes ML320 CDI 2007
BMW FEM system Add Key complete

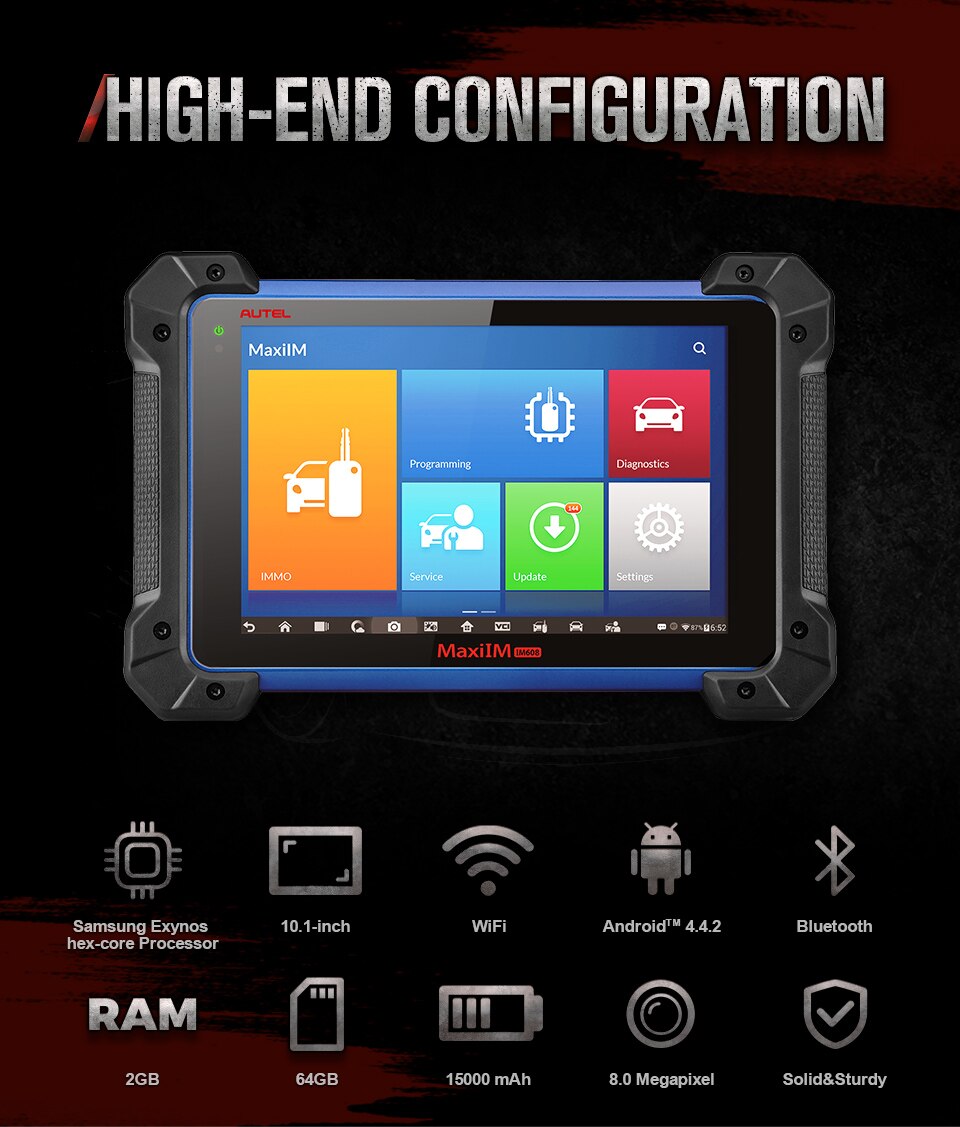

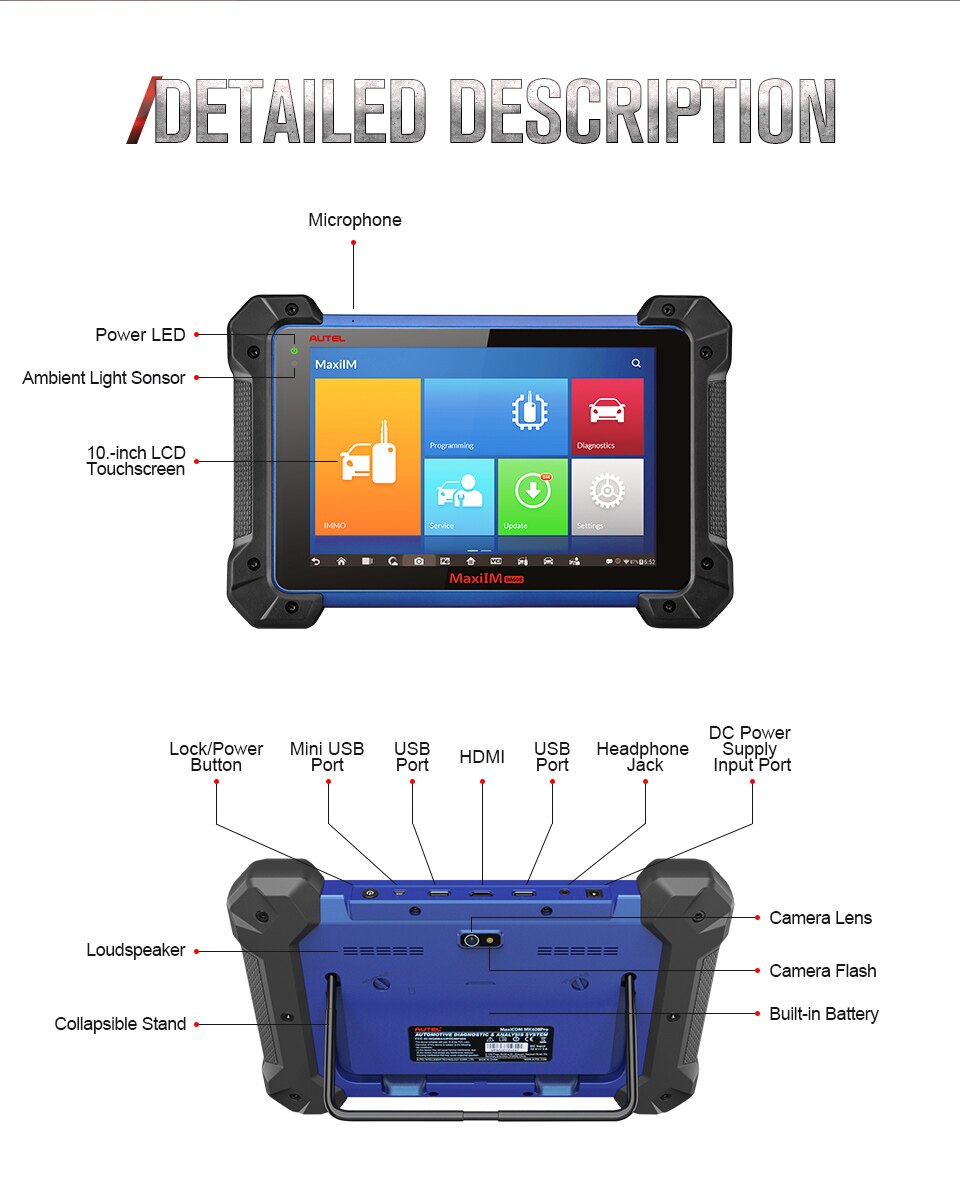

Autel MaxiIM IM608 Specifications:
| Operation System | Android 4.4.2,KitKat |
| Processor | Samsung Exynos hex-core Processor(1.3GHz Quad-core ARM Cortex-A7+1.7GHz Dual-core ARM Cortex-A15) |
| Memory | 2GB RAM & 64 GB On-board Menory |
| Display | 10.1-inch LED capacitive touch screen with 1920*1200 resolution Wi-Fi(802.11 a/b/g/n/ac) USB 2.0 |
| Connectivity | BT v.2.1+EDR SD Card (Support up to 32GB) HDMI |
| Camera(rear) | 8.0 Megapixel,AF with Flashlight |
| Sensors | Gravity Accelerometer,Ambient Light Sensor (ALS) |
| Audio input/output | Microphone Dual Speakers 3-Band 3.5mm stereo/standard headset jack |
| Power and Battery | Charging via 12V AC/DC power supply with the temperature between 0℃ to 45℃ |
| Input Voltage | 12V (9-24V) |
| Power Consumption | 6.5W |
| Operating Temp | 0℃ to 50℃ (32 to 122℉) |
| Storage Temp | -20℃ to 60℃ (-4 to 140℉) |
| Dimensions(W*H*D) | 300mm(11.81")x220.0mm(8.66")x50.0mm(1.97") |
| Weight | NW:1.42kg(3.13lb.) GW:8.655kg(19.08lb) |
| Protocols: | ISO9141-2,ISO14230-2,ISO15765-4,K/L-line,Flashing code,SAE-J1850 VPW,SAE-J1850PWN,CAN ISO11898,Highspeed,Middlespeed,Lowspeed and Singlewire CAN,GM,GM UART,UART Echo Byte Protocol,Honda Diag-H Protocol,TP2.0,TP1.6SAE J1939,SAE J1708,Fault-Tolerant CAN |

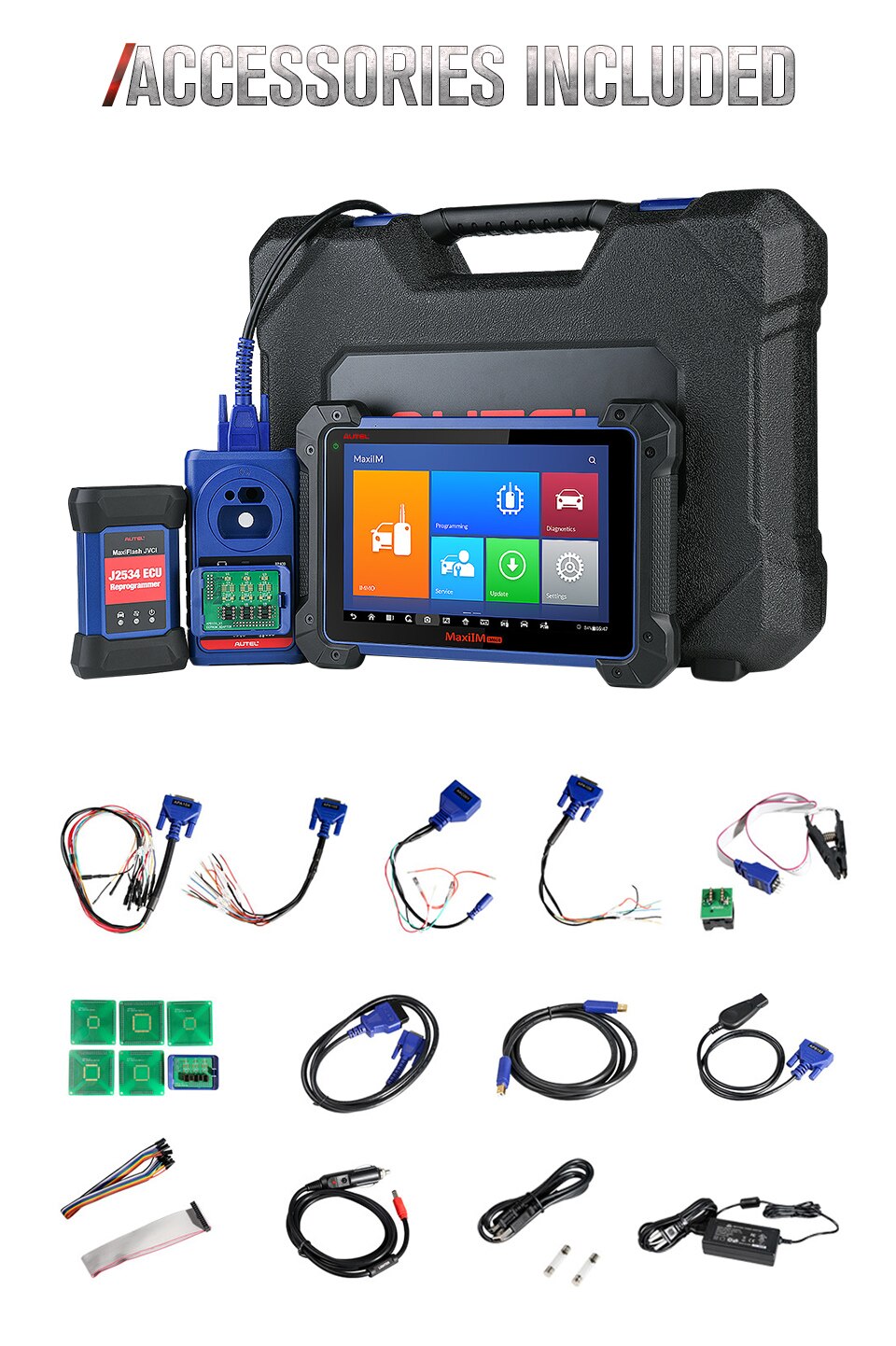

Autel MaxiIM IM608 Packling List:
1x Autel MaxiIM IM608 Main Unit
1x APC101 USB Cable
1x APA101 Signal Cable
1x MaxiFlash JVCI
1x APB101+APD101(EEPROM Adaptor+EEPROM Adapter Shell)
1x APA103(EEPROM Clamp)
1x XP400
1x APB102 MB IR Cable
1x APA104 ECU Clamp
1x Main Cable
1x APB104(MCU_FQFP64)
1x APA105(MCU Clamp)
1x USB Cable (2m)
1x APB105 MCU_FQFP80
1x APA106(MC9S12 Clamp)
1x Mini USB Cable
1x APB106(MCU_FQFP144)
1x APA107(Connect Cable)
1x AC/DC 12V Adapter
1x APB107(MCU_FQFP144)
1x Quick Reference Guide
2x Light Fuse 6*30mm
1x APB108(MCU_FQFP176)
1x Packing List
1x Cigarette Lighter
1x APA002(EEPROM Socket)
1x Carrying Case 634*170*404mm
1x AAC001
Go to Buy: Original Autel MaxiIM IM608 Advanced Diagnose + IMMO + Key Programming Tool
