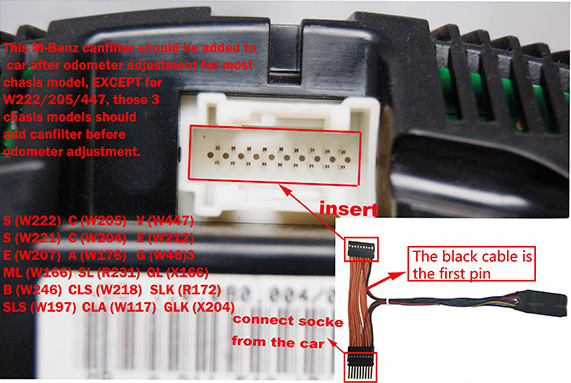

This MB CAN Filter 18 in 1 Benz / BMW Universal filter should be added to car after odometer adjustment for most chassis model, EXCEPT for W222/W205/W447,those 3 chassis models should add can filter before odometer adjustment.

Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter is a one of our MB Can filter Tools, you can buy Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter

Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter

MB CAN Filter 18 in 1 Benz/BMW Universal Filter

Latest Benz / BMW Universal CAN Filter

Applicable vehicle list:

1. Benz 18 types chasis model: S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
BMW: CAS4/FEM Fxx

MB CAN Filter 18 in 1-1

2. BMW Model:

BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment;
BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.

NOTICE!!
New style: 222/205/217
Old style: 166/212/463
CHECK the car model correctly before adjust.
Old style W166 short circuit to GND
New style W222 short circuit to GND
Black wire connect to plug 1

YH Benz / BMW Universal filter --- Diagram for BMW

Below is wiring illustration:

MB CAN Filter 18 in 1-2

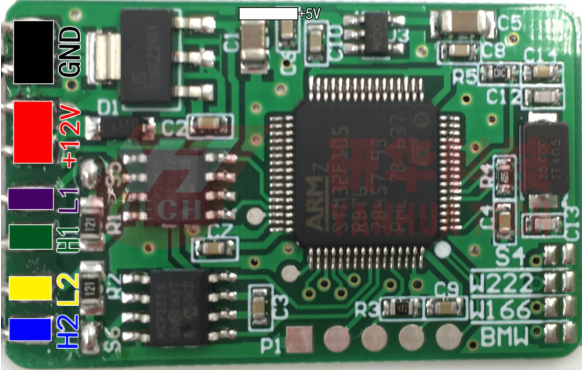

Black --------- GND Red --------- +12V White --------- +5V
Purple -------- L1(CAN_L1) Green --------- H1(CAN_H1)
Yellow --------- L2(CAN_L2) Blue --------- H2(CAN_H1)
NOTICE! Please connect the 2 BMW dot together(short circuit) BEFORE connect to car!

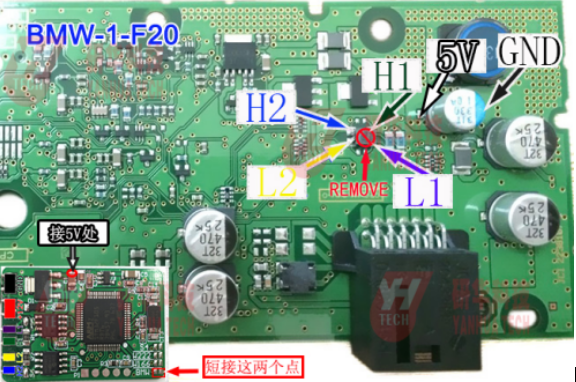

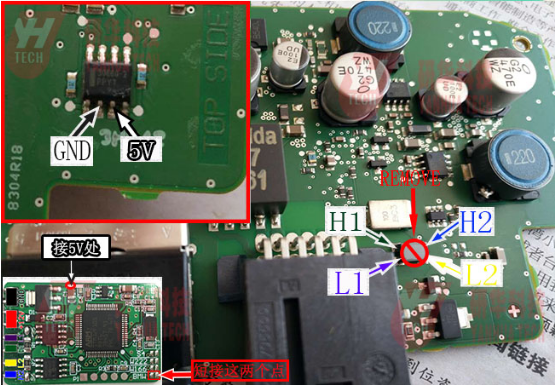

1. Below is the diagram for BMW 1 series F20 instrument:

MB CAN Filter 18 in 1-3

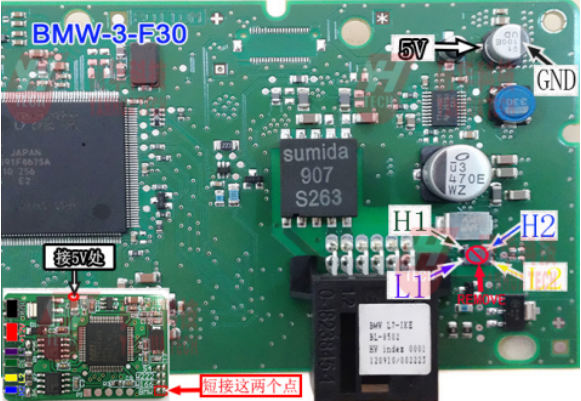

2. Below is the BMW 3 series F30 instrument:

MB CAN Filter 18 in 1-4

3. Below is the BMW 3 GT series F30 instrument:

MB CAN Filter 18 in 1-5

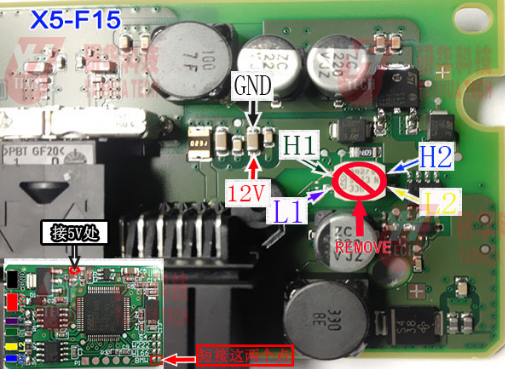

4. Below is the diagram for BMW X5 F15 instrument:

MB CAN Filter 18 in 1-6

5. Below is the diagram for USA Strandard BMW X5 F15 instrument:

MB CAN Filter 18 in 1-7

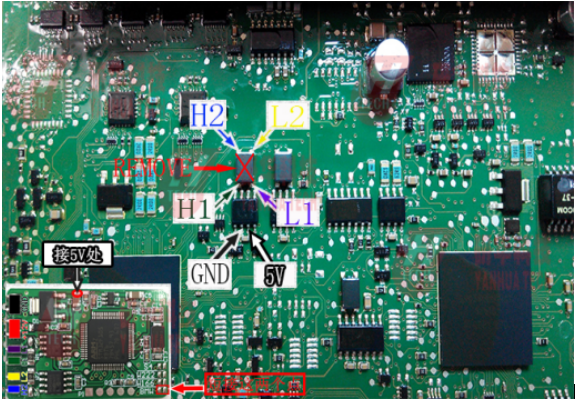

6. Below is the diagram for BMW FEM:

MB CAN Filter 18 in 1-8

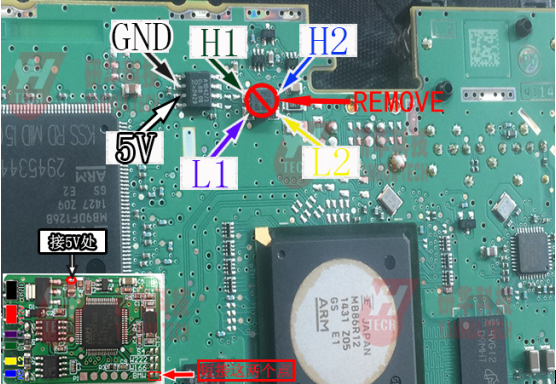

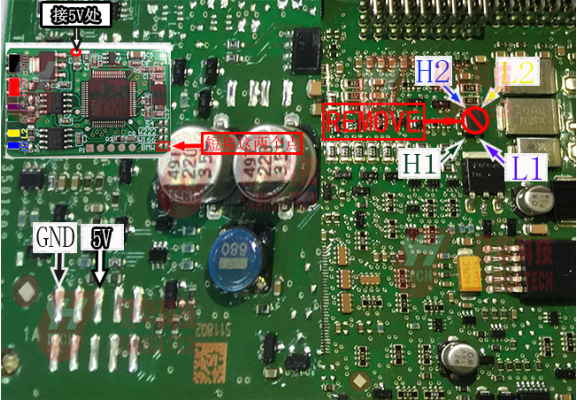

7. Below is the diagram for BMW CAS4(1L15Y/5M48H/1N35H)

MB CAN Filter 18 in 1-9

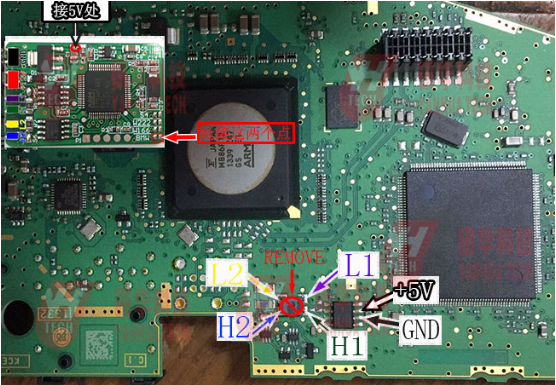

8.Below is the diagram for BMW X3 F25 instrument:

Package includeds:

1pc x MB CAN Filter 18 in 1 for Benz/BMW Universal Filter

Go to Buy: Yanhua MB CAN Filter 18 in 1 for Benz/BMW Universal CAN Filter
