Digital Professional Multimeter DT9205A
This Digital Professional Multimeter DT9205A meter is a handheld digital multimeter for measuring AC/DC Voltage, AC/DC Current, Resistance, Triode, HFE, Capacitance and Triode with Buzzer Ect function
Newly Digital True RMS Professional Multimeter AC/DC Current Tester HFE Ohm Capacitor Voltage Meter Detector Tool DT9205A is a one of our Digital Professional Multimeter DT9205A Tools, you can buy Newly Digital True RMS Professional Multimeter AC/DC Current Tester HFE Ohm Capacitor Voltage Meter Detector Tool DT9205A from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of Newly Digital True RMS Professional Multimeter AC/DC Current Tester HFE Ohm Capacitor Voltage Meter Detector Tool DT9205A
Description:
This meter is a handheld digital multimeter for measuring AC/DC Voltage, AC/DC Current, Resistance, Triode, HFE, Capacitance and Triode with Buzzer Ect function.
Specification:
Model Number : Vastar DT9205A Professional Multimeter
AC current : 2mA/20A
AC Voltage : 2V/750V
Resistance measurement range : 200/2K/2M/20M/200M
Operation mode : Manual mode
Inductance measurement range : 2kHz/20kHz/200kHz
Display Type : Digital Display
DC current : 2mA-20A
DC Voltage : 20mV/1000V
Capacitance measurement range: 2nF/2uF-20uF/200uF
Size : 175*90*28mm
Working temperature: 0 - 40 ℃
Diode : yes
Capacity : yes
Resistance : yes
AC/DC Power : Yes
On-off measurement: yes
Triode measurement: yes
Data retention : yes
Max Display : 1999 Number
Battery type : AAA*2 or 6F22 9V (not included)

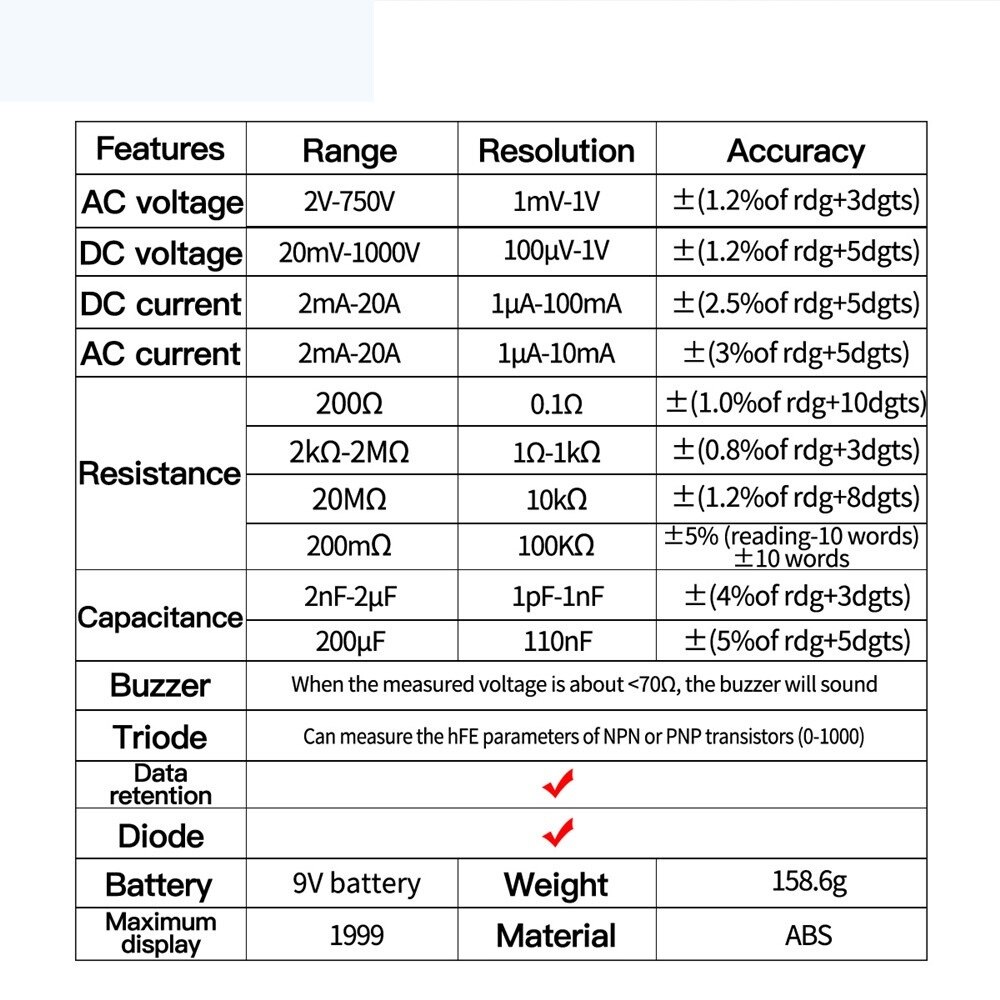

Property Range Accuracy:
AC Voltage:2V-750V +- (1.2% of rdg+3dgts)
DC Voltage:20mV-1000V +- (1.2% of rdg+5dgts)
DC Current:2mA-20A +- (2.5% of rdg+5dgts)
Current:AC 2mA-20A +-(3% of rdg+5dgts)
Impedance:200Ω +- (1.0% of rdg+10dgts)
2KΩ-2MΩ +-0.8% of rdg+3dgts)
20MΩ +- (1.2% of rdg+8dgts)
200MΩ +-5% (Read-10 words)+-10words
Capacity:2nF-2uF +-(4% of rdg+3dgts)
200uF +-(5% of rdg+5dgts)
Package list:
1*DT9205A Multimeter
1* pen clock
1 * User Manual
