Digital Battery Tester
T16897 Digital Battery Tester with 6-LED display, clearly present the alternator and battery state, and multiple functions: alternator state check, battery state check, check before charge and overload display
TIROL T16897 12V LED Digital Battery/Alternator Tester with 6 Led lights Display Indicates Condition is a one of our Digital Battery Tester Tools, you can buy TIROL T16897 12V LED Digital Battery/Alternator Tester with 6 Led lights Display Indicates Condition from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of TIROL T16897 12V LED Digital Battery/Alternator Tester with 6 Led lights Display Indicates Condition
Item Type: Battery Tester
Item Name: Led Digital Battery Tester
Place of Origin: Ningbo China (Mainland)
Brand Name: Tirol
Item NO.: T16897
Size: 12.4*5.1 cm
Weight: 115 g
Color: Gray + Red
Features: 6 Led lights Display Indicates Condition
Product Description
Detailed Product Description
Features:
Multiple functions: alternator state check, battery state check, check before charge and overload display.
6-LED display, clearly present the alternator and battery state.
Two testing clips for safe and easy operation.
Small size and light weight, convenient to carry.
Fit car, motorcycle, etc., with 12V battery.
Multiple functions: alternator state check, battery state check, check before charge and overload display.
6-LED display, clearly present the alternator and battery state.
Two testing clips for safe and easy operation.
Small size and light weight, convenient to carry.
Fit car, motorcycle, etc., with 12V battery.
- suitable for 12V lead acid batteries, hardtop batteries, discharge batteries and maintenance free batteries
- heavy duty insulated clamps.
- easy and safe to use, no sparking. And it with a good chip inside, so it is not easy to get hot on the surface
- six LED lights display indicates conditi
LED quantity: 6 (2 red, 3 green and 1 yellow)
Material of wire: 0.06square millimeter copper
Max. voltage and current: 12V 15A
Length of wire: 27cm / 10.6in
Battery tester size: 12 * 5.2 * 1.8cm / 4.7 * 2 * 0.7in
Battery tester weight: 67g / 2.4oz
Package size: 25 * 14.5 * 2.5cm / 9.8 * 5.7 * 1in
Package weight: 110g / 3.5oz
Package including:
1 * Battery Tester with Two Clips
For checking and testing the battery and the dynamo Connections
Checking the charging level
Functional test of the dynamo
Checking the battery starting capability
Battery overload display
Functional test of the dynamo
Checking the battery starting capability
Battery overload display
Connections
Attach the cable clip of the red cable to the plus point (+) of the battery and the cable clip of the black cable to the minus point ( - ) of the battery.
Attach the cable clip of the red cable to the plus point (+) of the battery and the cable clip of the black cable to the minus point ( - ) of the battery.
Checking the dynamo
Connect the testing device. Start the engine and switch off the headlights, radio etc. Start the engine again and switch on the headlights, radio etc. In both cases, the green signal lamp “GOOD” must shine. The red signal lamp “DEFECTIVE” will start to shine if the dynamo supplies no or very little voltage. Please check that the tester is connected correctly. Otherwise contact the car workshop.
Connect the testing device. Start the engine and switch off the headlights, radio etc. Start the engine again and switch on the headlights, radio etc. In both cases, the green signal lamp “GOOD” must shine. The red signal lamp “DEFECTIVE” will start to shine if the dynamo supplies no or very little voltage. Please check that the tester is connected correctly. Otherwise contact the car workshop.
Checking the charging level
Switch on the headlights for 1- 2 minutes, then switch off again. Remove the cable clips from the battery, wait approx. 10 minutes and then switch the testing device on again. A signal lamp will shine according to the charging status of the battery indicating "FULL" , "HALF - FULL" or "VERY LOW CHARGE".
Switch on the headlights for 1- 2 minutes, then switch off again. Remove the cable clips from the battery, wait approx. 10 minutes and then switch the testing device on again. A signal lamp will shine according to the charging status of the battery indicating "FULL" , "HALF - FULL" or "VERY LOW CHARGE".
Start capability of the battery
The battery needs to be charged up to the maximum. Remove the connect ion of the ignition coil and then connect the testing device. Try to start the vehicle using the key in the ignition switch. The engine cannot start (interrupted ignition). When the green signal lamp “BATTERY OK” starts to shine, the charging status of the battery is OK.
The battery needs to be charged up to the maximum. Remove the connect ion of the ignition coil and then connect the testing device. Try to start the vehicle using the key in the ignition switch. The engine cannot start (interrupted ignition). When the green signal lamp “BATTERY OK” starts to shine, the charging status of the battery is OK.
Comment: If the starter is not OK, the signal lamp “BATTERY OK” will start to go out regardless of the charging status of the battery.
WARNING! Only perform a start for 2- 3 seconds otherwise your catalyst could become damaged!
WARNING! Only perform a start for 2- 3 seconds otherwise your catalyst could become damaged!

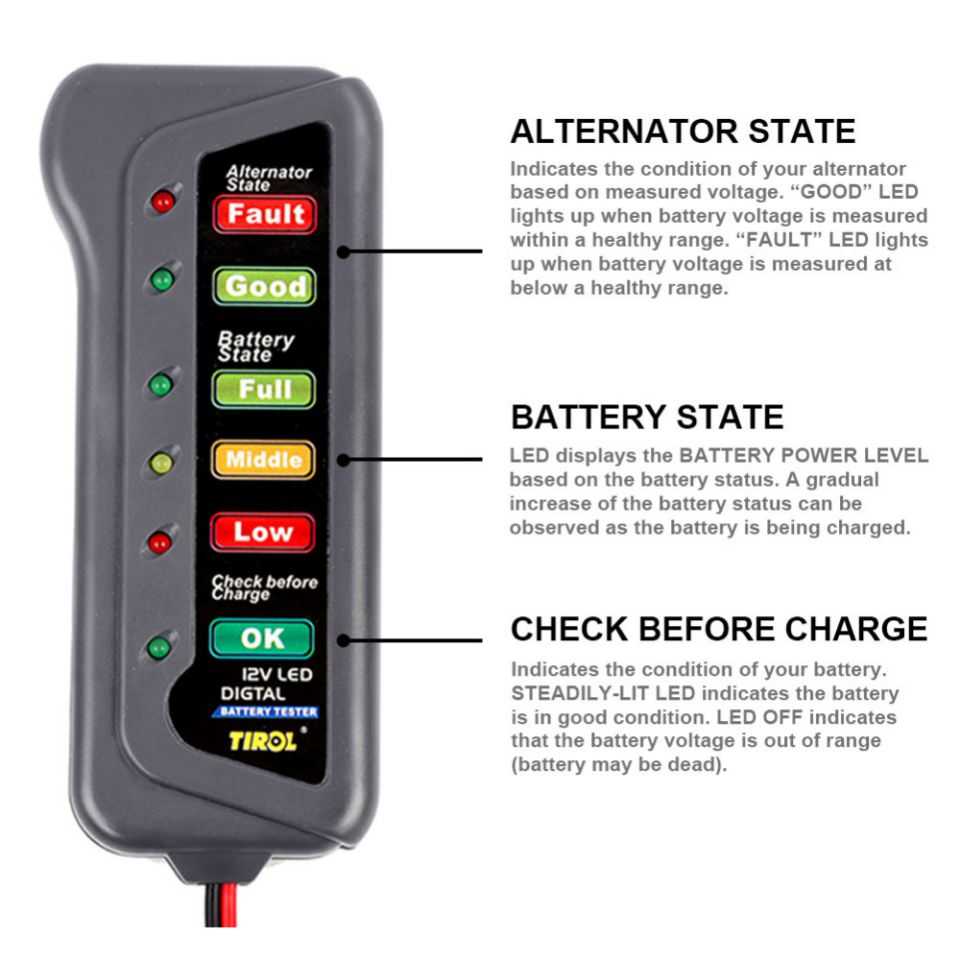

Led Display Indicates Condition
Alternator Check, Red(The First Light) Is Defective, Green(The Second Light)Is Well, Green(The Third Green Light) Is Fully Charged
Battery Check, Yellow(The Fourth Light)Is Half, Red(The Fifth Light) Is Little, Green(The Sixth Light) Is Ok
Certification: Ce/Rohs
