Automotive Circuit Tester

KZYEE KM10 Power Scan kit is the most revolutionary circuit tester to date, which works off of 12-24 Volt sources, featuring AVOmeter, test light, built -in flashlight, short circuit indicator, relay/component tester, continuity tester and bad ground indicator.

KZYEE KM10 Power Circuit Probe Kit Automotive Circuit Tester with Auto Electrical System Testing Functions is a one of our Automotive Circuit Tester Tools, you can buy KZYEE KM10 Power Circuit Probe Kit Automotive Circuit Tester with Auto Electrical System Testing Functions from chinaobd2.com.

Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3

images of KZYEE KM10 Power Circuit Probe Kit Automotive Circuit Tester with Auto Electrical System Testing Functions

This tool can be used to measure the DC voltage, AC voltage, resistance and diode of the automobile circuit. Activating components in your hand. You can use the probe tip to pierce the plastic insulation on a wire to test the data, the tool’s long cable allows you to test along the entire length of the vehicle.

1. ONE TESTER FOR ALL CIRCULT TESTING-- KZYEE KM10 power scan kit is the most revolutionary circuit tester, which performs each type of service, including power injection and measurement,ground testing, polarity checking, continuity testing and components activating etc.
2. DO ALL THE MULTIMETERS DO, AND MORE -- With this automotive voltage tester, you will be able to accurately diagnose the DC Voltage, AC Voltage, Resistance and Diode of the 12v-24v electrical systems by simply pressing the mode button.
3. COMPONENTS ACTIVATING-- Our auto probe tester is capable to power up the components, such as cooling fans, starters, relays, windows, washers and so on. Powered by the car battery or cigarette lighter, no additional battery or wires pulling needed.
4. WORTH TO OWN-- The electrical system diagnostics tool provides 20ft extension cable for you to reach all around your vehicles, trucks and trailers (12V-24V). And the built-in flashlight is bright enough to light up your work area.
5. KM10 short circuit tester has the ability to tests for bad ground contacts instantly, tracking and locating shorts fast without losing fuses. What’s more, it is circuit breaker protected, which is a safer measure to protect the tool from overload.
6. Built-in Red/Green Polarity LED: Easy to determine the Positive, Negative and Open Circuit
7. LCD Screen Display, Easy to Read Indicated Test Results: A large color LCD screen, can display all the test result, save your time on diagnose car electrical problems.
8. Head Lights & Audio Tone, Make It Possible to Work in the Dark: Built-in front LED flashlights, allow to work in the dark environment. Audio tone indicator, no-look menu scrolling once users are familiar with menu tone assignment.
9. Circuit Breaker Protection Technology: Ability to power up components. Automatically shut-off if current exceeds 5 Amperes, it design to protect an electrical circuit from damage caused by over current, typically resulting from an overload or short circuit.

1. Perform these functions: power injection, measuring, ground testing, polarity checking, continuity testing and component activation
2. Read the AVO meter, voltage, current, and resistance easily.
3. Press the power switch lightly and get the instant heat ground lead to energize the electrical components, such as the cooling fan, relay etc.
4. Activate the components by using the hot wire and ground lead simultaneously
5. Determine the positive, negative and open circuit quickly.
6. Test the bad ground contacts quickly, follow and locate short circuits without wasting the fuse
7. Test the continuity of the power switch, relay and diode quickly
8. Protect the tool from overload through the inner circuit breaker
9. Allow you to work in the dark area by using the built-in head light.
10. Operate the tool without looking at the menu once users are familiar with the tone Test along the vehicle by the long cable

Warm Note: This probe is very sharp on the pointed end, easily to get hurt. Better to be more careful when performing.

Activating Components in Your Hand and in the vehicle.With a flip of the power switch, you have a hot instant / grounding for voltage & polarity testing.Powering up components such as windows, lights, starters, wipers, and so on. Simultaneously uses the hot lead and the ground wire to activate elements right in your hand.

KM10 Test Tool Specifications

• DC voltage range: 0-65V +1digit
• Resistance range: 0-100 kΩ
• Rating current: 1-10 Amp
• Frequency response of tone pass through 0Hz to 10Khz.
• Testing Standard:100% current: Hold > 1 hour150% current: trip in one hour200% current: trip in 3-30 seconds.300% current: trip in 0.5-4.0 seconds.

KM10 Electrical System Tester
Main Features

• Continuity Testing
• Signal Circuit Testing
• Trailer Lights Testing
• Voltage & Polarity Testing
• Short Circuits Locating
• Bad Ground Contacts Checking
• Audible Monitoring of Electrical Signals

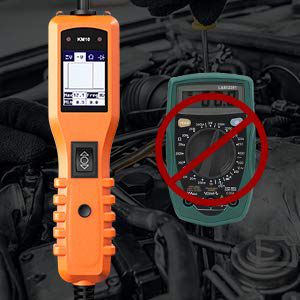

Does More Than a Multimeter.Simply choose the diagnose mode by pressing the mode button, and then contact the probe tip to a circuit, the LCD display will read the DC/AV voltage, resistance.

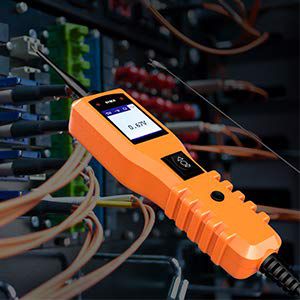

Short Circuit Finder, Bad Ground Checker KM10 follows and locates open or short circuit without having to move panels, molding or carpet to expose wires. No more fuses wasting.
No Extra Battery Needed 2 power recources. Simply connect the KM10 with the cigarette lighter or battery electrode, then you are ready to go.

KZYEE KM10 Specifications:

• Display: TFT color display (160 x 128 dpi)
• Operating Temperature: 0 to 60°C (32 to 140°F)
• Storage Temperature -40 to 70°C (-40 to 185 F)
• External Power: 12.0 or 24.0 V power provided via vehicle battery

• 1pc x KZYEE KM10 Vehicle Super Probe
• 1pc x Extension cable
• 1pc x Battery hookup clips
• 1pc x Cigarette lighter adapter
• 1pc x User's Manual
