this ELM327 Bluetooth Auto Code Reader Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok
ELM327 V1.5 Viecar VC002-A Bluetooth Auto Code Reader Support 9 OBDII Protocol Works on Android Torque is a one of our Auto Code Reader Tools, you can buy ELM327 V1.5 Viecar VC002-A Bluetooth Auto Code Reader Support 9 OBDII Protocol Works on Android Torque from chinaobd2.com.
Wholesale Top quality BENZ ECOM DoIP Diagnostic and Programming Tool, Super DSP3+ Odometer Correction Tool, VAS 5054A ODIS GM Tech2, Scania VCI3
images of ELM327 V1.5 Viecar VC002-A Bluetooth Auto Code Reader Support 9 OBDII Protocol Works on Android Torque

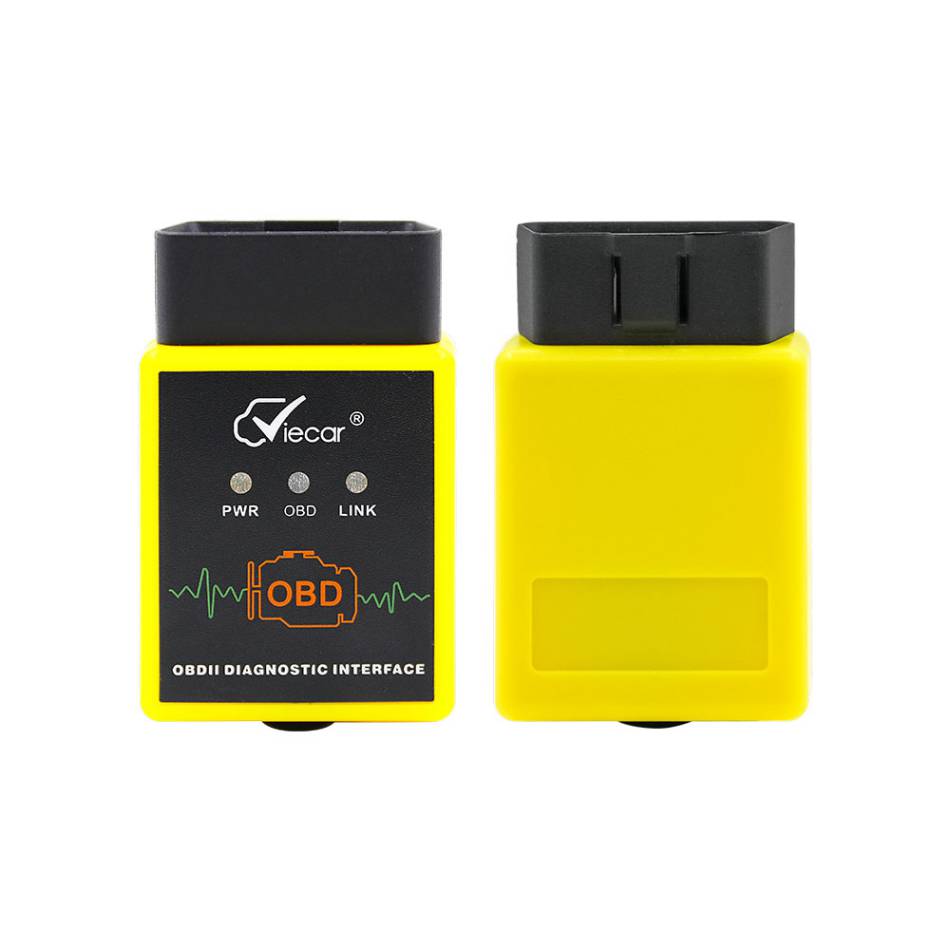

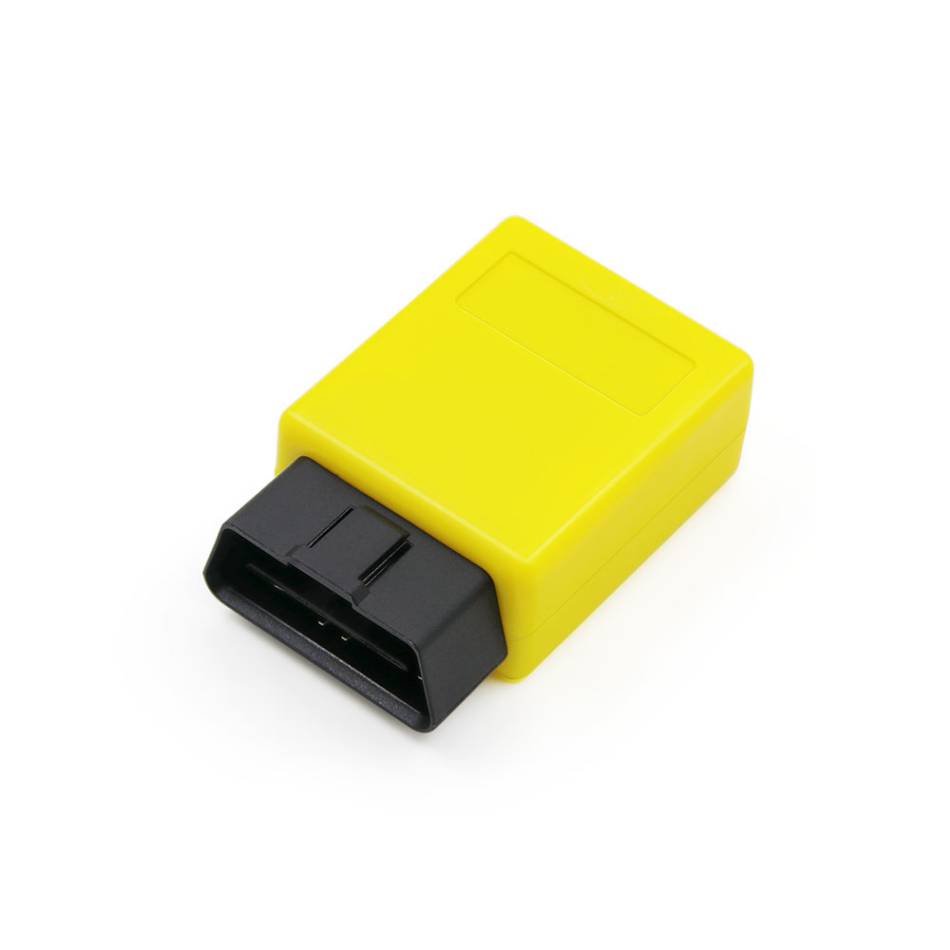

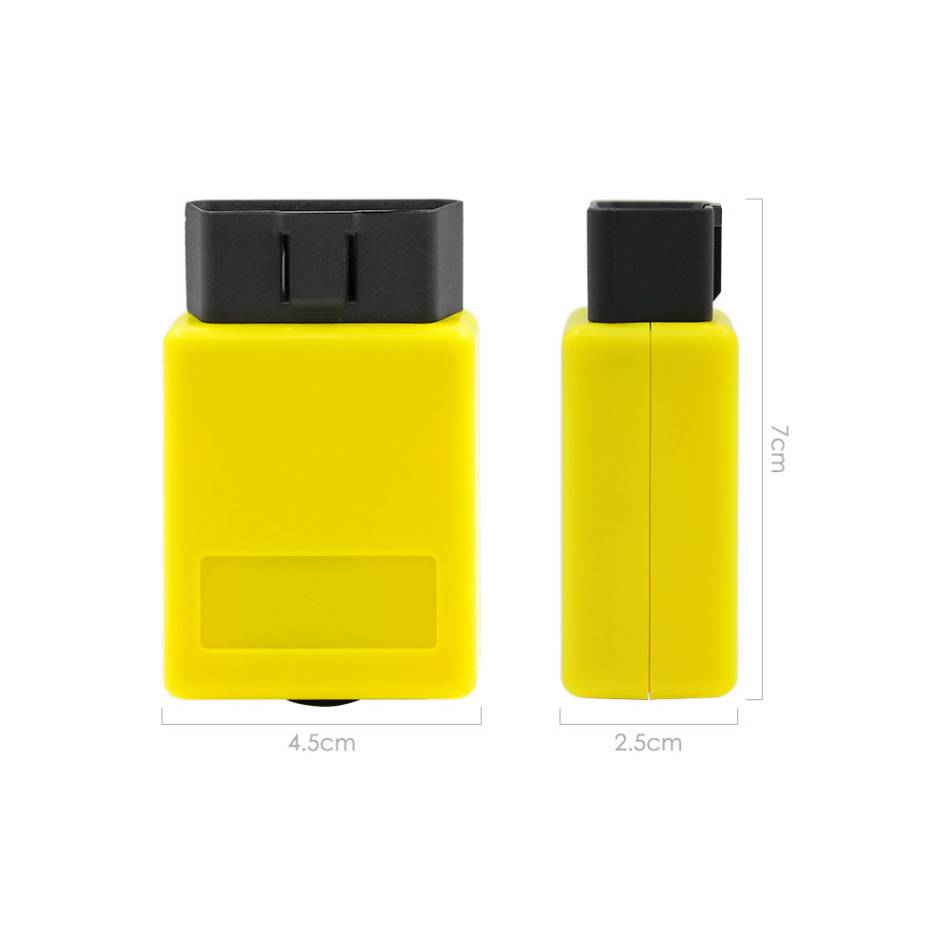

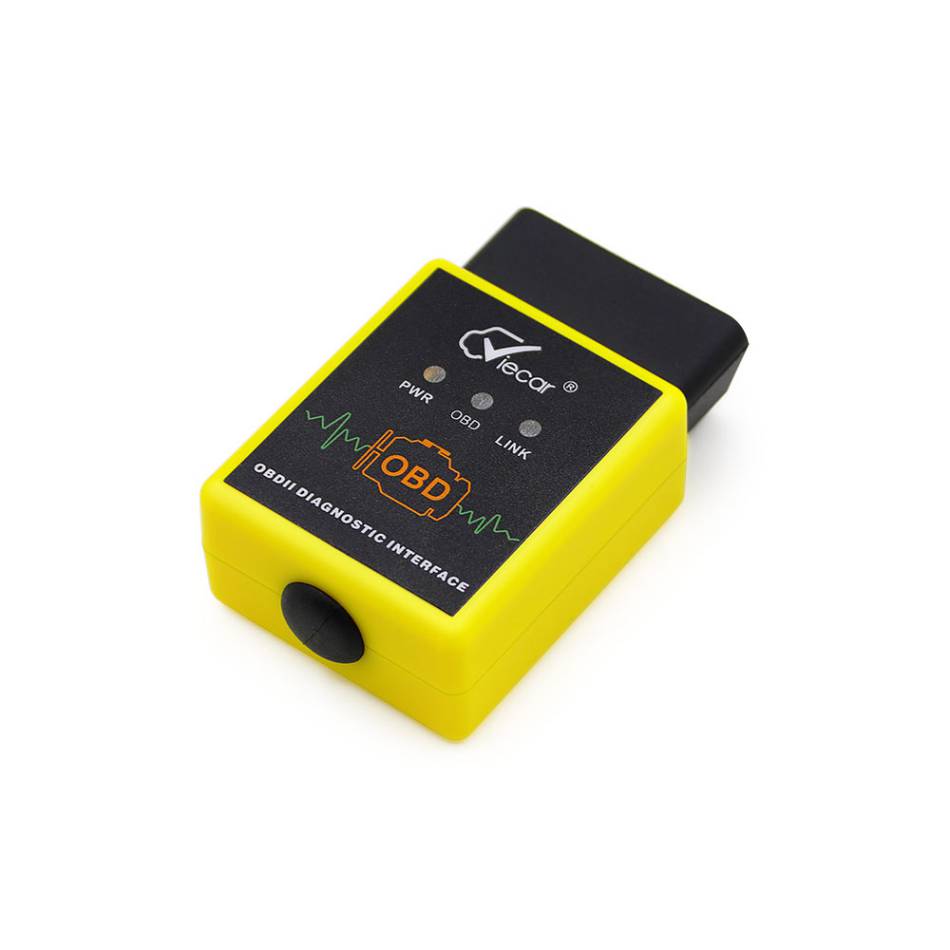

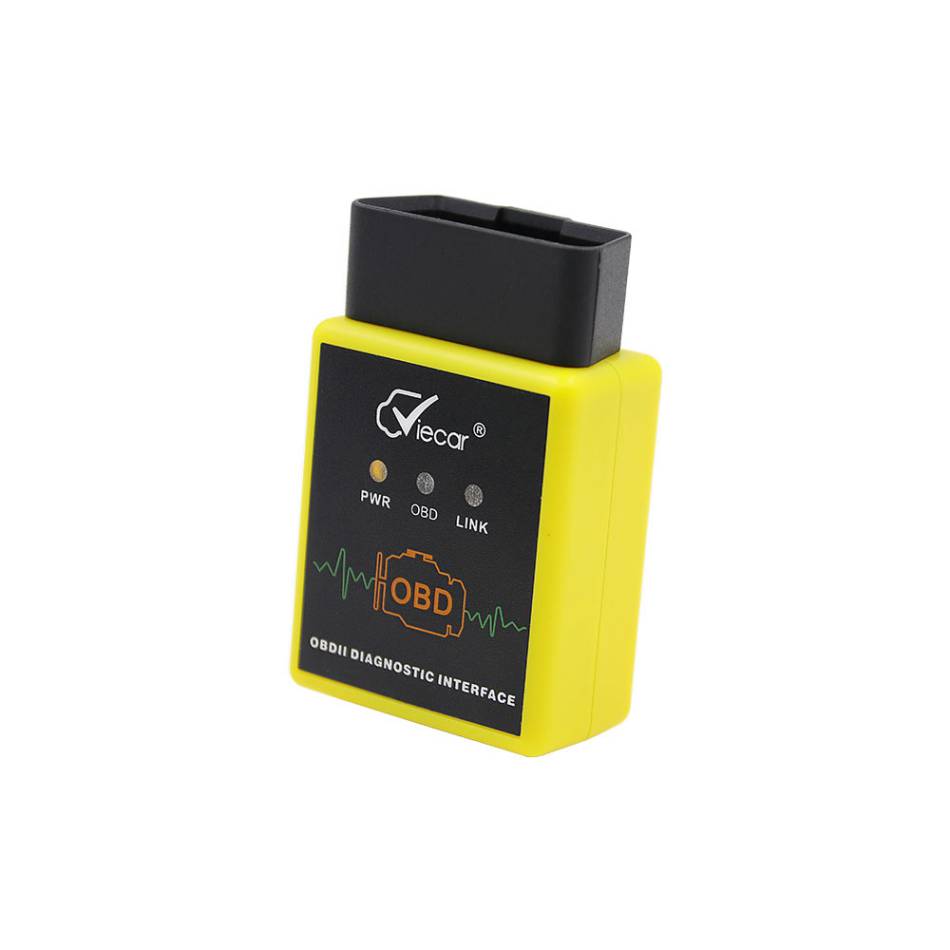

ELM327 V1.5 Viecar VC002-A Bluetooth Auto Code Reader Support 9 OBDII Protocol Works on Android Torque
No.:VC002-A
Version:9 OBDII Protocol
Connect:Bluetooth
Description:
Works on all 1996 to 2010 cars and light trucks sold in the United States, some 1994 and 1995 models are also ok.
Software included in CD for Smartphone(Android, Symbian), PC(Windows XP, Windows 7 and Windows 8).
OBD-II Software for ELM327 Bluetooth is a free program that allows you to use your PC and a hardware interface to get the information from your car's computer.
The program is very user-friendly, and easy to learn. It is also very easy to install: simply extract the files into a folder on your computer's hard drive, and you're ready to go. To uninstall the program, simply delete the entire contents of the folder where the program resides.
Multi-Protocol Support:
- SAE J1850 PWM (41.6Kbaud)
- SAE J1850 VPW (10.4Kbaud)
- ISO9141-2(5 baud init, 10.4Kbaud)
- ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
- ISO14230-4 KWP (fast init, 10.4 Kbaud)
- ISO15765-4 CAN (11bit ID, 500 Kbaud)
- ISO15765-4 CAN (29bit ID, 500 Kbaud)
- ISO15765-4 CAN (11bit ID, 250 Kbaud)
- ISO15765-4 CAN (29bit ID, 250 Kbaud)
The program lets you perform the following operations:
- Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
- Clear trouble codes and turn off the MIL ("Check Engine" light)
- Display current sensor data, including:
- Engine RPM
- Calculated Load Value
- Coolant Temperature
- Fuel System Status
- Vehicle Speed
- Short Term Fuel Trim
- Long Term Fuel Trim
- Intake Manifold Pressure
- Timing Advance
- Intake Air Temperature
- Air Flow Rate
- Absolute Throttle Position
- Oxygen sensor voltages/associated short term fuel trims
- Fuel System status
- Fuel Pressure
AND Many others...
Compatible software:
Android version: Torque, OBD Car Doctor, Mini OBD, DashCommand, EOBD;
Symbian version: OBDScope.
Support System: Windows XP, Windows 7/8, Android, Symbian
